Overview

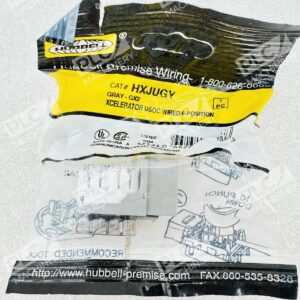

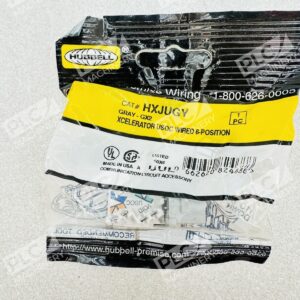

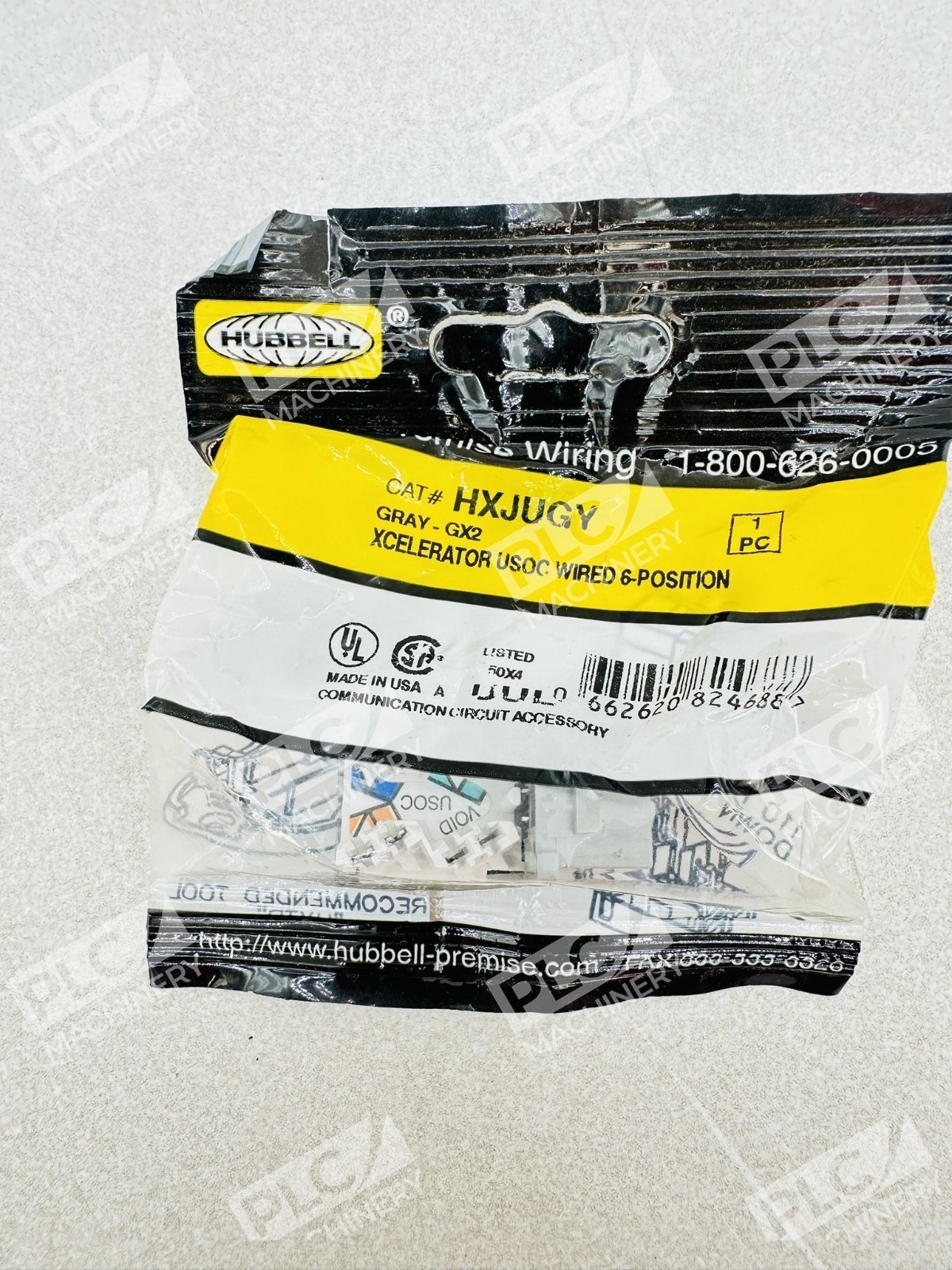

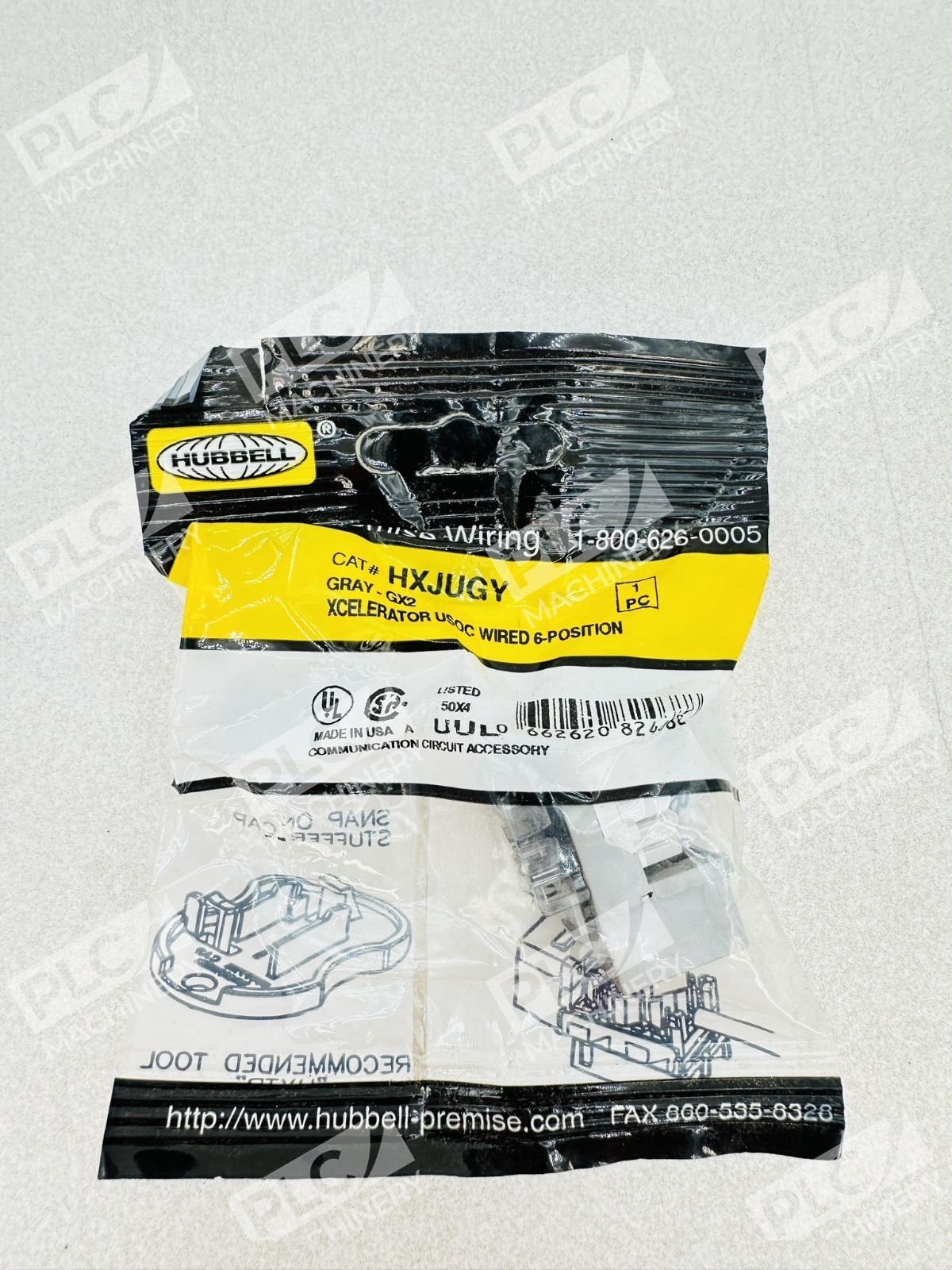

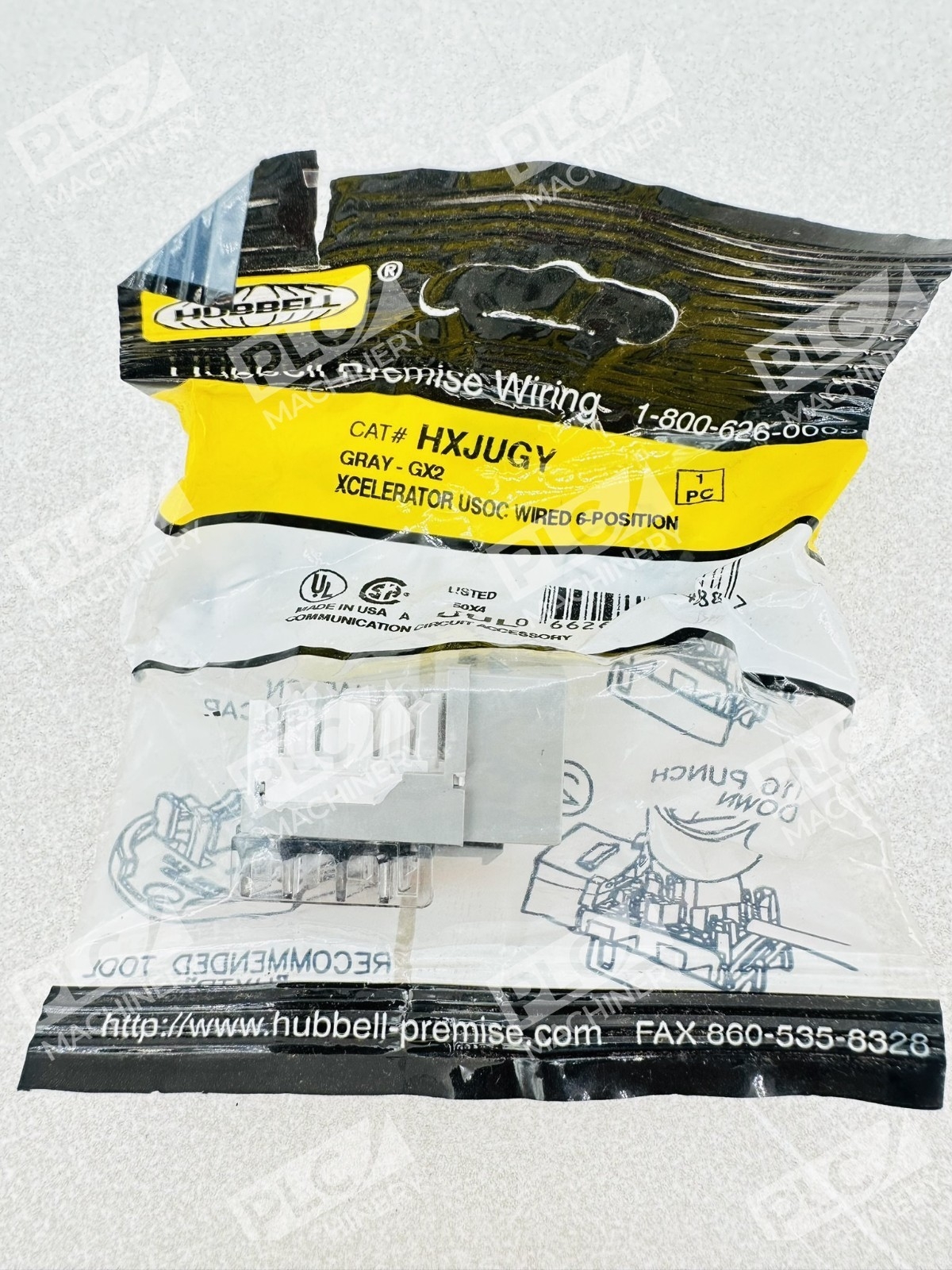

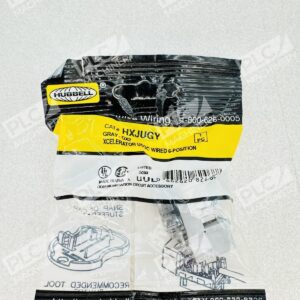

The Hubbell HXJUGY is part of the Xceleratorâ„¢ series of modular jacks designed for reliable telephone and data distribution applications. This 6-position USOC-compliant jack features a gray housing and delivers industry-standard performance for telecom wiring infrastructure. Whether deployed in structured cabling systems or patch panels, the HXJUGY provides consistent signal integrity and mechanical durability.
Key Features
- 6-Position USOC Compliance: Meets universal service order code standards for telephone and data applications

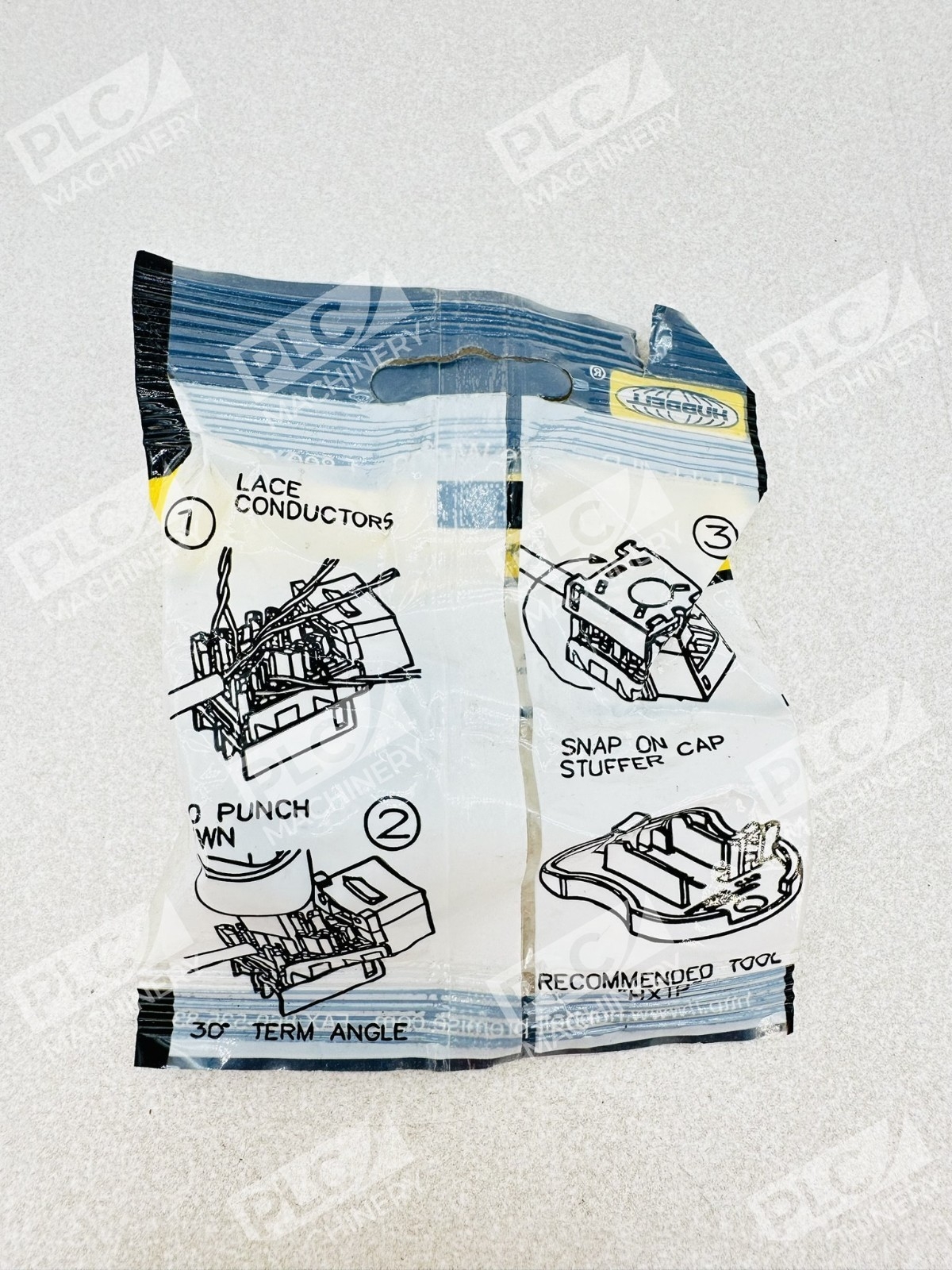

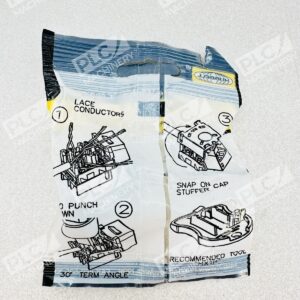

- IDC Termination: Insulation displacement contact design simplifies field termination without stripping wire
- High-Impact Thermoplastic Housing: UL 94 V-0 rated for safety and durability
- Operating Cycles: 2000+ mating cycles ensure long service life
- Voltage Withstand: 1000 Vac @ 60 Hz isolation meets safety requirements
- RJ-45 Connectivity: Compatible with standard RJ-45 plugs and patch cords
Technical Specifications
- Type: Modular Jack, 6-Position USOC
- Housing Material: High-impact thermoplastic (UL 94 V-0)
- Contact Material: IDC phosphor bronze with 100 micro-inch tin over nickel plating; nose contact beryllium copper with precious metal plating
- Connectivity: RJ-45 jack to IDC punch down
- Contact Resistance: 100 Ohm
- Withstand Voltage: 1000 Vac @ 60 Hz, 1414 VDC
- Operating Cycles: 2000 plug insertions
- Temperature Rating: -40°C to +75°C continuous
- Size: 0.86 × 0.67 × 1.29 inches (22 × 17 × 33 mm)
- Environmental: Indoor dry location (use protective enclosures in wet environments)
- Certifications: UL Listed 1864, CSA certified, TIA-568 compliant, RoHS compliant

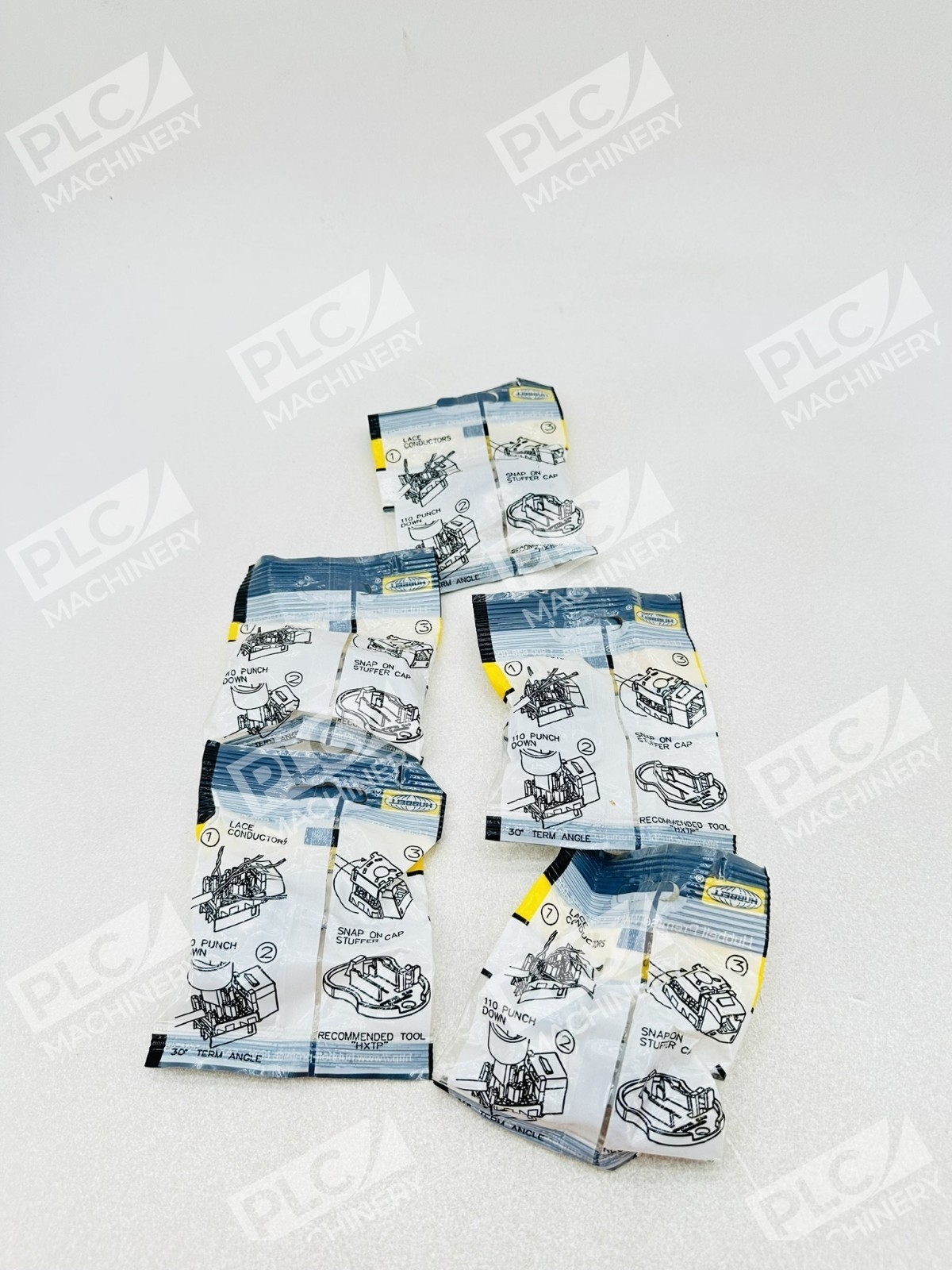

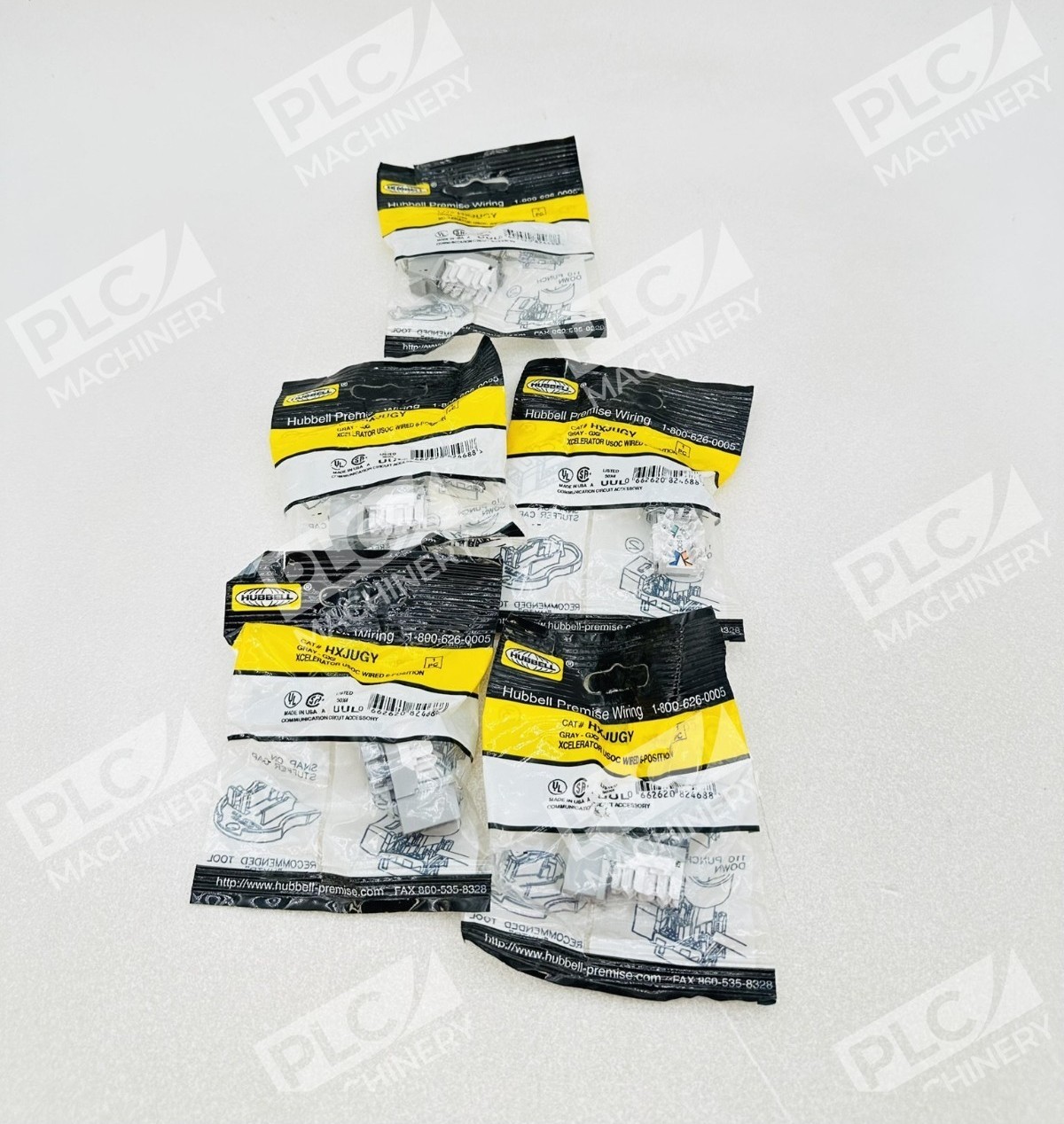

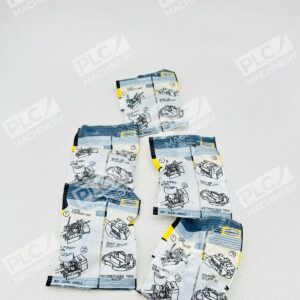

- Standard Pack: 25 units per carton
Typical Applications
- Telephone distribution frames and cabinets
- Structured cabling systems and wiring closets
- Patch panels and high-density termination fields
- Data center and enterprise telecommunications infrastructure
- Building backbone cabling (voice and low-speed data)
- Category 3, 5e, and 6 cable terminations
Compatibility & Replacements
Compatible With
- Standard RJ-45 plugs and patch cords
- Category 3, 5e, and 6 telephone/data cables
- Hubbell patch panels and wiring distribution equipment
- Industry-standard TIA-568 wiring schemes (A/B configurations)
- IDC punch-down installation tools
Replaces / Drop-In Replacement For
- Hubbell HXJUOW (white 6-position USOC jack)
- Other standard 6-position USOC jacks meeting TIA-568 mechanical specifications
Works With
- Hubbell Xceleratorâ„¢ series jacks and patch panels
- Standard telecommunications wiring practices (per TIA-568)
- Cat3, Cat5e, Cat6 structured cabling systems
- IDC termination and punch-down deployment methods
