Overview

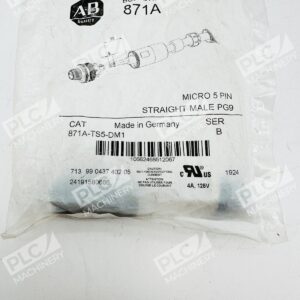

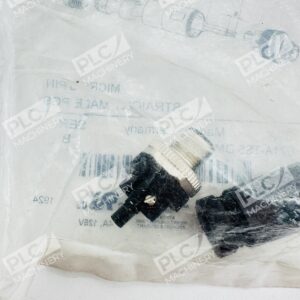

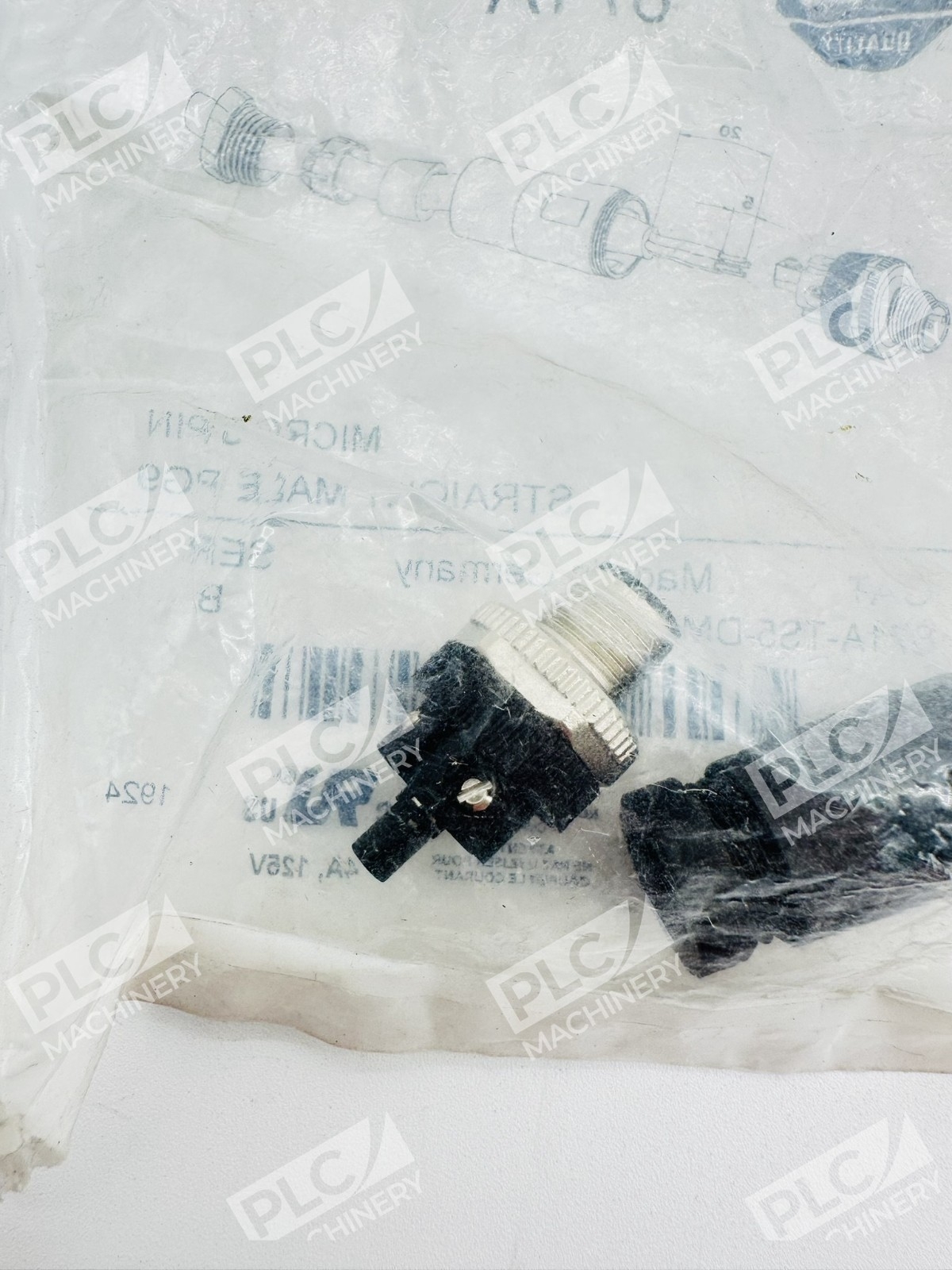

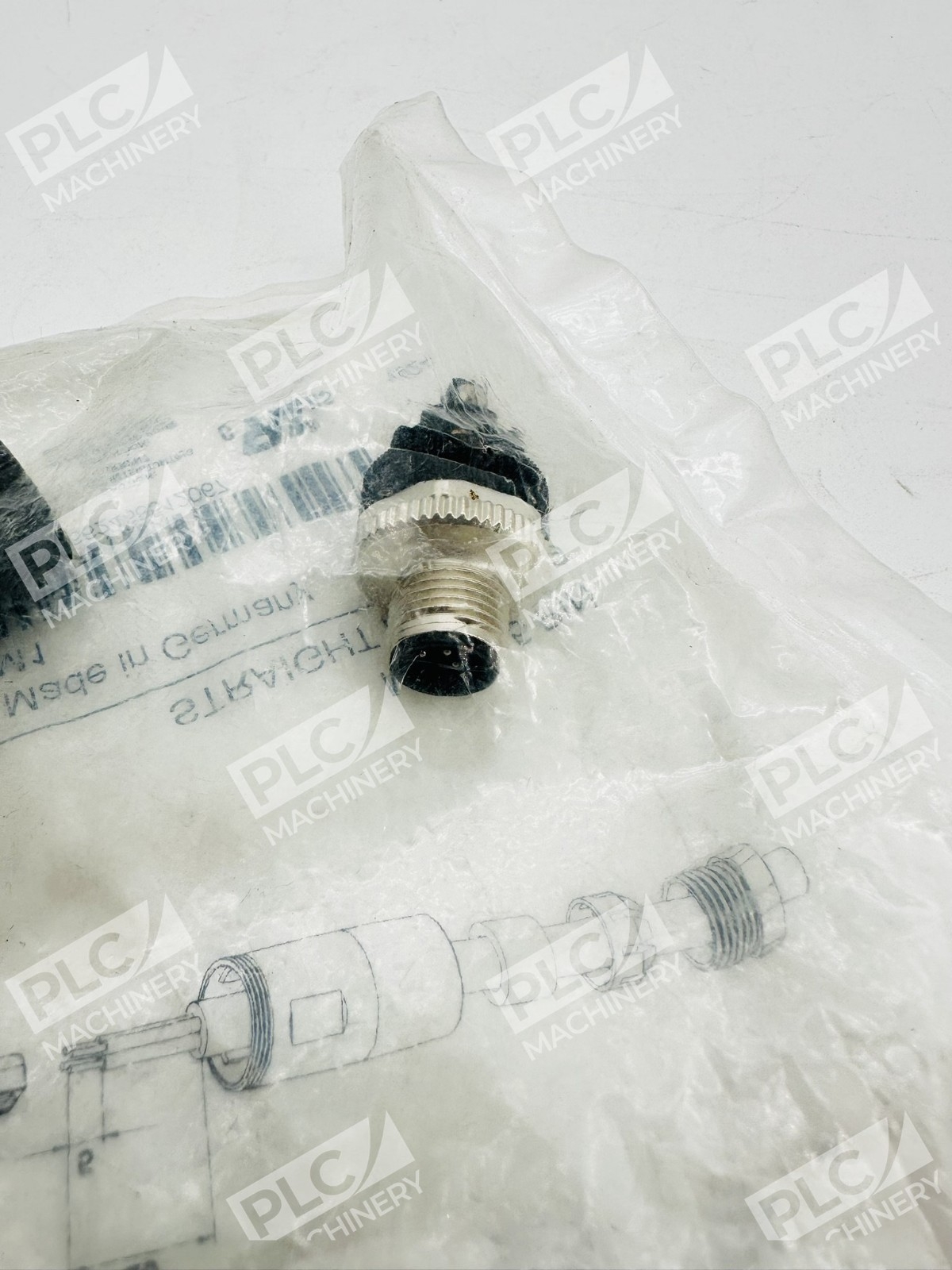

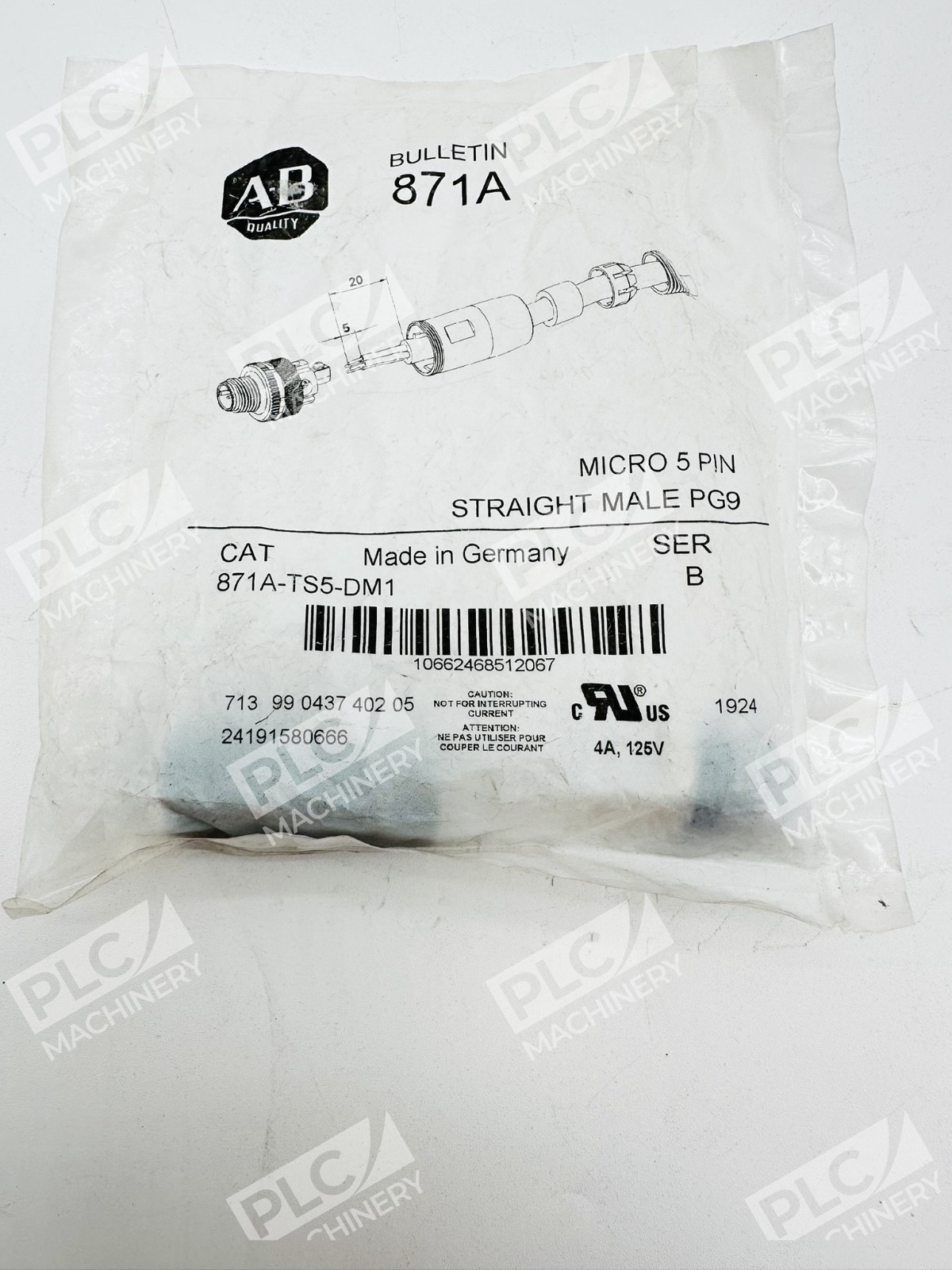

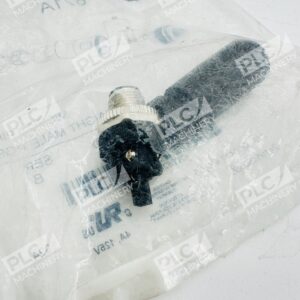

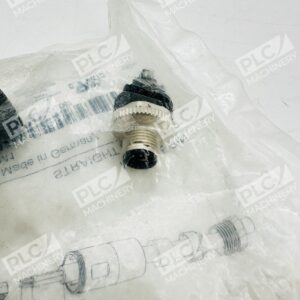

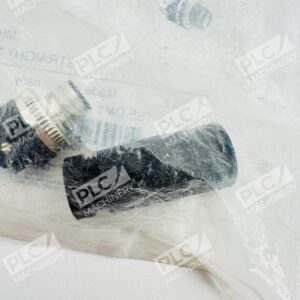

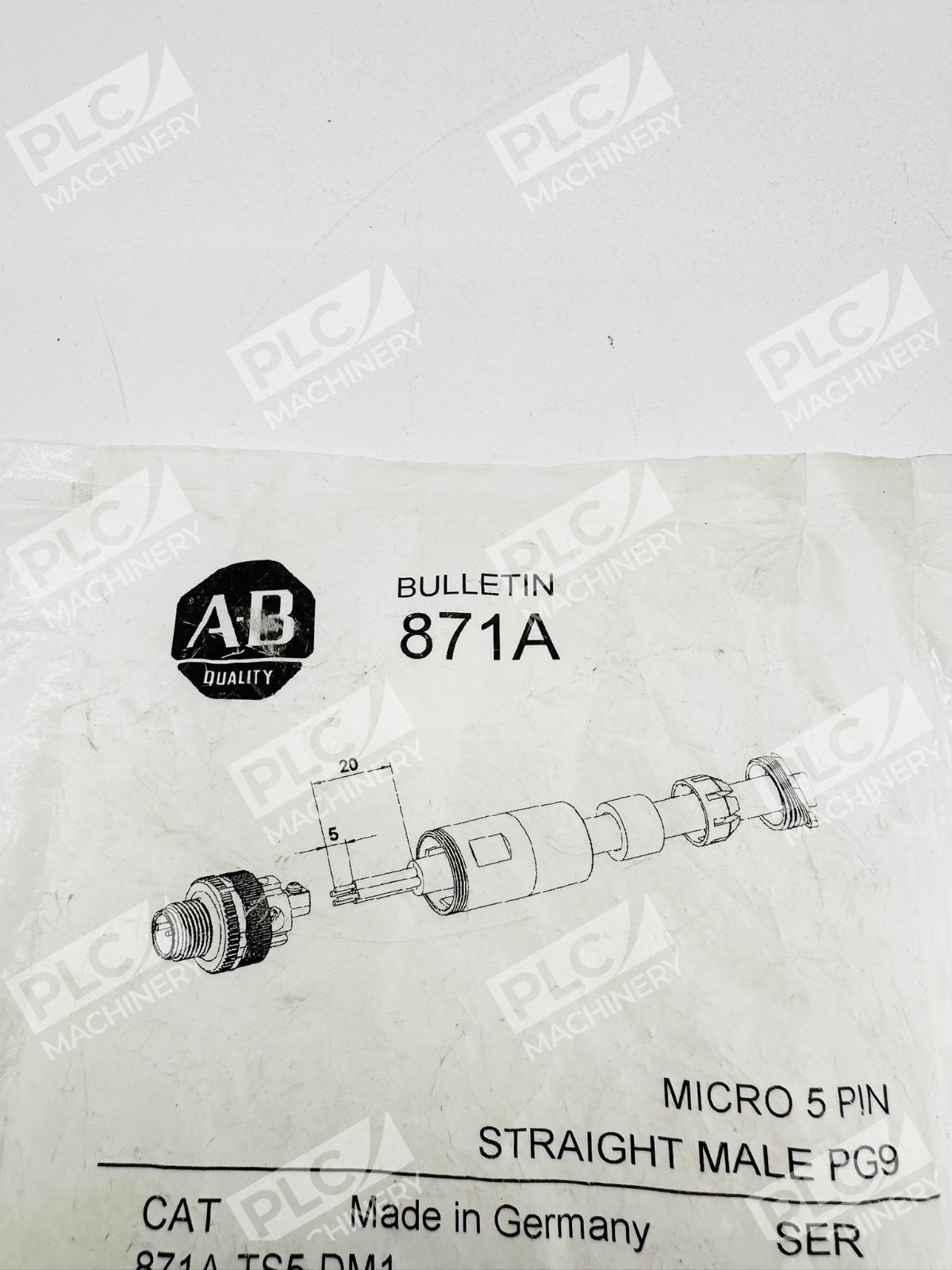

The Allen-Bradley 871A-TS5-DM1 is a field-attachable terminal chamber connector in the M12 Micro family. This straight male connector features a 5-pin DC configuration with external threads, making it an ideal drop-in component for industrial automation systems, sensor networks, and motion control setups. The Series B designation ensures compatibility with current Allen-Bradley product families and industrial automation standards.
Key Features
- M12 Micro DC connector with 5-pin configuration
- Straight male connector body with external threads
- Field-attachable design for ease of installation and repair
- 4-amp continuous current rating
- Compact form factor for space-constrained panels and enclosures
- Series B construction with robust terminal chamber design
Technical Specifications
Cable compatibility: 6–8 mm (0.24–0.31 in) PG9 connector gland
Pin configuration: 5-pin DC Micro (M12)
Current rating: 4 amps
Connector orientation: Straight male
Thread type: External (M12 × 1.0)
Field attachable: Yes
Terminal chamber design: Secure wire termination
Standard materials: Per IEC 61076-2-109
Typical Applications
- Proximity sensors and inductive switches in manufacturing environments
- Safety-rated sensors and diagnostic monitoring devices
- Motor control and drive signal connections
- PLC I/O module field wiring
- Industrial Ethernet gateway connections
- Control panel to field device interconnect
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and SLC 500 I/O modules with M12 input connectors
- Rockwell Automation safety controllers and sensor networks
- Standard M12 A-coded (IEC 61076-2-109) sensor systems
- Industrial automation platforms supporting 5-pin DC Micro connectivity
Replaces / Drop-In Replacement For
Verify specific cross-references and legacy model compatibility with your system integrator. The 871A-TS5-DM1 Series B is the current production unit and supersedes earlier Micro connector variants in similar configurations.
Works With
- Studio 5000 Logix Designer (Allen-Bradley PLC programming environment)
- IEC 61076-2-109 M12 A-code standardized field devices
- EtherNet/IP, PROFINET, and CANopen communication modules
- Third-party M12 Micro sensors and field devices with 5-pin DC pinout
- RSLogix 5 and RSLogix 500 legacy programming platforms
