Overview

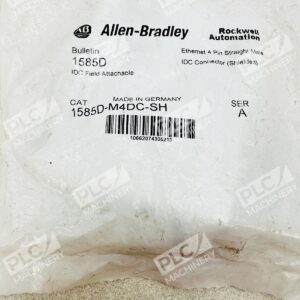

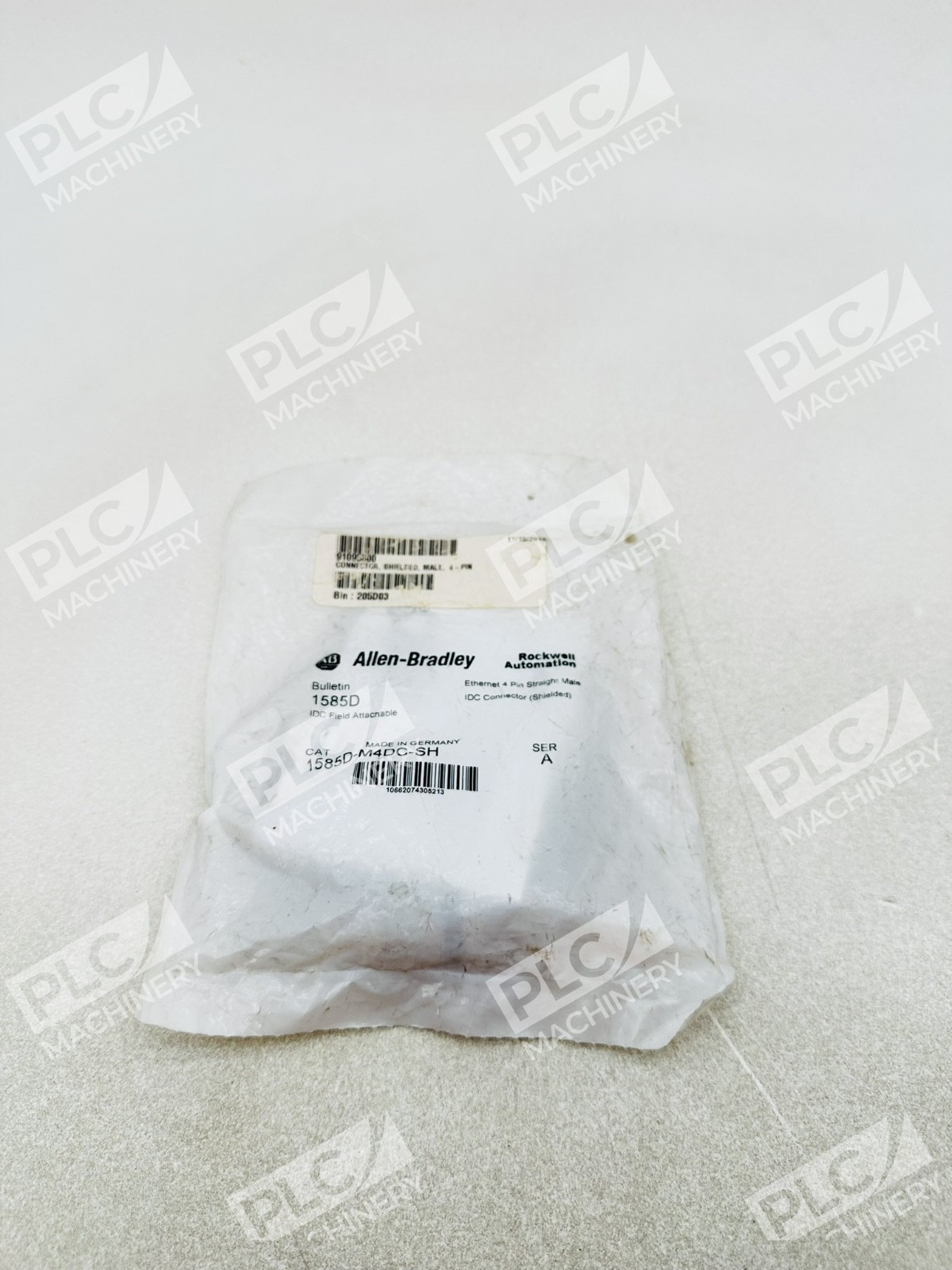

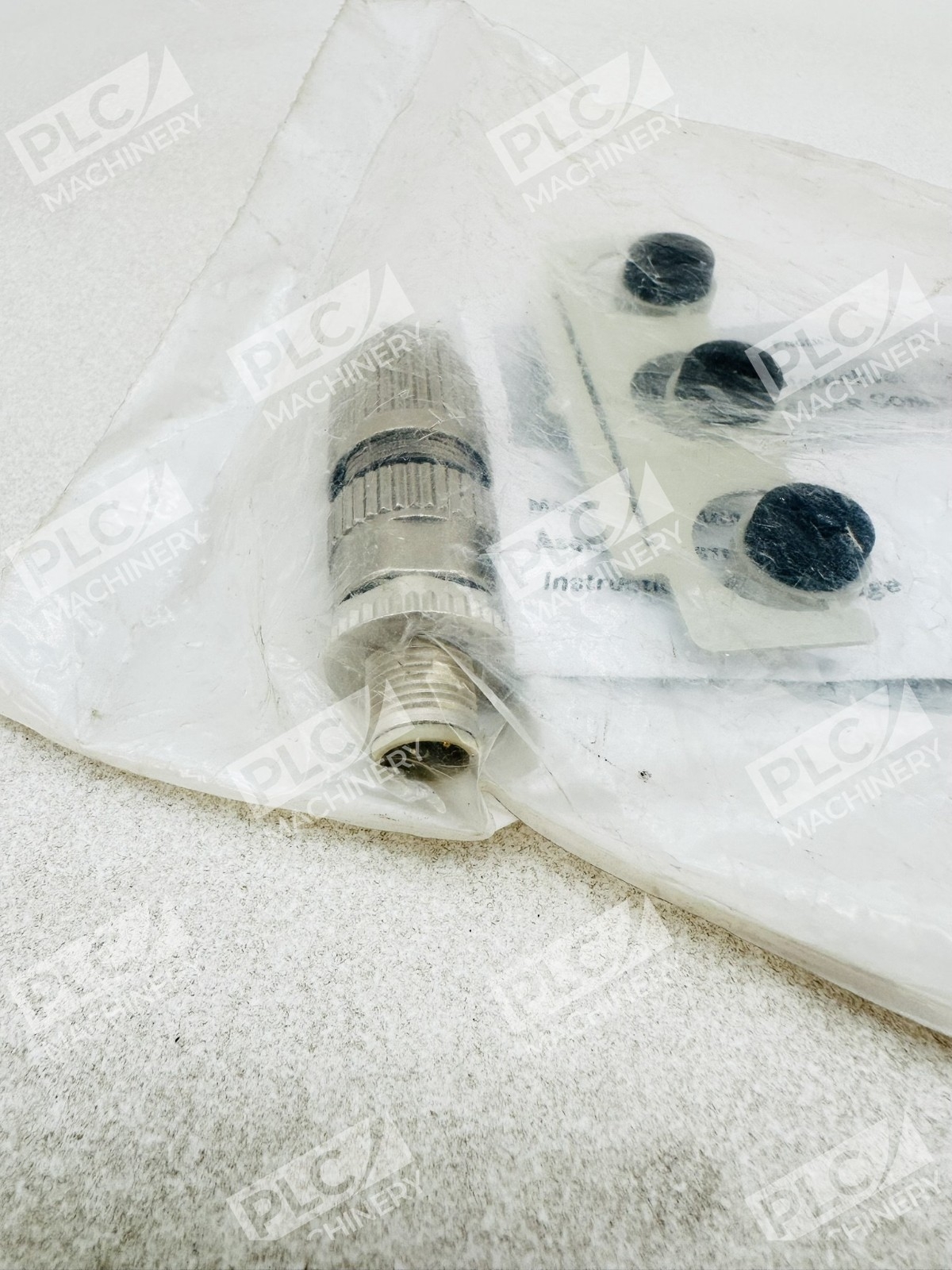

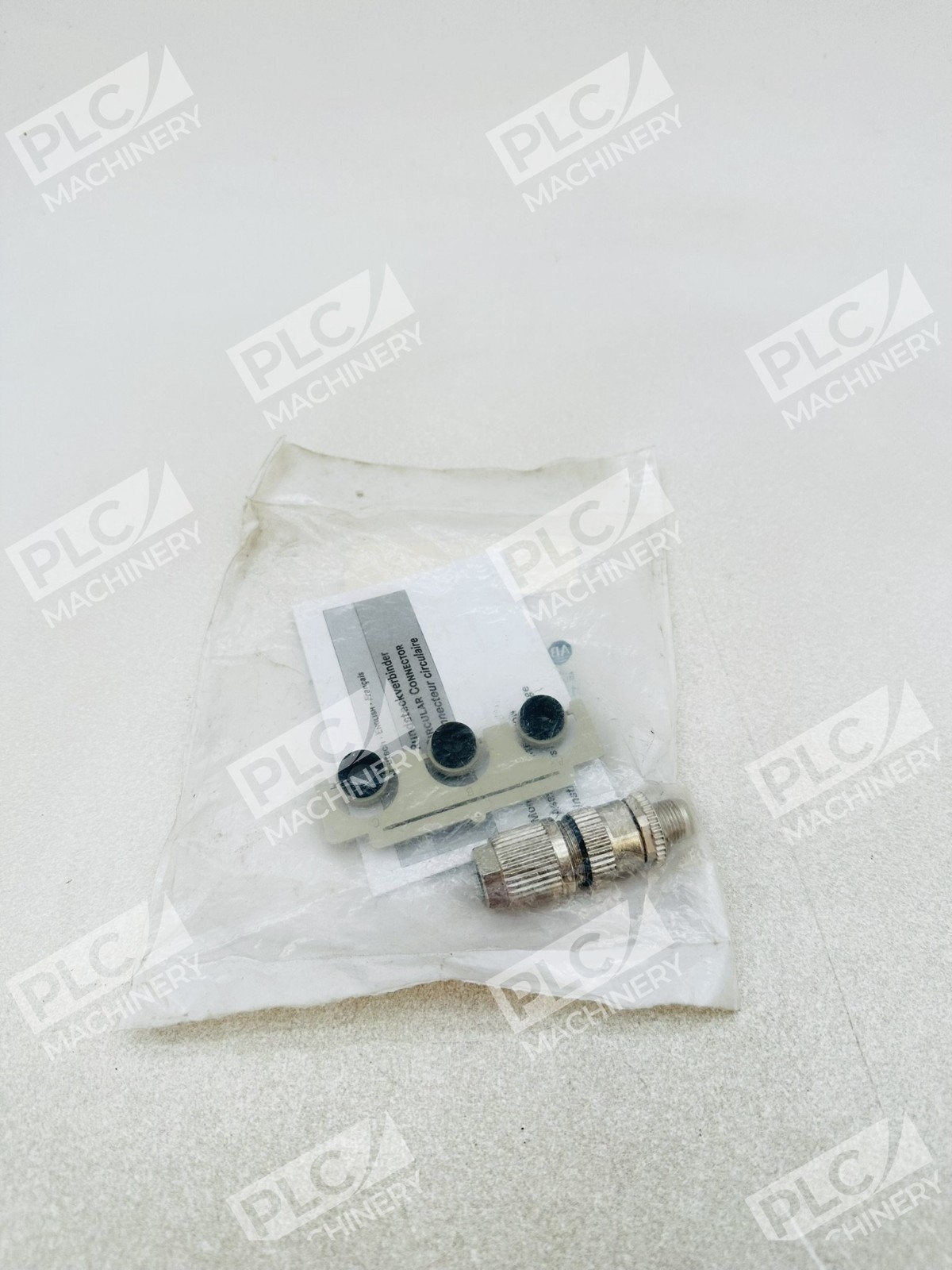

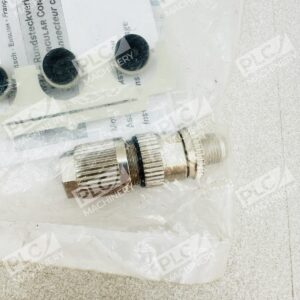

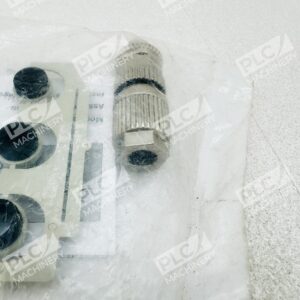

The Allen-Bradley 1585D-M4DC-SH is a shielded M12 insulation displacement connector (IDC) designed for rapid field attachment to Ethernet cables in industrial automation environments. This straight male connector features a robust zinc die-cast body and supports toolless installation without hand tools, making it ideal for maintenance technicians and system integrators who need fast, reliable cable termination in hazardous or IP67-rated locations.
Key Features
- 4-pin D-coded M12 form factor for EtherNet/IP and industrial Ethernet applications
- Shielded design with zinc die-cast housing for EMI protection and harsh-environment durability
- Toolless insulation displacement (IDC) installation—no crimping or hand tools required
- IP67 rated enclosure type—sealed against dust and water ingress for outdoor and washdown environments
- Operating temperature range -25 to +85 °C (-13 to +185 °F) with installation temperature -5 to +50 °C
- Supports twisted-pair Ethernet cables with high noise immunity and robust signal integrity
Technical Specifications
- Connector Type: M12 D-code, 4-pin, straight male, shielded
- Wire Size: 24–22 AWG (shielded cable)
- Cable Diameter: 5.5–7.2 mm (0.22–0.28 in.)
- Assembly Rating: 32V DC, 4A maximum
- Enclosure Type Rating: IP67 (dust-tight, water-jet resistant)
- Operating Temperature: -25 to +85 °C (-13 to +185 °F)
- Installation Temperature: -5 to +50 °C (23 to 122 °F)
- IDC Re-installation Cycles: Maximum 10 cycles per connection point
- Housing Material: Zinc die-cast (shielded body)
- Standards Compliance: ISO IEC 24702, IEC 61918
Typical Applications
- Remote I/O junction boxes and distributed Ethernet networks in manufacturing facilities
- Machine-mounted control systems requiring IP67 network connectivity in wet or contaminated environments
- Field-attached custom Ethernet cordsets for on-machine automation and Armor I/O solutions
- High-vibration industrial settings where toolless, field-replaceable connectors prevent cable failure
- Cat5e and Cat5 twisted-pair Ethernet cable termination for M3I3C3E3 noise-immunity environments
Compatibility & Replacements
Compatible With
- Allen-Bradley EtherNet/IP networks and distributed I/O systems
- Rockwell Automation Armor On-Machine solutions and remote junction boxes
- Standard Cat5e and Cat5 twisted-pair Ethernet media (4-pin D-code configurations)
- Industrial Ethernet networks using M12 D-code female sockets (1585D-F4DC-SH and similar)
- ISO IEC 24702 and IEC 61918 compliant M12 Ethernet systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. Consult Rockwell Automation literature or technical support for equivalent part numbers in legacy or regional product lines.
Works With
- EtherNet/IP protocol and Rockwell Automation CompactLogix, ControlLogix, and Micro800 controllers
- Industrial Ethernet networks supporting M3I3C3E3 noise environments (M = machinery, I = industrial, C = conductive, E = EMI)
- Twisted-pair Cat5e Ethernet media for high noise immunity and signal integrity in industrial settings
- Field-configurable M12 cable assemblies and custom Ethernet cordsets for Allen-Bradley distributed automation systems
