Overview

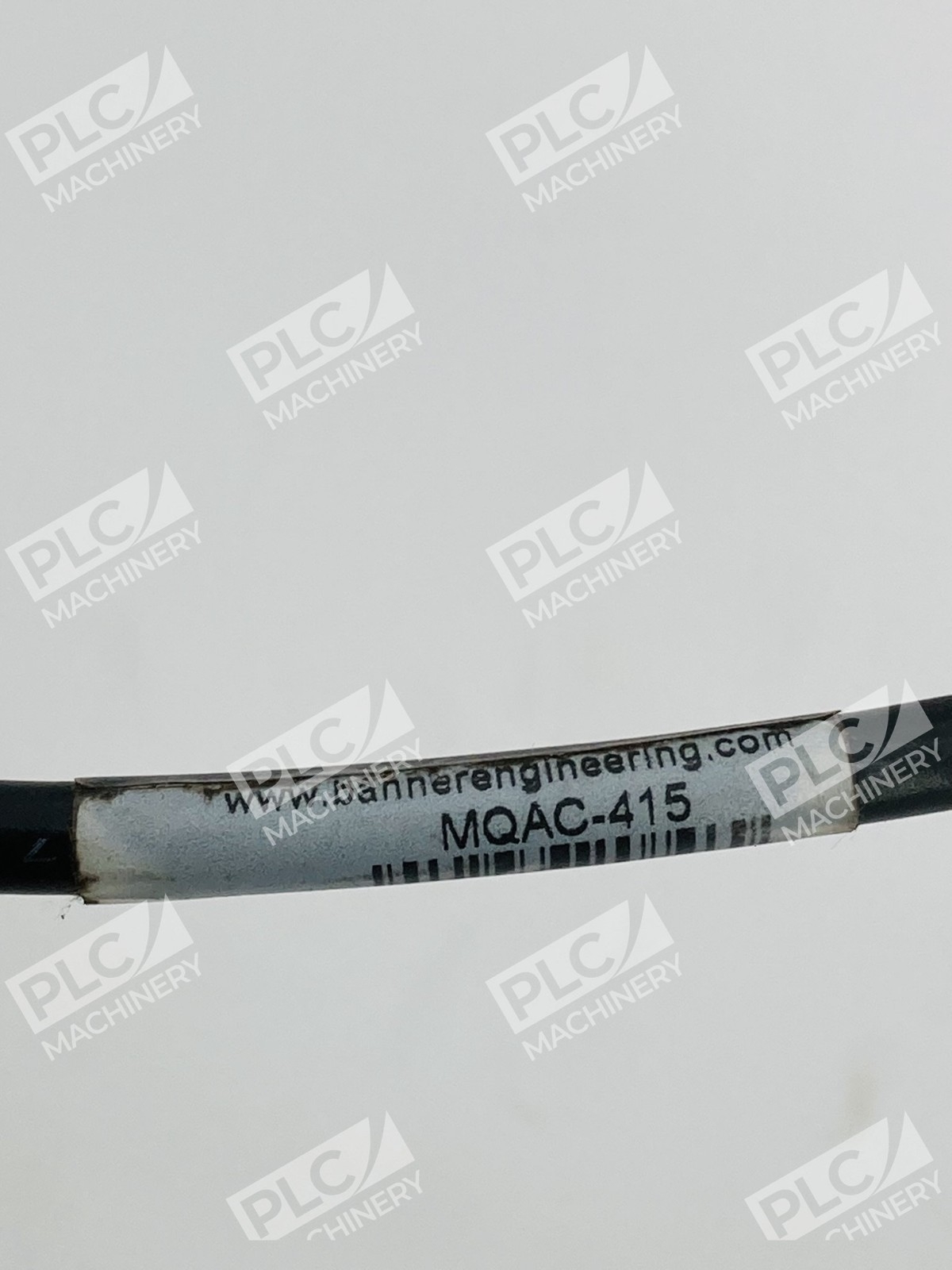

The Banner MQAC-415 is a Micro Style Quick Disconnect (QD) cordset designed for rapid equipment replacement and troubleshooting in industrial automation. Quick-disconnect cables allow sensors and safety devices to be replaced or moved quickly, minimizing down-time. This single-ended cable features a 4-pin straight female connector with flying leads, making it ideal for connecting sensors, proximity switches, and safety devices in control systems.
Key Features

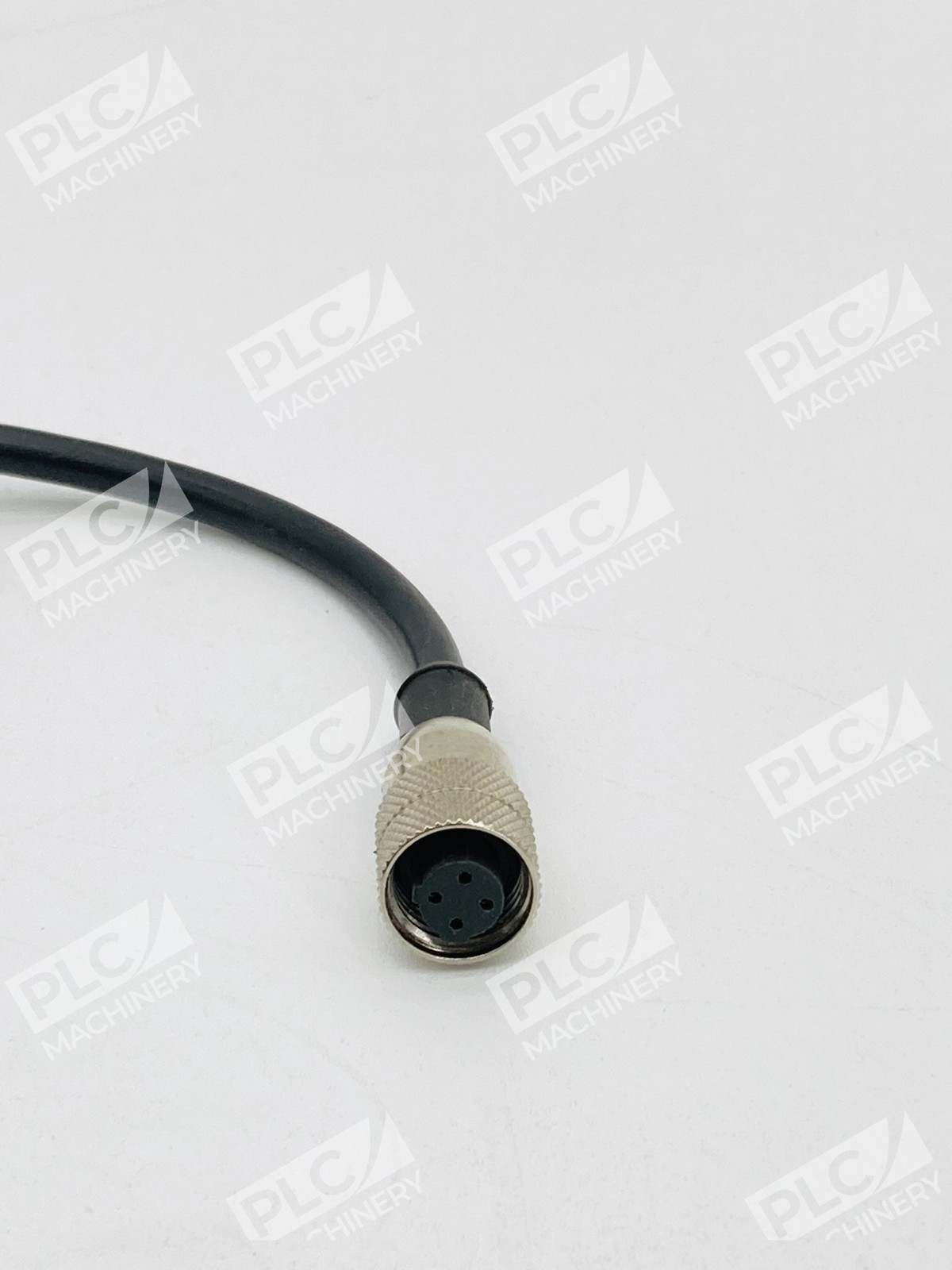

- Micro style 4-pin straight female C Code connector with standard C-pin configuration
- 5 m cable length with 4×22 AWG wiring and PVC black jacket
- Nickel-plated brass coupling nut for corrosion resistance and durability
- IP67 rated connector for protection against dust and moisture ingress
- Micro style available for AC powered devices
- Single-ended design with flying leads for direct wiring integration
Technical Specifications
- Connector Style: Micro, 4-pin straight female
- Cable Length: 5.00 m
- Cable Gauge: 4×22 AWG
- Cable Jacket: PVC black
- Coupling Nut: Nickel-plated brass
- Connector Orientation: Straight
- Voltage Rating: 250 V AC/DC
- Current Rating: 4.0 A
- IP Rating: IP67
- Operating Temperature: -40°C to +70°C
- Cable Diameter: 5.70 mm

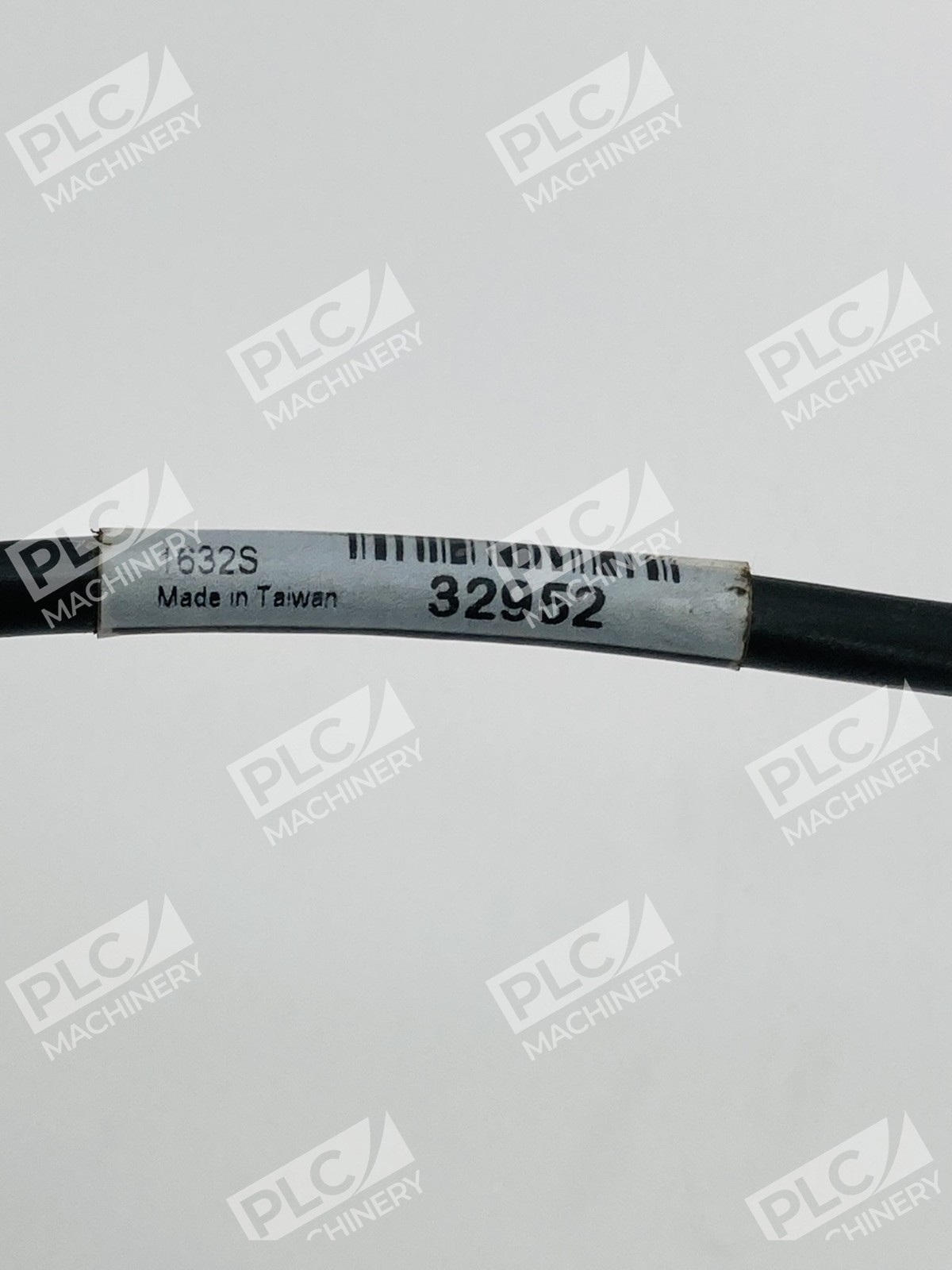

- Part Number: 32952
Typical Applications
The Banner MQAC-415 is commonly used in:
- Industrial sensor signal connections (proximity, photoelectric, and diffuse sensors)
- Quick-changeover production lines requiring frequent cable replacements
- Safety device interconnections in machinery control systems
- General-purpose industrial automation where modular connectivity is needed
- Factory automation environments with frequent equipment reconfiguration
Compatibility & Replacements
Compatible With
- Banner Engineering sensors with Micro QD female connectors
- Industrial controllers and I/O systems accepting 4-pin Micro connectors
- AC-powered sensor networks and safety circuits
- Standard industrial automation control panels
Replaces / Drop-In Replacement For
- Other Banner Micro Style single-ended cordsets requiring 4-pin straight configuration
- Legacy quick-disconnect cables with matching 1/2-inch Micro connectors
Works With
- Banner QD connector systems (Micro style)
- Industrial sensor platforms using Micro C-pin connectors
- Standard industrial AC circuits rated for 250V operation
