Overview

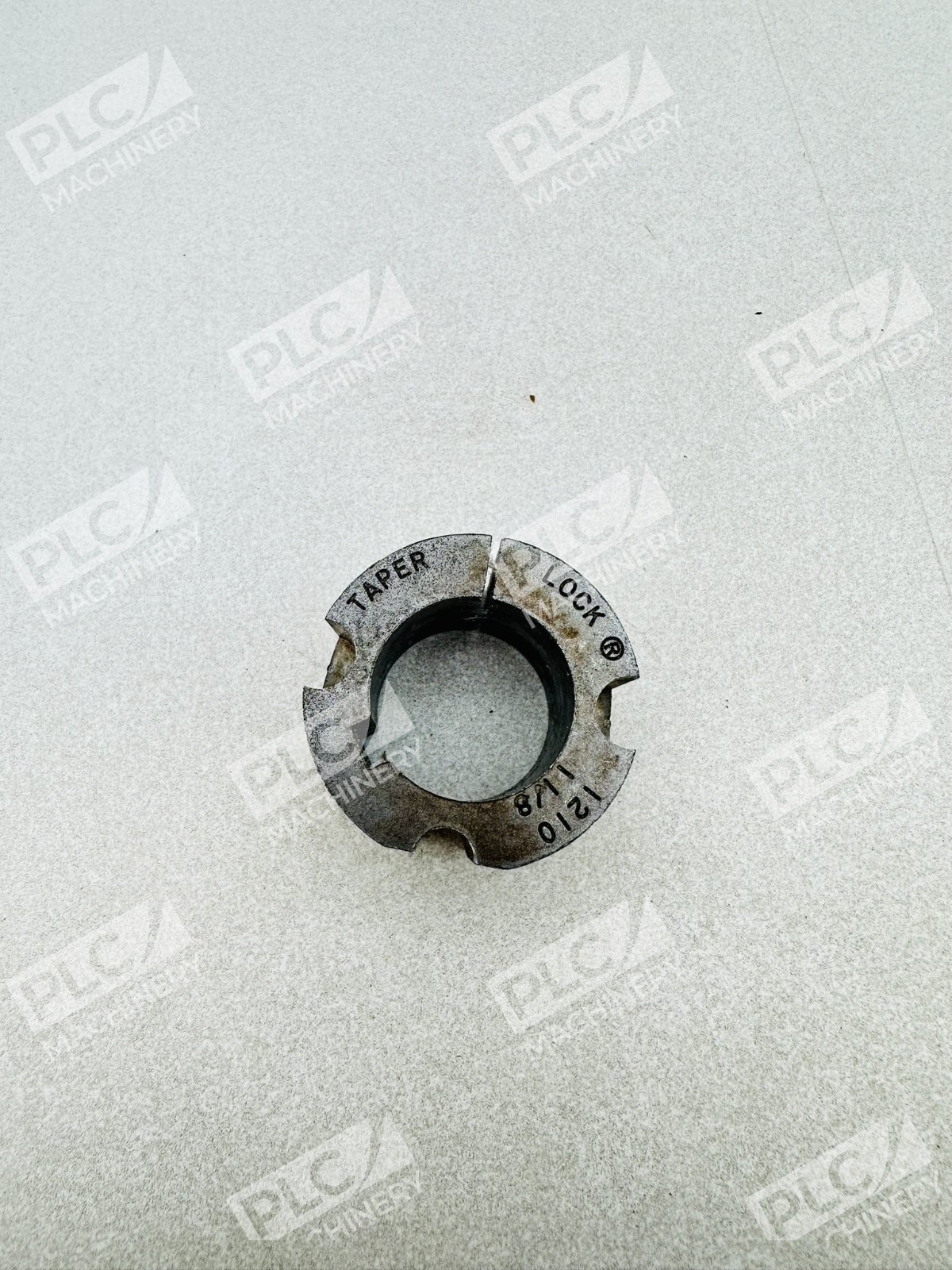

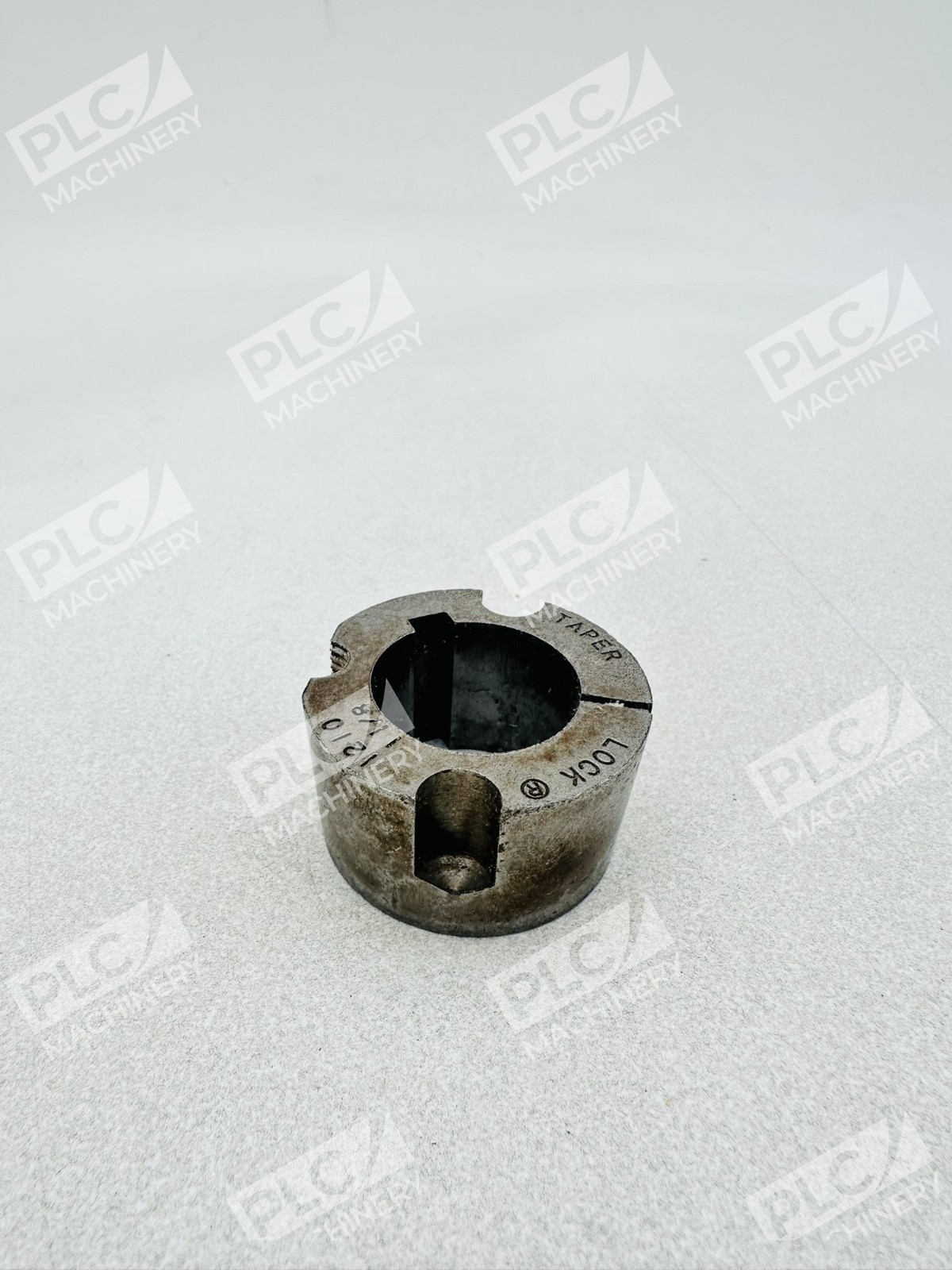

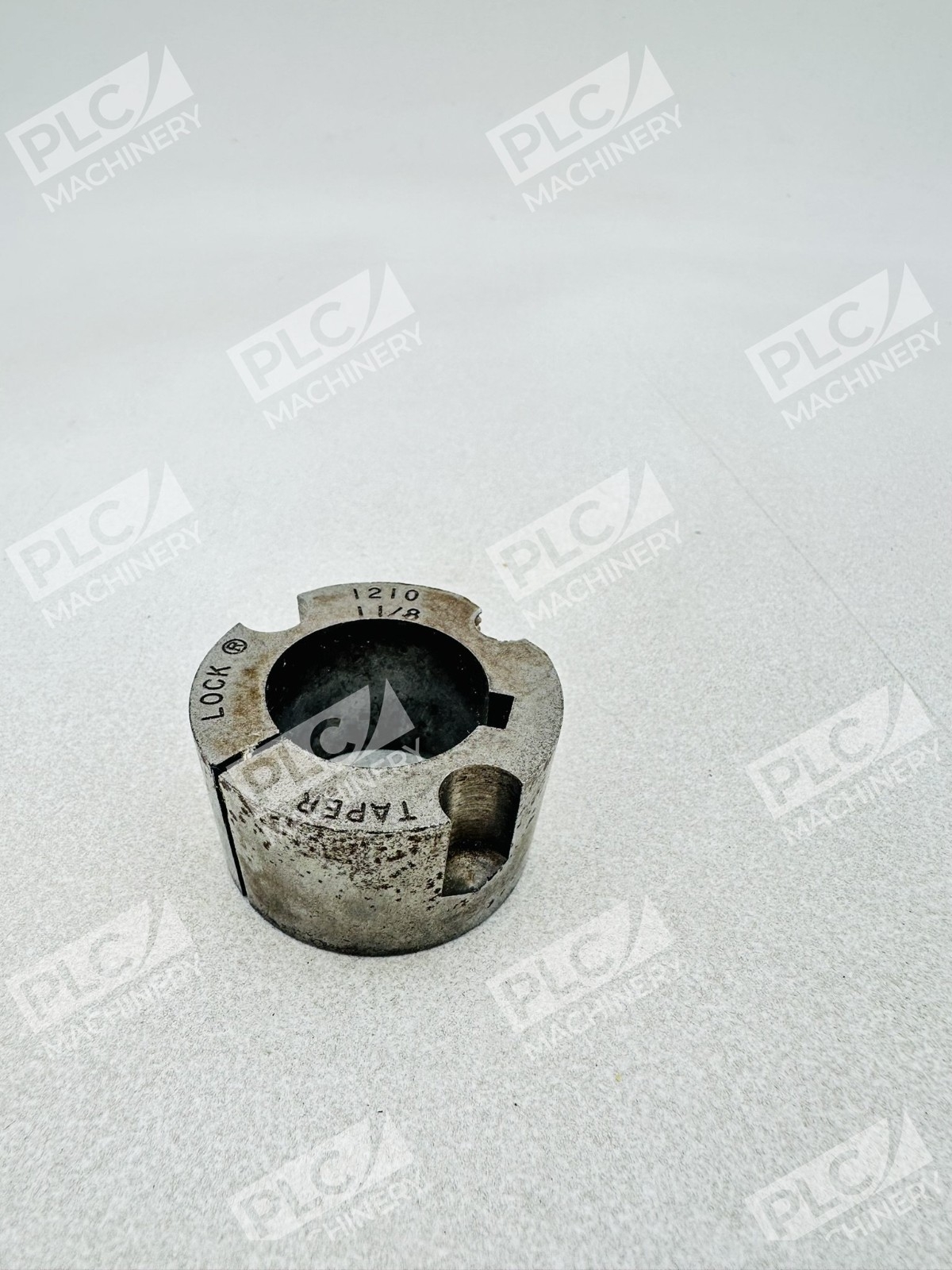

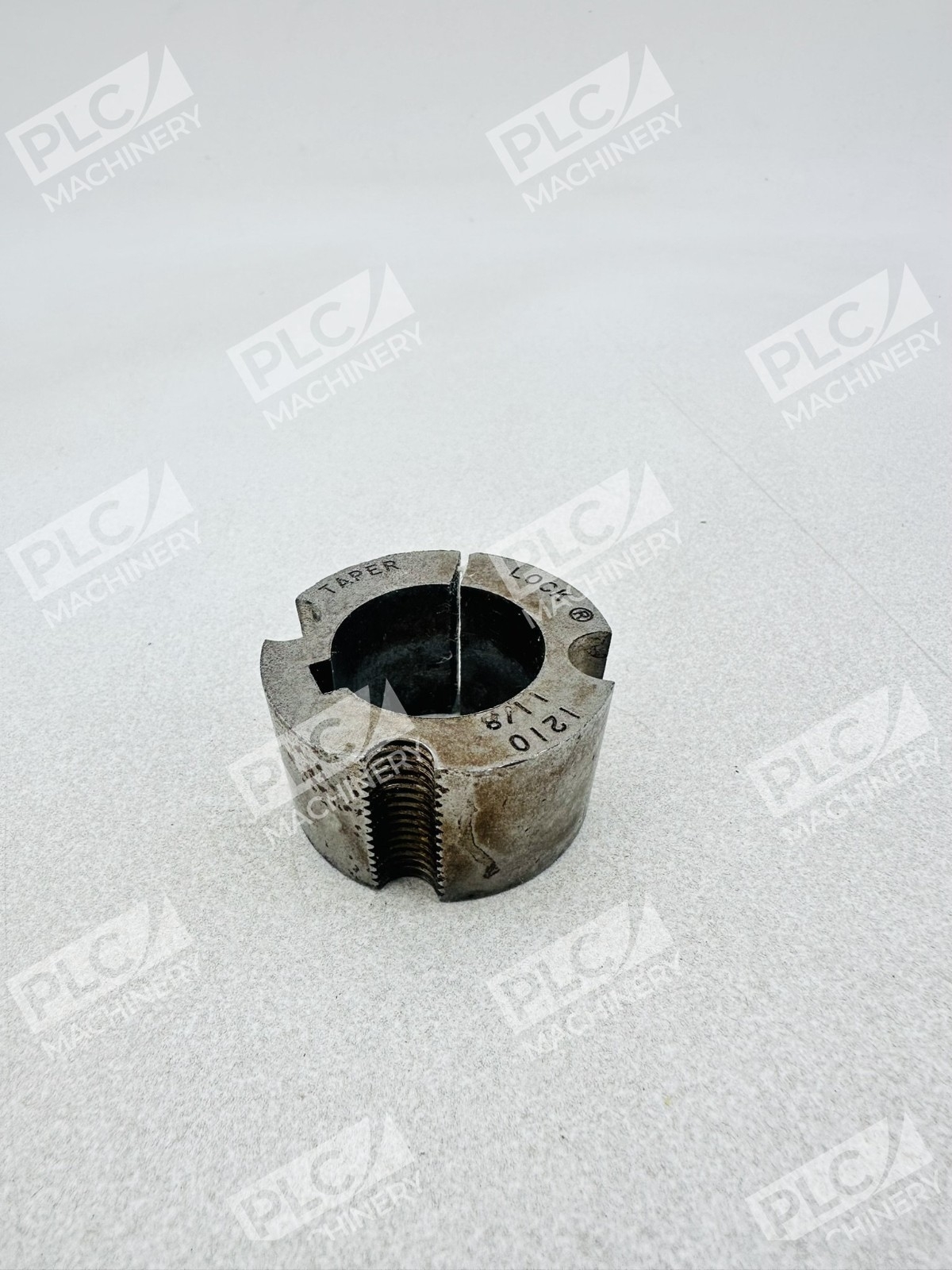

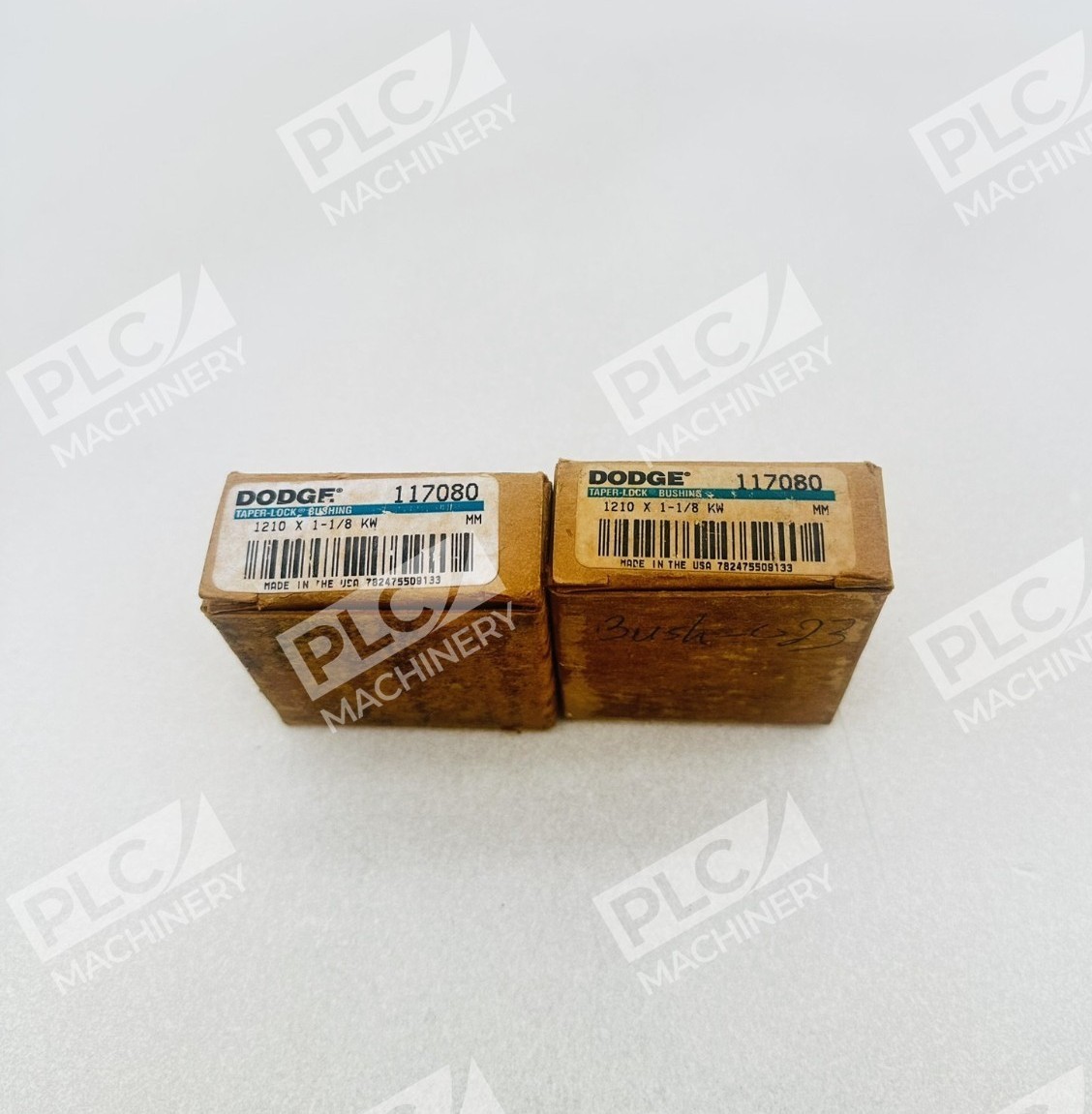

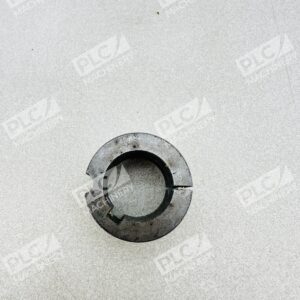

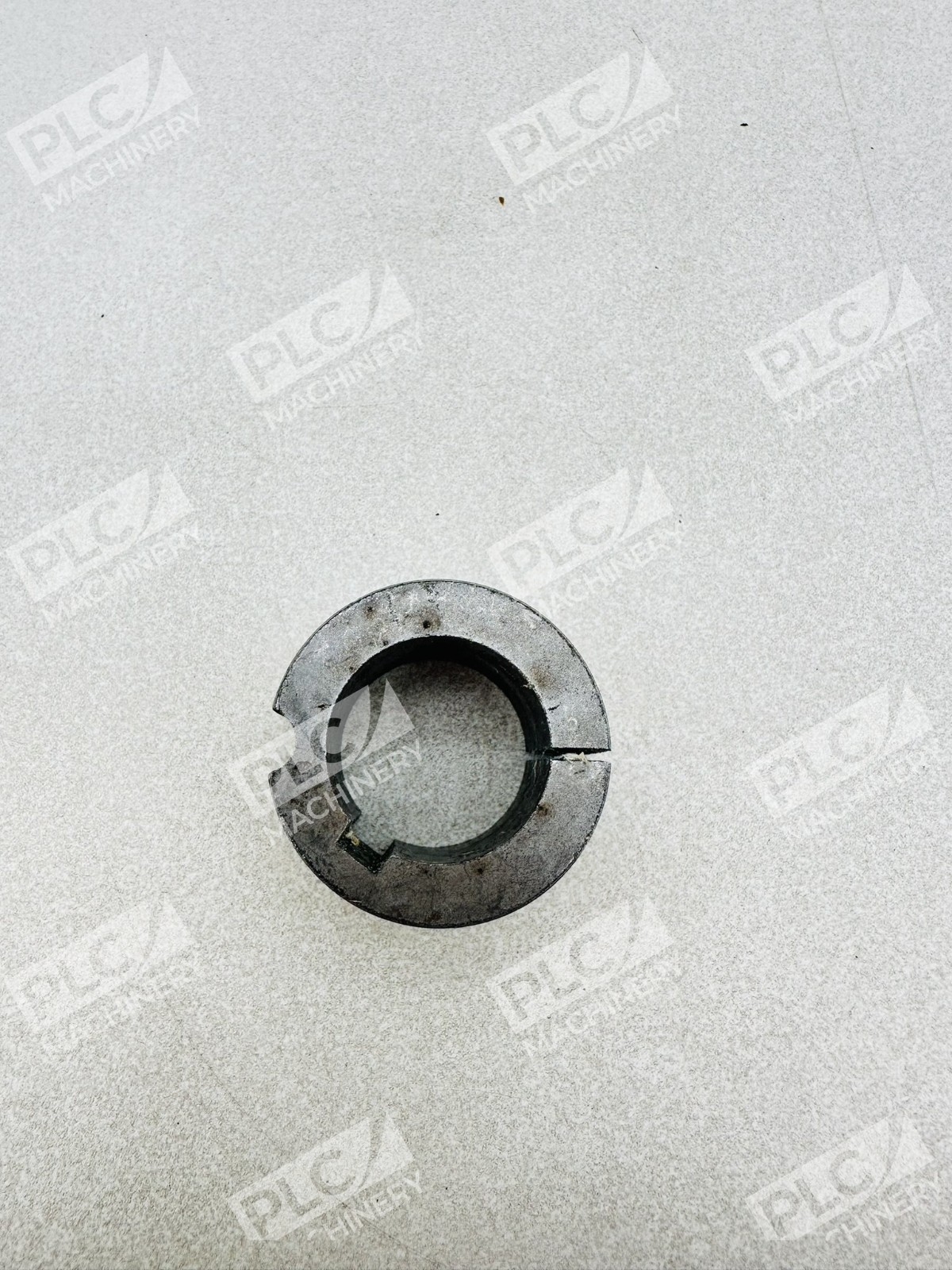

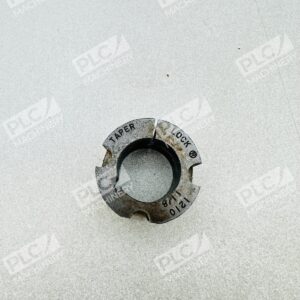

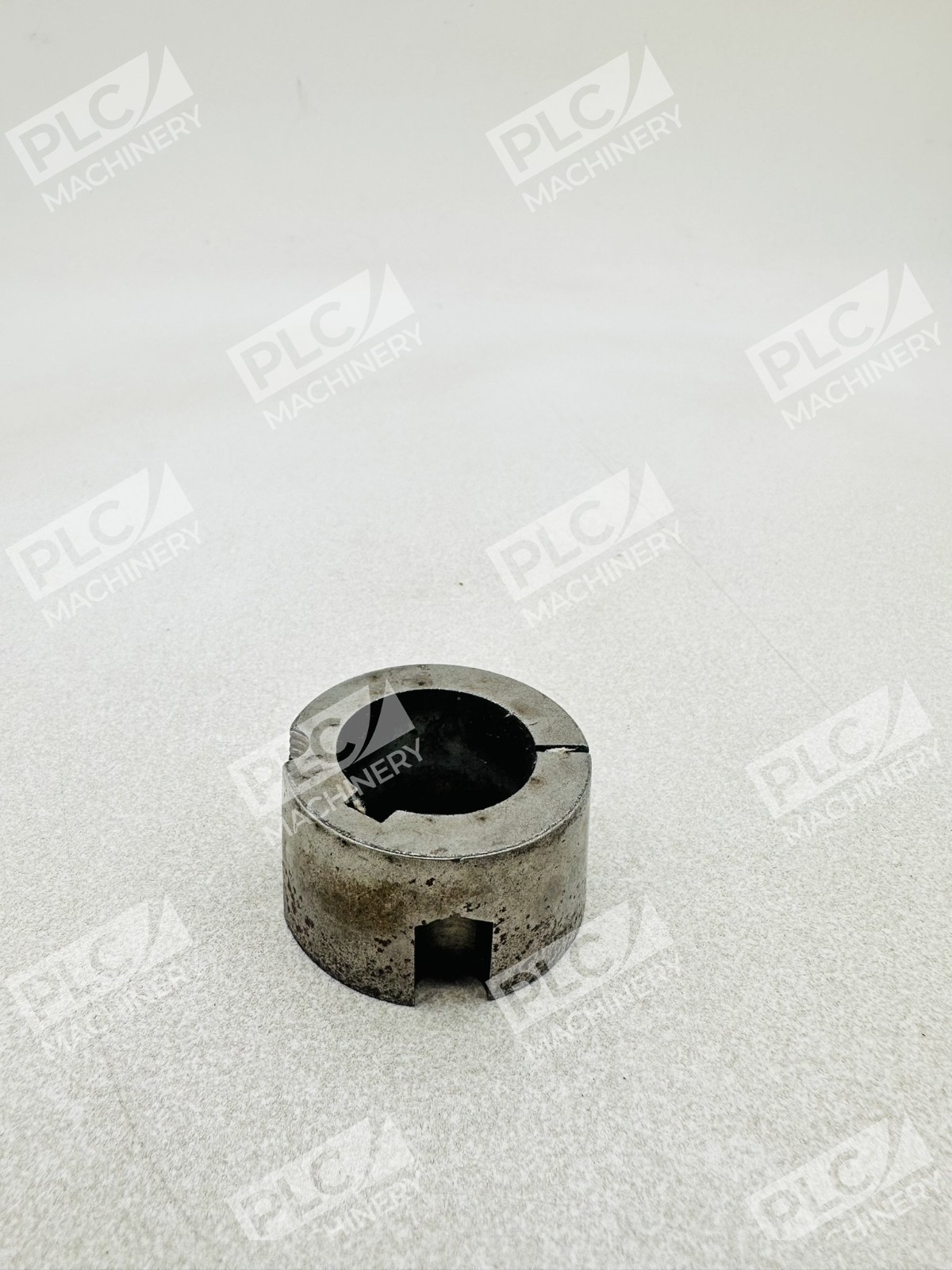

The Dodge 117080 is a Type 1210 stock-bore taper-lock bushing engineered for precise, secure shaft connections in industrial machinery. Dodge Taper-Lock bushings are flangeless for clean, compact application and are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble. This bushing is designed for mounting power transmission components such as couplings, sheaves, and sprockets, delivering reliable performance in demanding mechanical applications.
Key Features
- 1.87″ OD, 1″ bore length, rated torque 3600 lbf
- 8 degree taper with flush-mounted design and no protruding parts
- Sintered steel construction for durability
- Easy on/off operation with tight grip
- Standard 1/4″ x 1/8″ keyway for reliable shaft keying

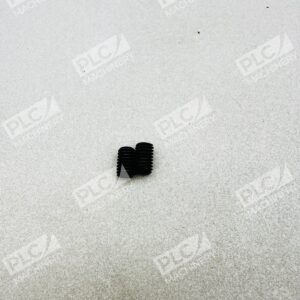

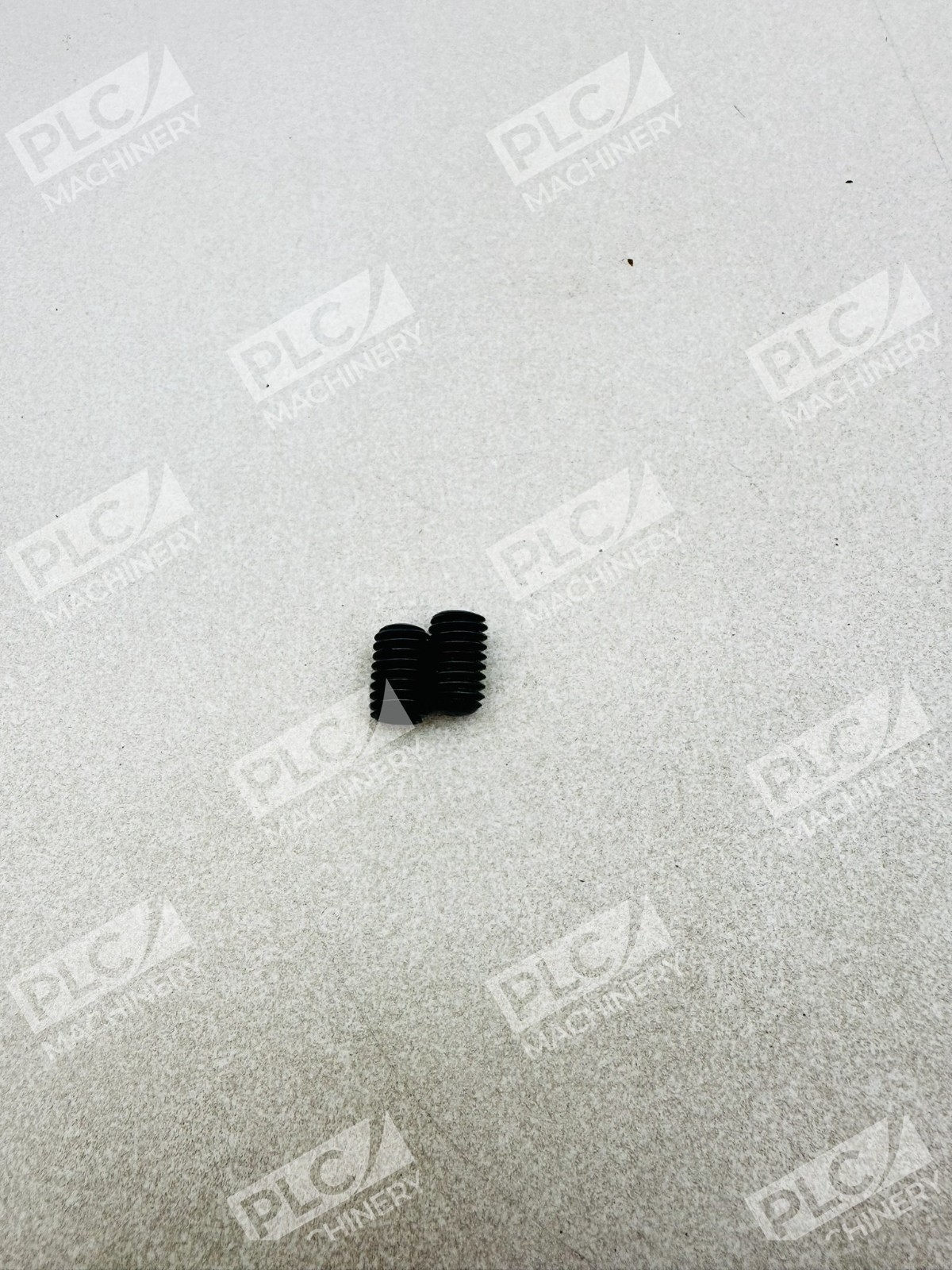

- Two bolt holes with 3/8″ x 5/8″ mounting screws
Technical Specifications
Typical Applications
The Dodge 117080 bushing is ideal for industrial automation, material handling, and mechanical drive systems that require compact, reliable shaft mounting. Common applications include:
- Conveyor belt systems
- Industrial pump and motor coupling
- Sheave and pulley assembly mounting
- Sprocket drive systems
- General machinery power transmission
Compatibility & Replacements
Compatible With
- Dodge-brand taper-lock power transmission systems
- Industry-standard Type 1210 shaft components
- ANSI/AGMA-compliant coupling and drive applications
- Baldor motors and industrial mechanical assemblies
Replaces / Drop-In Replacement For
Martin 1210 1 1/8 Taper-Lock bushing, 1210 series, 1-1/8″ bore, steel construction with 1/4″ x 1/8″ keyway
- Martin 1210 taper-lock bushings (standard bore)
- TB Woods TL1210118 taper-lock bushing
Works With
- Dodge Taper-Lock coupling and drive assemblies
- Standard shaft mounting systems rated for 3600 lbf-in torque and above
- Industrial power transmission and mechanical automation equipment
