Overview

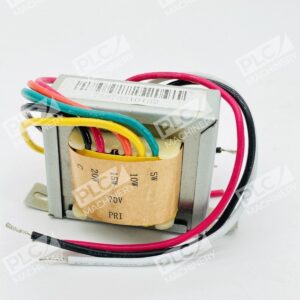

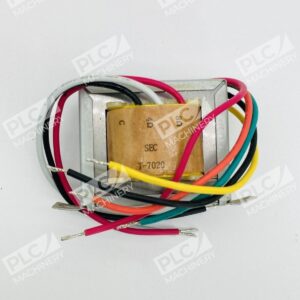

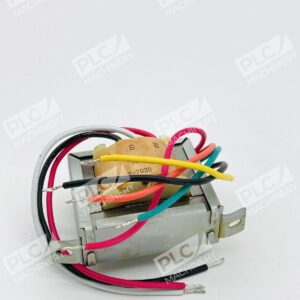

The Speco T-7020 70V transformer is a 20-watt passive line transformer engineered for commercial audio distribution in security, public address, and facility management installations. As a passive transformer, the T7020 converts low-impedance amplifier outputs to high-impedance 70-volt line audio, enabling efficient long-distance signal distribution to multiple speakers across large areas. Its simple passive design requires no external power supply, making it ideal for retrofit projects and large-scale speaker layouts.
Key Features
- Rated for continuous 20W operation, supporting medium to large installation zones without signal degradation.
- Has 5, 10, 15, and 20 watt taps.
- Offers color coded leads for simplified field installation and troubleshooting.
- Passive transformer design requires no external power supply, making it simple to integrate into existing infrastructure without additional equipment, with fewer points of failure in the signal chain.
- Adheres to commercial audio infrastructure norms, ensuring compatibility with industry-standard taps, speaker terminals, and amplifier outputs across equipment from major manufacturers.
Technical Specifications
- Power Rating: 20 Watt
- Voltage Rating: 70 Volt
- Transformer Taps: 5, 10, 15 And 20 Watt
- Design Type: Passive (no power required)
- Lead Configuration: Color-coded for field identification
- Connector Type: Standard terminal connections
- Country of Origin: China
Typical Applications
This transformer is widely deployed in integrated security systems, public address applications, and multi-zone audio environments where reliable audio signal conversion is critical. Common use cases include:
- Emergency notification and mass notification systems in commercial buildings
- Distributed audio in retail and hospitality facilities
- Multi-zone speaker coverage across large floor plates without zone amplifiers
- Retrofit upgrades integrating existing amplifiers with modern 70V speaker systems
- Long-distance audio distribution to minimize signal loss across large properties
Compatibility & Replacements
Compatible With
- Industry-standard 70V constant-voltage speaker systems
- Commercial audio amplifiers with standard output impedance (4Ω–8Ω)
- Multi-zone distributed audio infrastructure
- Standard speaker taps rated for 70V operation
- Integrated security system audio backbone networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Speco T-7020 is a standard 20W 70V passive transformer; specific model replacements should be confirmed against your existing equipment specifications.
Works With
- 70V constant-voltage speaker systems and line arrays
- Audio amplifiers with low-impedance outputs
- Multi-speaker tapped audio distribution networks
- Commercial PA and life safety audio platforms
- Facility management and emergency voice communication systems
