Overview

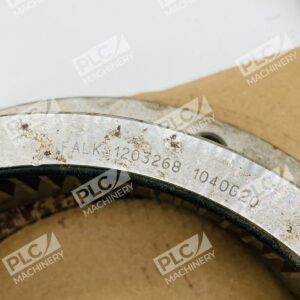

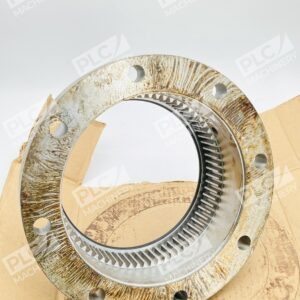

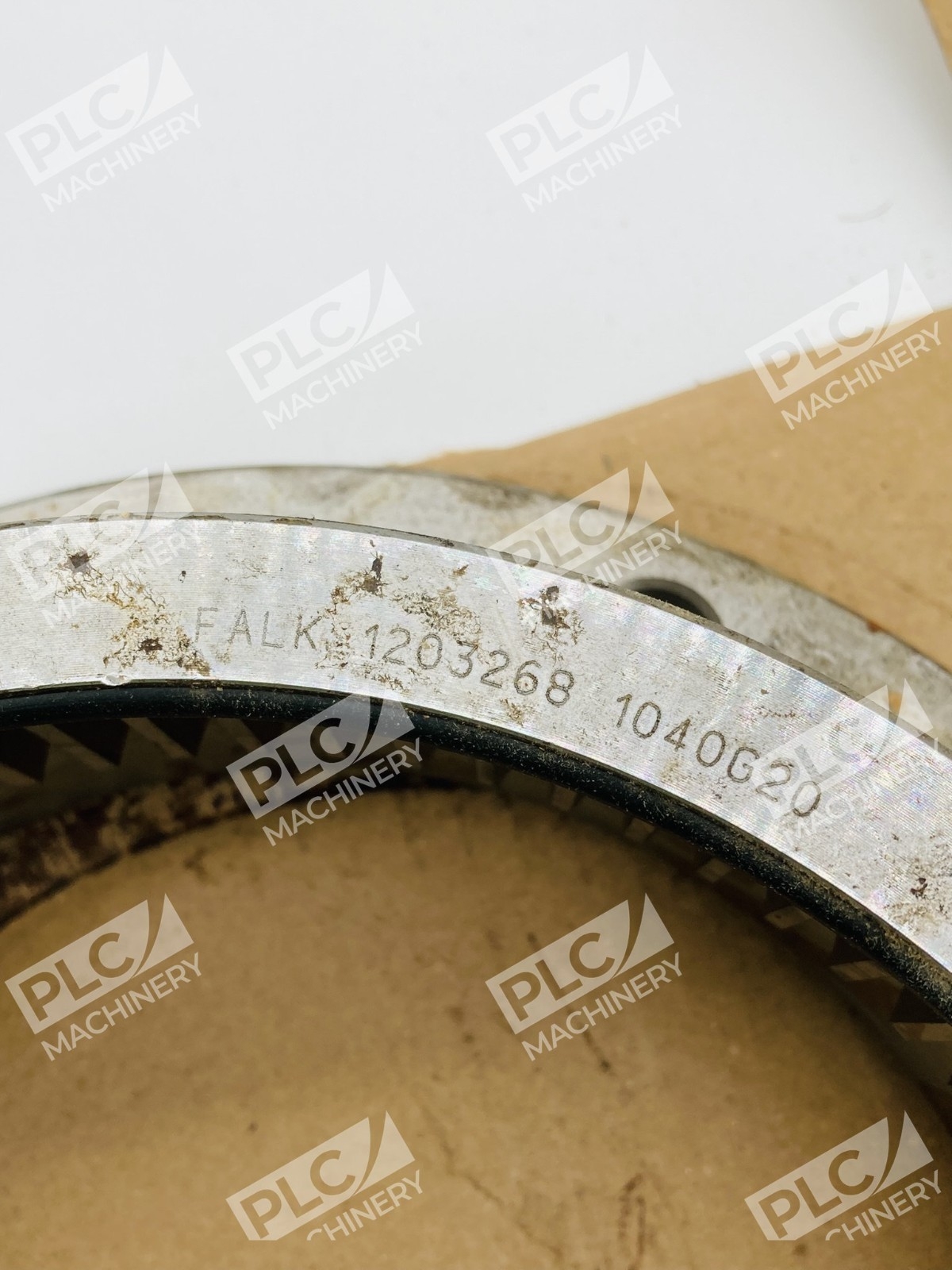

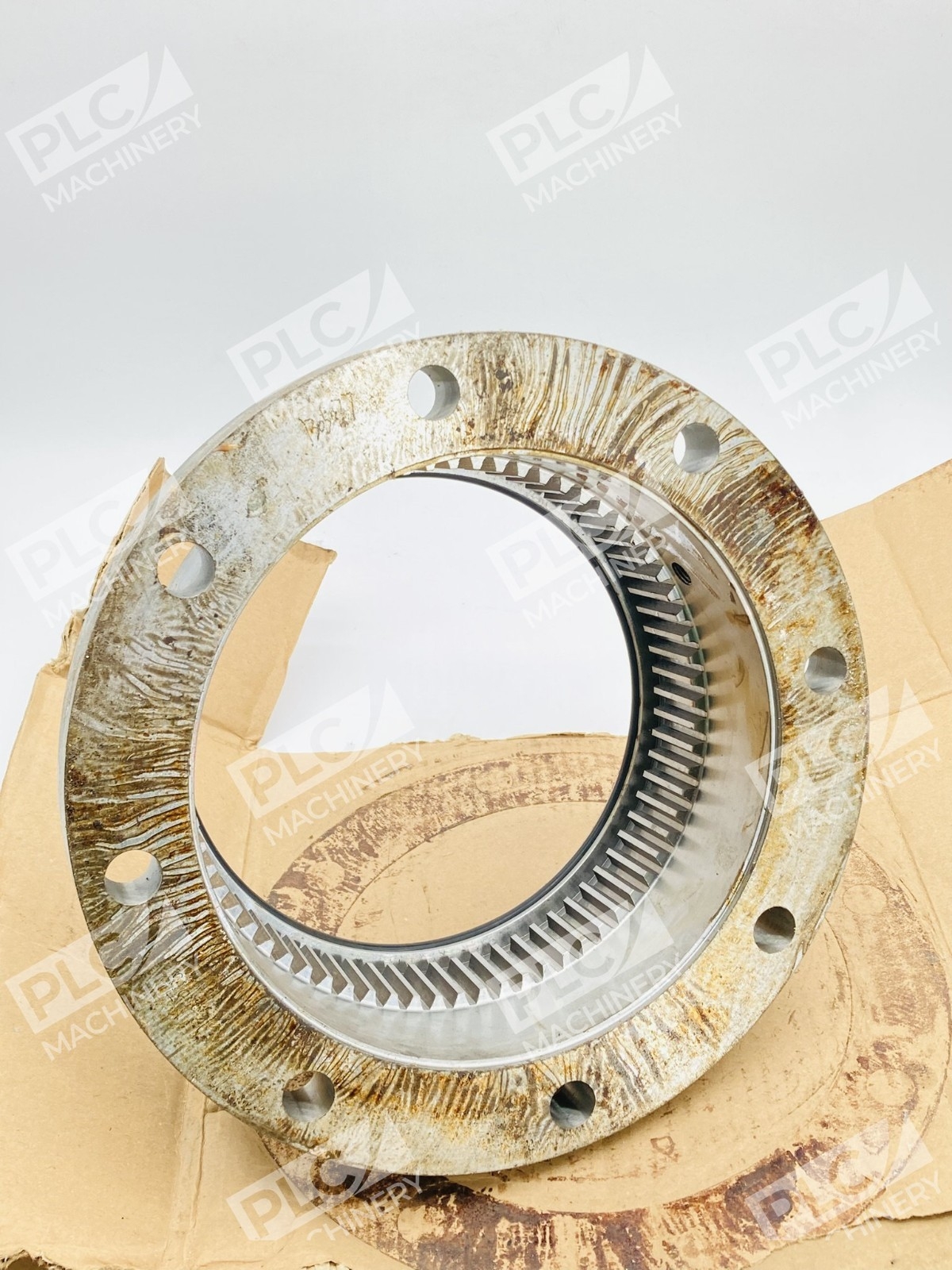

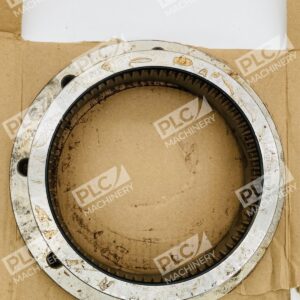

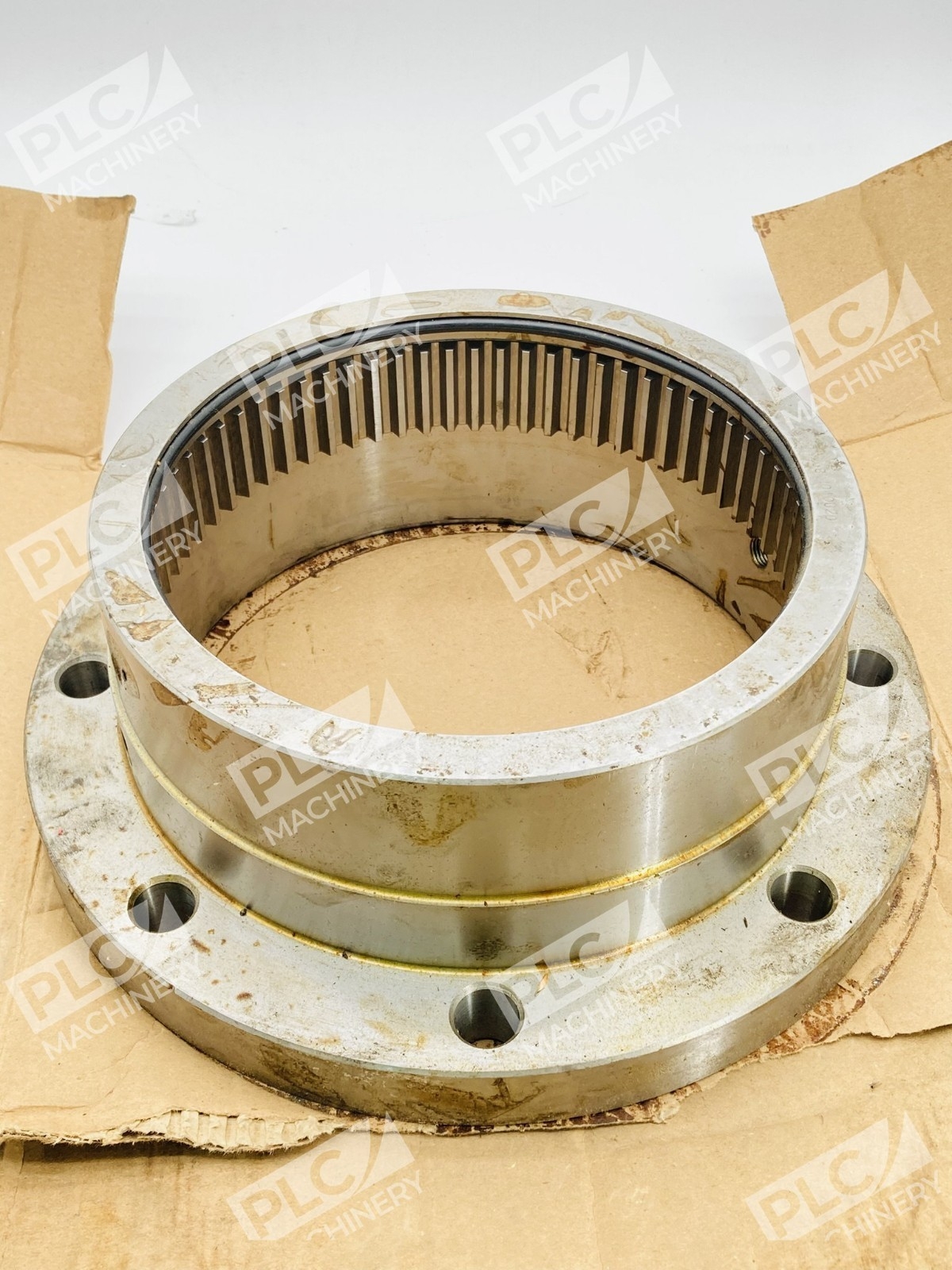

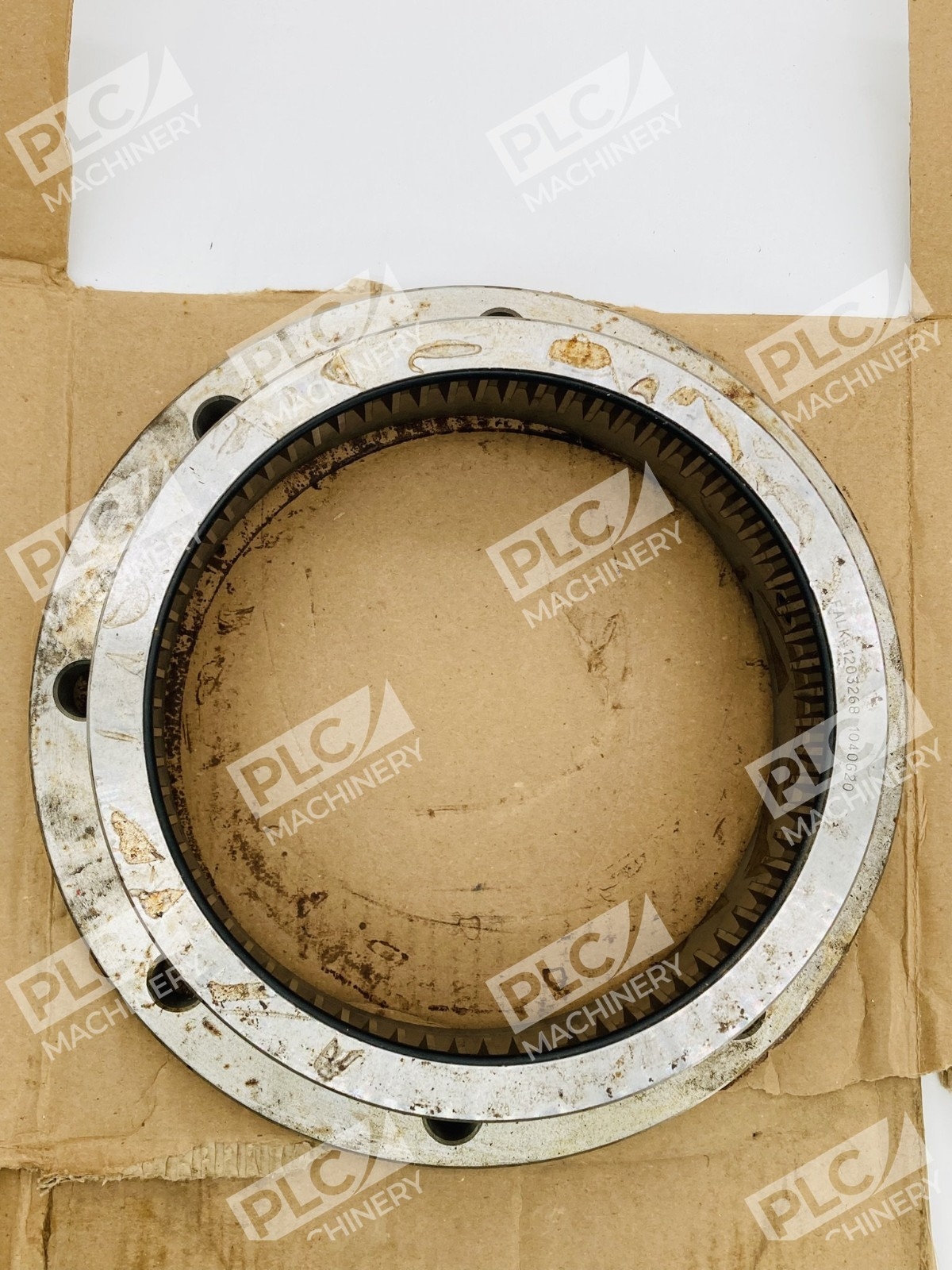

The Falk 1203268 gear coupling sleeve is a Type G20 double engagement component from the Lifelign® gear coupling family. This large flanged sleeve provides double engagement design suitable for demanding industrial applications. Manufactured from durable steel, the 1040G20 designation indicates the coupling size and type. The flanged sleeve design enables secure, bolt-on assembly with matching hubs while maintaining precise alignment and torque transmission.
Key Features
- Type G20 Double Engagement — Accommodates up to 3/8° of misalignment while transmitting power and torque
- Flanged Steel Construction — Durable steel material resists wear and provides extended service life
- Gear Mesh Design — Designed to provide a mechanical connection between rotating shafts using gear mesh to accommodate inherent misalignment
- Lubrication Provisions — Operates within ambient temperatures of –30°F to 200°F (–34°C to 93°C) when lubricated bi-annually
- Integrated Seal Rings — Includes seal rings mounted on shafts before flex hubs for protection
Technical Specifications
- Part Number: Falk 1203268
- Coupling Series: Lifelign® 1040G (40 size)
- Type: G20 (Double Engagement Flanged Sleeve)
- Material: Steel
- Misalignment Capacity: Up to 3/8° per flex half
- Operating Temperature Range: –30°F to +200°F (–34°C to +93°C)
- Lubrication: NLGI #1 extreme pressure (EP) grease recommended
- Warranty: 3 years when lubricated with Falk LTG
- Design Standard: ANSI/AGMA industrial gear coupling
Typical Applications
The Falk 1203268 coupling sleeve is used in:
- Industrial motor-to-pump applications requiring reliable torque transmission
- Conveyor systems and material handling equipment
- Compressor and blower drives
- Heavy-duty industrial machinery requiring shaft coupling
- Power transmission systems where moderate misalignment accommodation is needed
Compatibility & Replacements
Compatible With
- Falk Lifelign Gear Coupling hubs (1040G series)
- Industrial automation systems requiring shaft coupling
- Standard metric and inch-dimensioned shaft systems
- Direct-drive and geared motor applications
Replaces / Drop-In Replacement For
The Falk 1203268 is the OEM part number for the 1040G20 coupling sleeve. Verify compatibility with your system integrator before ordering alternative or surplus units.
Works With
- Falk LTG (Long-Term Grease) recommended lubricant
- NLGI #1 and NLGI #0 extreme pressure greases per Rexnord specifications
- Standard bolt assembly methods and keyway systems
- Misalignment monitoring and predictive maintenance protocols
