Overview

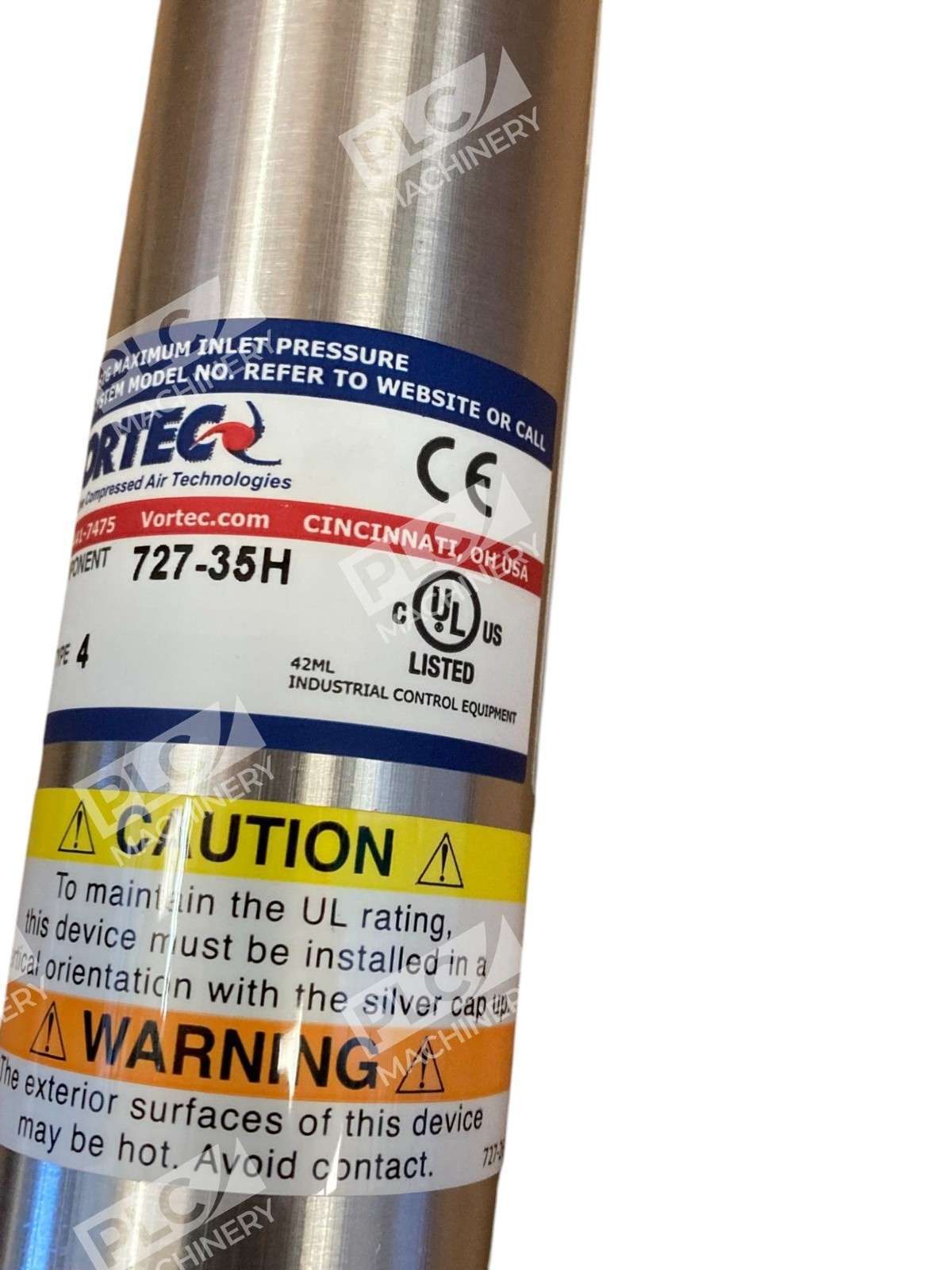

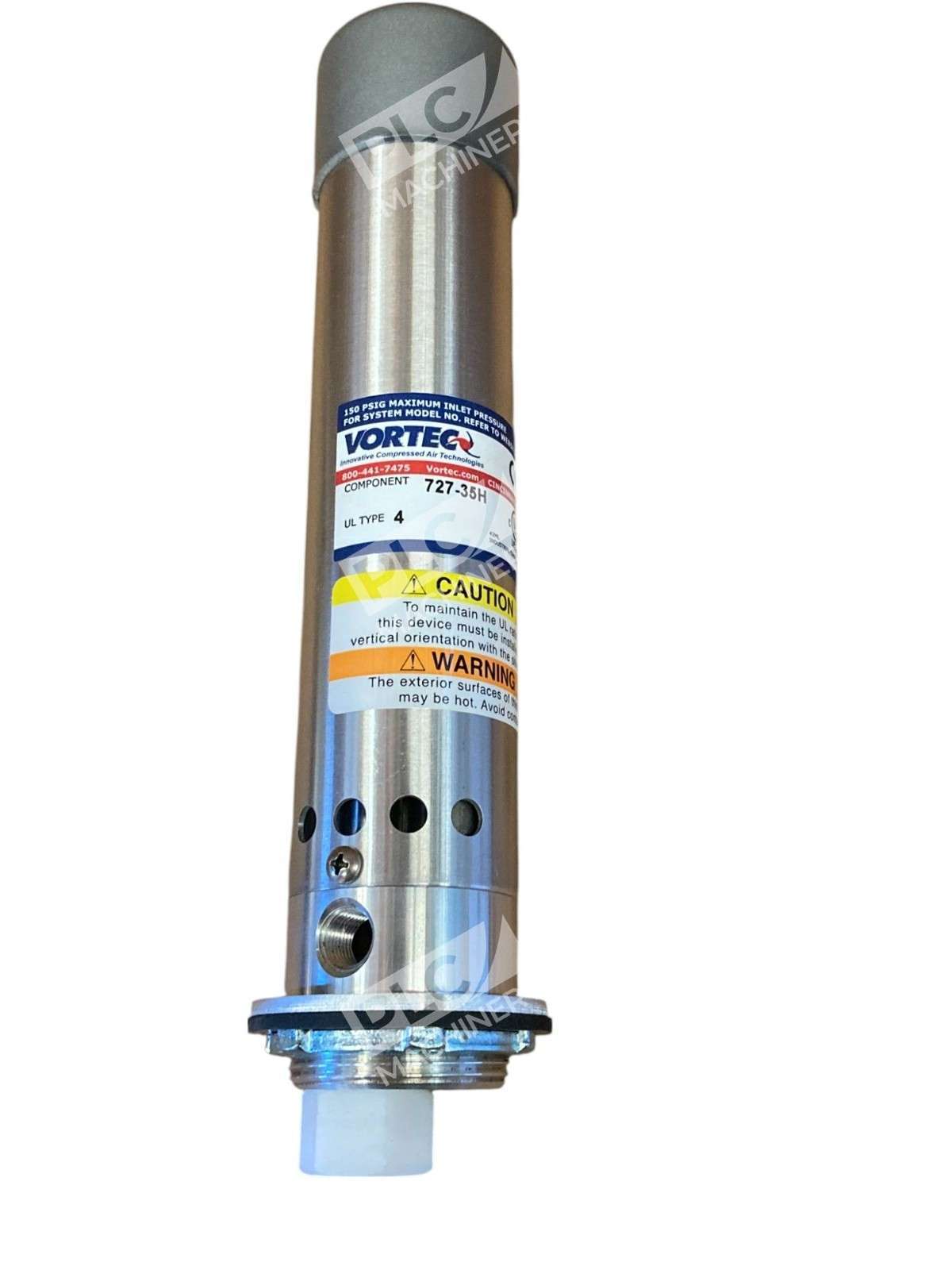

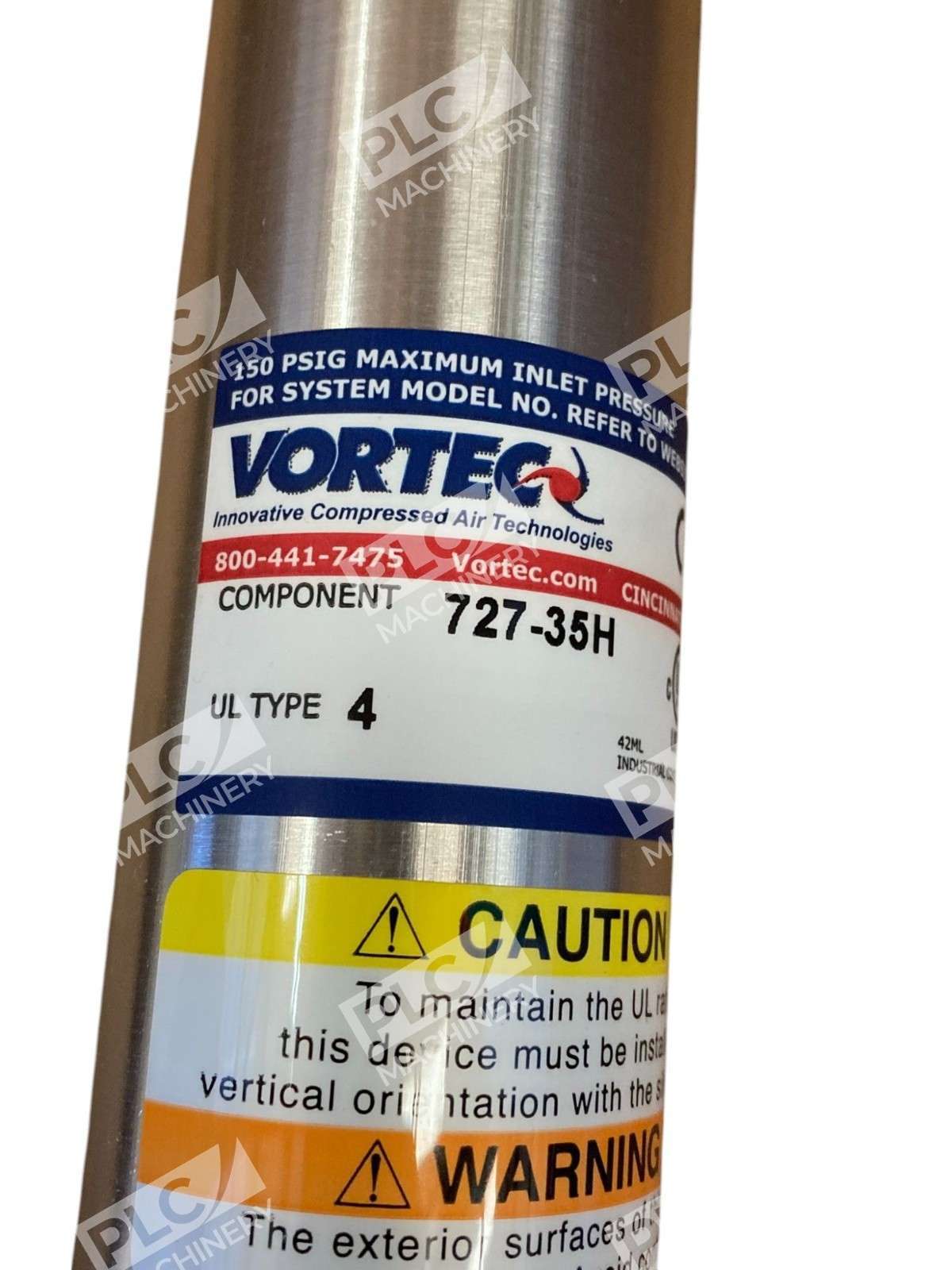

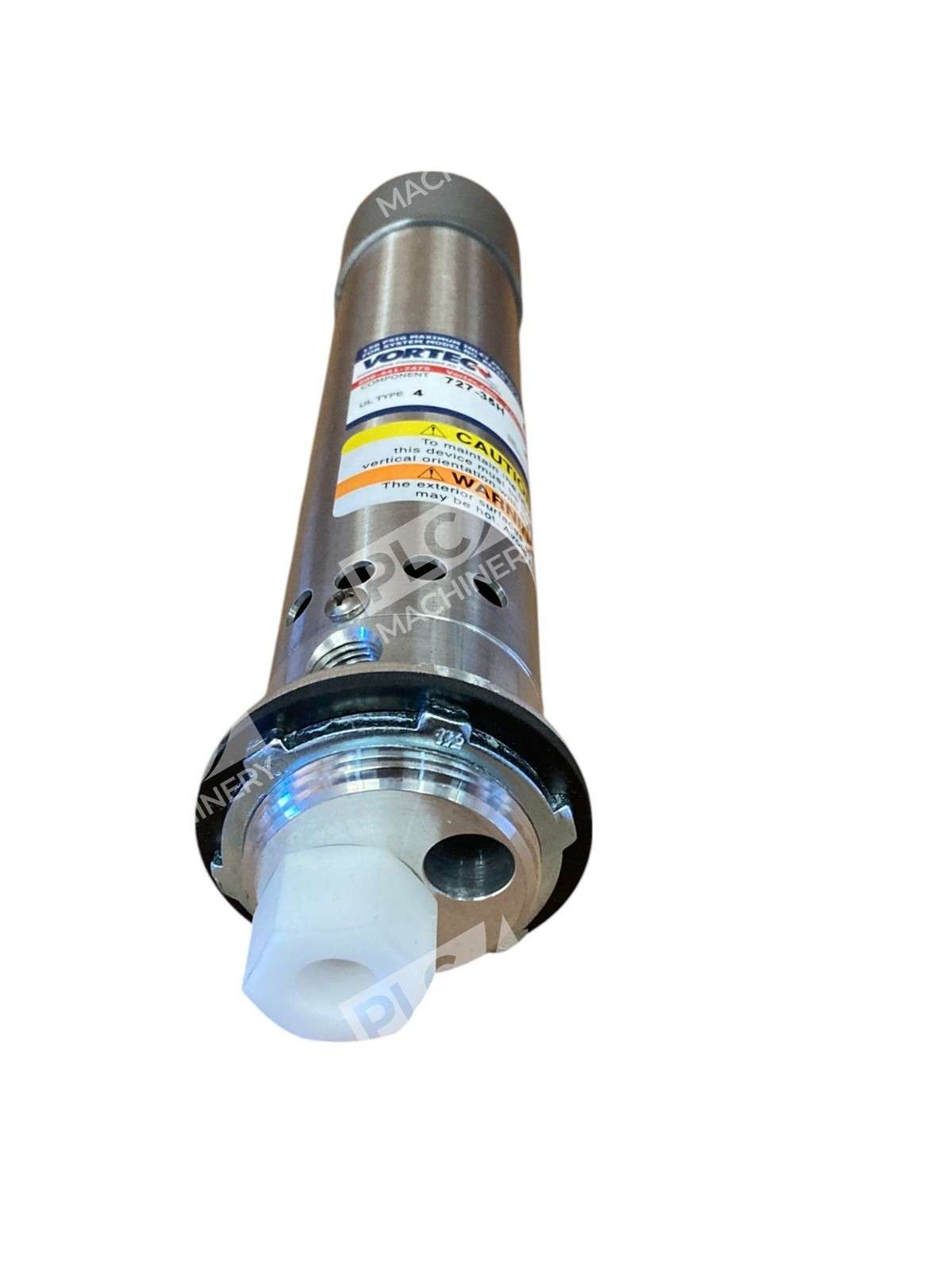

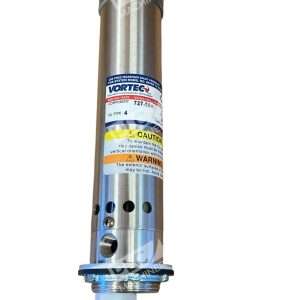

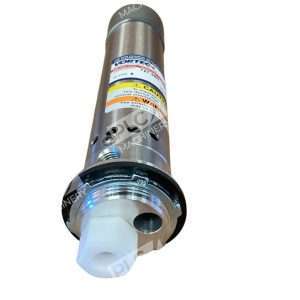

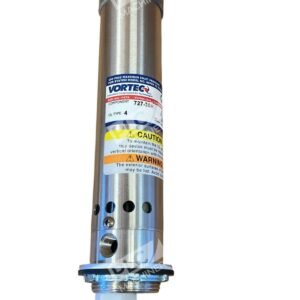

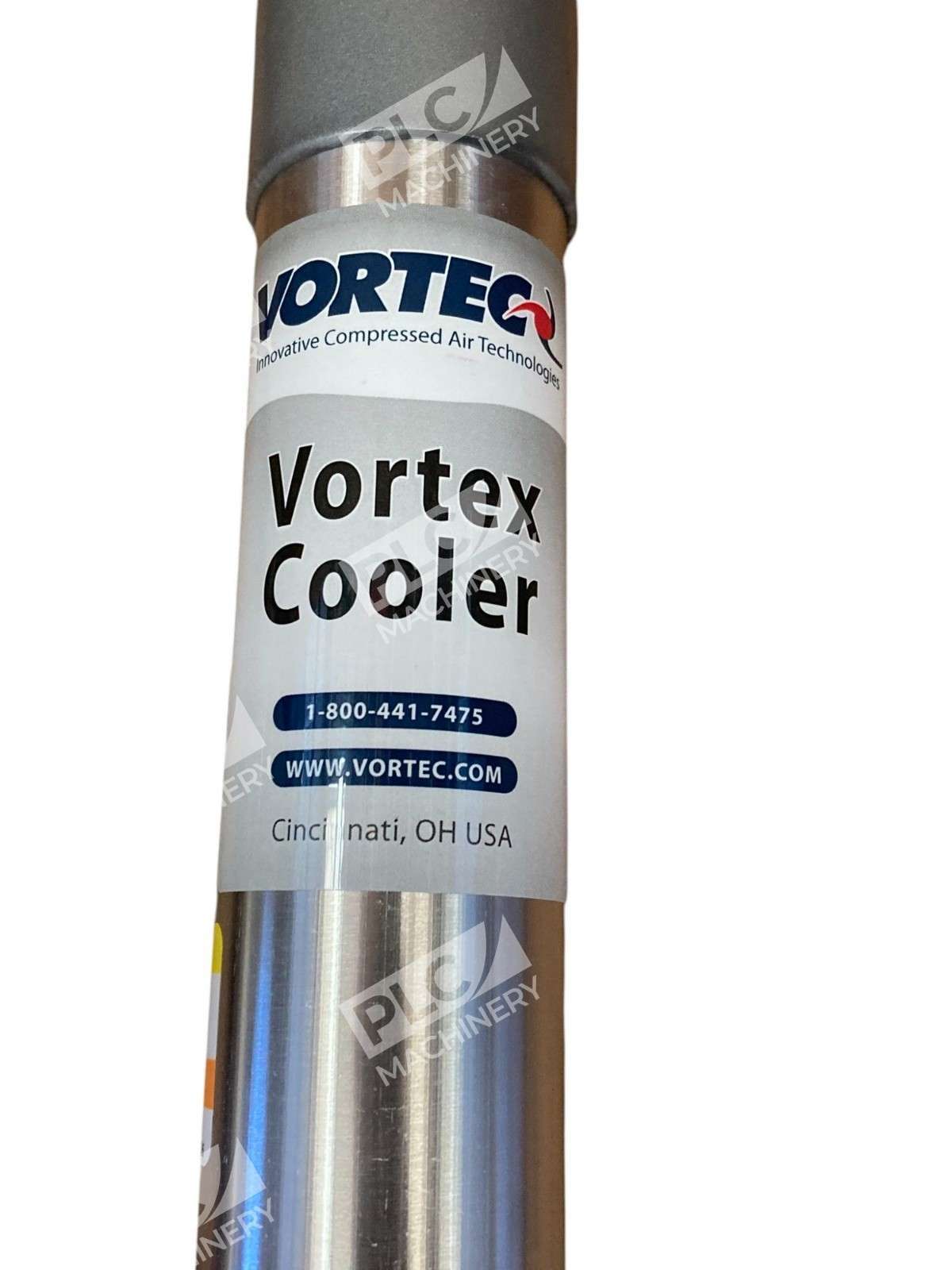

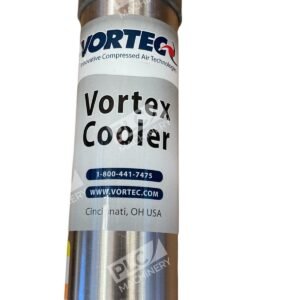

The Vortec 727-35H vortex cooler is a compressed air–powered enclosure cooler engineered for industrial electrical and control cabinets. Available in NEMA 12, NEMA 4, and NEMA 4X versions, the 727-35H is rated NEMA 4 and suitable for environments exposed to dust, moisture, and splashing water. This model produces a cooling capacity of up to 2500 BTUs per hour with 35 SCFM air flow. It requires no electrical connection, no refrigerants, and no moving parts—making it a reliable alternative to traditional fan-based and A/C cooling systems.
Key Features
- No Moving Parts: Vortex tubes utilize no moving parts, which translate into no maintenance.
- Contamination-Free Cooling: Avoid possible contamination with dirty, humid air caused by fans and maintain a slight positive pressure inside the cabinet to help prevent the ingress of dust and moisture.
- Compressed Air Powered: Uses factory compressed air to create cold and hot air streams; requires a compressed air supply of 80-100 psi.
- Low Operating Cost: Low cost alternative to expensive, high maintenance air conditioners.

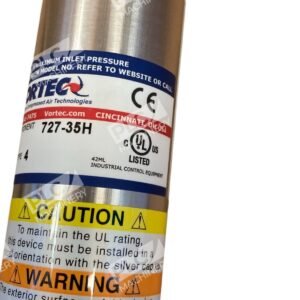

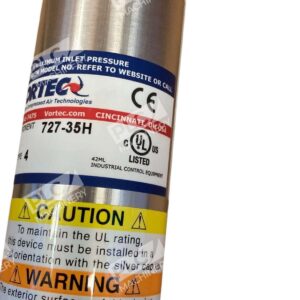

- UL Listed: UL Listed with a 10-Year Warranty.
Technical Specifications

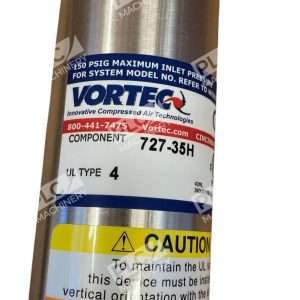

- Model: 727-35H
- Cooling Capacity: 2500 BTU/hr (732 Watts)
- Air Flow: 35 SCFM
- NEMA Rating: NEMA 4 (IP56)
- Operating Pressure: 80–100 psig (optimal at 100 psig / 6.9 bar)
- Air Inlet: 1/4″ NPT (Female)
- Configuration: Cooler only (no thermostat)
- Sound Level: Standard (85 dBA typical)
- Thermostat: None (constant run)
Typical Applications
The Vortec 727-35H is suited for:
- Electrical control cabinets and distribution enclosures in manufacturing plants
- Industrial process panels and PLC enclosures with moderate heat loads
- Outdoor and washdown environments requiring NEMA 4 protection
- Facilities with existing compressed air systems (no added electrical infrastructure needed)
- Environments where fan noise and maintenance are concerns
Compatibility & Replacements
Compatible With
- Standard industrial compressed air systems (80–100 psig supply)
- All standard electrical enclosures and control cabinets
- Top-mount installation on cabinet roof
- Systems requiring NEMA 4 rated environmental protection
Replaces / Drop-In Replacement For
- Older Vortec 727-series coolers with similar capacity
- Fan-based cabinet coolers requiring electrical connection
- Traditional enclosure air conditioning units with higher operating costs
Works With
- Compressed air filtration and conditioning systems
- Optional ducting kits (701M series) for directed cold air distribution
- Optional air line filters (701S series) for clean air supply
- Thermostat-controlled versions available as separate products
