Overview

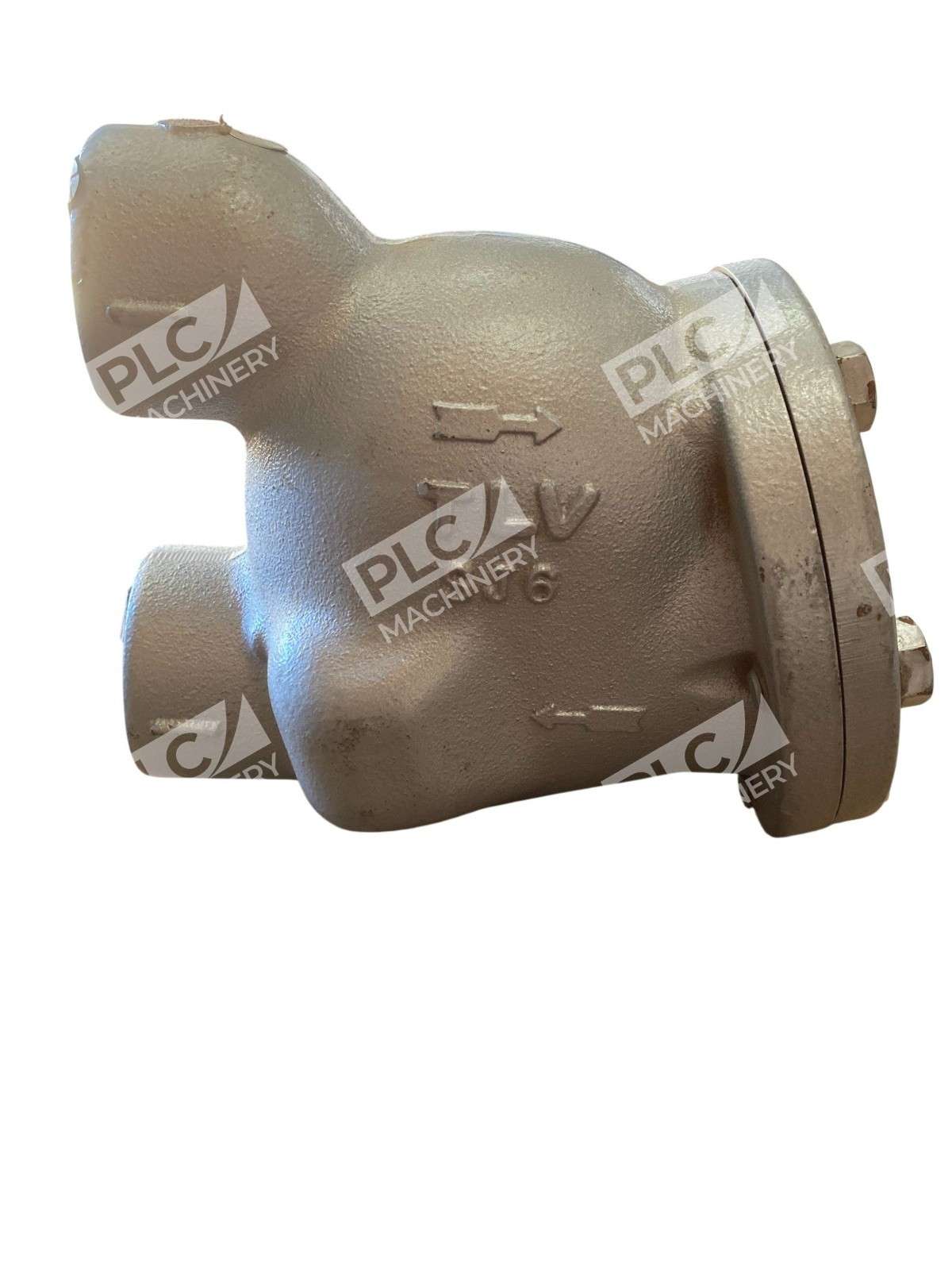

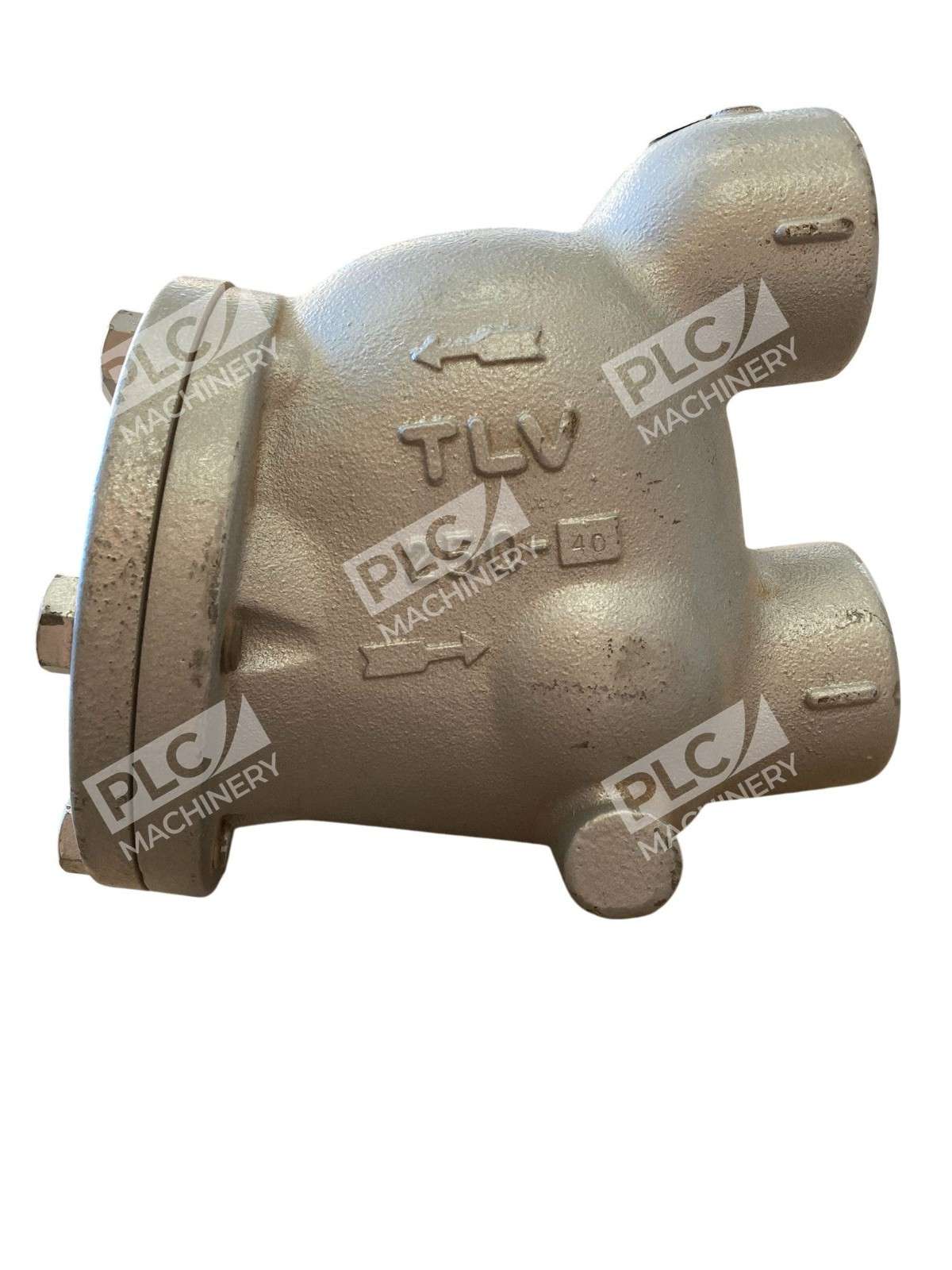

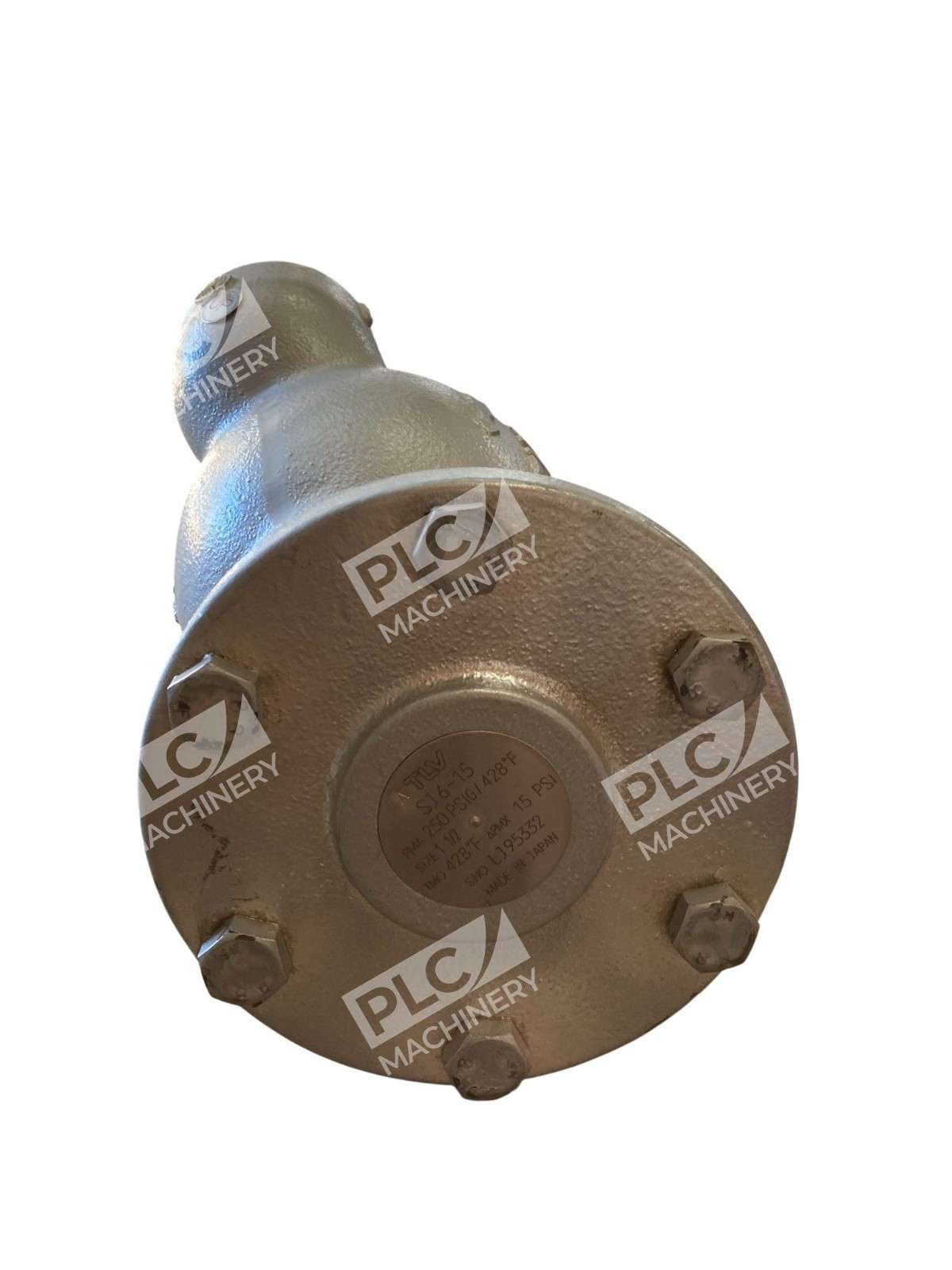

The TLV SJ6-15 Free Float steam trap is a mechanically-operated condensate management valve designed for low-pressure steam systems. Operating up to 250 PSIG (17 bar), this 40mm (1 1/2″) NPT model provides continuous discharge capacity, making it ideal for process lines where steady condensate removal is critical. TLV’s Free Float® design uses a buoyancy-driven spherical float mechanism to automatically open and close the valve seat, eliminating steam loss while efficiently draining condensate.
Key Features
- Free Float® spherical float design ensures infinite contact surfaces with valve seat for extended service life
- Thermostatic air venting for fast system start-up and air removal
- Compact body with no external levers or moving hinges—reduces installation footprint and maintenance complexity
- Large backpressure tolerance allows operation even in condensate recovery applications
- Ductile cast iron construction rated for industrial steam service
- Continuous discharge operation optimized for process steam applications
Technical Specifications

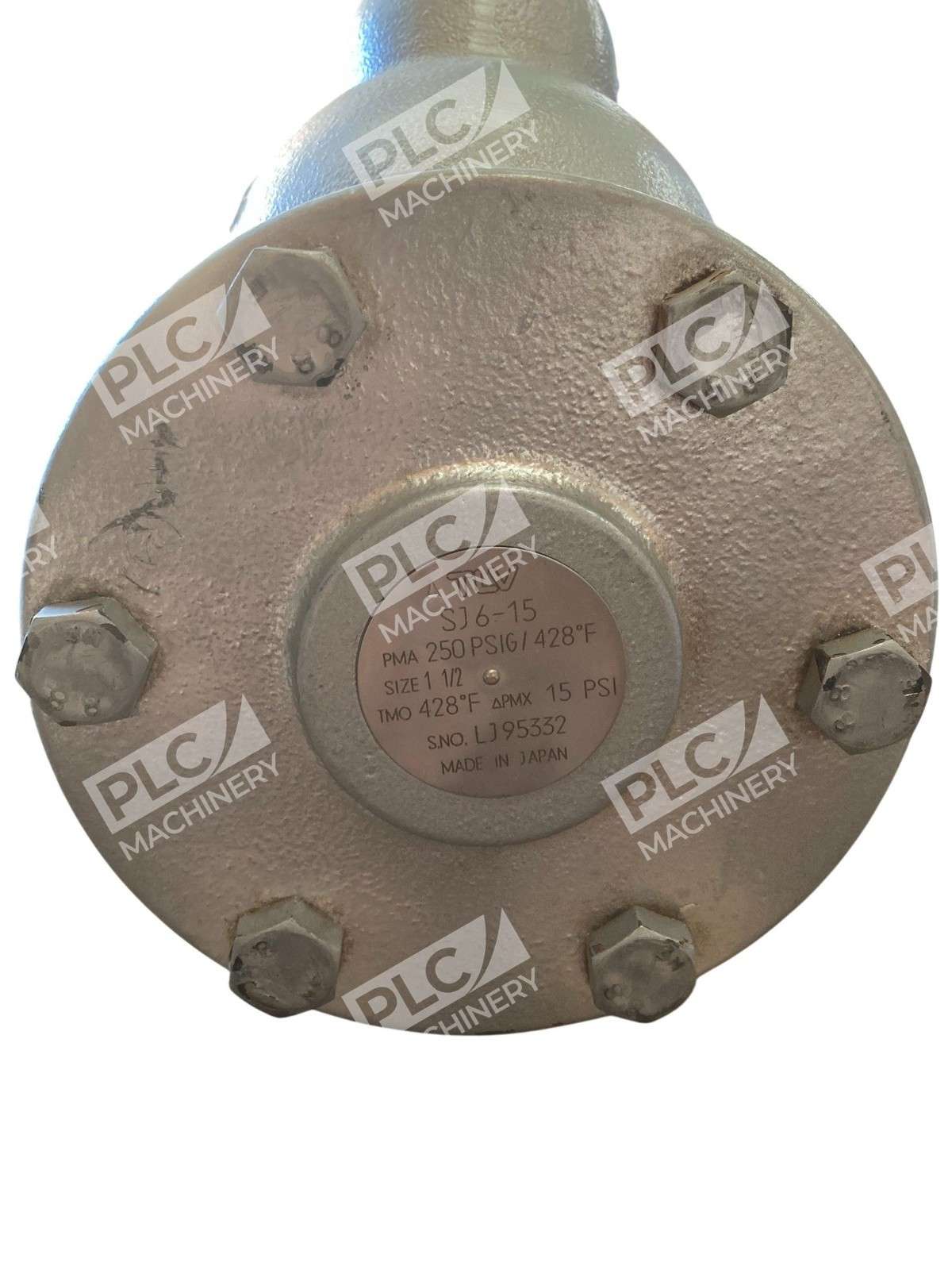

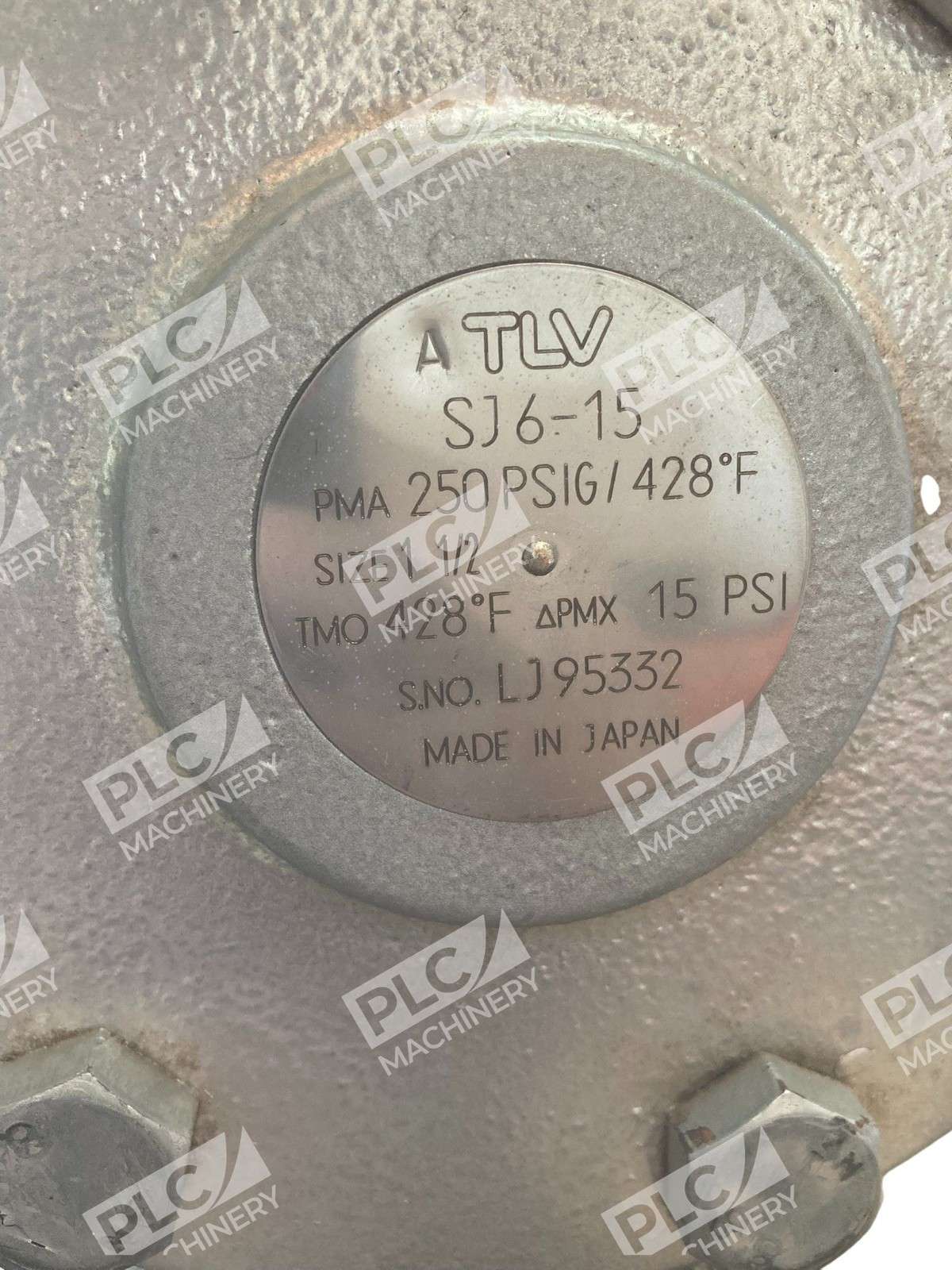

- Model: SJ6-15

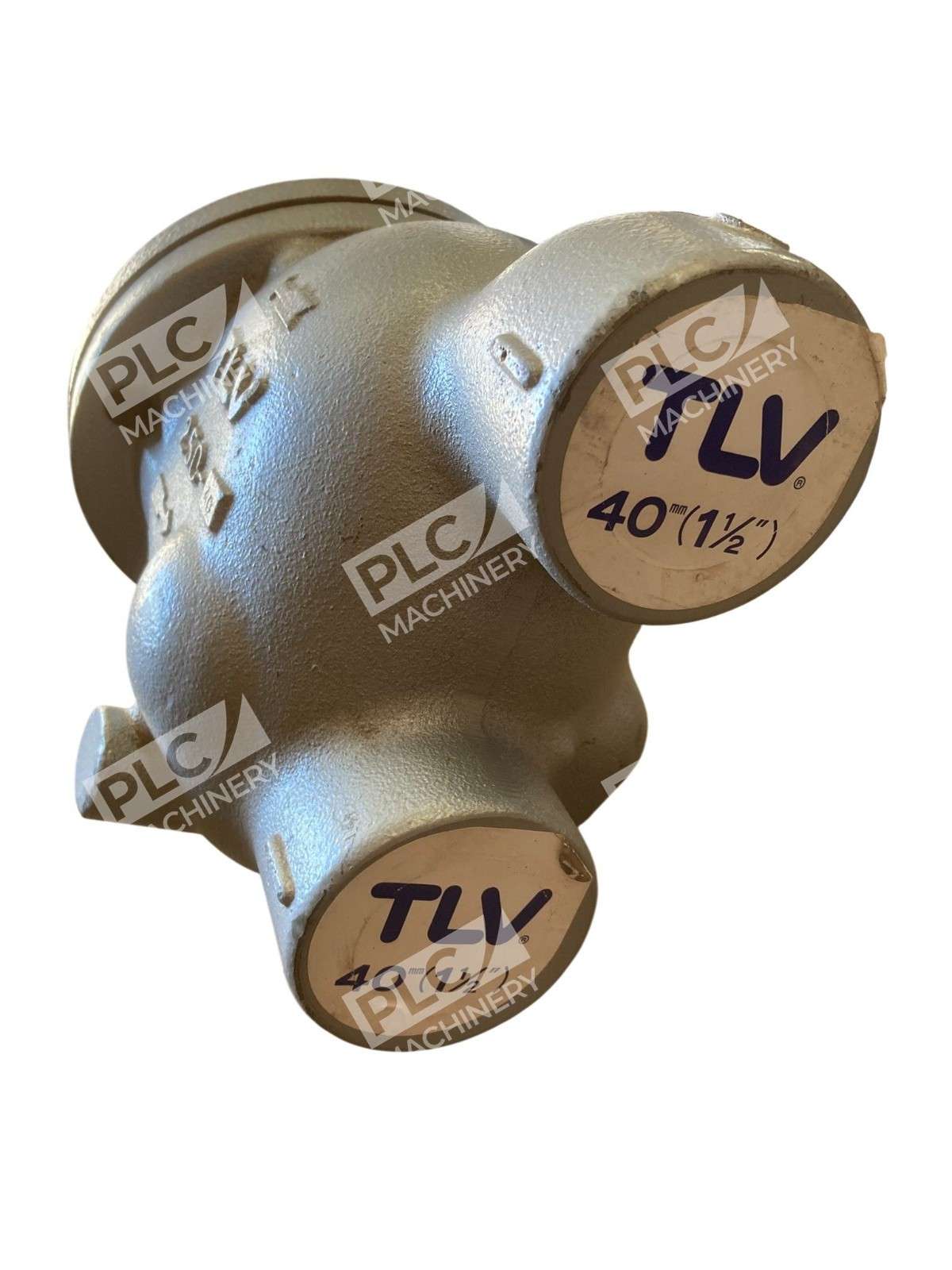

- Connection Size: 40mm / 1 1/2″ NPT
- Maximum Operating Pressure: 250 PSIG (17 bar)
- Set Pressure (Outlet): 15 PSI differential
- Body Material: Ductile Cast Iron
- Float Material: Stainless Steel
- Design Type: Free Float® mechanical
- Air Vent Type: Thermostatic
Typical Applications
- Process steam lines and equipment requiring continuous condensate drainage
- Heat exchangers and hot water generators
- Tracer lines for pipeline heating and freeze protection
- Industrial dryer and sterilizer condensate management
- Systems with backpressure or condensate recovery requirements
Compatibility & Replacements
Compatible With
- Steam systems rated for 250 PSIG and below
- Low-pressure process steam applications (up to 300 PSIG across TLV Free Float® range)
- Condensate return lines and recovery systems
- Standard NPT threaded steam line connections
Replaces / Drop-In Replacement For
- TLV SJ series steam traps with equivalent NPT thread sizing
- Earlier-generation SJ5 and SJ7 models where pressure and condensate load require SJ6 sizing
- Verify exact replacement compatibility with your system integrator before ordering
Works With
- TLV steam system design and selection software
- Industry-standard steam trap testing and commissioning equipment
- Condensate return lines and recovery pump systems
- Thermal management and process control systems using mechanical steam traps
