Overview

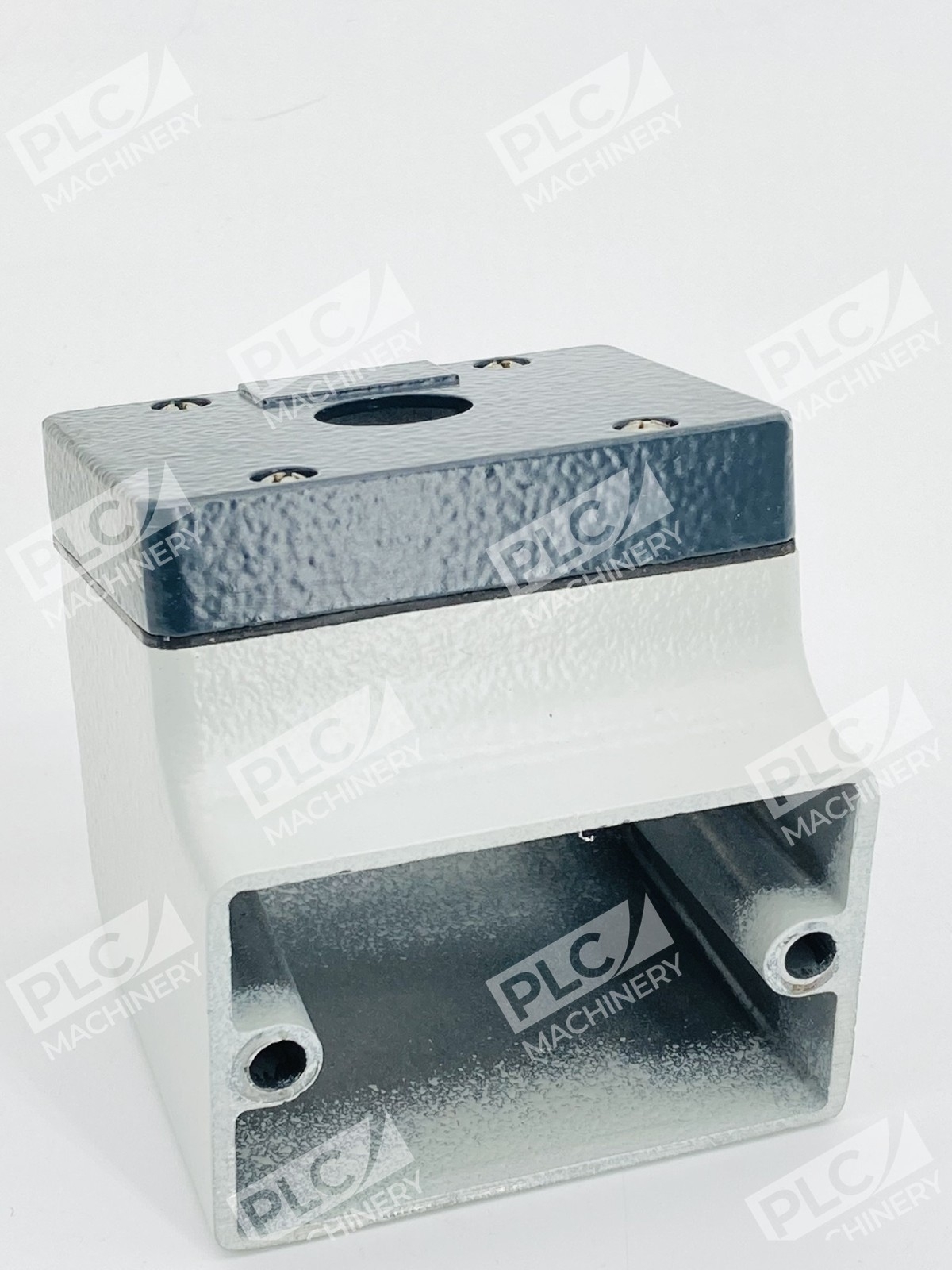

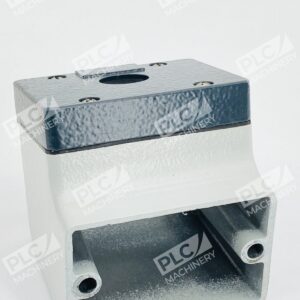

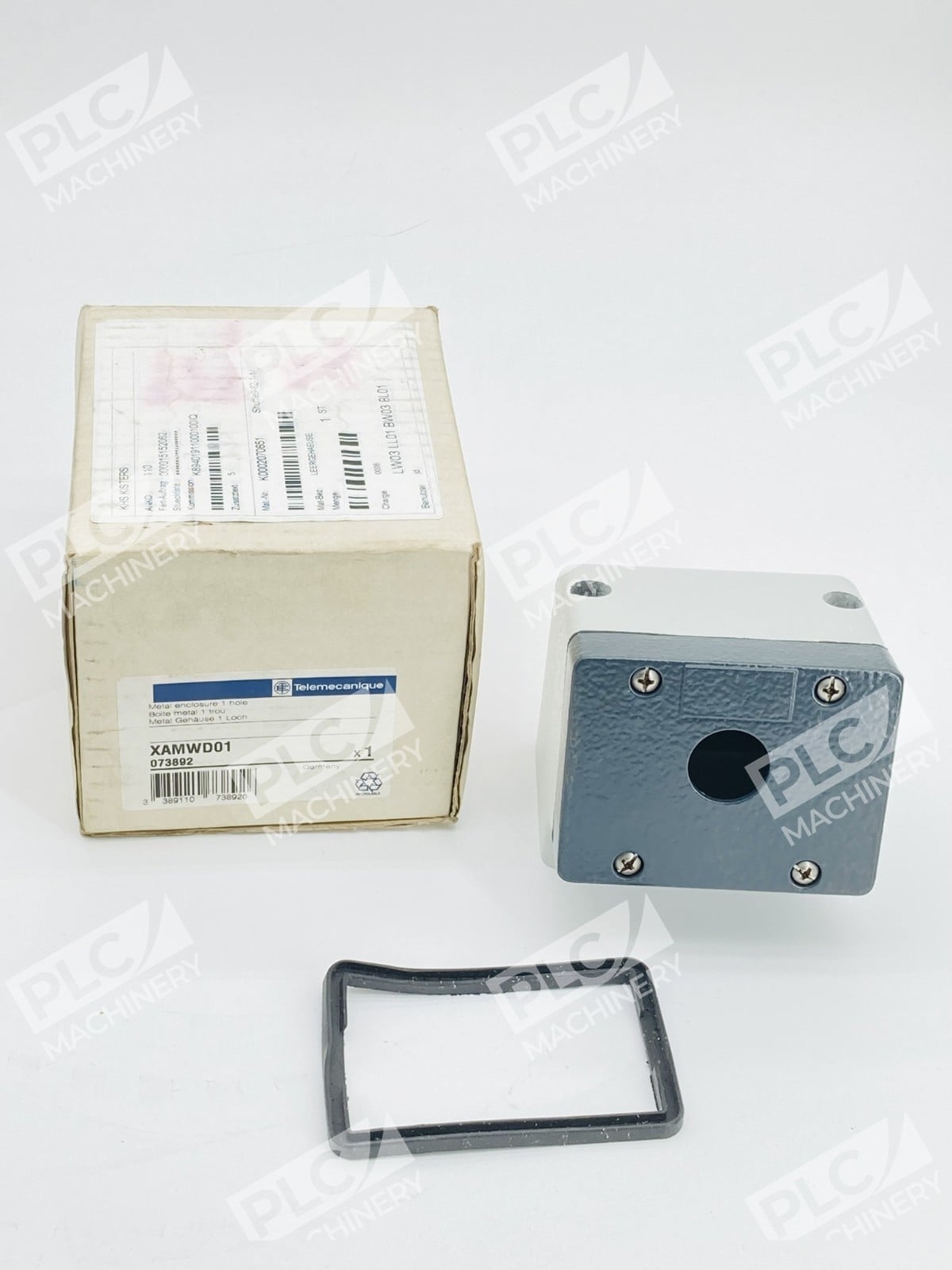

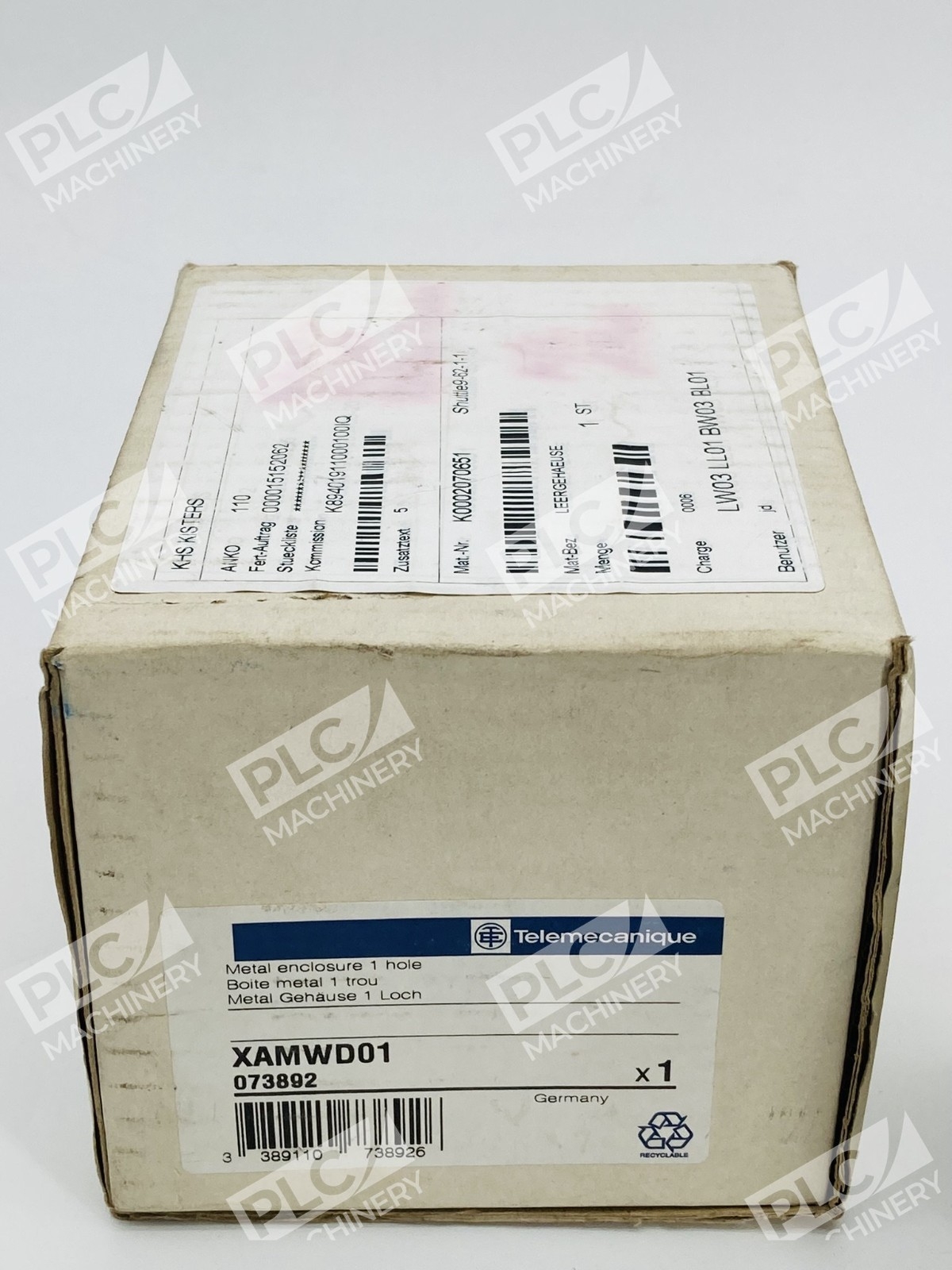

The Telemecanique XAMWD01 is an empty elbowed control station enclosure manufactured by Schneider Electric. It features aluminium alloy construction with a single 22mm diameter cutout, designed to house pushbuttons, pilot lights, and other control components. The angled (elbowed) design accommodates ergonomic mounting in industrial control panels and operator stations.
Key Features
- Elbowed (angled) metal enclosure for optimal visibility and operator access
- Single 22mm cutout diameter for standard control component mounting
- Aluminium alloy construction for durability and corrosion resistance
- IP65 rated for protection against dust and water spray
- Grey finish suitable for industrial environments
- Empty enclosure—ready for integration with pushbuttons, indicator lights, or selector switches
Technical Specifications
- Model: XAMWD01
- Manufacturer: Schneider Electric (Telemecanique)
- Enclosure Type: Elbowed control station
- Material: Aluminium alloy
- Number of Cutouts: 1
- Cutout Diameter: 22mm
- IP Rating: IP65
- Finish: Grey
- Configuration: Empty (no components included)
Typical Applications
The XAMWD01 is ideal for building custom control stations and operator interfaces in:
- Machine tool control panels
- Industrial automation systems
- Process control stations
- Manufacturing equipment operator stations
- Packaging and material handling systems
Compatibility & Replacements
Compatible With
- Schneider Electric XAM-W series components
- Standard 22mm pushbutton and indicator light modules
- Industrial control panel mounting systems
- NEMA 12 / IP65-rated enclosure installations
Replaces / Drop-In Replacement For
The XAMWD01 is a specific SKU within the XAM-W control station family. Verify compatibility with your system integrator before ordering alternative models or replacements.
Works With
- Telemecanique / Schneider Electric pushbutton and selector switch modules
- Standard industrial control component ecosystems
- Modular control station assembly workflows
