Overview

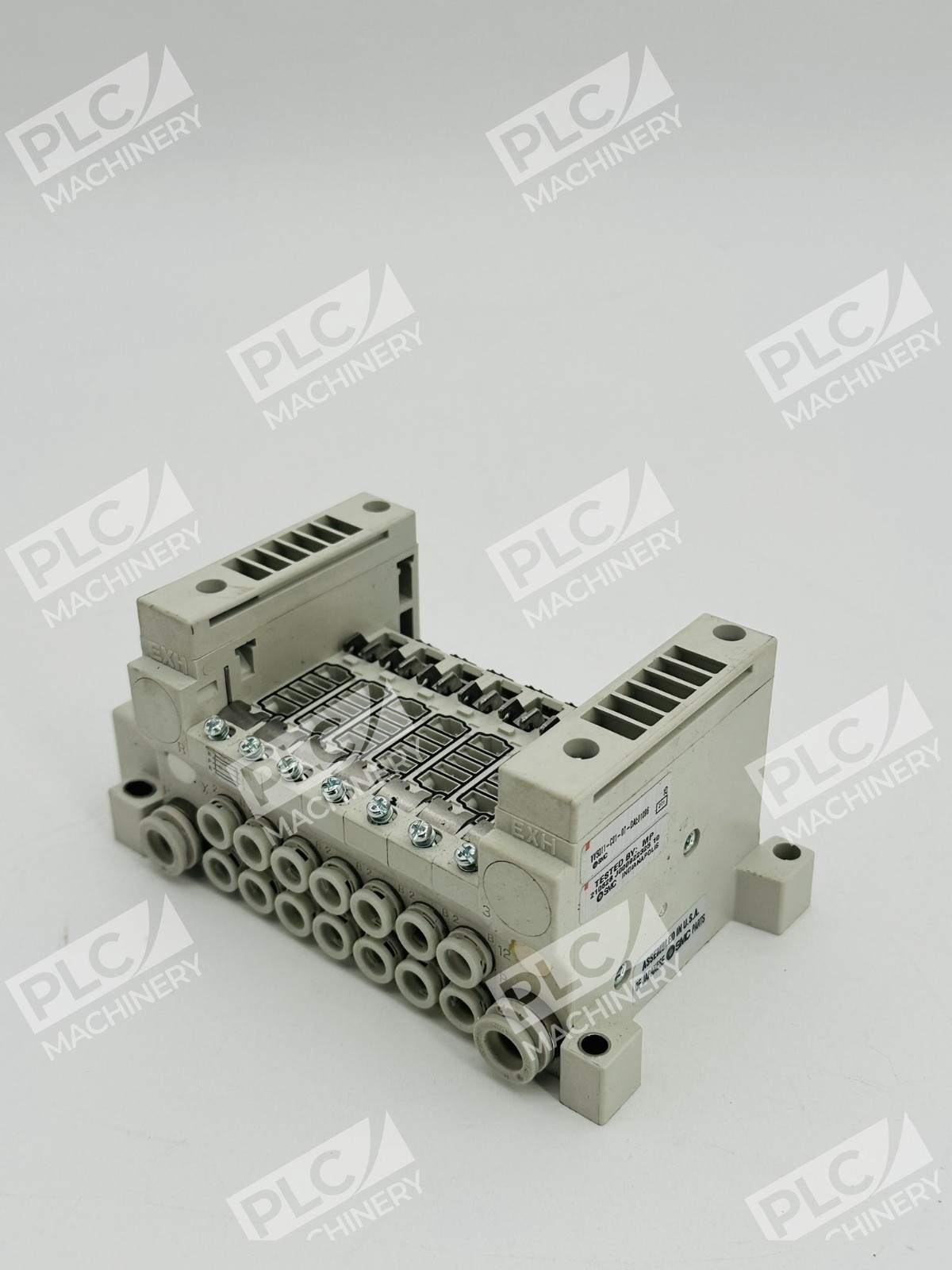

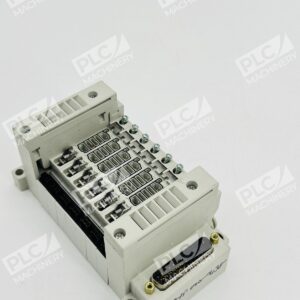

The SMC VV5Q11-C01-07-DAL01096 is a base-mounted pneumatic solenoid valve manifold block manufactured by SMC, a leading global provider of automation components. This 7-station manifold integrates multiple 4/5-port solenoid valve stations with plug-in solenoid valve cartridges, enabling centralized pressure and flow control for complex pneumatic circuit applications. The VV5Q11 series is widely used in industrial automation, factory equipment, and process control systems requiring reliable directional control of compressed air.
Key Features
- 7-station valve manifold base with integrated solenoid cartridge cavities
- Space-saving design with one-side solenoid and fittings positioned for free three-directional mounting
- No-screw, single-clamp structure reduces assembly and reconfiguration labor
- Plug-in modular construction allows quick valve cartridge replacement without full manifold disassembly
- Compatible with SMC VQ1000/2000 series 5-port solenoid valve cartridges
- Cast aluminum or ductile iron body construction for durability in industrial environments
- Ported for integrated inlet, exhaust, and work ports with customizable cavity configurations
Technical Specifications
- Manifold Type: Base-mounted, multi-station solenoid valve block
- Number of Stations: 7
- Valve Series: VQ1000/2000 compatible (4/5-port directional solenoid valves)
- Mounting: Base-mounted with modular porting
- Body Material: Cast aluminum or ductile iron
- Port Type: Subplate or cavity-ported for SAE/ISO standard cavities
- Solenoid Voltage: Valve-dependent (typically 24 VDC)
- Nominal Pressure Range: 0–1.0 MPa (0–10 bar) standard industrial
- Operating Temperature: 0–50 °C (ambient)
- Fluid Medium: Clean compressed air
- Certifications: ISO 4401 (CETOP-05) or equivalent cavity standards
Typical Applications
- Automated assembly lines and CNC machinery requiring multi-axis pneumatic control
- Pick-and-place systems and robotic gripper valve control
- Industrial presses, stamping machines, and molding equipment
- Packaging equipment and conveyor system actuation
- Process automation requiring centralized directional control of multiple pneumatic cylinders
- Test stands and production equipment with modular valve requirements
Compatibility & Replacements
Compatible With
- SMC VQ1000 series 5-port solenoid valve cartridges
- SMC VQ2000 series 5-port solenoid valve cartridges
- Standard ISO 4401 (CETOP-05) cavity mounting systems
- 24 VDC solenoid coil assemblies (standard industrial control voltage)
- Pneumatic air supply systems operating at 0–1.0 MPa (0–10 bar)
- Industrial automation controllers and PLC-based pneumatic control systems
Replaces / Drop-In Replacement For
- Other SMC VV5Q11 7-station manifold variants with compatible cartridge cavity patterns
- Direct replacement for systems originally equipped with identical model VV5Q11-C01-07-DAL01096
- Verify compatibility with your system integrator before ordering to confirm cavity layout and port configuration match your valve cartridge selection.
Works With
- SMC solenoid coil assemblies and valve cartridges for plug-in operation
- Standard industrial 24 VDC control circuits and relay-based pneumatic control
- Compressed air networks with ISO 4401 or equivalent manifold interface standards
- Industrial PLC systems (Allen-Bradley, Siemens, Mitsubishi, Omron, etc.) via solenoid coil pilot control
- Pneumatic logic circuits and integrated automation equipment
