Overview

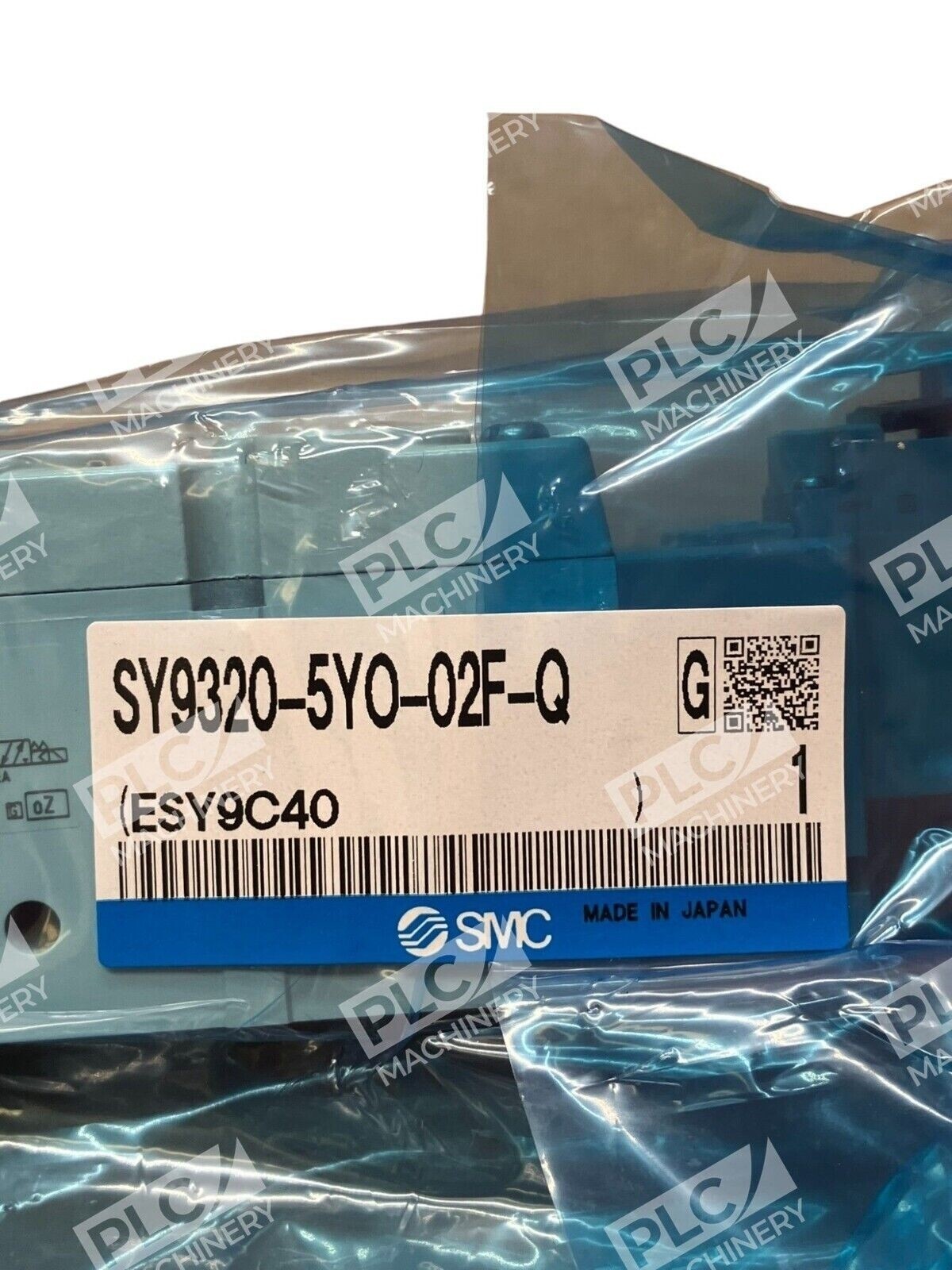

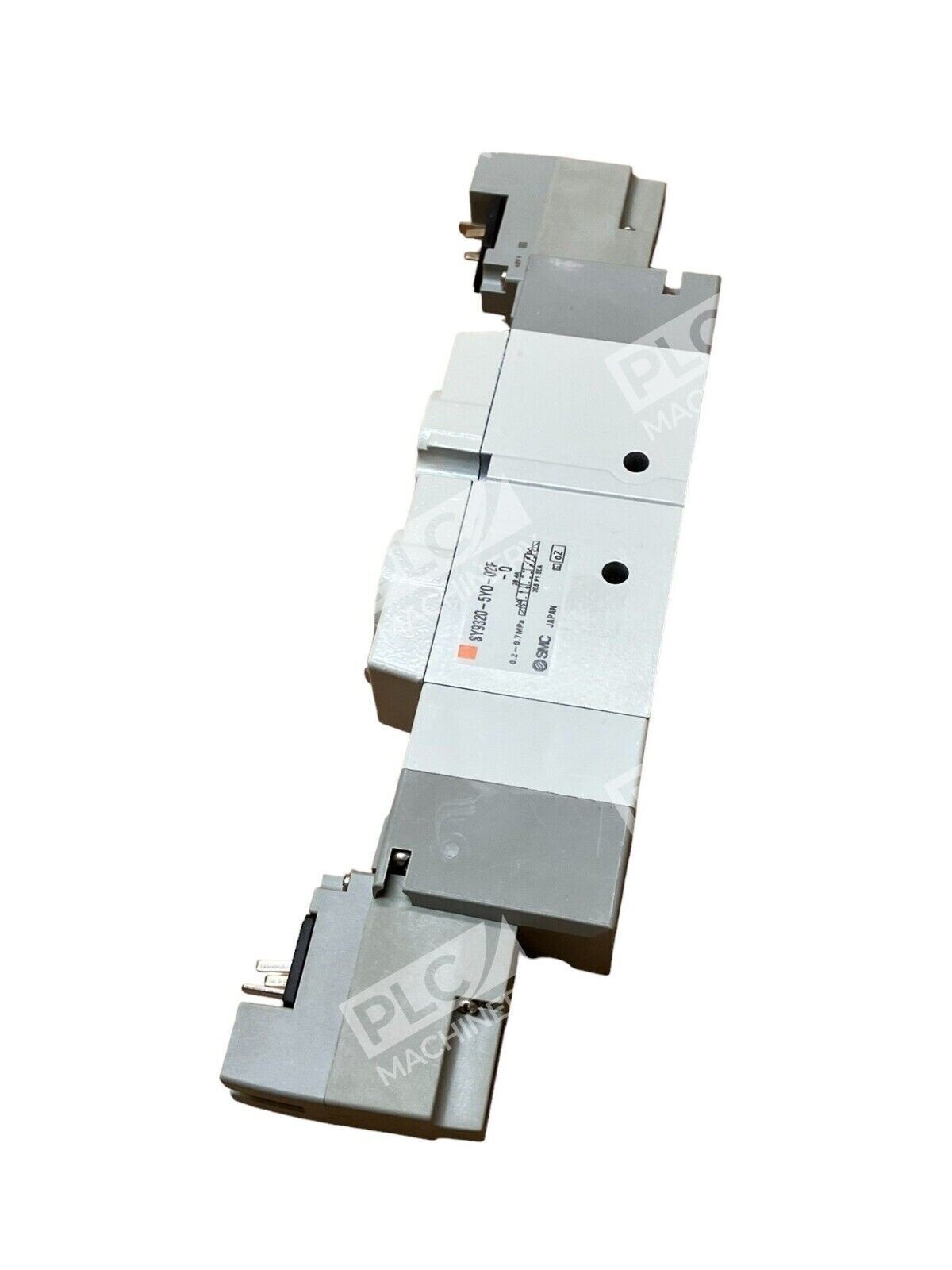

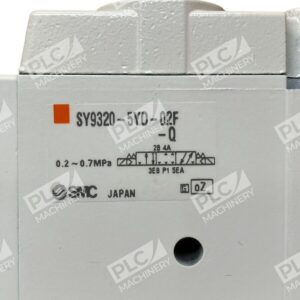

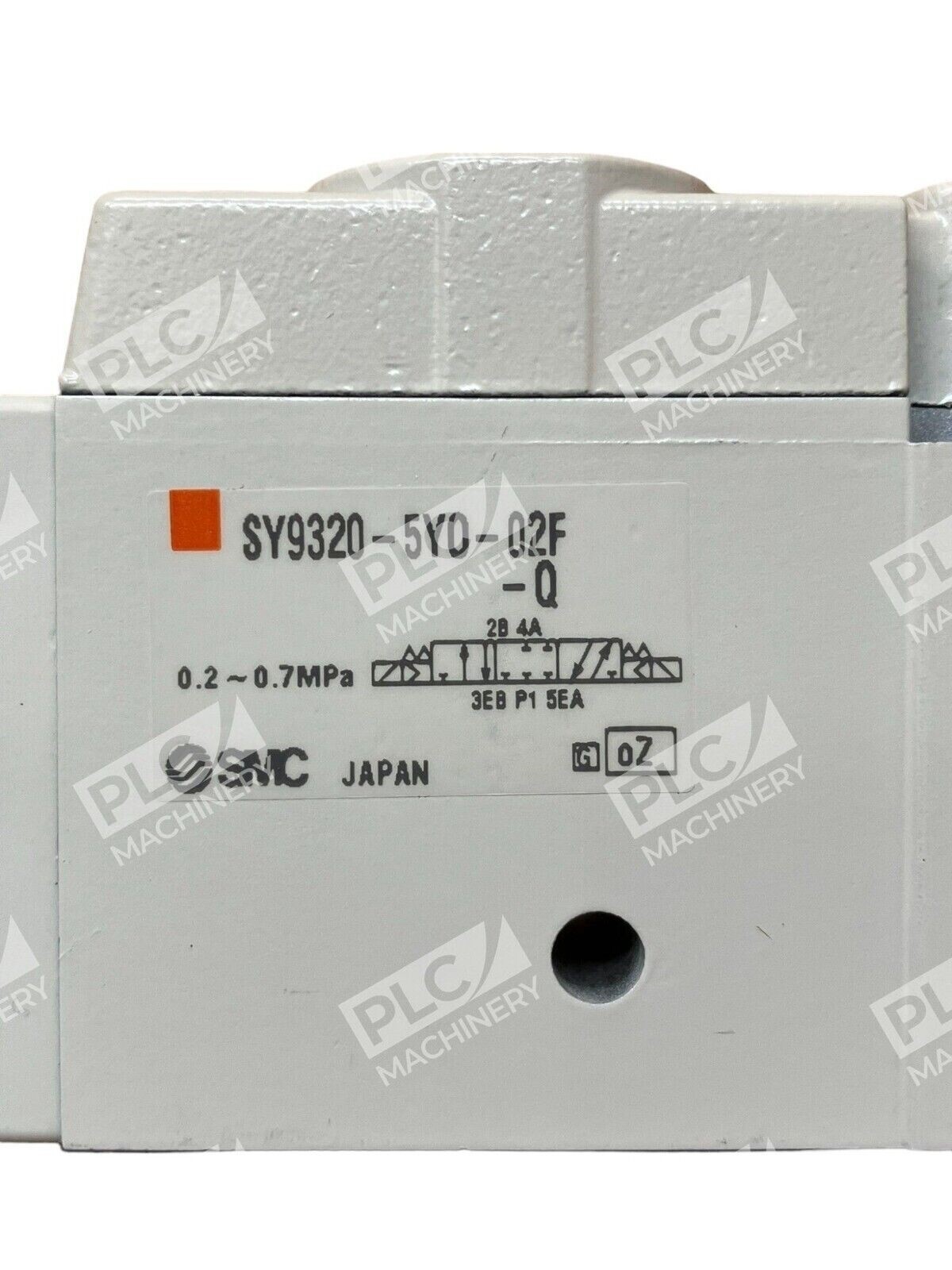

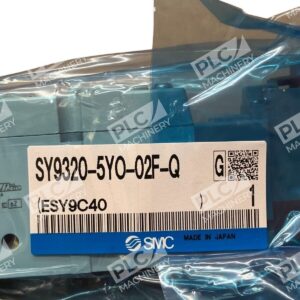

The SMC SY9320-5YO-02F-Q is a 5-port, body-ported solenoid valve from SMC’s SY9000 series pneumatic valve lineup. This valve delivers reliable actuation for directional control in industrial pneumatic systems. The body-ported design allows manifold mounting flexibility, and the single-unit configuration supports standalone operation or integration into stacked valve assemblies.
Key Features
- 5-port, 3-position closed-center solenoid valve design

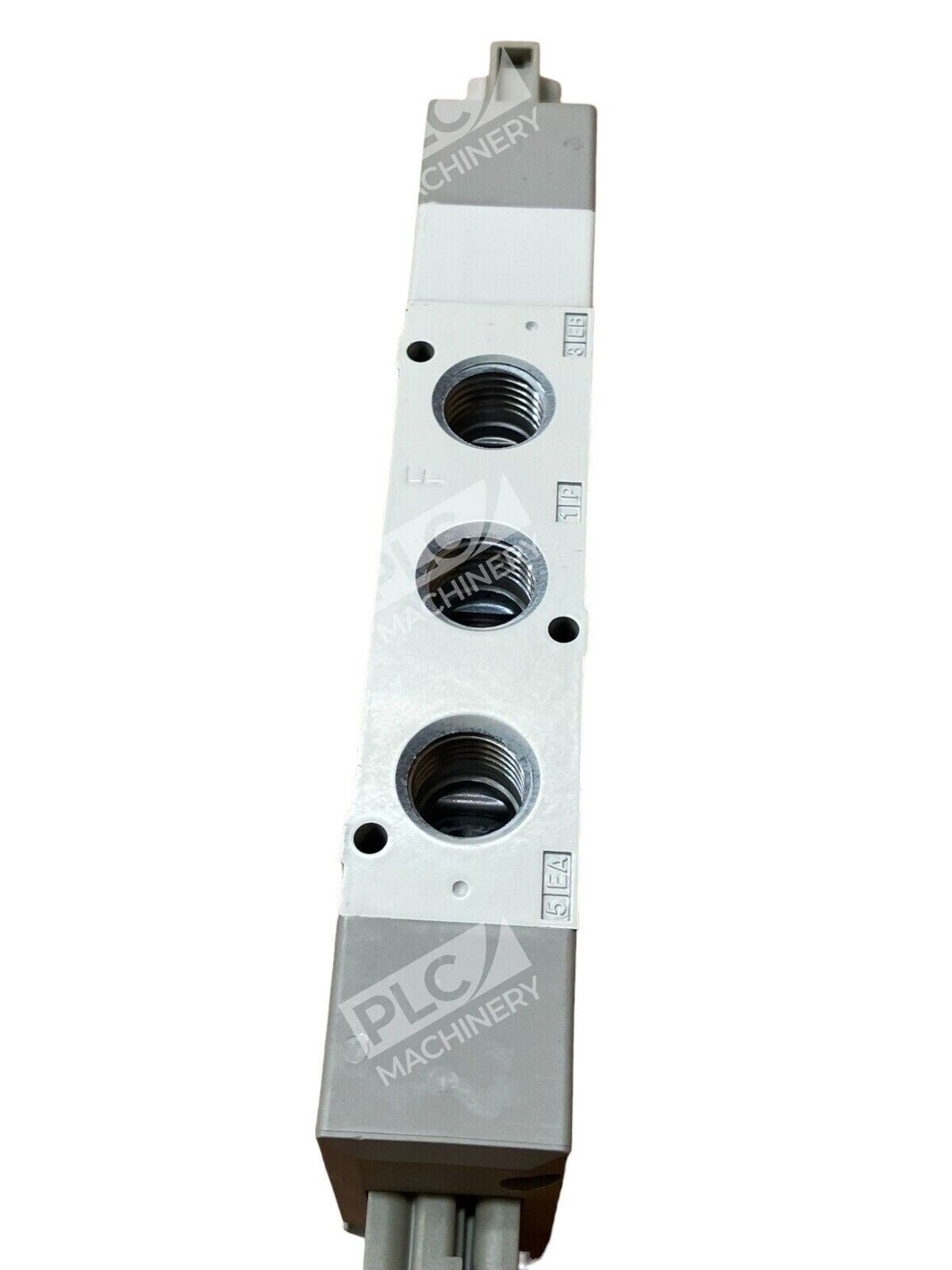

- Body-ported construction for flexible manifold integration
- 24 V DC coil with low power consumption (0.1 W with power-saving circuit)
- Spring-return actuation (self-recovery at power-off)
- Non-locking manual override for emergency control
- Compact form factor reduces system footprint
Technical Specifications
- Series: SY9000 (SY Series)
- Configuration: 5-Port, Body Ported, Single Unit
- Valve Type: Solenoid Actuated Directional Control
- Positions: 3-Position Closed Center
- Actuation: Double Solenoid (piloted)
- Status at Power-Off: Self-Recovery (Spring Return)
- Coil Voltage: 24 V DC
- Coil Power Consumption: 0.1 W (with power-saving circuit)

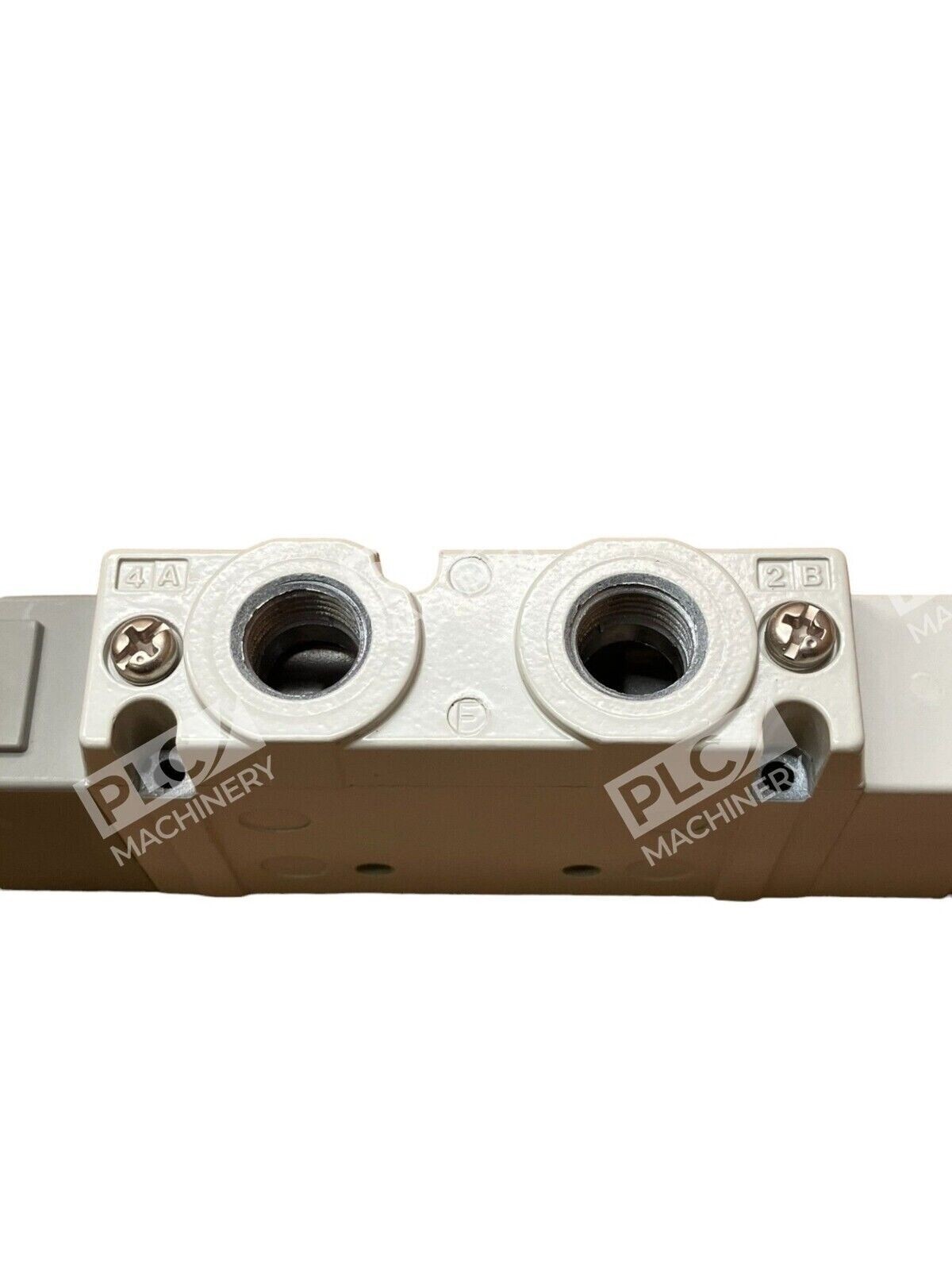

- Port Size: 3/8 inch (G thread)
- Pressure Rating: 0.2 to 0.7 MPa
- Manual Switch: Non-Locking Push Type
- Flow Coefficient (Cv): 1.9

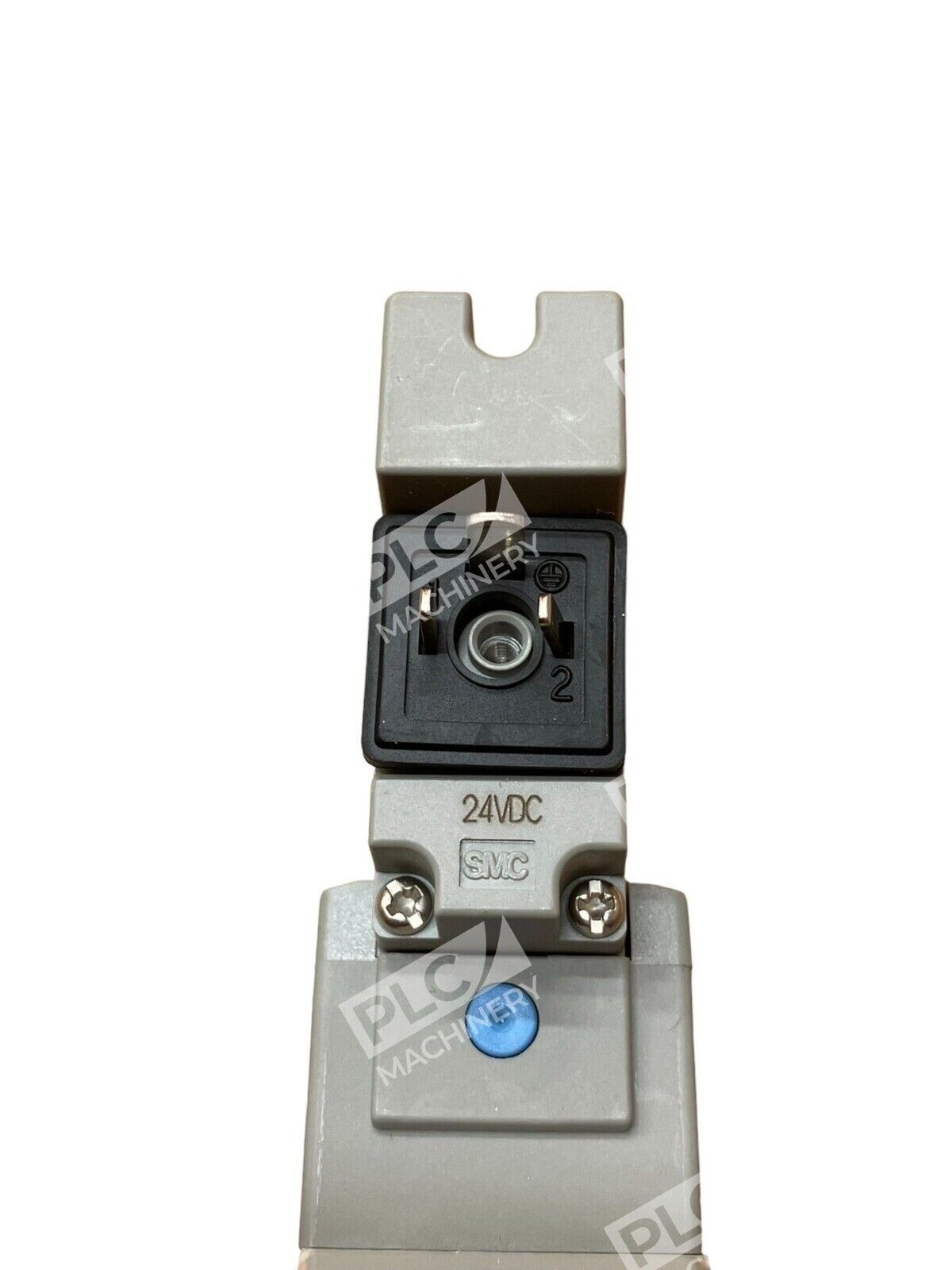

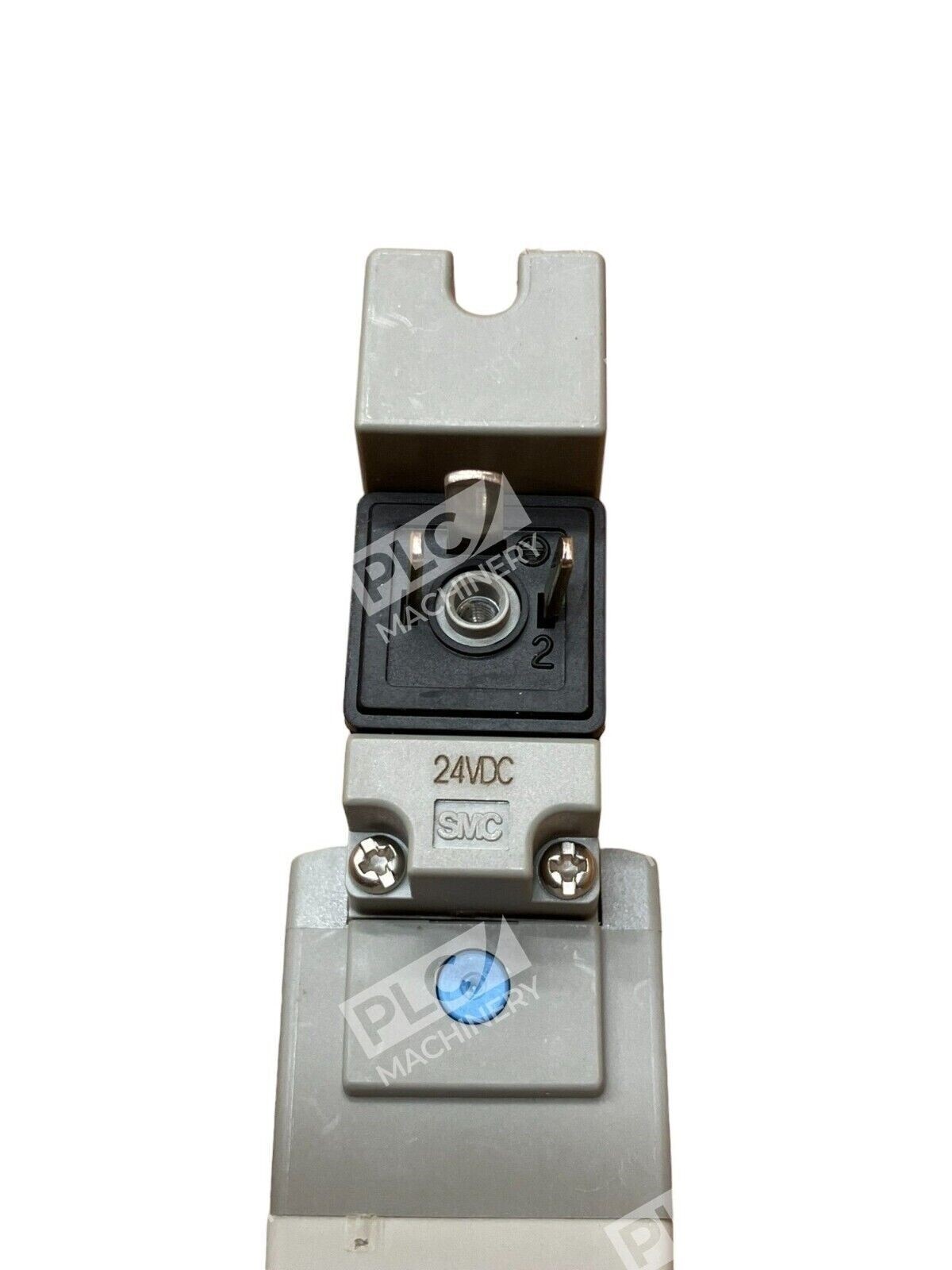

- Electrical Entry: DIN Terminal (DIN43650B standard, connector not included)
- Indicator Light / Surge Suppressor: Without
- Certification: CE Compliant
Typical Applications
The SMC SY9320-5YO-02F-Q is suited for a wide range of industrial pneumatic automation tasks, including:
- Directional control of pneumatic cylinders and actuators
- Pneumatic sequencing and logic circuits
- Air tool operation and distribution
- Industrial machinery automation and control
- Manufacturing equipment with space constraints
- Manifold-mounted system integration
Compatibility & Replacements
Compatible With
- SMC pneumatic manifold blocks and base plates
- Pneumatic cylinders and actuators (3/8″ port connection)
- Standard compressed air systems (0.2–0.7 MPa operating pressure)
- Industrial compressed air networks
- 24 V DC control circuits and PLCs
Replaces / Drop-In Replacement For
The SY9320-5YO-02F-Q can replace other body-ported 5-port SY9000 series valves with matching voltage and port specifications. For specific model interchange, verify port size, coil voltage, and manifold mounting compatibility with SMC documentation or your system integrator before ordering.
Works With
- SMC pneumatic system components and manifolds
- Standard 24 V DC solenoid coil configurations
- Industrial PLC and automation control systems
- Pneumatic piping (G thread, 3/8″ port)
