Overview

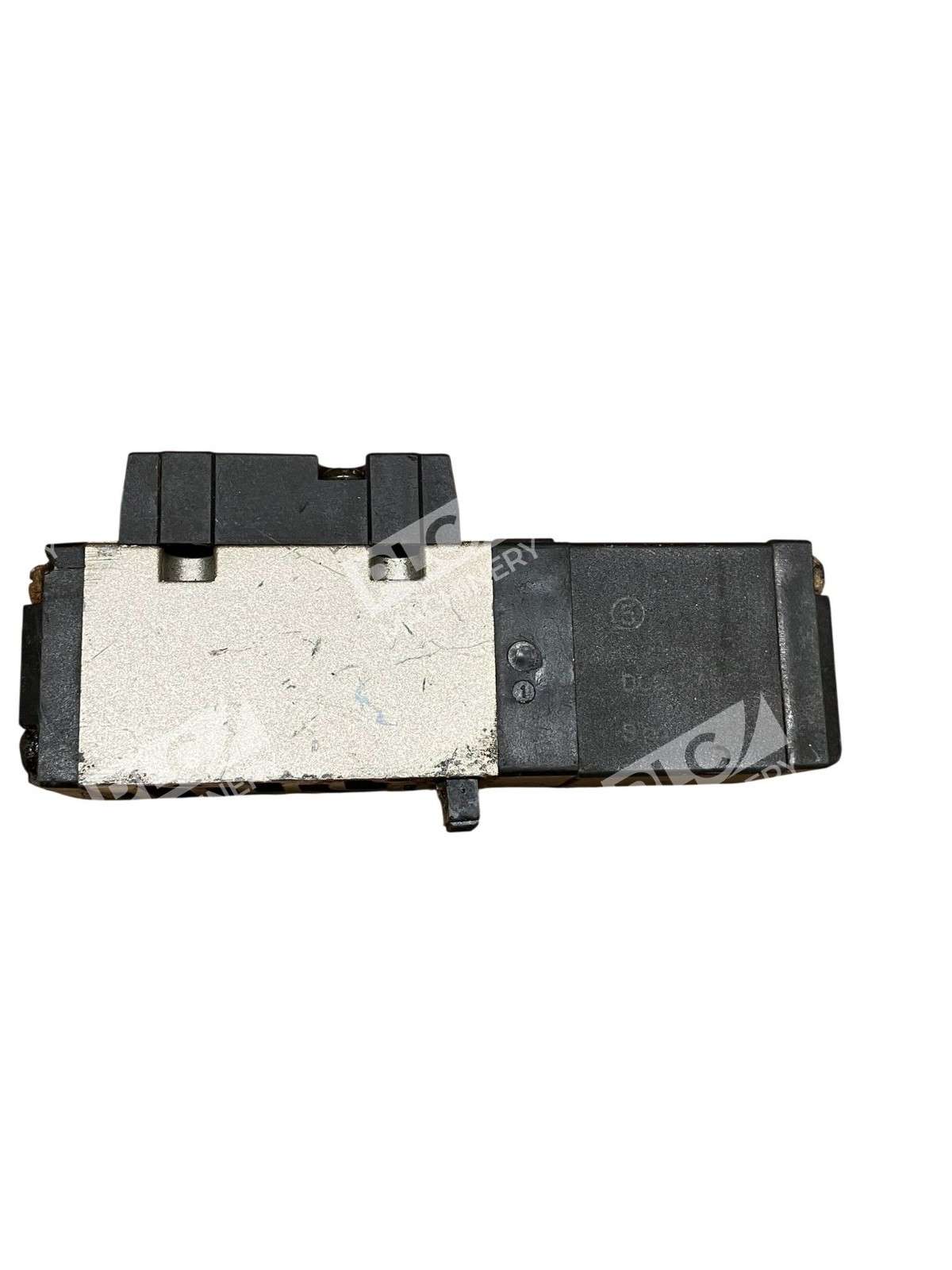

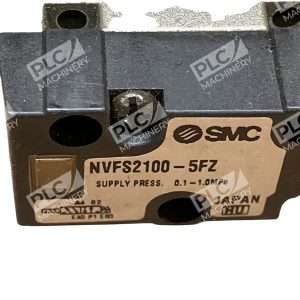

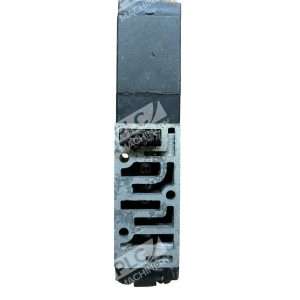

SMC NVFS2100-5FZ is a body-ported, pilot-operated solenoid valve designed for reliable pneumatic control in industrial applications. The valve is a 24VDC internally-driven pilot valve for air, fluid, or inert gas applications. It is a body-ported, 5-port, 2-position valve with a single solenoid and piloted solenoid actuation, made of aluminum with a non-locking push manual operation type.
Key Features
- Large flow capacity, low power consumption, long life, and ease of maintenance
- Lubrication not required — reduces maintenance burden in continuous-duty applications
- Metal seals for durability and leak resistance
- Non-locking push manual override for flush pilot operation — allows safe manual intervention without locking mechanism
- Base-mounted manifold with plug-in electrical connections for quick installation
- Used in car wash systems, air compressors, vacuums, air blowers, and dust collection systems
Technical Specifications
Maximum operating pressure of 150 psi (1 MPa); minimum operating pressure of 15 psi (0.1 MPa) for 2-position mode; ambient and fluid temperature range of 14°F to 140°F (-10°C to 60°C). Flow coefficient (Cv) of 0.83; single solenoid with plug-in conduit terminal electrical entry.
Typical Applications
- Pneumatic circuit control and switching in automated manufacturing
- Compressed air system distribution and switching
- Industrial vacuum and pneumatic tool operation
- Dust collection and air handling equipment
- General industrial fluid control where 24VDC pilot-operated switching is required
Compatibility & Replacements
Compatible With
- Standard industrial pneumatic systems and manifold bases
- 24VDC control circuits and PLCs with solenoid valve outputs
- Aluminum or ductile iron body-ported manifold mounting surfaces
- Air and inert gas distribution networks
Replaces / Drop-In Replacement For
- Earlier generations of the VFS2000 series 5-port solenoid valves
- Verify compatibility with your system integrator before ordering
Works With
- 24VDC power supplies and industrial control modules
- Standard pneumatic quick-connect fittings with Rc, NPTF, and G thread types
- Industrial automation control systems and pneumatic manifold networks
