Overview

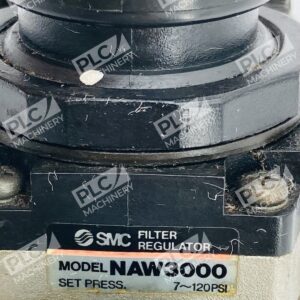

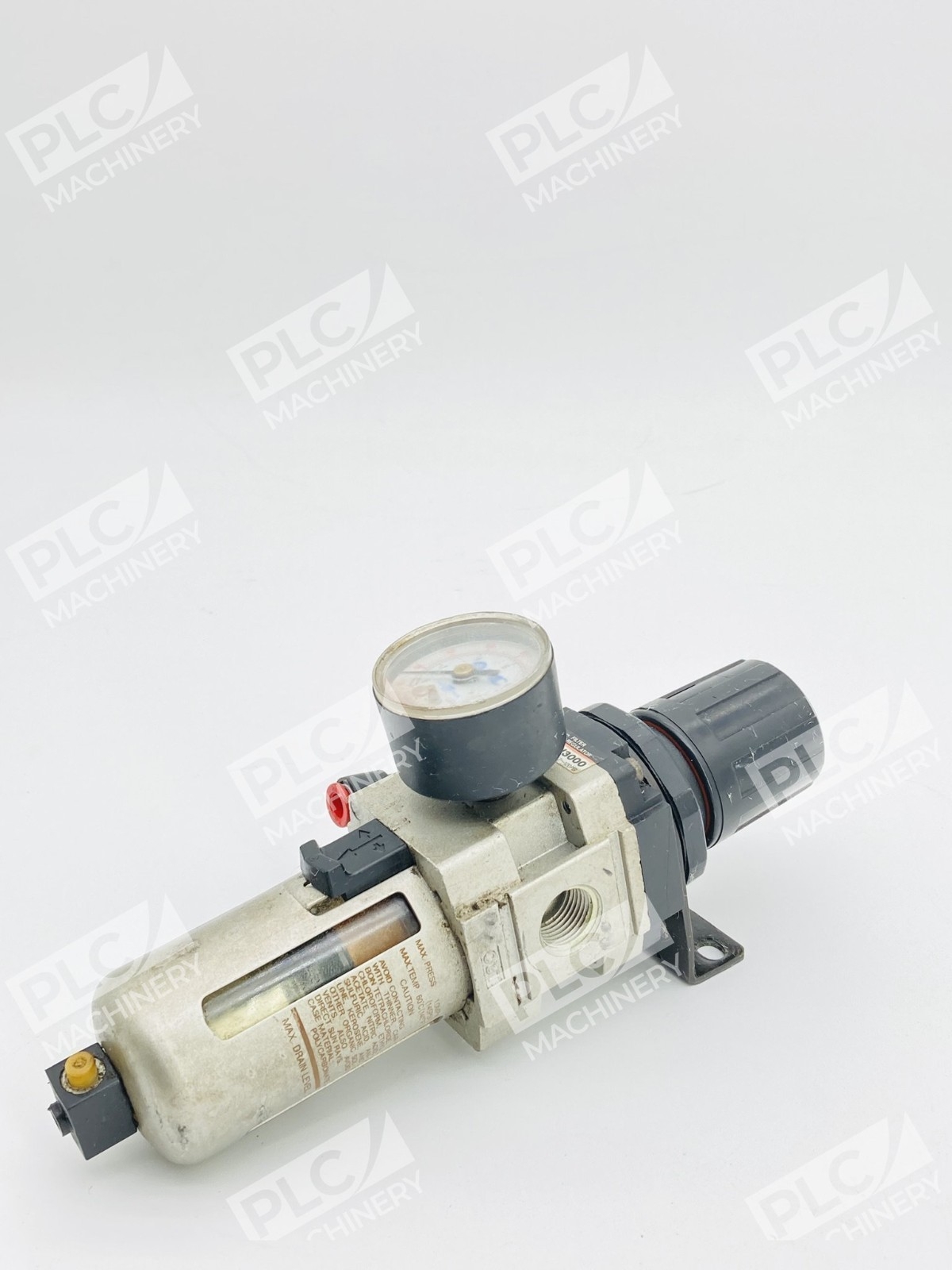

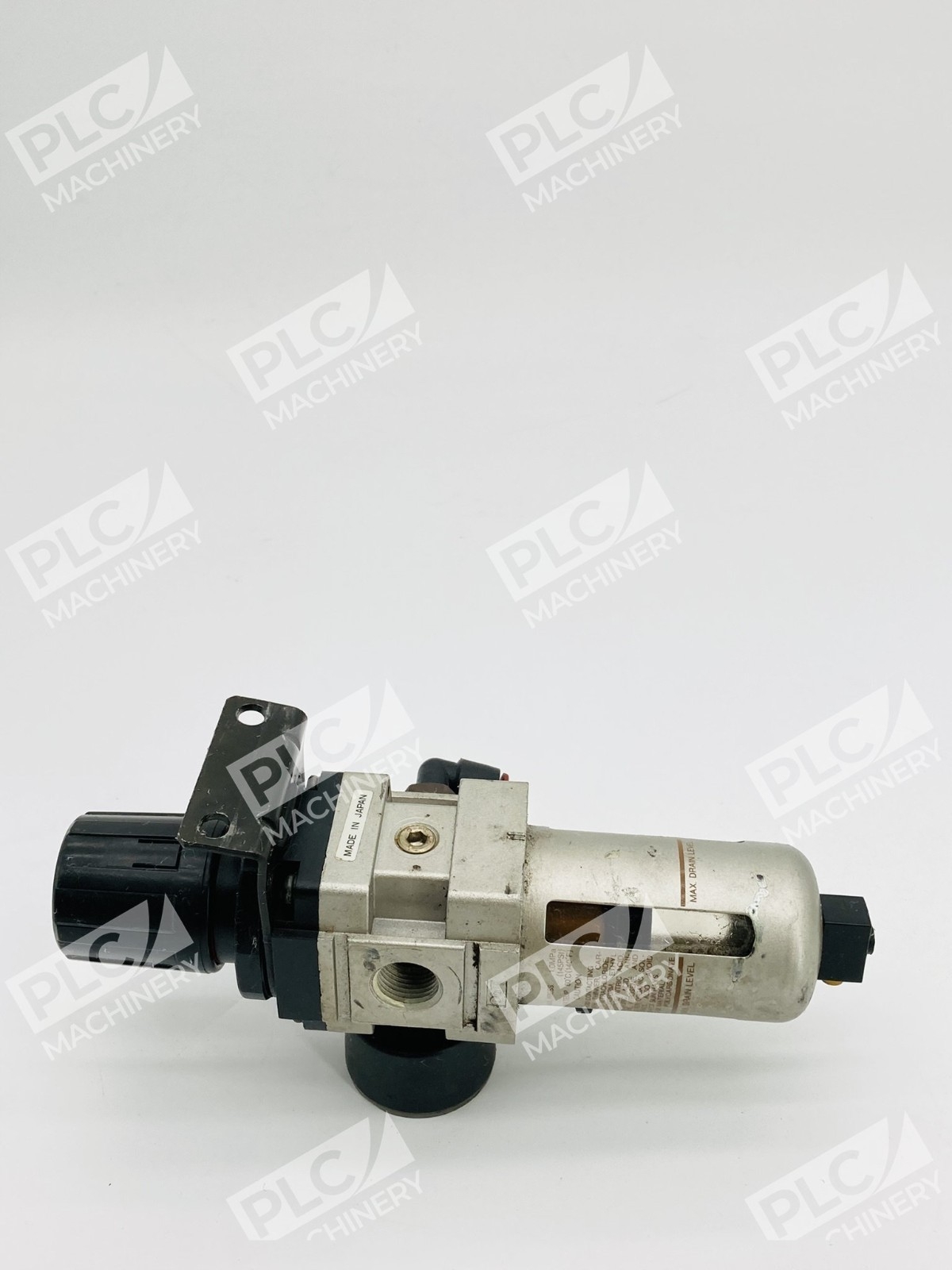

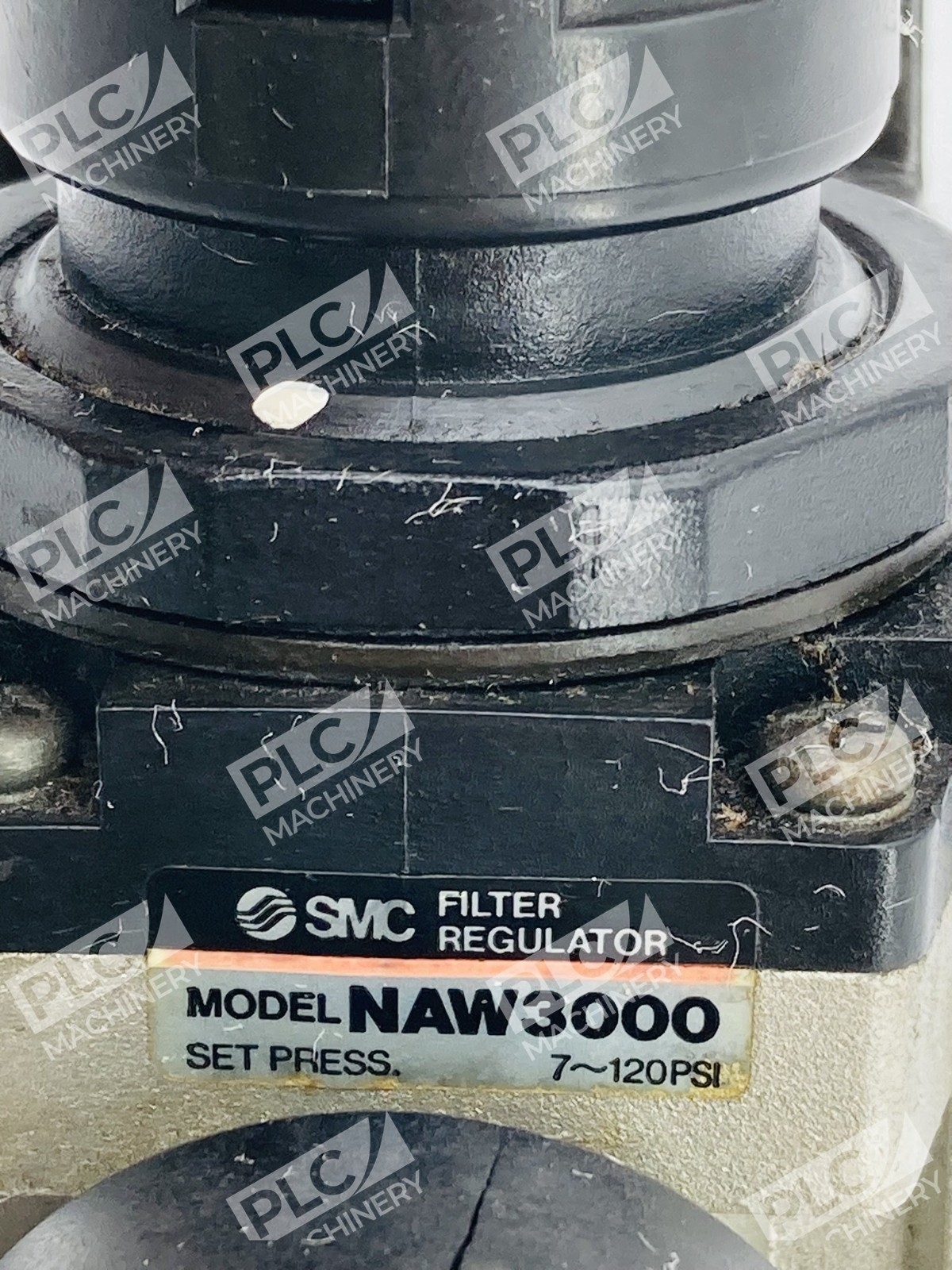

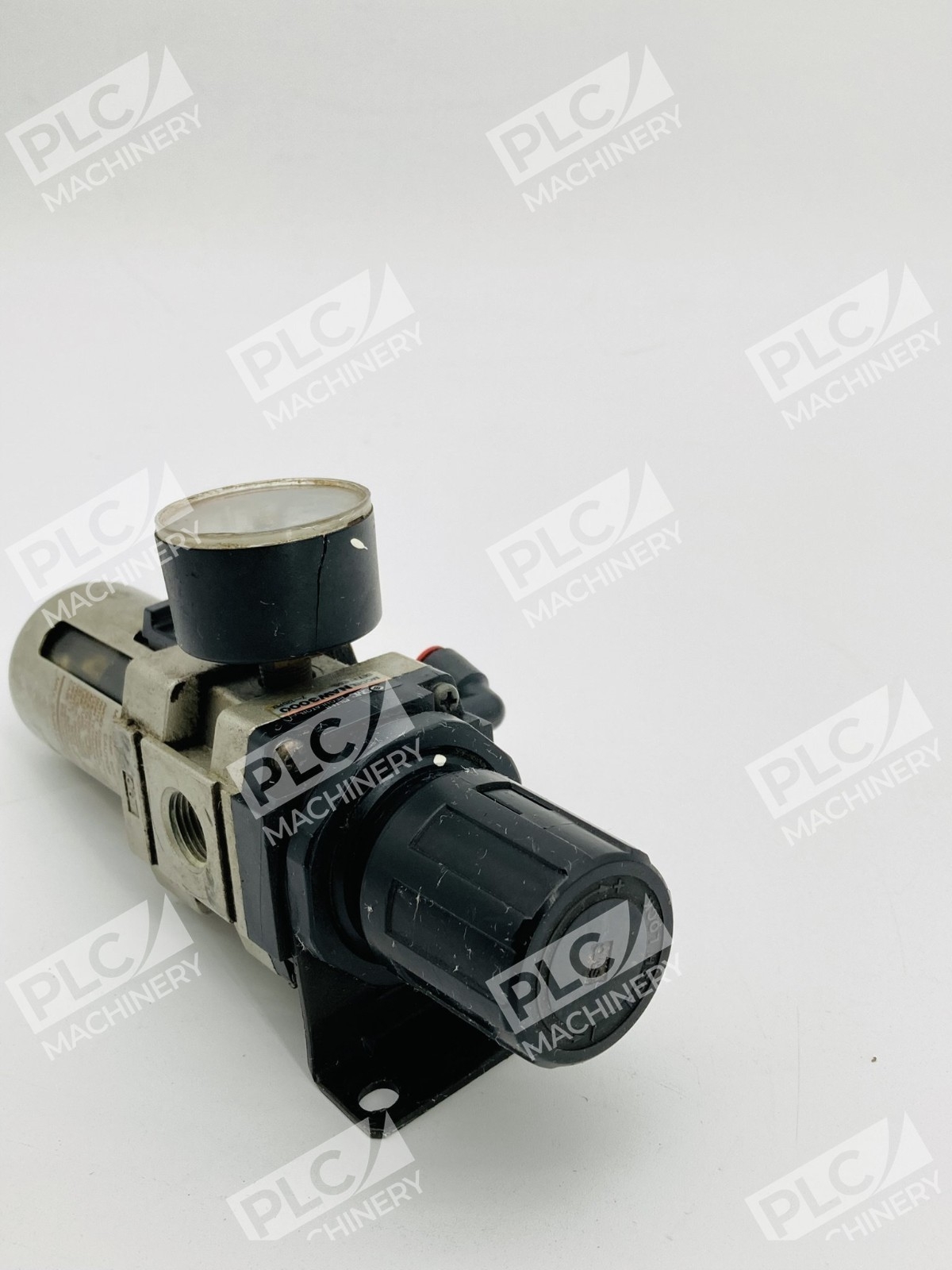

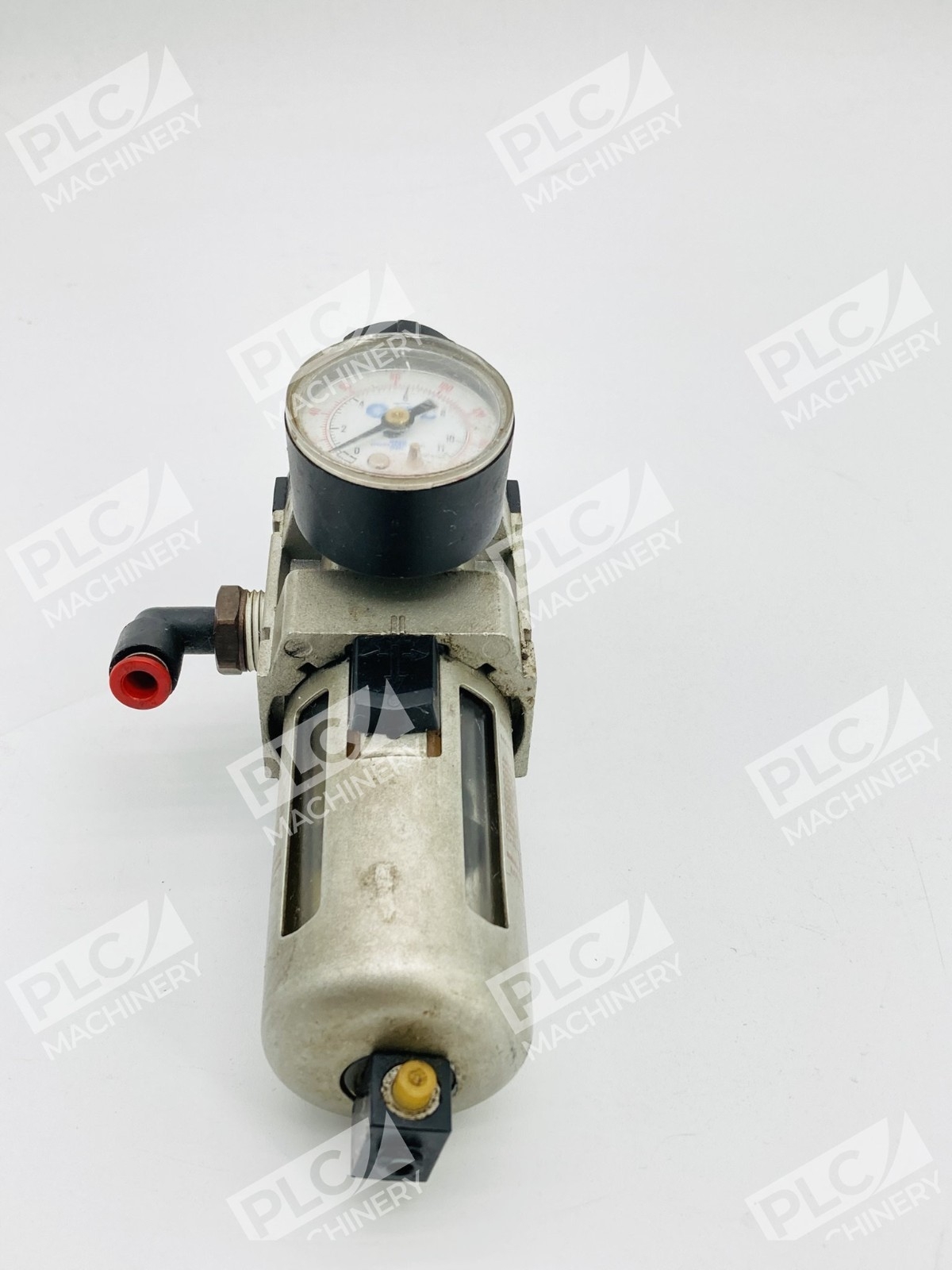

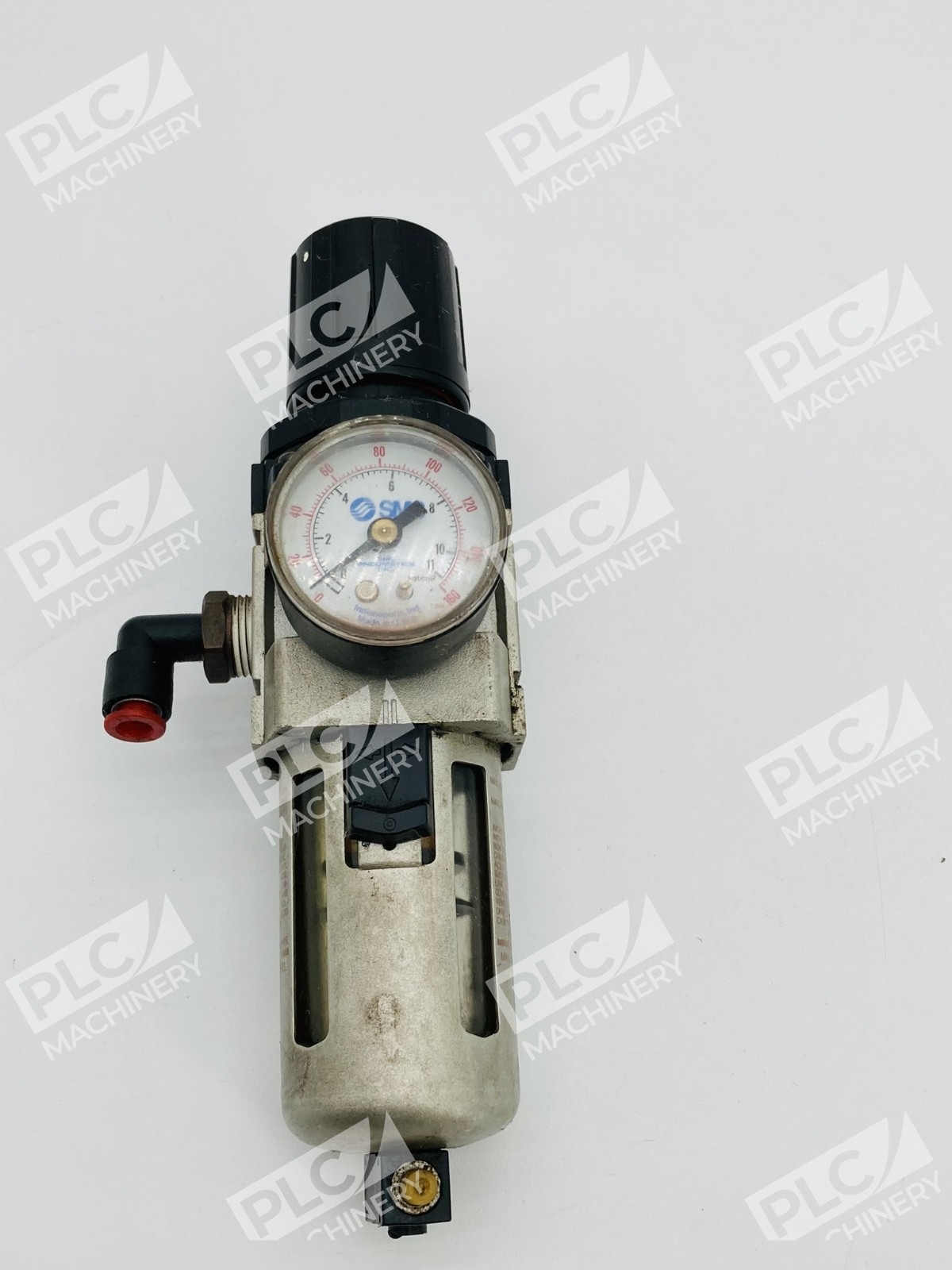

The SMC NAW3000 is a North American configuration pneumatic filter regulator combination unit designed for reliable air pressure control in industrial and commercial applications. By integrating both filtration and regulation functionality into a single compact body, the NAW3000 reduces complexity, installation time, and space requirements. This modular unit is constructed to deliver consistent performance across a wide operating range.
Key Features
- Integrated filter and regulator in one compact design
- 2000 ℓn/min flow rate capacity
- Pressure regulating range of 0.05–0.85 MPa (8–125 PSI)
- 3/8 inch NPT port connections
- 20 cm³ bowl capacity for debris collection
- North American body configuration for easy integration
Technical Specifications
The SMC NAW3000 delivers high flow capacity with precise pressure control across industrial duty cycles. The modular design allows for flexible mounting and integration into existing pneumatic systems.
Typical Applications
- Industrial automation and manufacturing equipment
- Air compressor output preparation and conditioning
- Pneumatic tool and device air supply regulation
- Production line air pressure maintenance
- Pressure monitoring and control in cross-industry applications
Compatibility & Replacements
Compatible With
- Standard industrial air compressors with 3/8 inch NPT connections
- Pneumatic actuators rated for 0.05–0.85 MPa pressure range
- Modular SMC pneumatic system components
- Standard aluminum and steel piping networks
Replaces / Drop-In Replacement For
The NAW3000 is available in multiple suffix variants (e.g., NAW3000-N03, NAW3000-N03-X64, NAW3000-N02D series). Verify your specific variant and existing system configuration before ordering to ensure compatibility.
Works With
- Pneumatic control systems and circuits
- Pressure gauges (0.05–0.85 MPa rated)
- Pneumatic solenoid valves and directional controls
- Industrial process automation platforms
