Overview

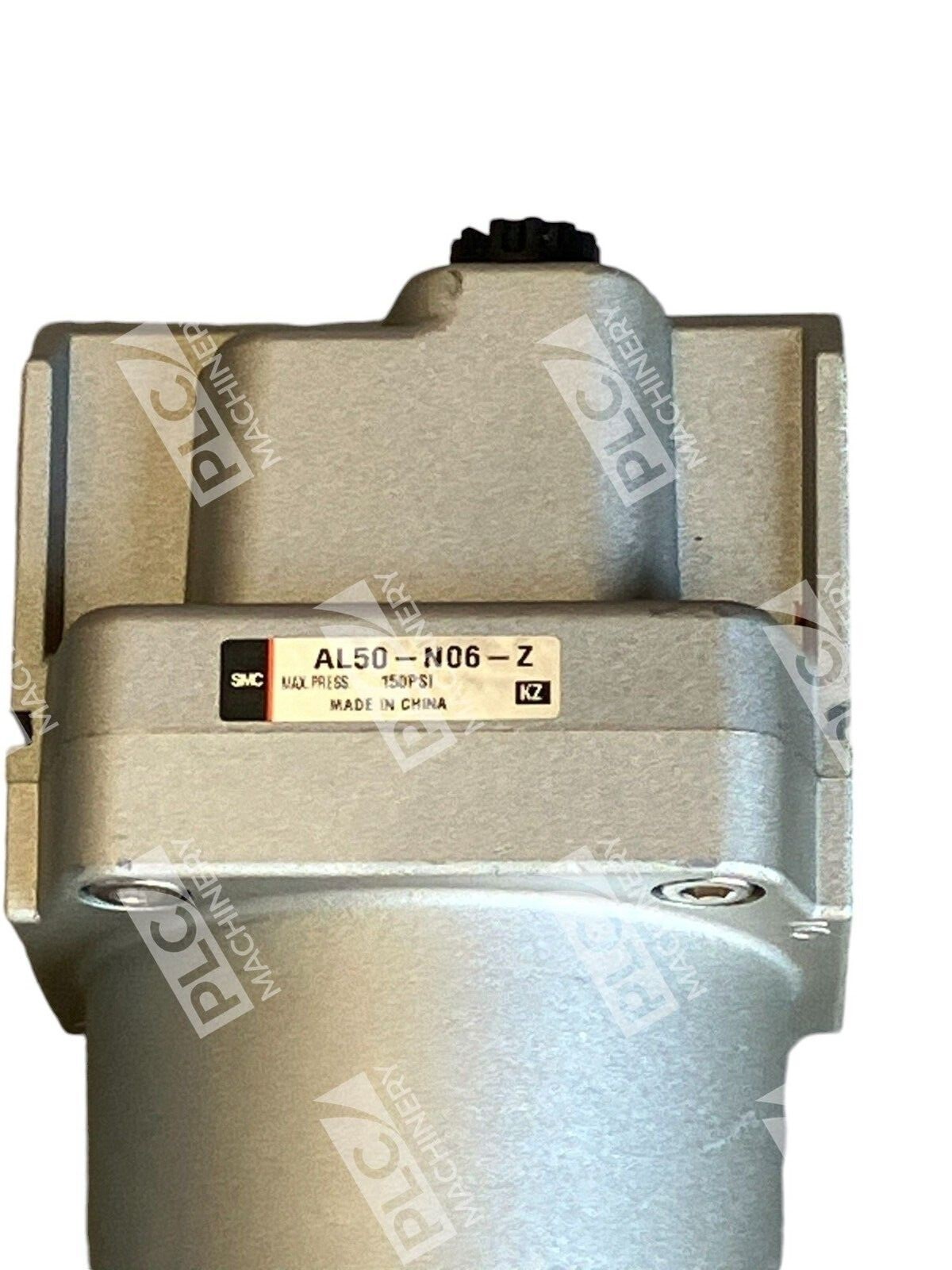

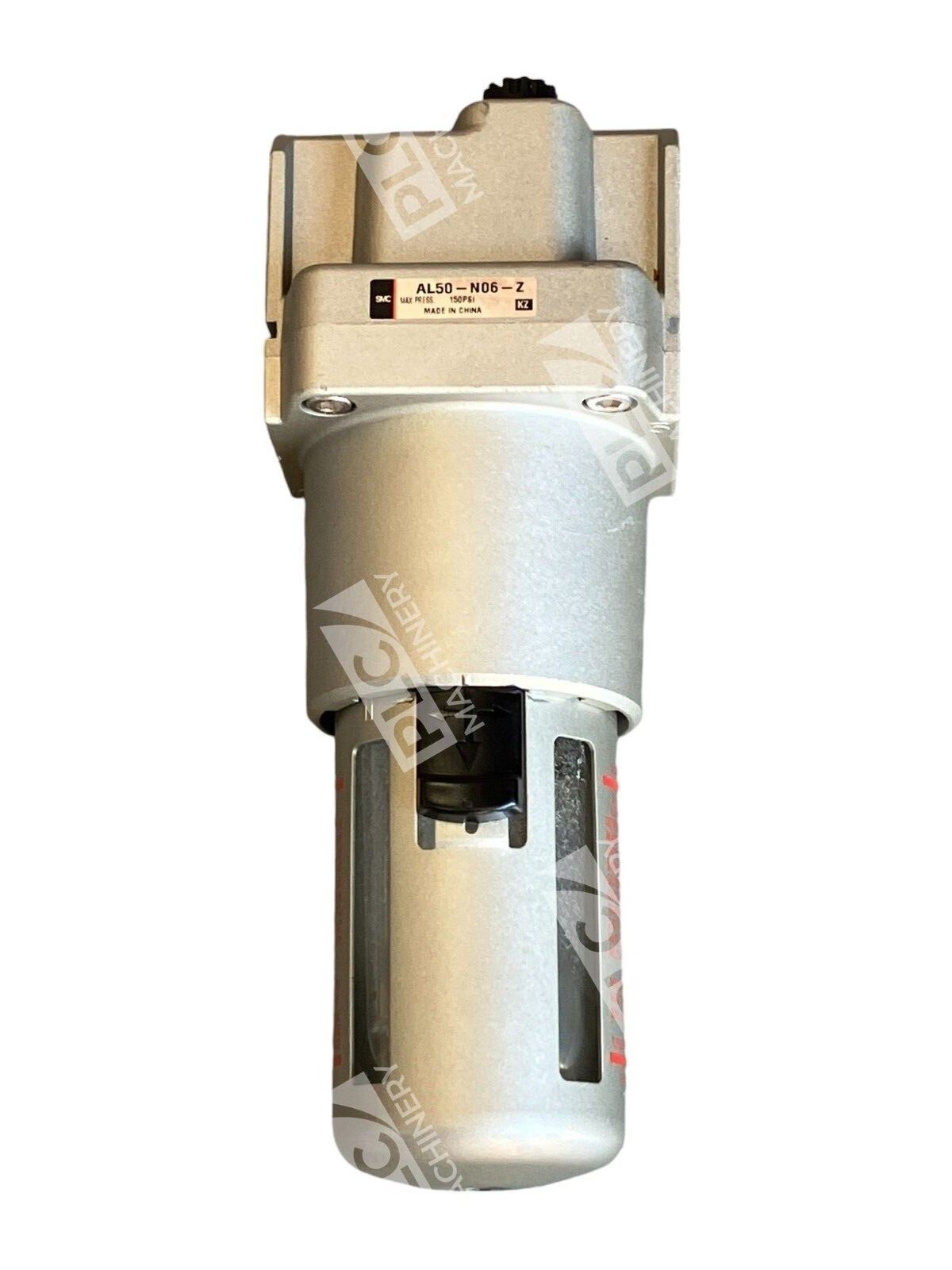

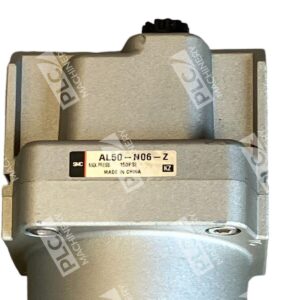

The SMC AL50-N06-Z is a modular-style pneumatic lubricator designed for accurate lubrication of downstream compressed air equipment. Rated for 150 PSI maximum operating pressure, this AL50-series unit integrates seamlessly into pneumatic FRL (filter, regulator, lubricator) treatment systems. The unit delivers precise oil drop control and transparent bowl visibility, making it ideal for maintenance engineers and system integrators who require dependable air preparation components.
Key Features
- Modular design allows connection with other SMC air preparation equipment
- Transparent polycarbonate bowl with protective guard enables 360° oil level monitoring without disassembly
- Adjustable oil drop rate (default 5 drips/min at 0.5 MPa) for flexible equipment lubrication requirements
- Compact AL50 body size with 3/4 NPT port configuration
- Class 1 turbine oil (ISO VG32) compatible for pneumatic systems
- Lightweight, durable construction rated for -5°C to 60°C ambient temperature range
Technical Specifications
| Specification | Value |
| Part Number | AL50-N06-Z |
| Manufacturer | SMC Corporation |
| Body Size | 50 |
| Port Size / Thread Type | 3/4 NPT |
| Maximum Operating Pressure | 150 PSI (1.0 MPa typical) |
| Maximum Flow Rate | 247 CFM |
| Bowl Material | Polycarbonate with transparent guard |
| Recommended Lubricant | Class 1 turbine oil (ISO VG32) |
| Operating Temperature Range | -5°C to 60°C (23°F to 140°F) |
| Weight | 2.3 lbs (1.06 kg) |
| Condition | New – No Box |
Typical Applications
- Pneumatic assembly and automation tooling that requires continuous oil misting
- Industrial compressed air treatment systems requiring modular FRL components
- Food processing, packaging, and pharmaceutical equipment using oil-lubricated cylinders
- Pneumatic motors, grinders, and rotary tools in manufacturing environments
- Custom air prep subsystems where modular stacking is preferred over monolithic regulators
Compatibility & Replacements
Compatible With
- SMC AL-series modular air preparation equipment (filters, regulators)
- Standard pneumatic systems using ISO 4401 cavity mounting
- Compressed air networks operating 150 PSI or lower
- Equipment requiring ISO VG32 turbine oil lubrication
Replaces / Drop-In Replacement For
- AL50-N06-3Z (older generation AL50 lubricator)
- AL50-N06-8Z variants with equivalent modular configuration
Works With
- SMC pneumatic filters, regulators, and FRL assemblies
- 3/4 NPT threaded pneumatic systems
- Modular air preparation platforms utilizing SMC cavity-mount standards
- Standard pneumatic tubing, hose, and manifold systems
