Overview

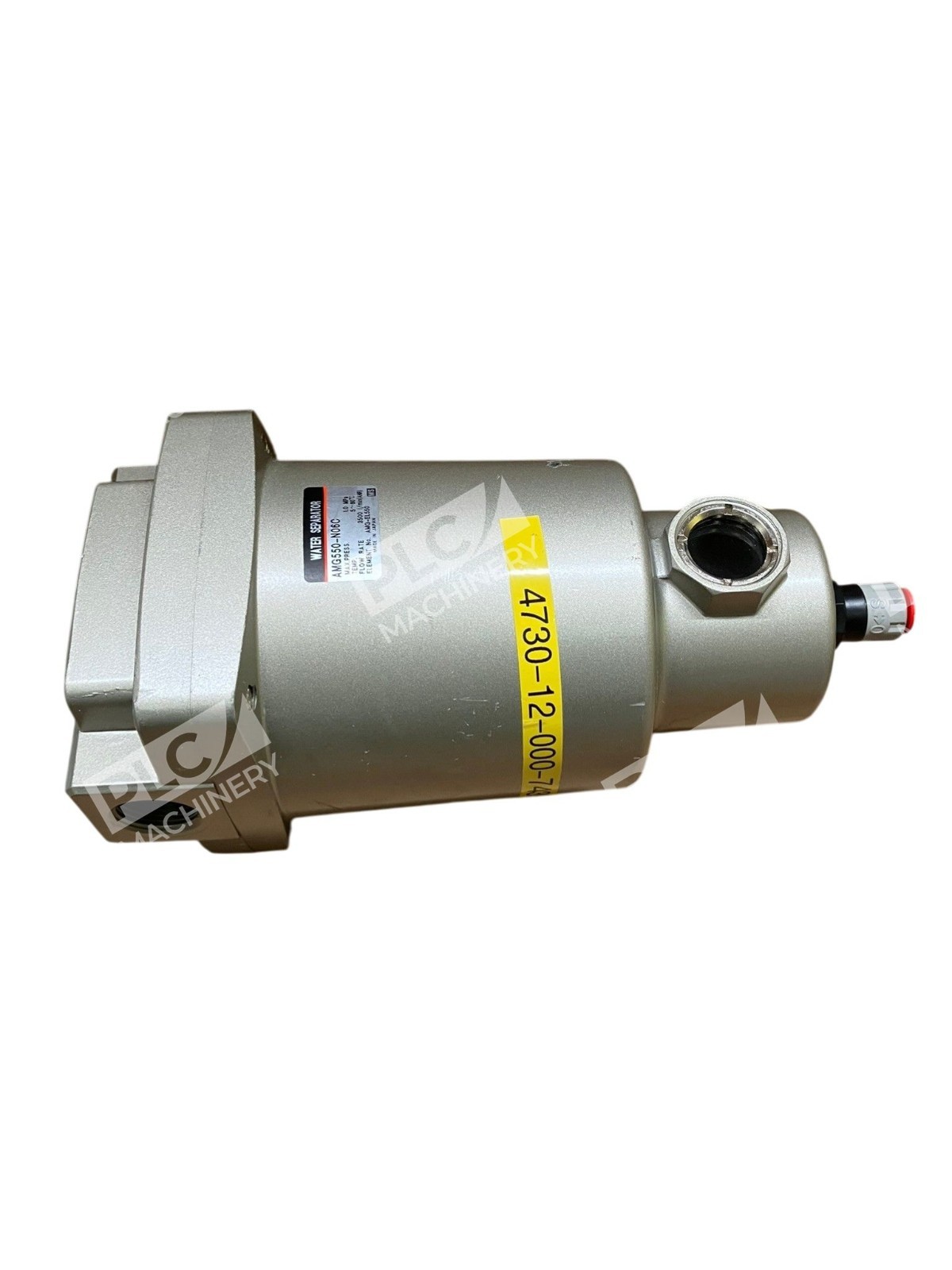

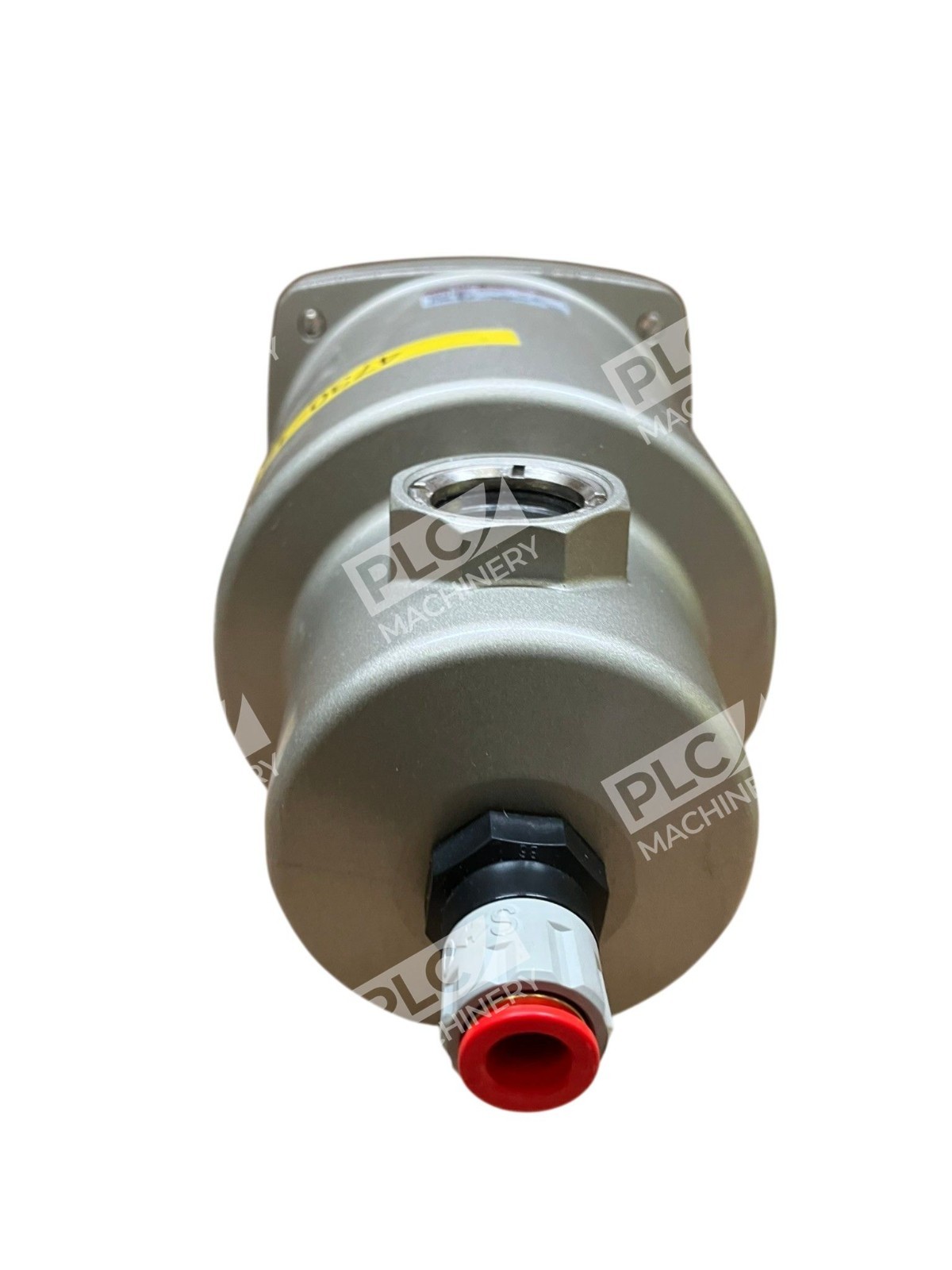

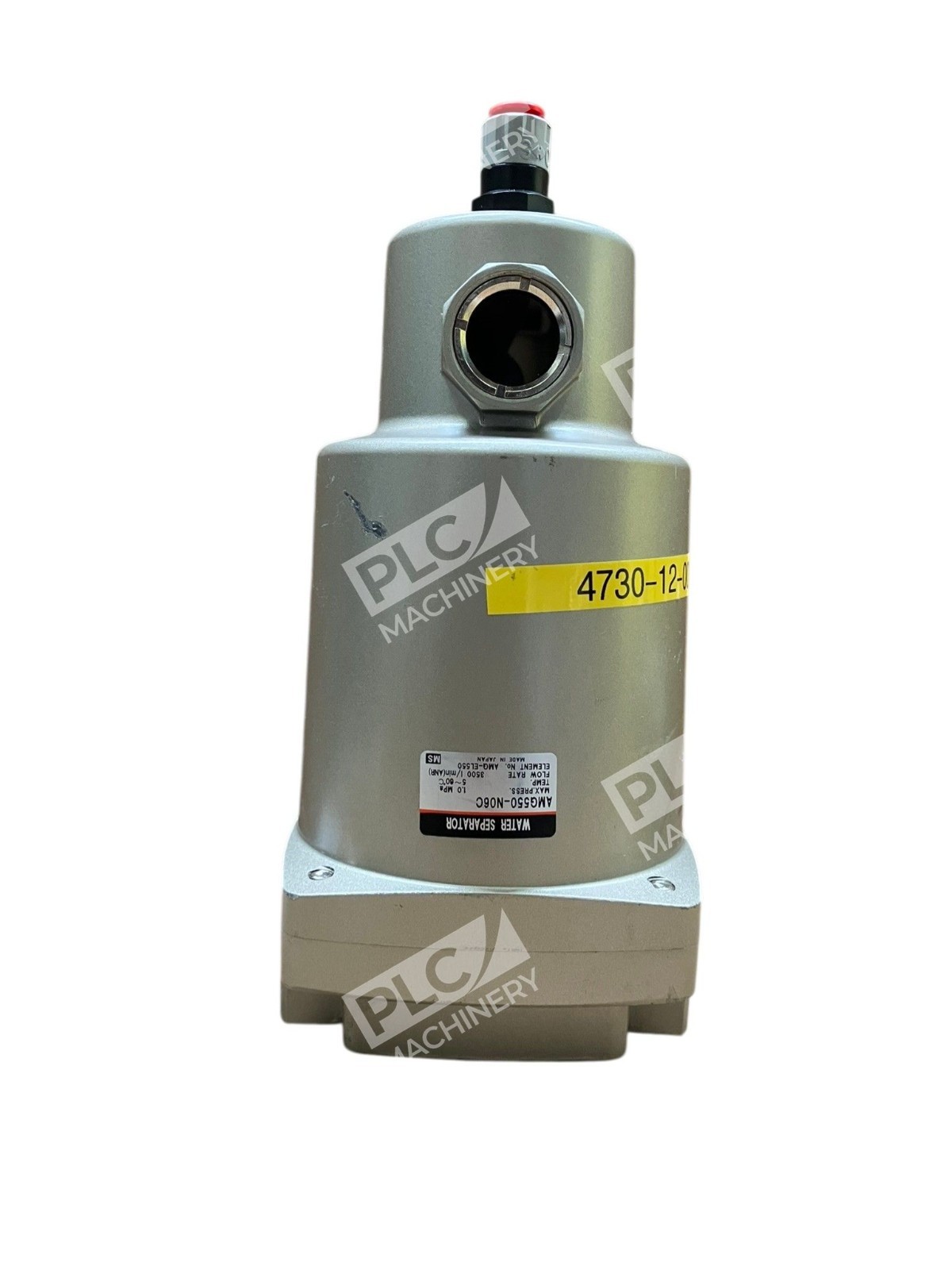

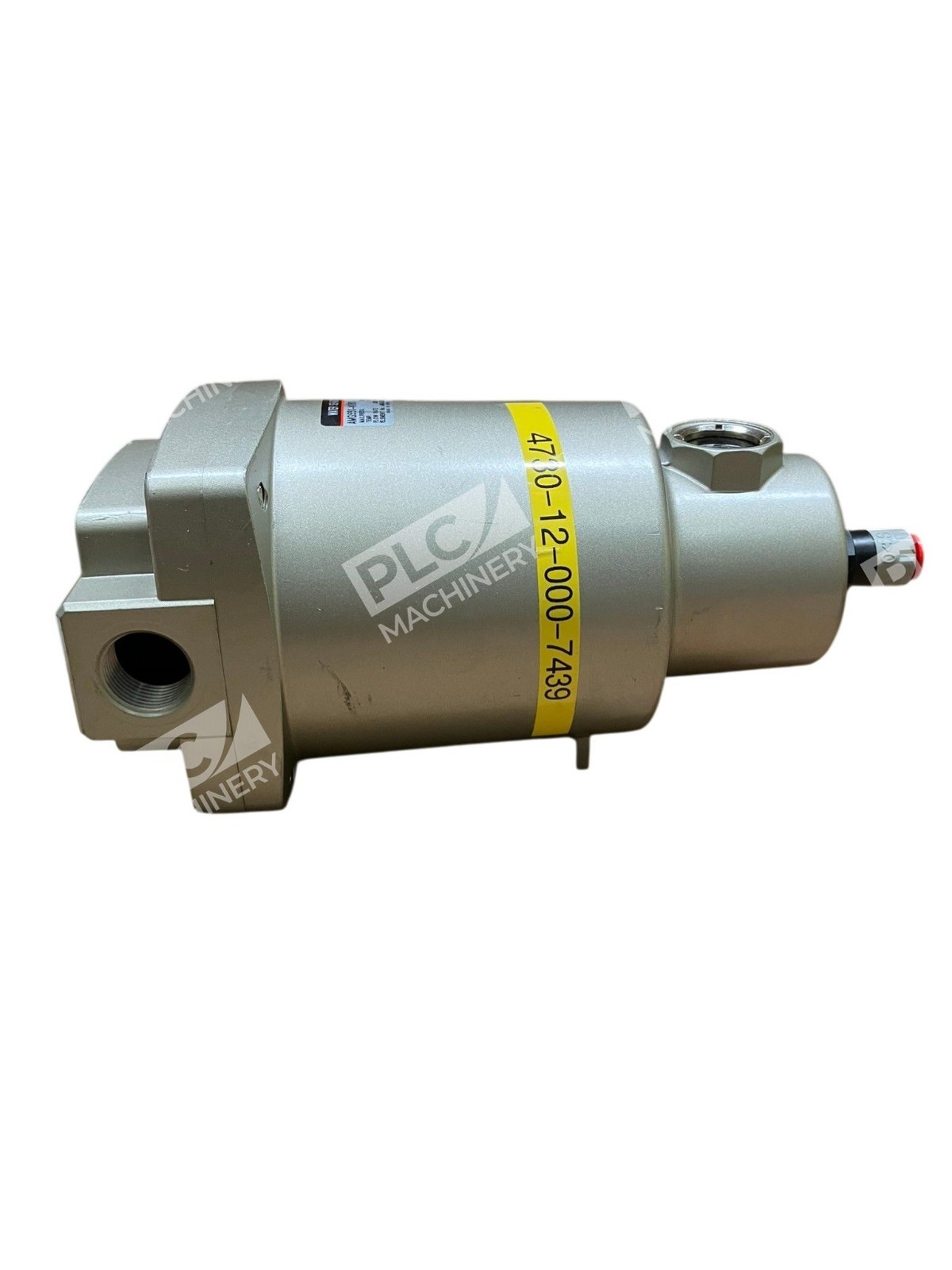

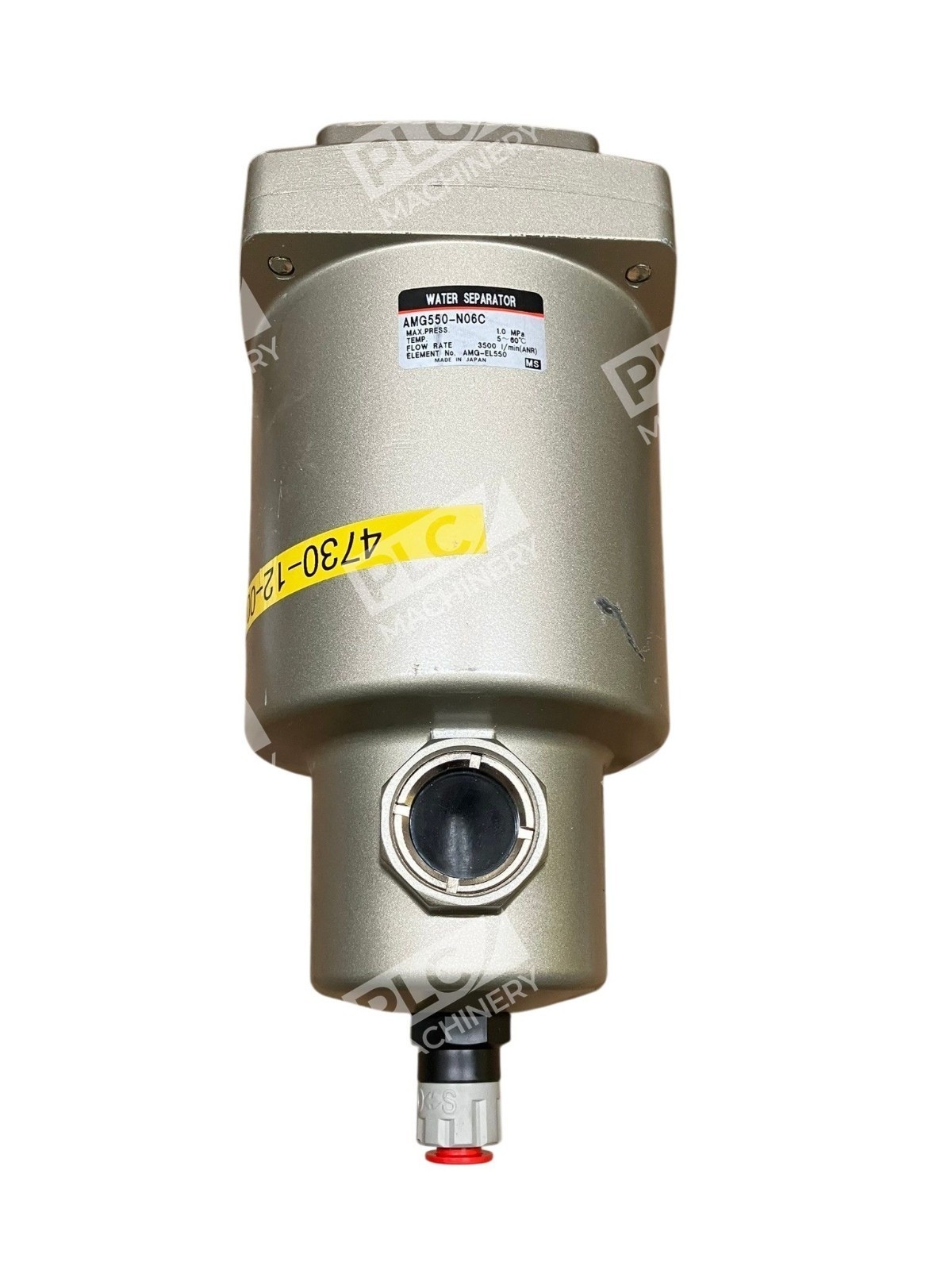

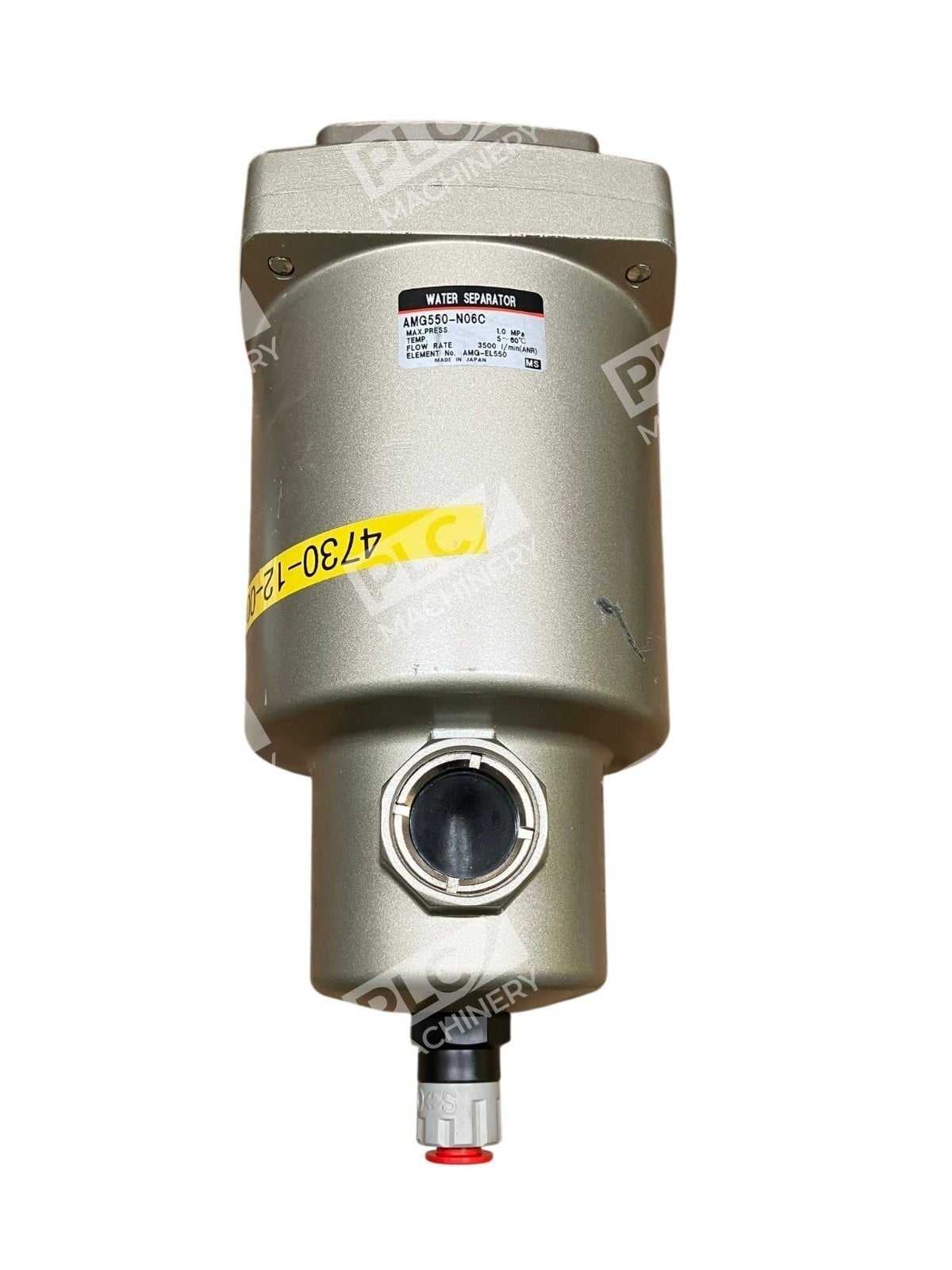

The SMC AMG550-N06C water separator is designed to remove water droplets from compressed air systems, delivering 99% water removal efficiency. This unit is part of SMC’s AMG series and features a metal bowl with sight glass, allowing operators to visually monitor condensate accumulation. The automatic normally-closed drain simplifies maintenance and prevents moisture from damaging downstream components and pneumatic tools.
Key Features
- 99% water removal rate ensures clean, dry compressed air
- Automatic normally-closed (N.C.) drain for simplified maintenance
- Metal bowl with integrated sight glass for easy condensate monitoring
- 3/4″ BSP port connections for standard industrial piping
- Modular design allows connection with other SMC pneumatic components
- Long-lasting filter element with approximately 2-year service life

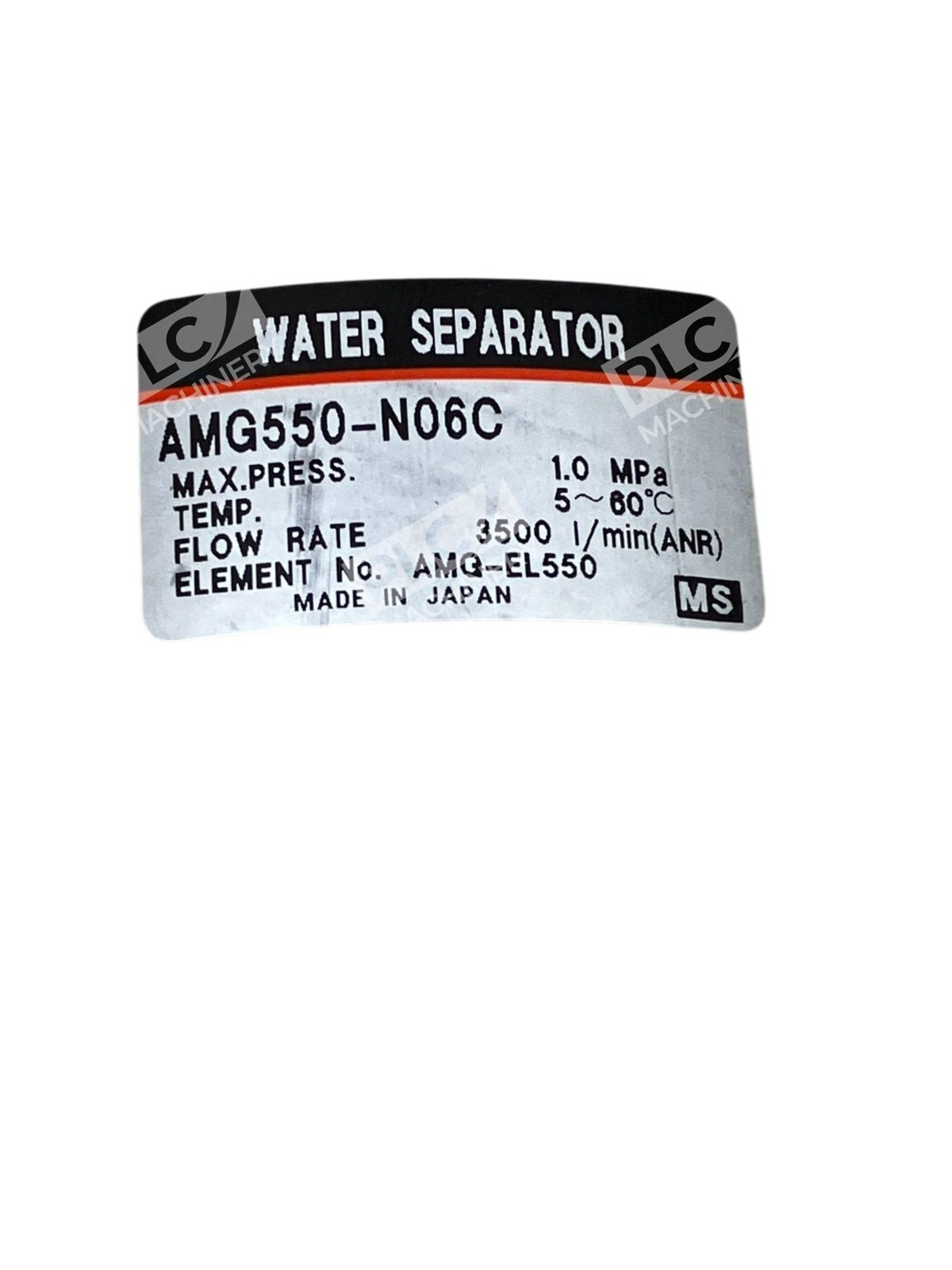

Technical Specifications
- Body Size: 550C
- Water Removal Rate: 99%
- Maximum Operating Pressure: 145 PSI (1.0 MPa)
- Minimum Operating Pressure: 7.25 PSI
- Maximum Air Flow: 123–124 CFM
- Port Size: 3/4″ BSP (Inlet/Outlet)
- Drain Type: Automatic (Normally Closed)
- Bowl Type: Metal with Sight Glass
- Operating Temperature Range: 41°F to 140°F
- Filter Element Life: Approximately 2 years
- Weight: 5 lbs
- Country of Origin: Japan
Typical Applications
- Pneumatic tool air supply lines in manufacturing and assembly
- Compressed air preparation in industrial automation systems
- Plant air distribution networks requiring moisture control
- Paint spray systems and air-operated equipment
- Sensitive pneumatic instruments and control circuits
- Modular air treatment systems in production facilities
Compatibility & Replacements
Compatible With
- SMC pneumatic filters, regulators, and dryers (modular system)
- Standard 3/4″ BSP pneumatic piping and fittings
- Industrial compressed air systems operating 7.25–145 PSI
- General-purpose pneumatic tools and equipment
- Air preparation systems in automated manufacturing lines
Replaces / Drop-In Replacement For
- Earlier-generation SMC AMG550 models with 3/4″ ports
- Equivalent competitive water separators in the 550C body class
- Verify compatibility with your system integrator before ordering
Works With
- SMC AMG series filter elements and replacement bowls
- Pneumatic controllers and proportional directional control valves
- Industrial PLC and automation systems via pneumatic actuation
- ISO 1210 and ISO 4401 modular valve stack systems
- Standard compressed air preparation fittings and connectors
