Overview

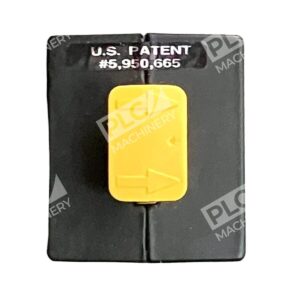

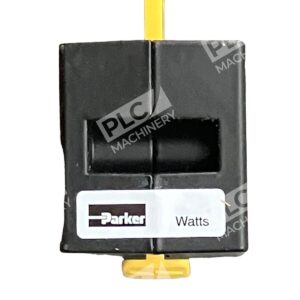

The Parker SV75-02 is a slide-type pneumatic lockout shut-off valve designed for inline pneumatic system isolation and lockout/tagout (LOTO) procedures. This 3-port, 2-position shutoff valve relieves downstream pressure when closed and can be locked in the closed position only, making it essential for safe equipment maintenance and energy isolation.
Key Features

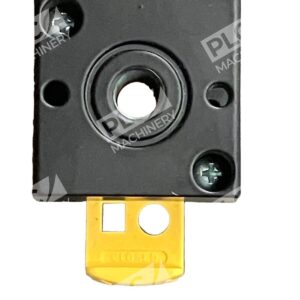

- Accepts customer-supplied standard single padlock or safety lock for multiple lockout
- Conforms to OSHA Standard 29 CFR Part 10
- 1/4″ NPT threaded ports allow in-line or modular FRL component integration
- Relieves downstream pressure automatically when the valve is closed
- Compact design for industrial pneumatic systems
- Parker manufacturing quality and durability
Technical Specifications

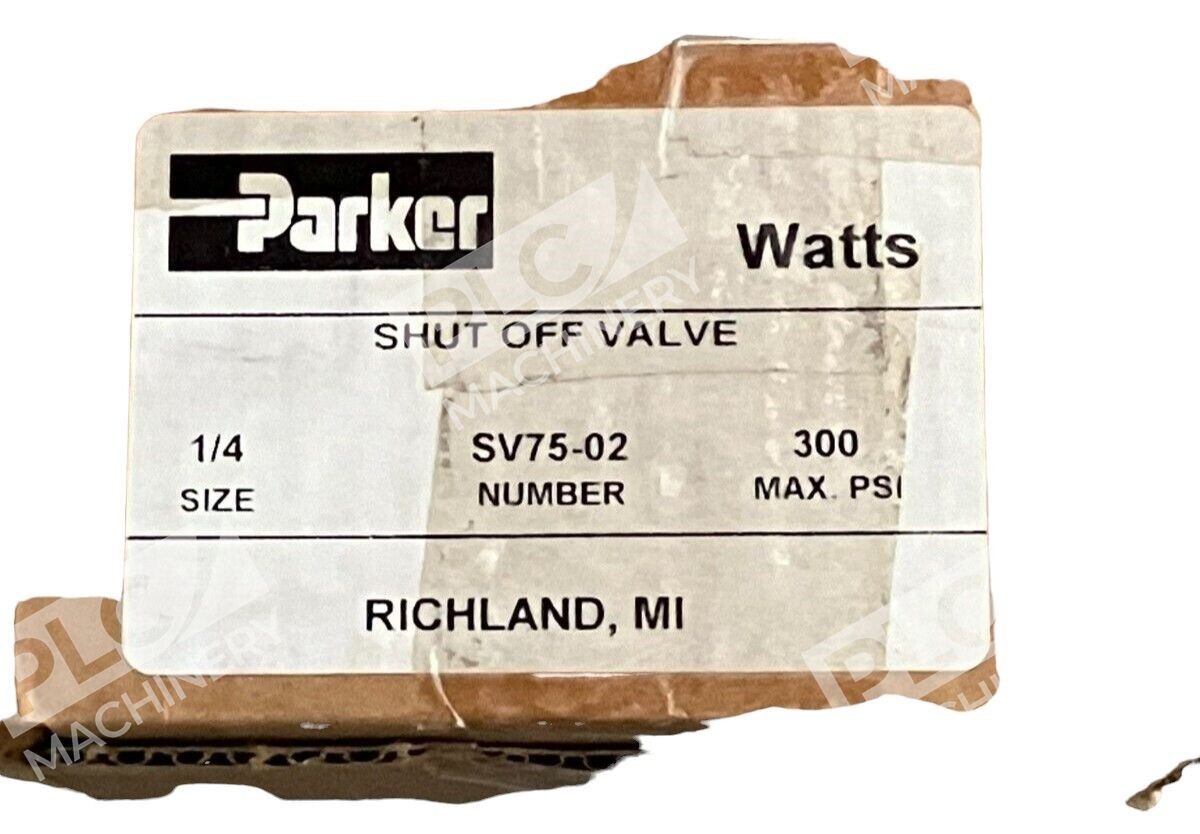

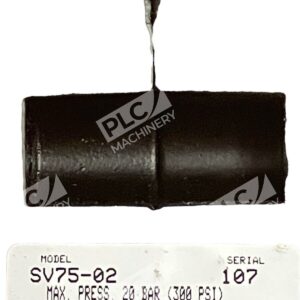

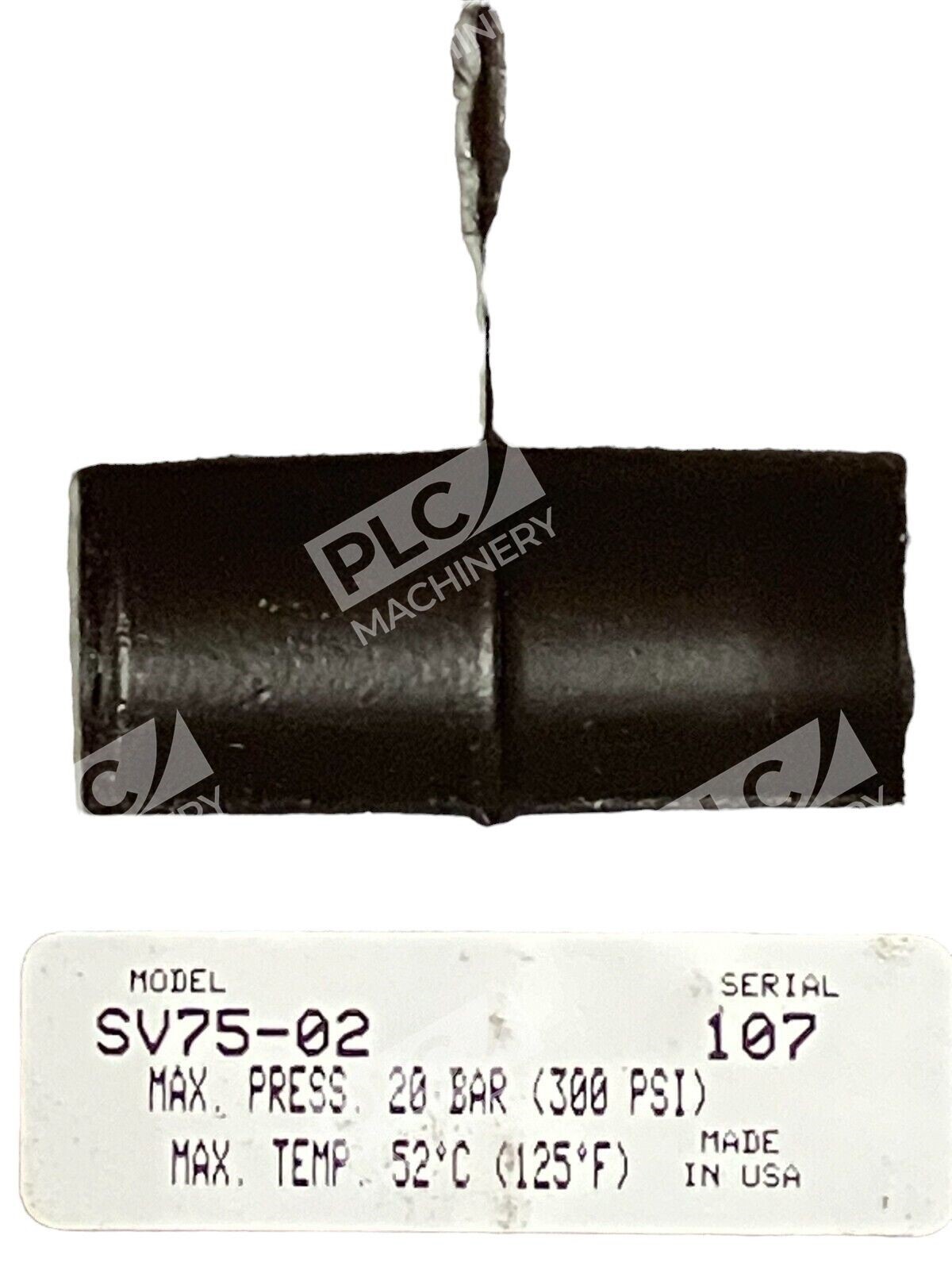

Pressure Rating: Maximum 300 PSI (20 bar)

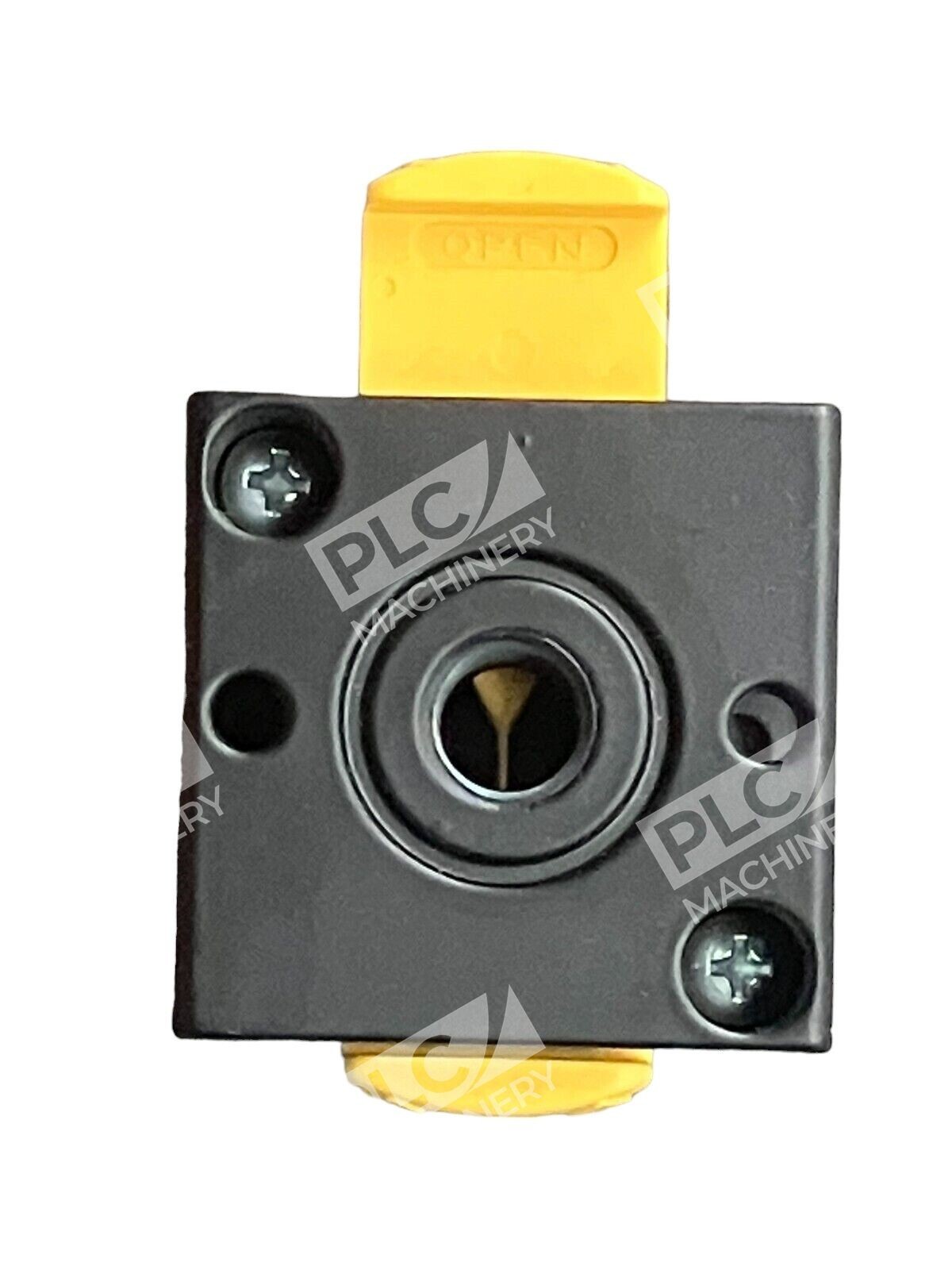

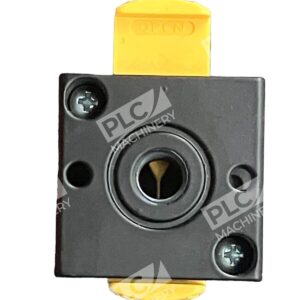

Port Configuration: 3-port, 1/4″ NPT
Valve Type: Slide-type lockout shut-off valve
Operation: 2-position (open/closed), padlock-securable
Standards Compliance: OSHA Standard 29 CFR Part 10
Design Feature: Downstream pressure relief upon closure
Typical Applications
- Pneumatic system isolation for maintenance and service
- Lockout/tagout (LOTO) compliance in manufacturing plants
- Compressed air equipment safety shutdown
- Industrial automation and assembly line pneumatic networks
- Machine tool pneumatic circuits requiring energy isolation
Compatibility & Replacements
Compatible With
- Parker QUBE modular FRL (filter-regulator-lubricator) component systems
- Standard 1/4″ NPT pneumatic components and fittings
- Compressed air supply systems rated to 300 PSI
- Industrial pneumatic tools and equipment requiring shut-off isolation
Replaces / Drop-In Replacement For
- Parker SV75 series variants with different port sizes (SV75-03, SV75-04)
- Legacy pneumatic lockout valve installations
- Original equipment manufacturer (OEM) SV75-02 specifications
Works With
- Parker pneumatic valve station (PVS) systems
- QUBE modular valve end plates and assemblies
- Standard industrial padlocks and safety lock devices
- OSHA/ANSI lockout/tagout procedures and protocols
