Overview

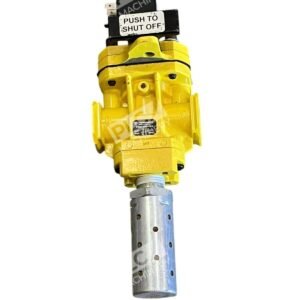

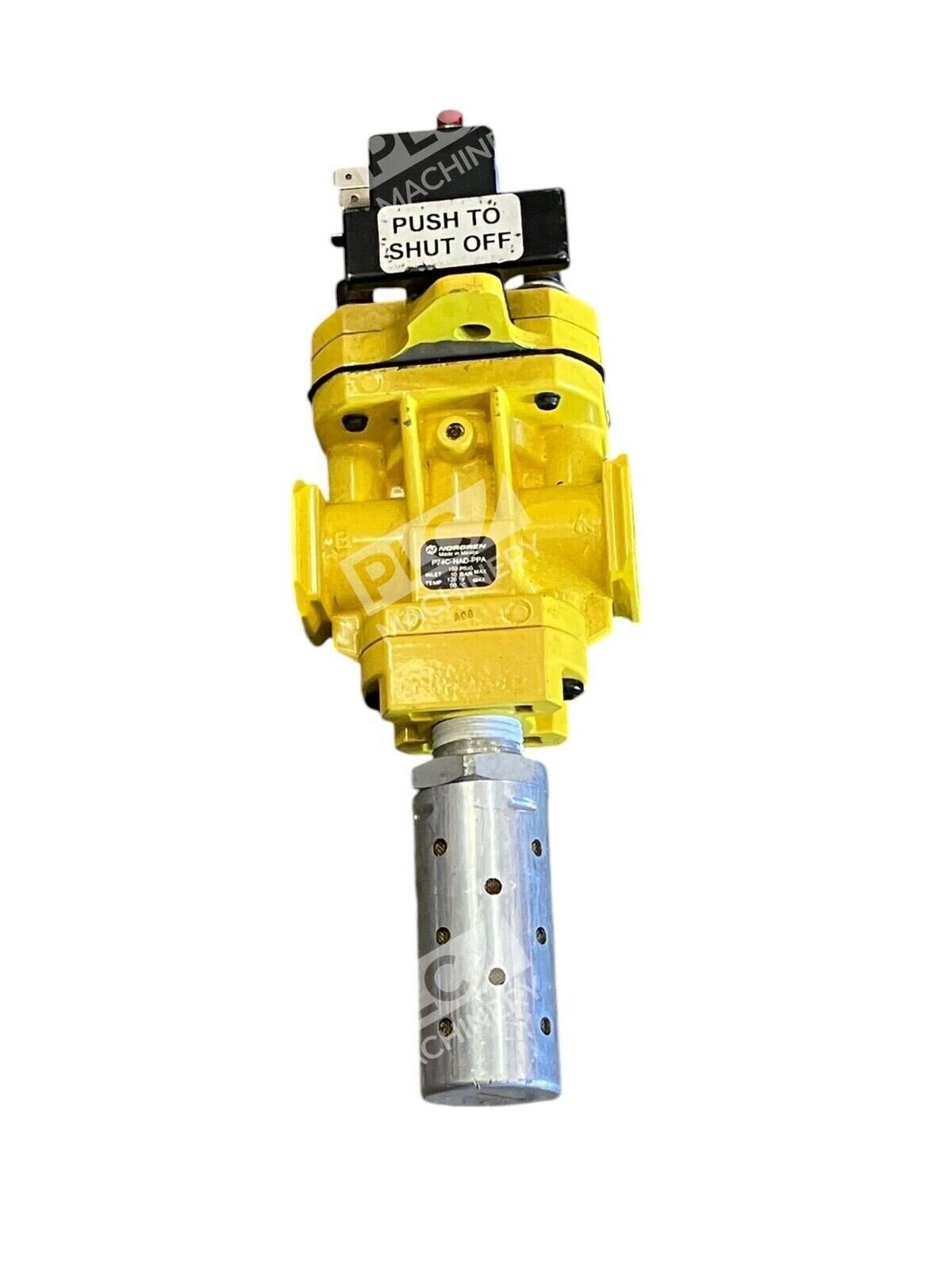

The Norgren P74C-NAD-PPA is an Excelon® 74 series solenoid-operated control valve featuring a 3-port/2-position (3/2) configuration with spring return and integral lockout capability. This 24 VDC model operates from -20°F to 130°F (-30°C to 55°C) and provides reliable pneumatic system control in industrial applications. The valve’s modular design allows integration with Norgren Quikclamp® adapters for flexible piping configurations without requiring port threading.
Key Features
- 3-port/2-position (3/2) solenoid-operated valve with spring return
- Normally closed coil configuration
- Integral lockout function for added safety and system security
- Modular construction for easy integration and replacement
- Unthreaded main ports; compatible with Quikclamp® and pipe adapters for air line connection
- 24 VDC solenoid coil with cable grip connector
Technical Specifications
- Configuration: 3-port/2-position (3/2), Normally Closed
- Operating Temperature: -20°F to 130°F (-30°C to 55°C)
- Weight: 2.03 lb (0.92 kg)

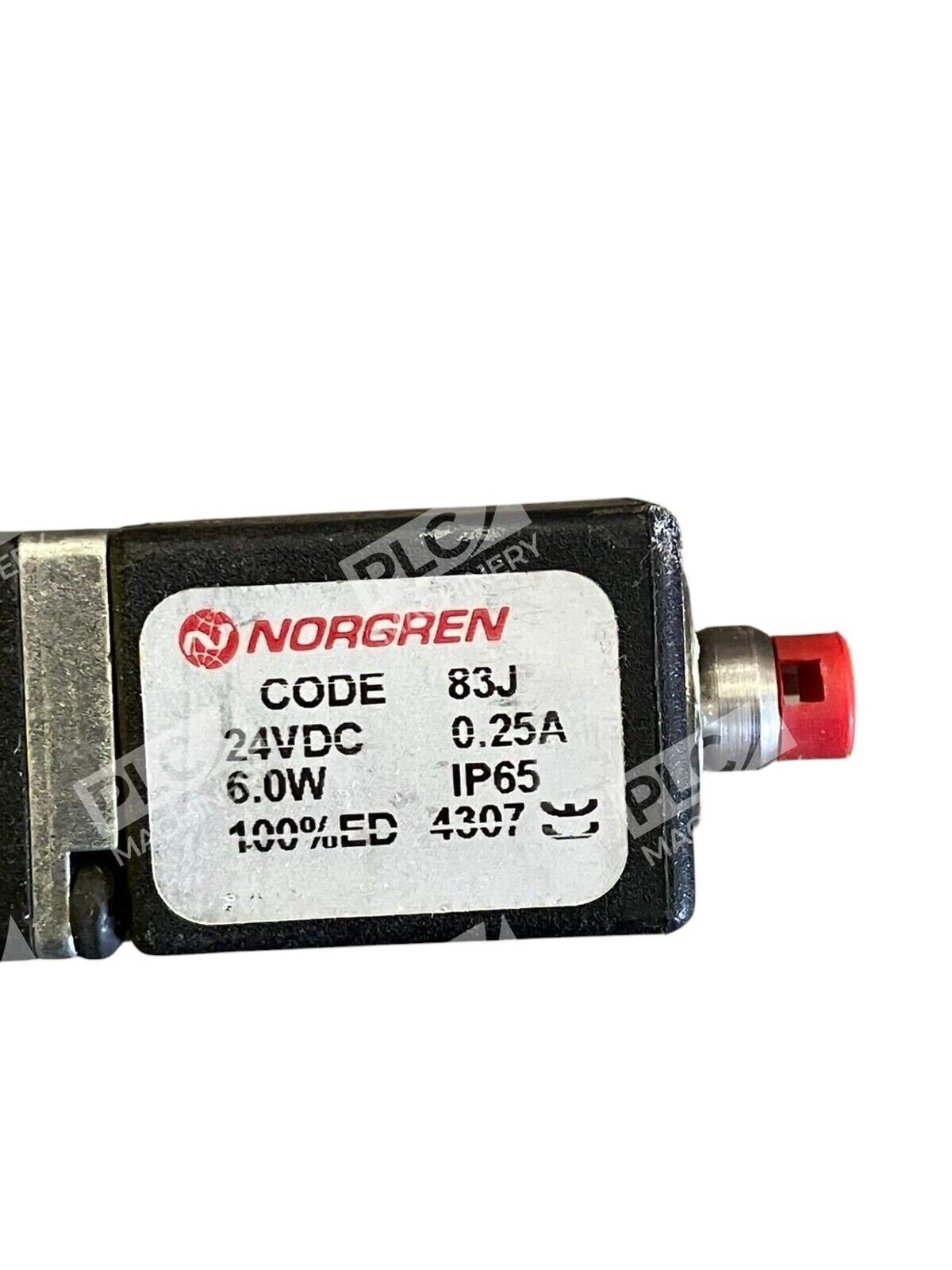

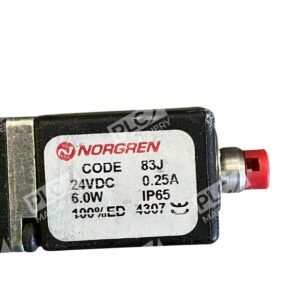

- Coil Voltage: 24 VDC
- Current Draw: 0.25 A

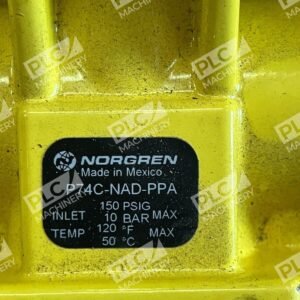

- Maximum Inlet Pressure: 150 PSIG (10 bar)
- Minimum Operating Pressure: 15 psig (1 bar)
- Port Size: 1/2″ Basic (unthreaded)
- Actuation Type: Solenoid-operated with spring return
- Series: Excelon® 74 (Modular)
Typical Applications
The Norgren P74C-NAD-PPA is widely used in pneumatic control systems including:
- Automated machinery and assembly equipment shutdown/lockout
- Air tool power distribution and control
- Pneumatic actuator pilot control
- Industrial process safety interlocks
- Machine tool air supply management
- Pneumatic system emergency stop applications
Compatibility & Replacements
Compatible With
- Norgren Excelon® modular valve systems and sub-bases
- Norgren Quikclamp® quick-connect piping systems
- Standard 24 VDC pneumatic control circuits
- Industrial pneumatic networks (1/2″ ports)
Replaces / Drop-In Replacement For
- Norgren P74C-NAD-PJA (110/120 VAC version)
- Other Norgren Excelon 74 series 3/2 solenoid valves with equivalent coil/pressure ratings
Works With
- Pneumatic control systems (ISO 1219-1 compliant)
- 24 VDC solenoid-actuated control circuits
- Standard pneumatic hose and NPT/PTF threaded adapters
- Manual and automatic pneumatic system controls
