Overview

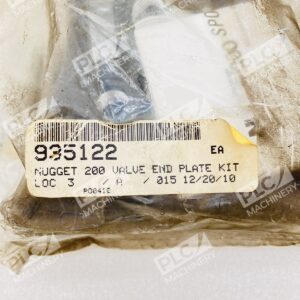

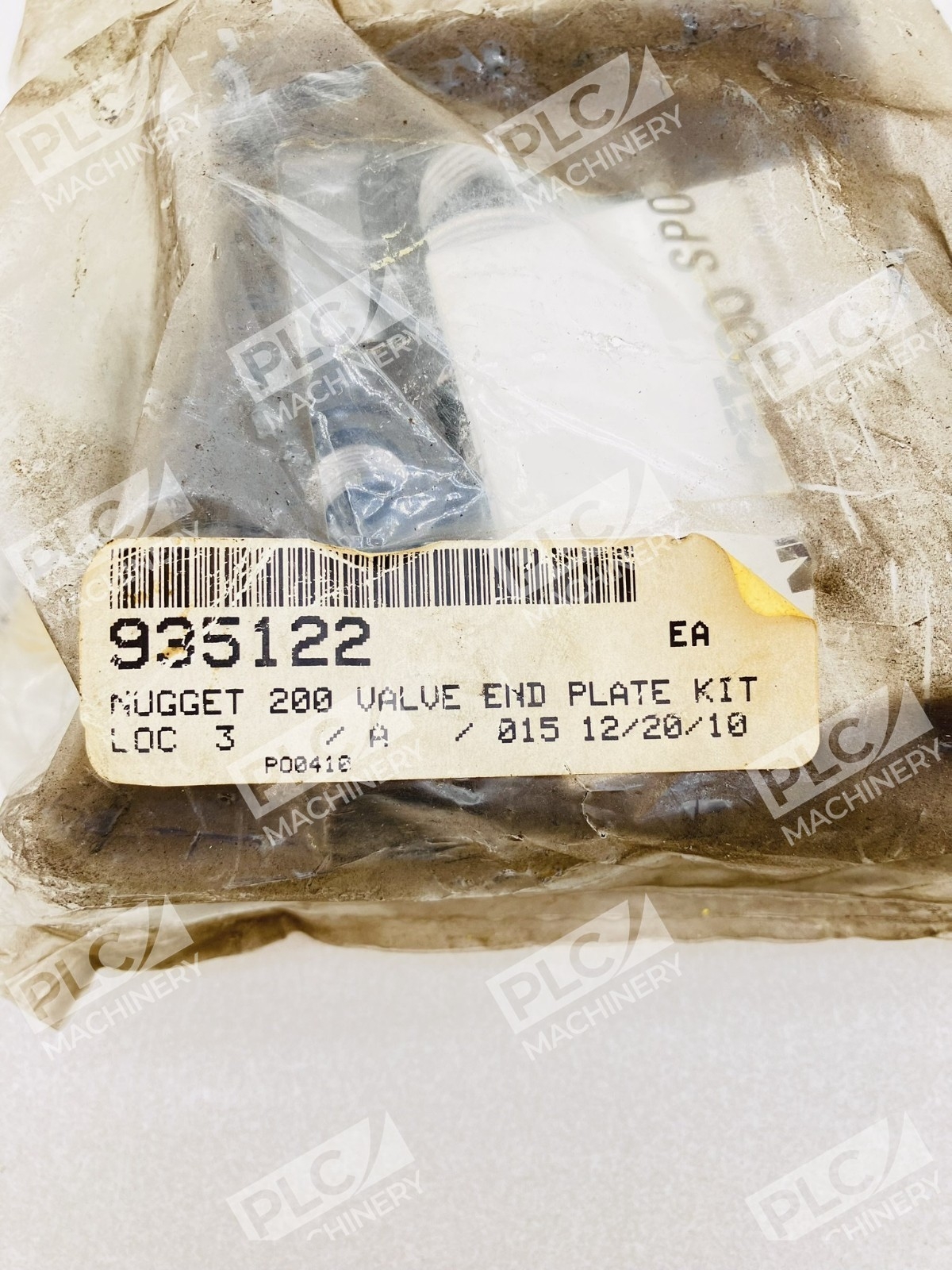

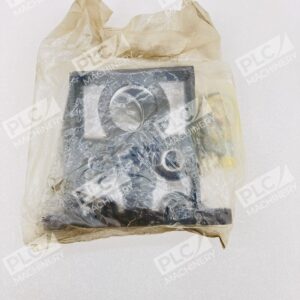

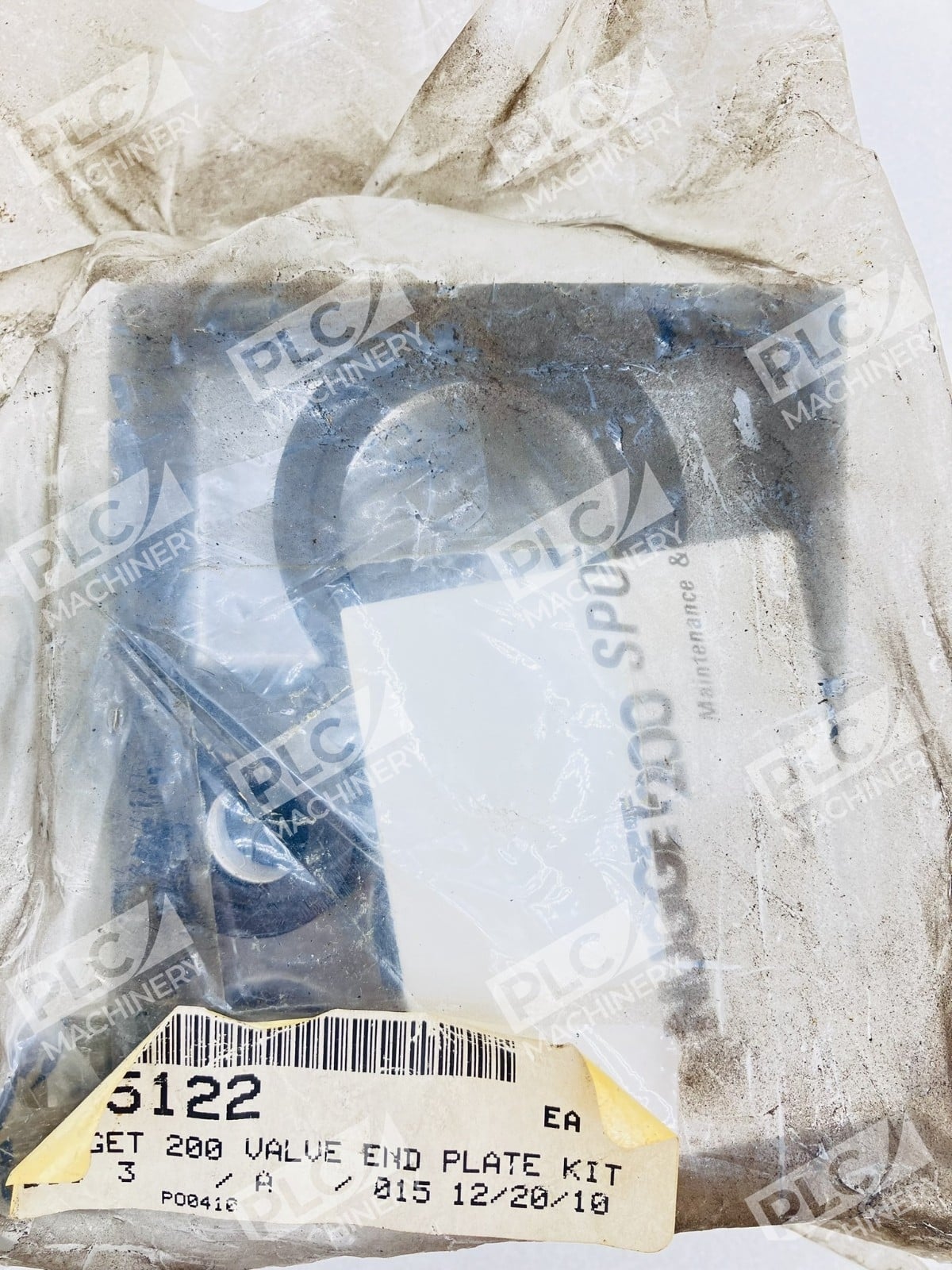

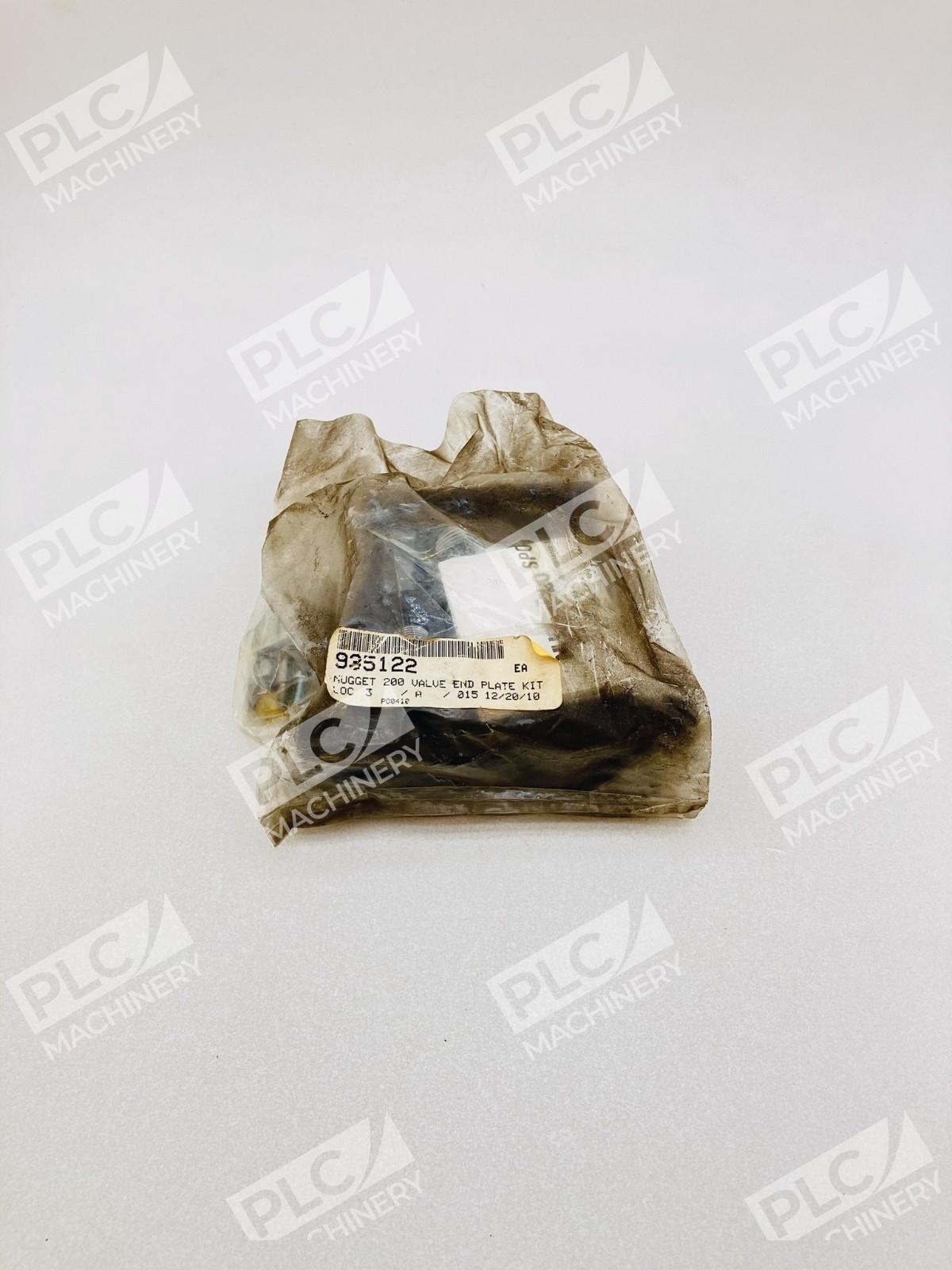

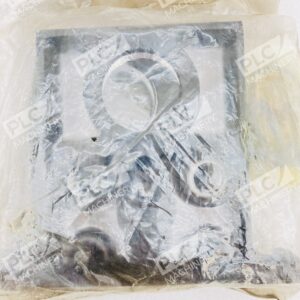

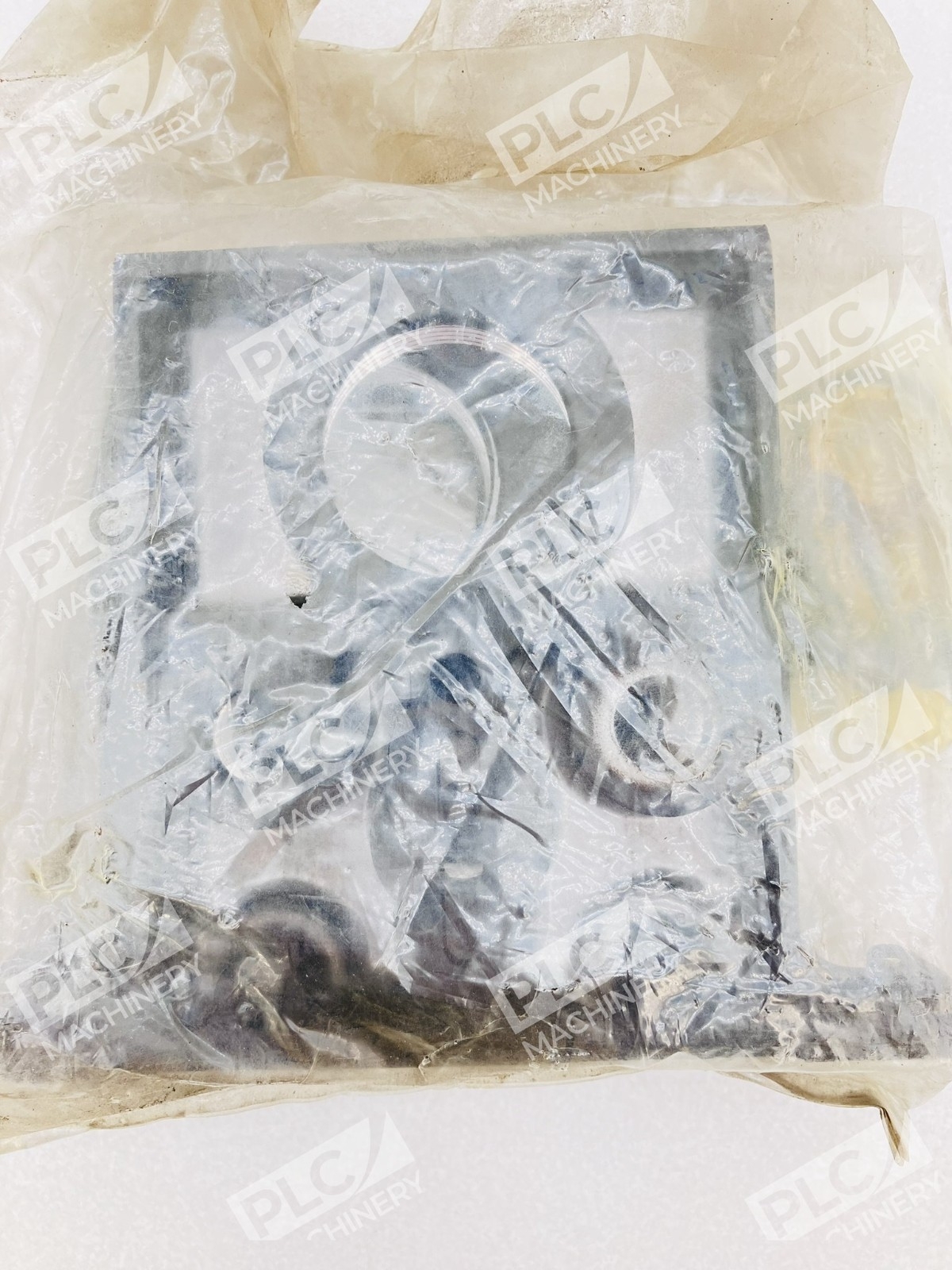

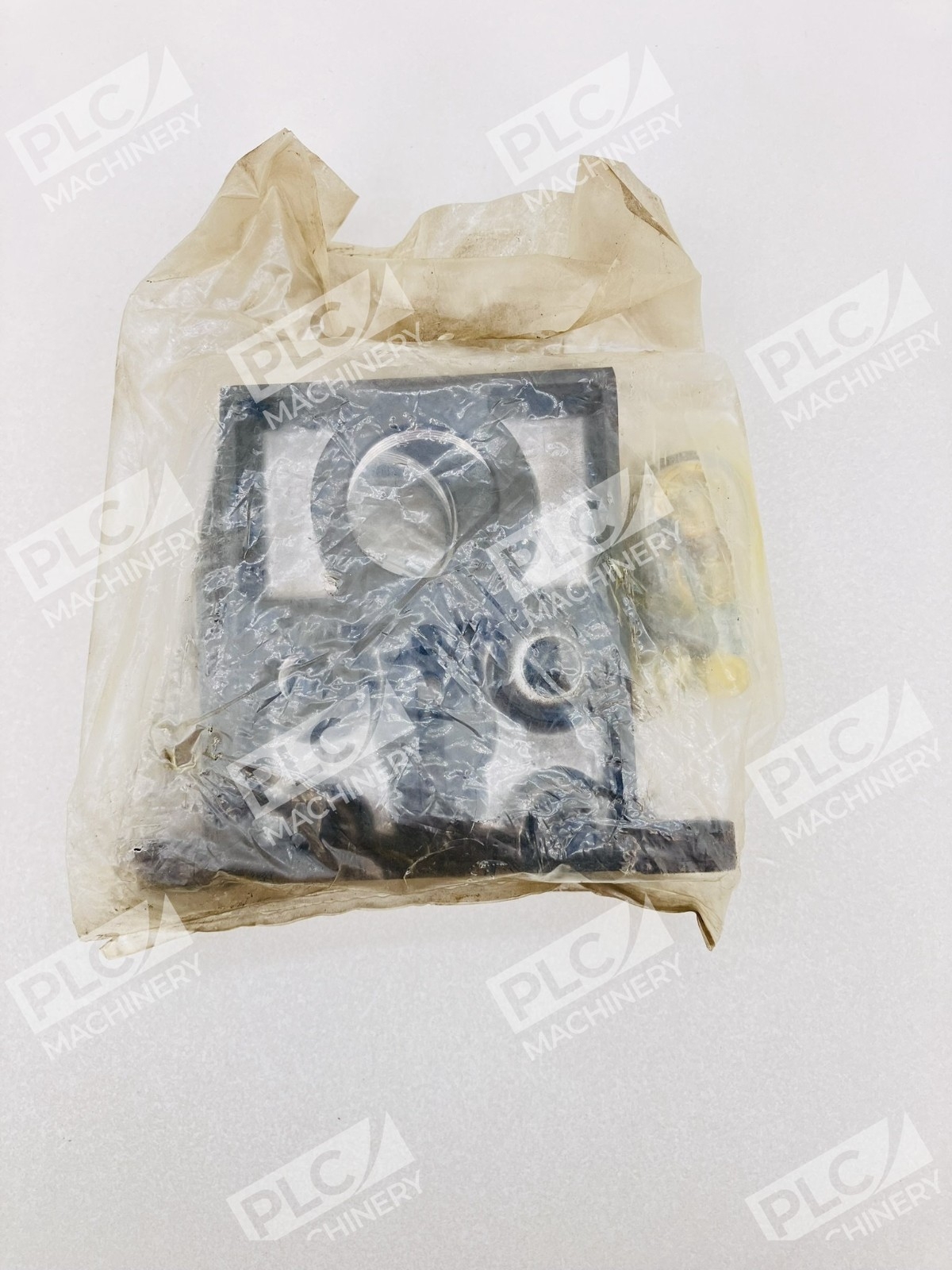

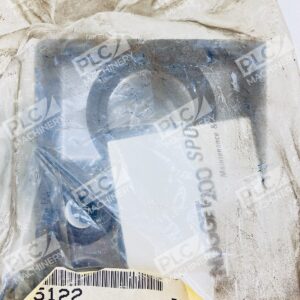

The Norgren 13295-50 Nugget 200 Manifold End Plate Kit is a precision-engineered accessory for the Norgren Nugget 200 series pneumatic valve manifold systems. This end plate kit serves as a critical closure component for modular manifold assemblies, ensuring proper sealing and structural integrity when valves are stacked in series. Designed for industrial compressed air control applications, the 13295-50 facilitates quick assembly and disassembly for maintenance and configuration changes.
Key Features
- Designed specifically for Norgren Nugget 200 series manifold stacking
- Precision-machined aluminum construction for durability
- Includes gaskets for reliable pressure-tight seals
- Simplifies modular manifold assembly and reconfiguration
- Compatible with standard pneumatic system pressures and temperatures
Technical Specifications
- Series: Nugget 200
- Part Number: 13295-50
- Intended Use: Industrial compressed air systems
- Operating Pressure: Maximum 150 psig (10.3 bar)
- Operating Temperature Range: -20°F to 120°F (-29°C to 50°C)
- Material: Aluminum body
- Mounting: Stacking configuration for valve manifold bases
Typical Applications
- Pneumatic valve manifold end closure
- Industrial automation control circuits
- Compressed air distribution systems
- Modular solenoid and air-actuated spool valve manifolds
- Equipment OEM pneumatic control modules
Compatibility & Replacements
Compatible With
- Norgren Nugget 200 series solenoid and air-actuated spool valves
- Norgren Nugget 200 manifold base systems
- Standard industrial pneumatic control applications
- Compressed air systems with filtered and lubricated or non-lubricated air
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. While the 13295-50 is designed specifically for Nugget 200 manifolds, confirm that this end plate model matches your existing manifold configuration.
Works With
- Norgren Nugget 200 3/2, 5/2, and 5/3 spool valve configurations
- PTF and ISO G port connection standards
- Port sizes: 1/4", 3/8", 1/2"
- Stacking and manifold mounting systems
