Overview
The Moore Products receiver gauge is a precision pneumatic pressure measurement instrument designed for 3-15 PSI applications. This Moore Products receiver gauge features a 0-60 scale dial for clear, direct pressure readings in control valve loops and pneumatic systems. The standard 3-15 PSI pneumatic range is the industry baseline for proportional control signals, making this gauge compatible with transmitters and positioners across manufacturing and process industries.
Key Features
- 3-15 PSI pneumatic operating range

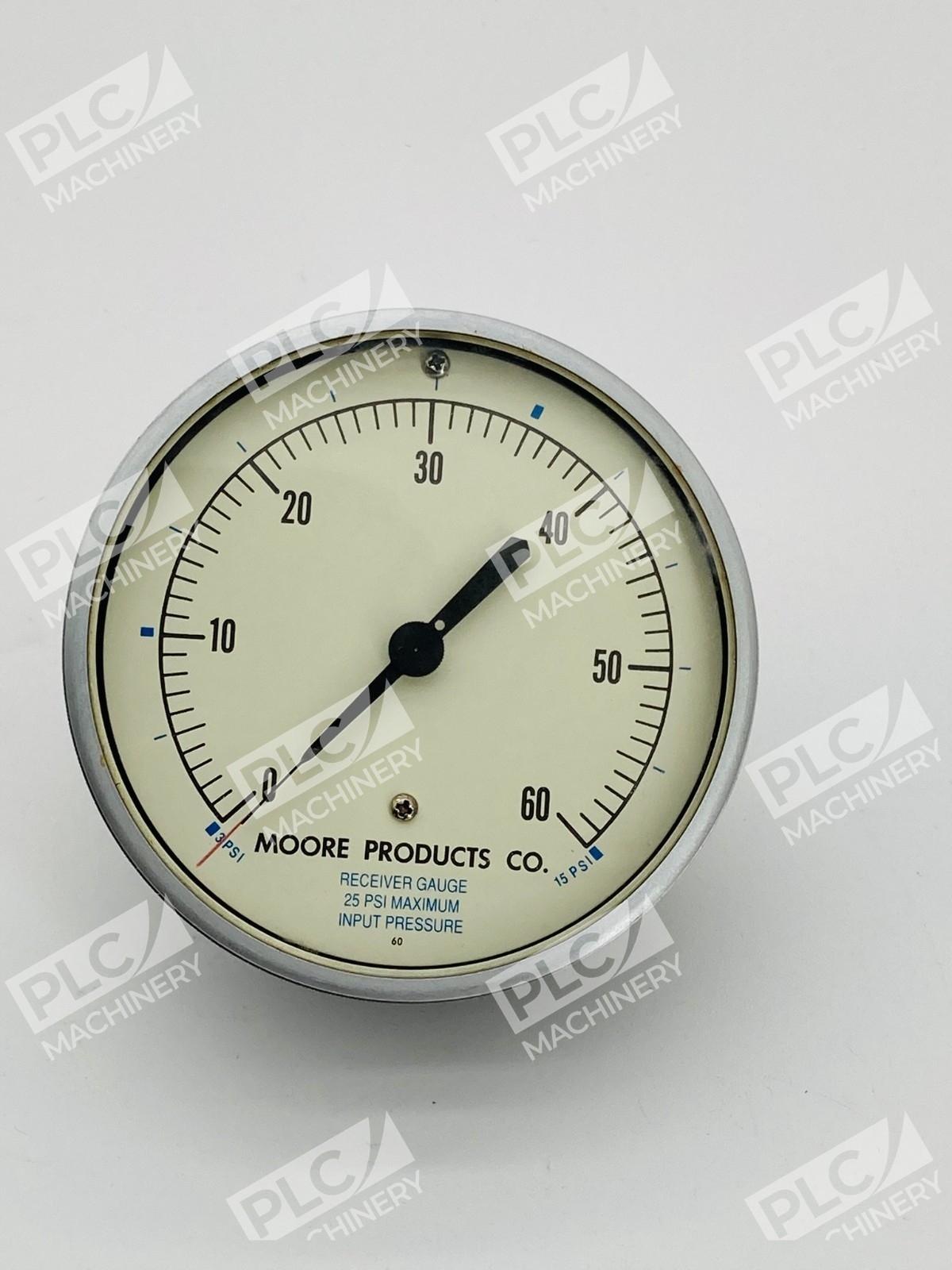

- 0-60 scale dial for easy reading
- Precision needle movement for accurate pressure indication
- Durable construction for industrial environments
- Standard 1/8″ NPT pneumatic connection
- New, unused condition
Technical Specifications
- Pressure Range: 3-15 PSI
- Scale Range: 0-60
- Connection: 1/8″ NPT (standard)
- Dial Size: 3-1/2″ (typical)
- Manufacturer: Moore Products
Typical Applications
Moore Products receiver gauges with 3-15 PSI range are used in:
- Pneumatic control valve positioner loops
- Process control systems and transmitter circuits
- Pressure monitoring in air pilot lines
- Industrial automation and process instrumentation
- Hydraulic and pneumatic system diagnostics
Compatibility & Replacements
Compatible With
- Moore Industries pneumatic positioners (750P series and similar 3-15 PSI models)
- Pneumatic transmitters with 3-15 PSI output
- Standard control valve pilot signal circuits
- Industrial PLC and distributed control systems using pneumatic I/O
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Moore Products receiver gauges are direct replacements for legacy Moore gauge models in the same pressure range and connection type.
Works With
- 3-15 PSI pneumatic signal loops
- Pneumatic control systems (Siemens, Rockwell, Omron, other major brands)
- Proportional valve positioners and feedback instruments
- Standard industrial air supply (filtered and regulated)
