Overview

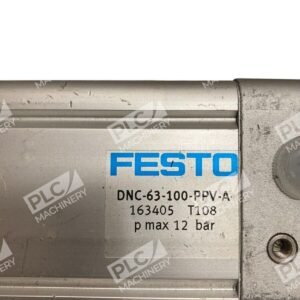

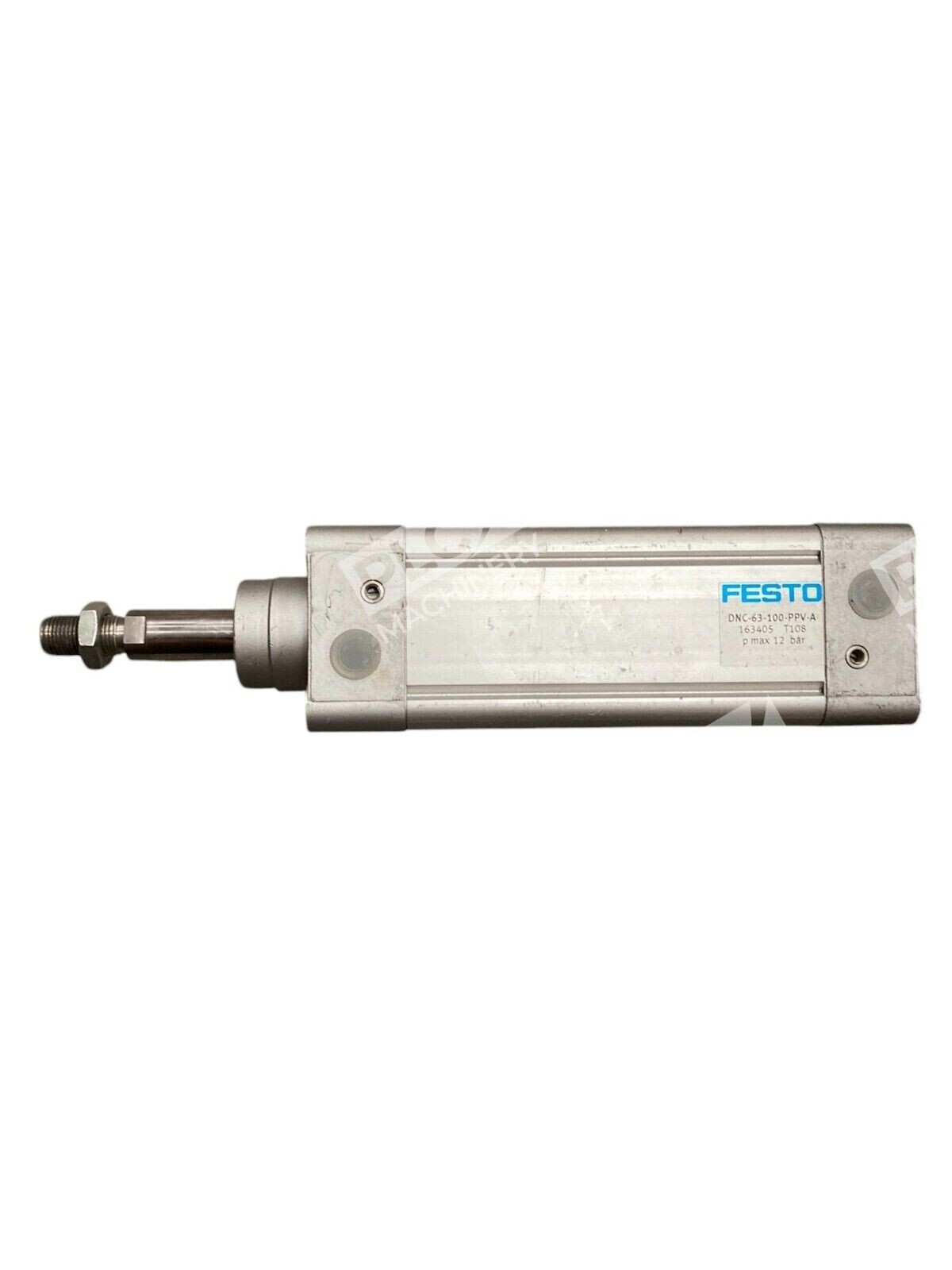

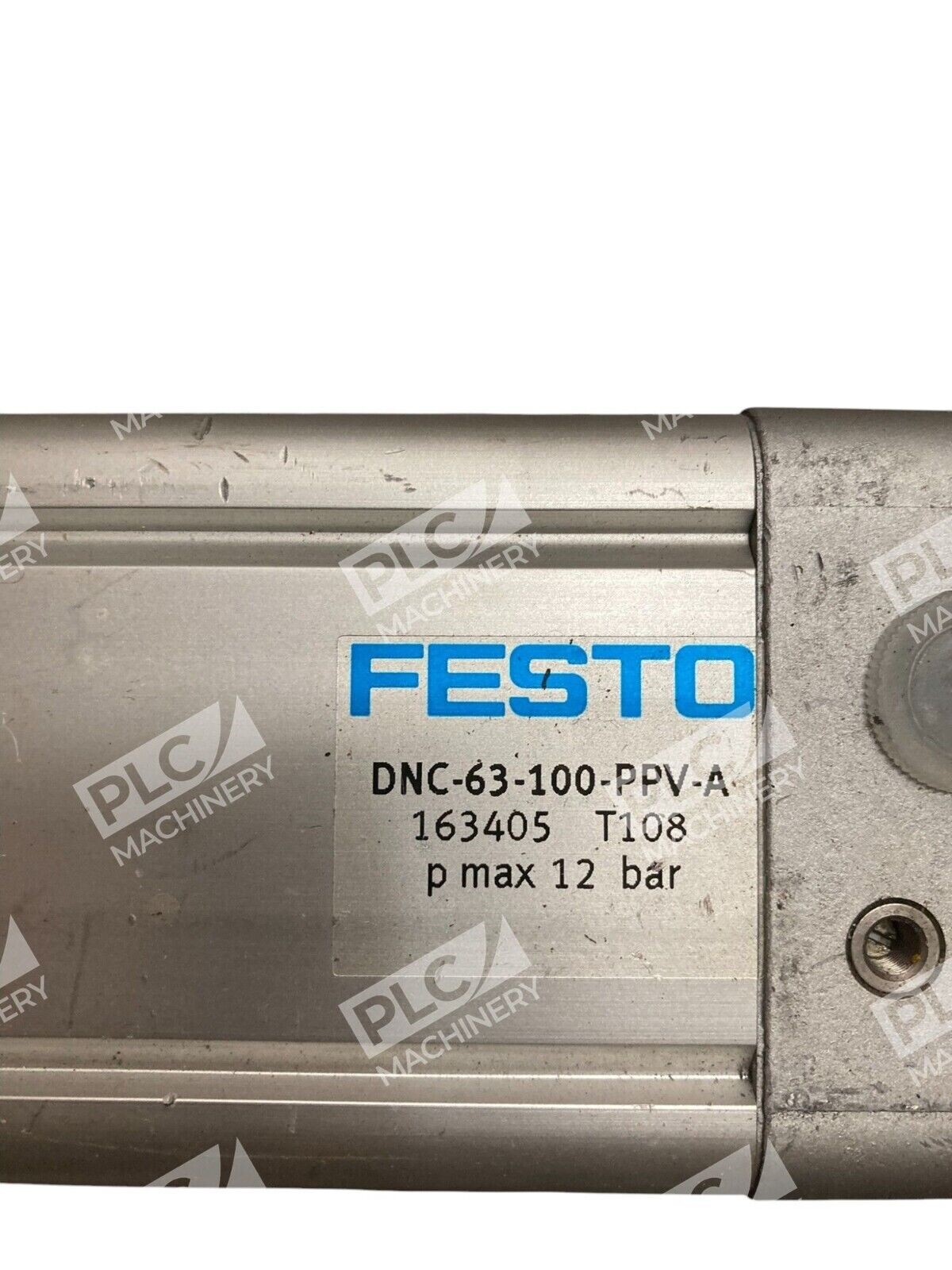

The Festo DNC-63-100-PPV-A pneumatic cylinder (Festo part 163405) is a compact, double-acting pneumatic actuator designed to ISO 15552 standards. With a 63 mm piston diameter and 100 mm stroke, this cylinder is rated for 0.6 to 12 bar operating pressure and incorporates adjustable pneumatic cushioning at both rod and cap ends. The anodized aluminum barrel and high-alloy steel piston rod ensure durability in demanding industrial environments.
Key Features
- Double-acting design — extends and retracts under pneumatic control for flexible actuation
- Adjustable pneumatic cushioning at both ends with low impact energy (0.5 J) — protects equipment at end-of-stroke positions
- Proximity sensor ready — integrated position sensing support via external sensors
- ISO 15552 compliant — meets international standards for interchangeability and performance
- Square piston rod (M16×1.5 external thread) — prevents rotation during operation
- G3/8 pneumatic ports — standard industrial connection size
Technical Specifications
- Part Number: Festo 163405 (DNC-63-100-PPV-A)
- Piston Diameter: 63 mm
- Stroke: 100 mm (3.94 inches)
- Operating Pressure: 0.6 to 12 bar (0.06 to 1.2 MPa)
- Piston Rod Thread: M16×1.5 (external/male)
- Cushioning Type: Pneumatic, adjustable at both ends
- Cushioning Length: 22 mm
- Impact Energy: 0.5 J
- Pneumatic Connection: G3/8 (ISO 228-1)
- Position Sensing: For proximity sensor (symbol 00991235)
- Barrel Material: Anodized aluminum
- Piston Rod Material: High-alloy steel
- Mounting Position: Any angle
- Standard: ISO 15552 (ISO 6431, VDMA 24562)
Typical Applications
The Festo DNC-63-100-PPV-A is widely deployed in factory automation, assembly equipment, material handling, and process control systems. Its compact footprint and robust cushioning make it ideal for precision positioning tasks, clamping operations, and repetitive cycle applications where smooth, controlled motion and endpoint protection are essential. The proximity sensor compatibility enables integration into automated feedback loops and safety systems.
Compatibility & Replacements
Compatible With
- ISO 15552 standard pneumatic systems and networks
- G3/8 pneumatic supply lines and manifold connections
- Proximity sensors with 00991235 mounting pattern
- Standard industrial compressed air supplies (0.6–12 bar)
- Festo automated valve blocks and control modules
Replaces / Drop-In Replacement For
- Festo DNC-63-100-PPV (non-A variant without sensor support)
- Festo 163419 (alternative DNC-63-100-PPV configuration)
- Similar ISO 15552 cylinders of 63 mm bore / 100 mm stroke from other manufacturers
Works With
- Industrial pneumatic control systems and PLC/HMI networks
- Proximity sensor switches (inductive or capacitive)
- Festo automated workflow and assembly line controllers
- ISO 1179-1 and ISO 228-1 standard pneumatic connections
- Industry-standard ported manifold blocks
