Overview

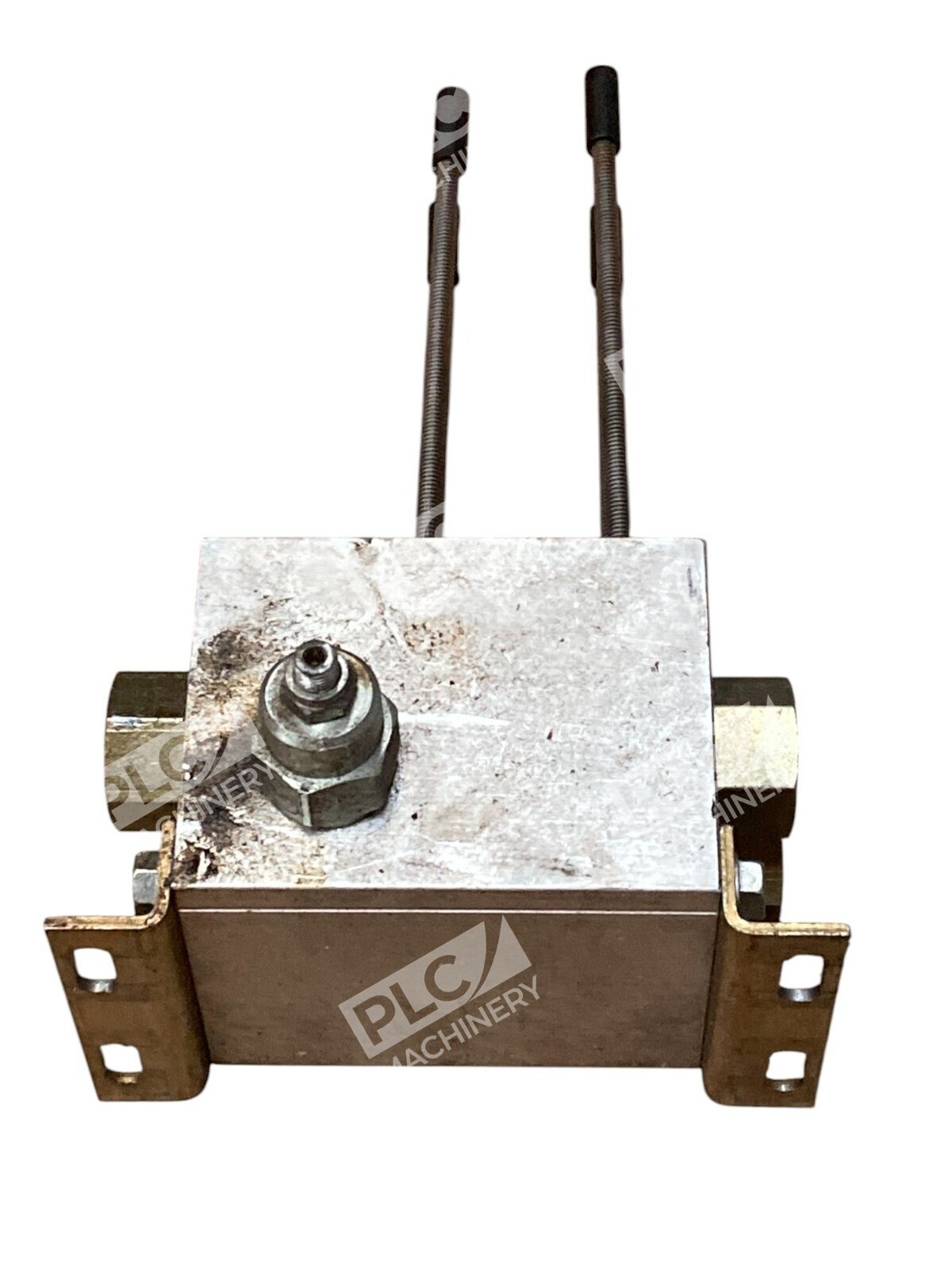

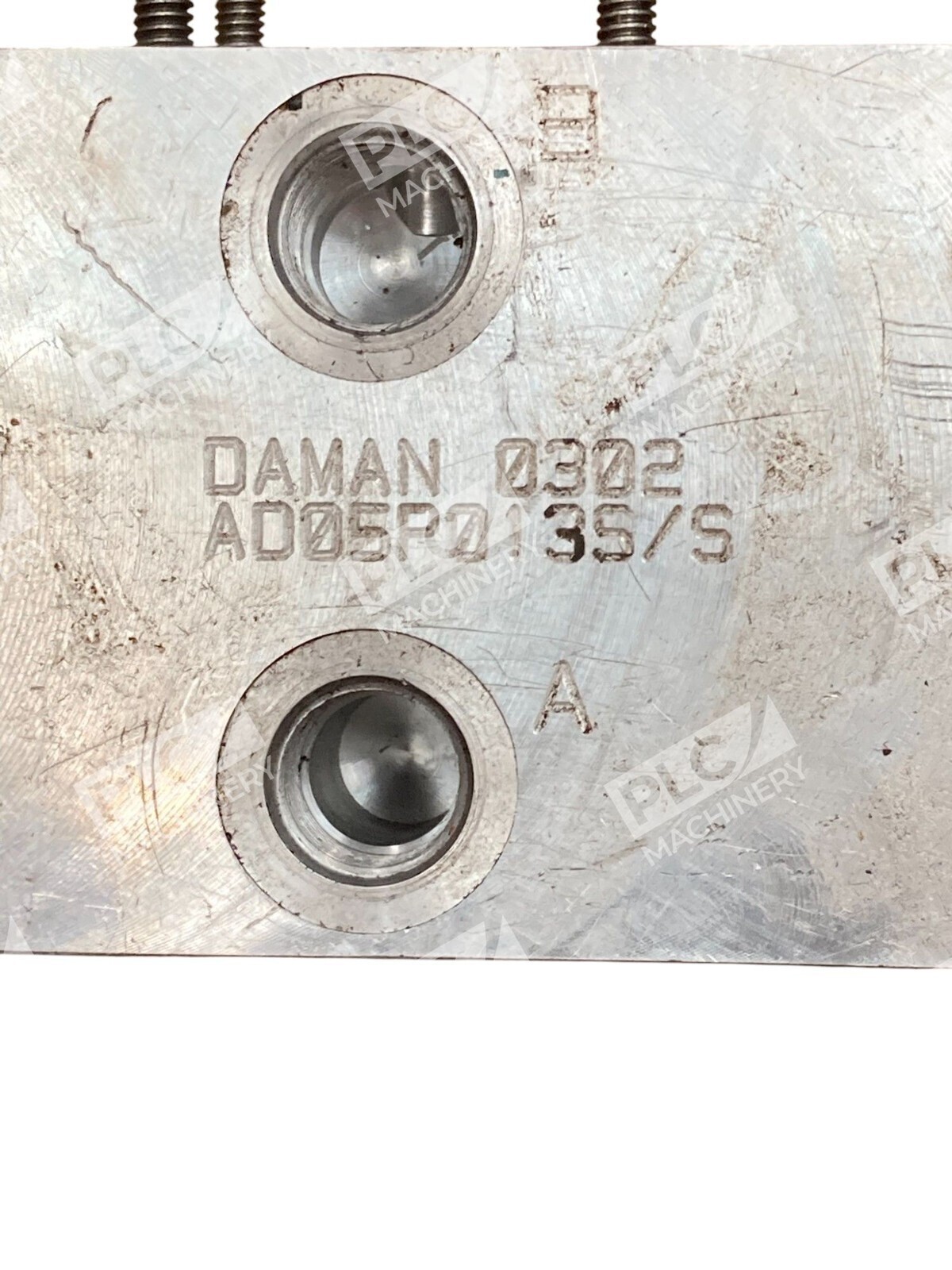

The Daman Products AD05P013S/S is a single-station aluminum valve manifold engineered for hydraulic directional control valve mounting. This CETOP-05 (NG10) manifold features billet aluminum construction rated for hydraulic systems operating up to 3,000 psi. The manifold centralizes valve location, reducing external plumbing runs and minimizing potential leak points throughout your system.
Key Features
- Billet aluminum construction for durability and corrosion resistance
- CETOP-05 (NG10) standard valve pattern for industry compatibility
- Single station design with 3-1/4 inch valve spacing
- Rated to 3,000 psi maximum working pressure
- #12 SAE (3/4″) P port with SAE O-ring connections
- T-3A Sun cavity relief option available
- Reduces plumbing complexity and system appearance
Technical Specifications
- Manifold Type: CETOP-05 (NG10) Single-Station
- Material: Billet Aluminum
- Maximum Pressure: 3,000 psi
- Port Configuration: #12 SAE (3/4″) P port, SAE O-ring style
- Valve Spacing: 3-1/4 inches
- Relief Cavity: T-3A Sun cavity (included with /S designation)
- Height: 4.05 inches
- Length: 6.15 inches
- Weight: 4.83 lbs
Typical Applications
The Daman AD05P013S/S manifold serves a wide range of hydraulic system applications requiring directional control valve mounting:
- Industrial hydraulic press and clamping systems
- Mobile equipment and machinery
- Material handling and lifting equipment
- Production machinery and automation systems
- Retrofit and replacement applications in existing systems
Compatibility & Replacements
Compatible With
- Daman CETOP-05 (NG10) directional control valves
- ISO 4401-05 (CETOP-05) standard mounting patterns
- SAE #12 (3/4″) port connections
- Hydraulic systems rated 3,000 psi and below
- Industrial and mobile hydraulic applications
Replaces / Drop-In Replacement For
The AD05P013S/S is a direct replacement for equivalent CETOP-05 single-station manifolds from Daman and other manufacturers using the same NG10 valve pattern. For specific interchangeability with competitor models, consult your system integrator or equipment documentation.
Works With
- Daman directional control valves (CETOP-05 series)
- Sun Hydraulics compatible valves
- Industry-standard NG10 directional valves
- SAE O-ring port connections
- Standard hydraulic hose and fittings
