Overview

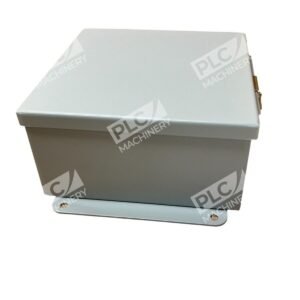

The Cooper B-Line 884-12CHC is a Type 12 JIC continuous hinge enclosure engineered for wall-mounted control system applications. This compact 8″ x 8″ x 4″ unit combines rugged 16-gauge steel construction with NEMA 12 and IP65 protection ratings, making it suitable for indoor industrial environments where dust and moisture resistance are required. The continuous hinge design with screw clamps provides secure access and straightforward serviceability for maintenance and panel modifications.
Key Features
- Continuous hinge door secured with easy-to-operate screw clamps
- 16-gauge steel construction with all continuous welded seams finished smooth
- Fixed, oil-resistant gasket for environmental protection
- ANSI 61 Gray polyester powder finish over phosphatized surface
- Ground stud provided on cover for equipment grounding
- External mounting feet for secure wall installation
- 10-32 weldnuts for optional internal panel mounting
Technical Specifications
- Height: 8 inches
- Width: 8 inches
- Depth: 4 inches
- Material: Carbon steel, 16-gauge
- Finish: ANSI 61 Gray polyester powder coat over phosphatized surface
- Cover Design: Continuous hinge with screw clamps
- NEMA Rating: NEMA 12 / NEMA 13 / IP65
- Gasket: Fixed, oil-resistant
- Number of Doors: 1
- Mounting Style: Wall mount with external feet
- Hardware Finish: Zinc plated with yellow chromate coating
- Part Number: 884-12CHC
- UPC: 782051700381
Typical Applications
The Cooper B-Line 884-12CHC is widely used in:
- Industrial control system installations
- Machine tool and equipment control enclosures
- Electrical distribution and switching applications
- Manufacturing floor automation and instrumentation
- HVAC and process control system housings
- Facilities where NEMA 12 dust and moisture protection is required
Compatibility & Replacements
Compatible With
- Standard 10-32 mounting hardware for internal panels
- Industrial control devices and power distribution components
- Grounding systems via integral ground stud
- Wall-mounted installation systems and brackets
Replaces / Drop-In Replacement For
- Earlier Cooper B-Line 884 series continuous hinge models
- Generic Type 12 JIC enclosures of equivalent 8x8x4 dimensions
- Verify compatibility with your system integrator before ordering alternative models
Works With
- Standard industrial control panels and circuitry
- Any equipment compatible with wall-mount Type 12 enclosure standards
- Third-party mounting accessories designed for 10-32 weldnut installations
