Overview

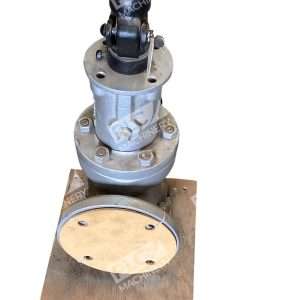

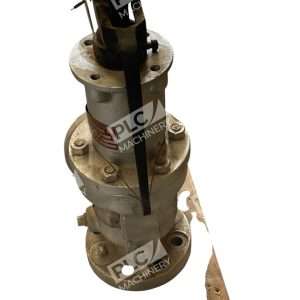

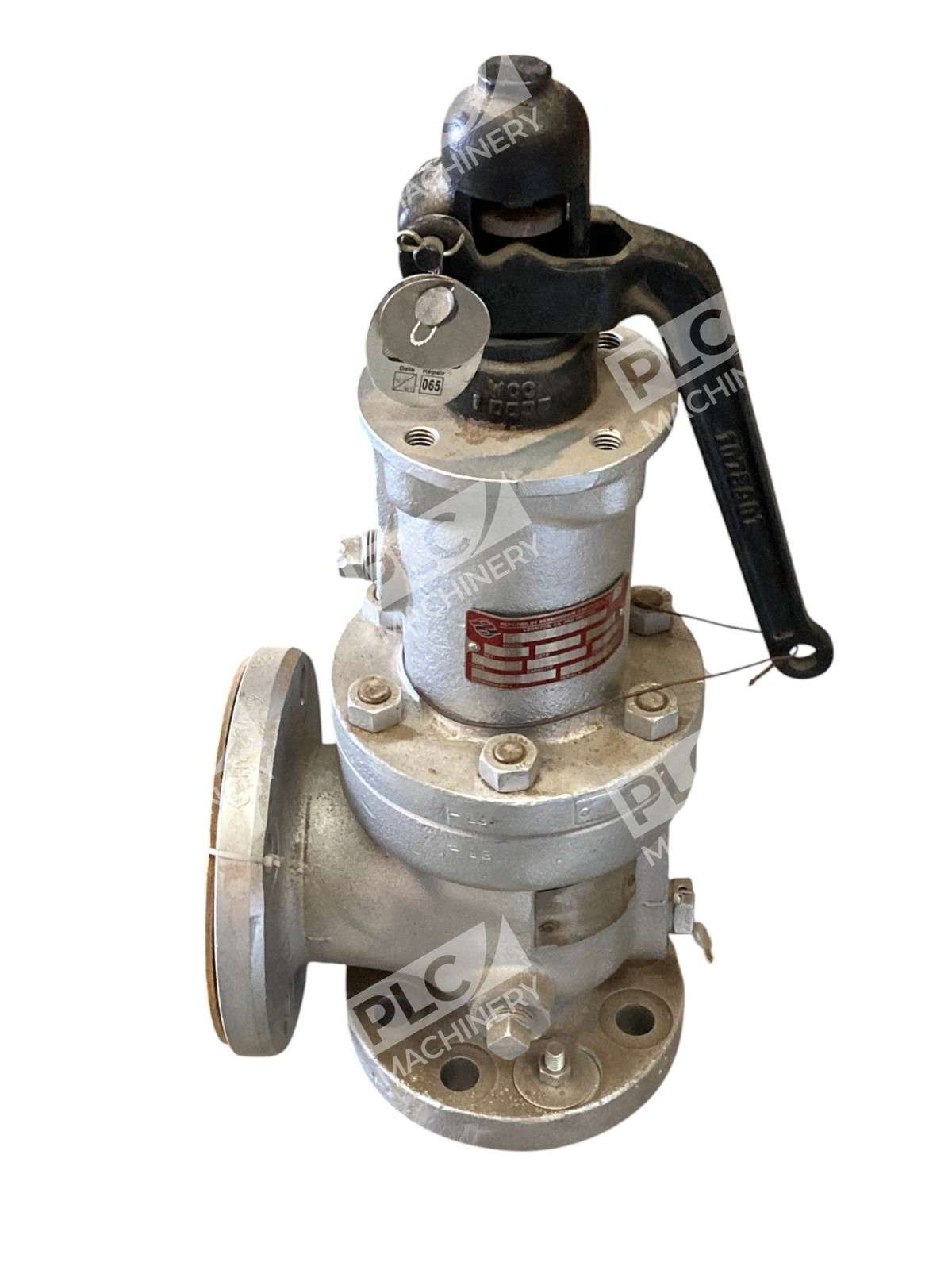

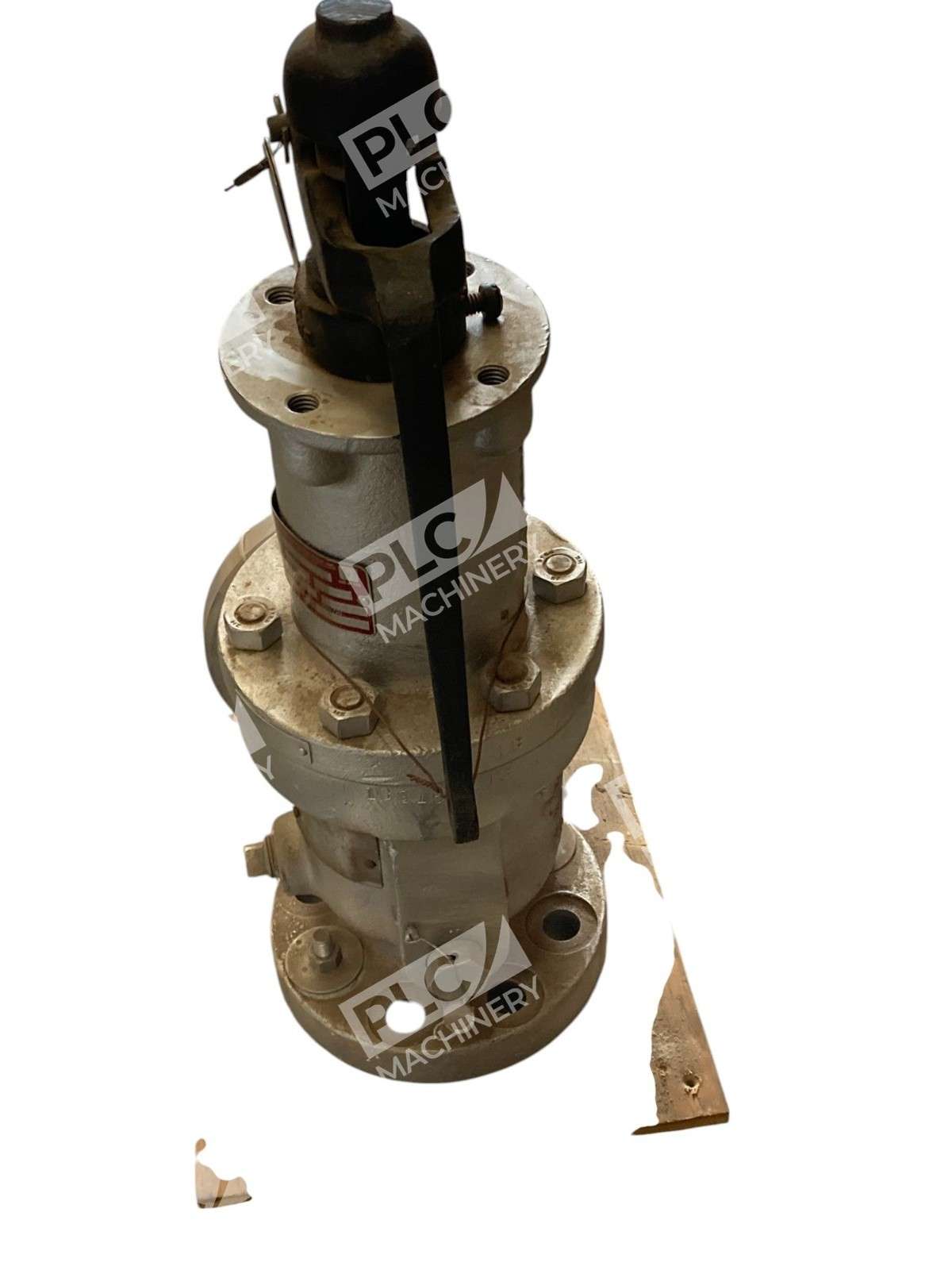

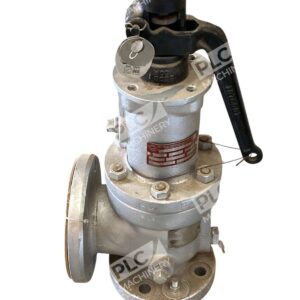

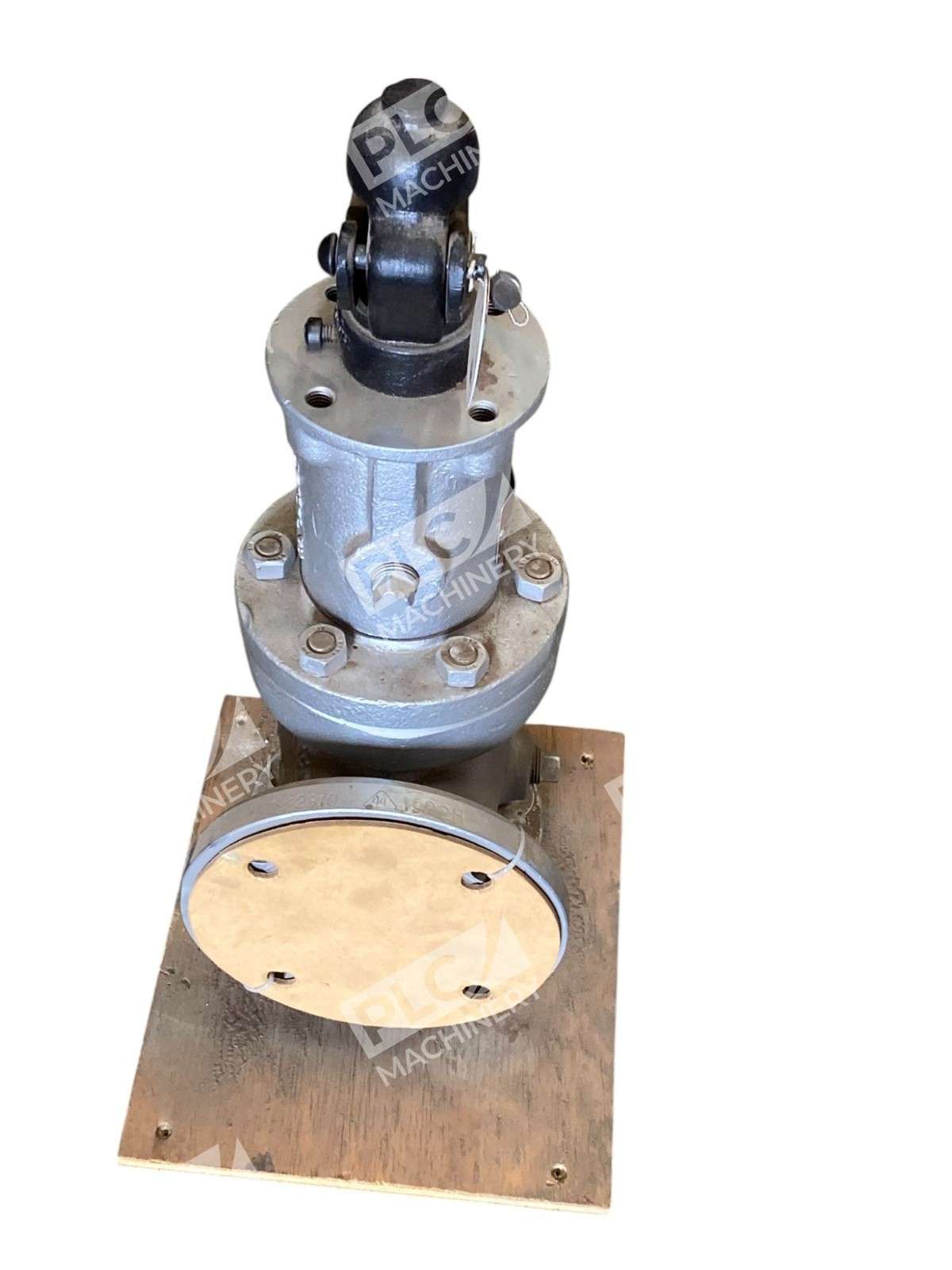

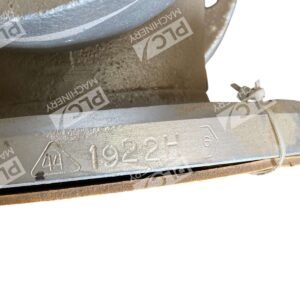

The Consolidated Dresser 1922-00HT-1-CC-TD-34-RF-SS-HP is a pilot-operated relief valve rated at 750 PSI, designed to protect hydraulic, pneumatic, and process fluid systems from overpressure conditions. Built with stainless steel construction and flanged connection design, this valve ensures precise pressure regulation and dependable system safety in industrial applications.
Key Features
- 750 PSI rated pressure setting for high-pressure system protection
- Stainless steel (SS) body and components for corrosion resistance
- Flanged connection design for secure installation in manifold systems
- Pilot-operated mechanism for smooth, stable pressure control
- Suitable for hydraulic, pneumatic, and process media applications
- Meets industrial performance standards for pressure relief
Technical Specifications
- Pressure Setting: 750 PSI
- Material: Stainless Steel
- Connection Type: Flanged
- Series: Consolidated Dresser 1900 Series
- Control Type: Pilot-Operated
- Media Compatibility: Hydraulic fluid, air, steam-compatible fluids
Typical Applications
Consolidated Dresser relief valves are commonly used in:
- Industrial hydraulic press and injection molding systems
- High-pressure pump protection circuits
- Pneumatic system overpressure protection
- Process fluid systems in refineries and chemical plants
- Power generation and propulsion system applications
- Fluid power manifold assemblies
Compatibility & Replacements
Compatible With
- Industrial hydraulic and pneumatic manifold systems
- Flanged valve cavity standards (ISO 4401 compatible cavity mounting)
- High-pressure fluid systems rated 750 PSI and below
- Stainless steel piping and valve block assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The specific model code format (1922-00HT-1-CC-TD-34-RF-SS-HP) indicates configuration codes that must match your original equipment specifications.
Works With
- Consolidated Dresser piloting systems and cavity standards
- ISO 4401 flanged ported cavity blocks
- Standard industrial hydraulic fluid (ISO VG 46–100)
- Pneumatic and inert gas media
