Overview

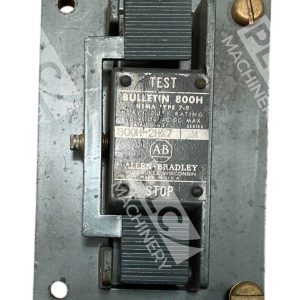

The Allen-Bradley 800H-2HX7 /M is a two-button pushbutton station from the renowned 800H family, engineered for industrial control applications requiring robust operator interface solutions. This unit features standard enclosure construction suitable for factory floors, assembly lines, and process control systems where quick manual intervention is essential. The 800H-2HX7 /M supports both momentary and maintained contact configurations to match your application requirements.
Key Features
- Two-Button Configuration: Dual pushbutton design with independent control logic, commonly configured as START/STOP or similar control pairs.

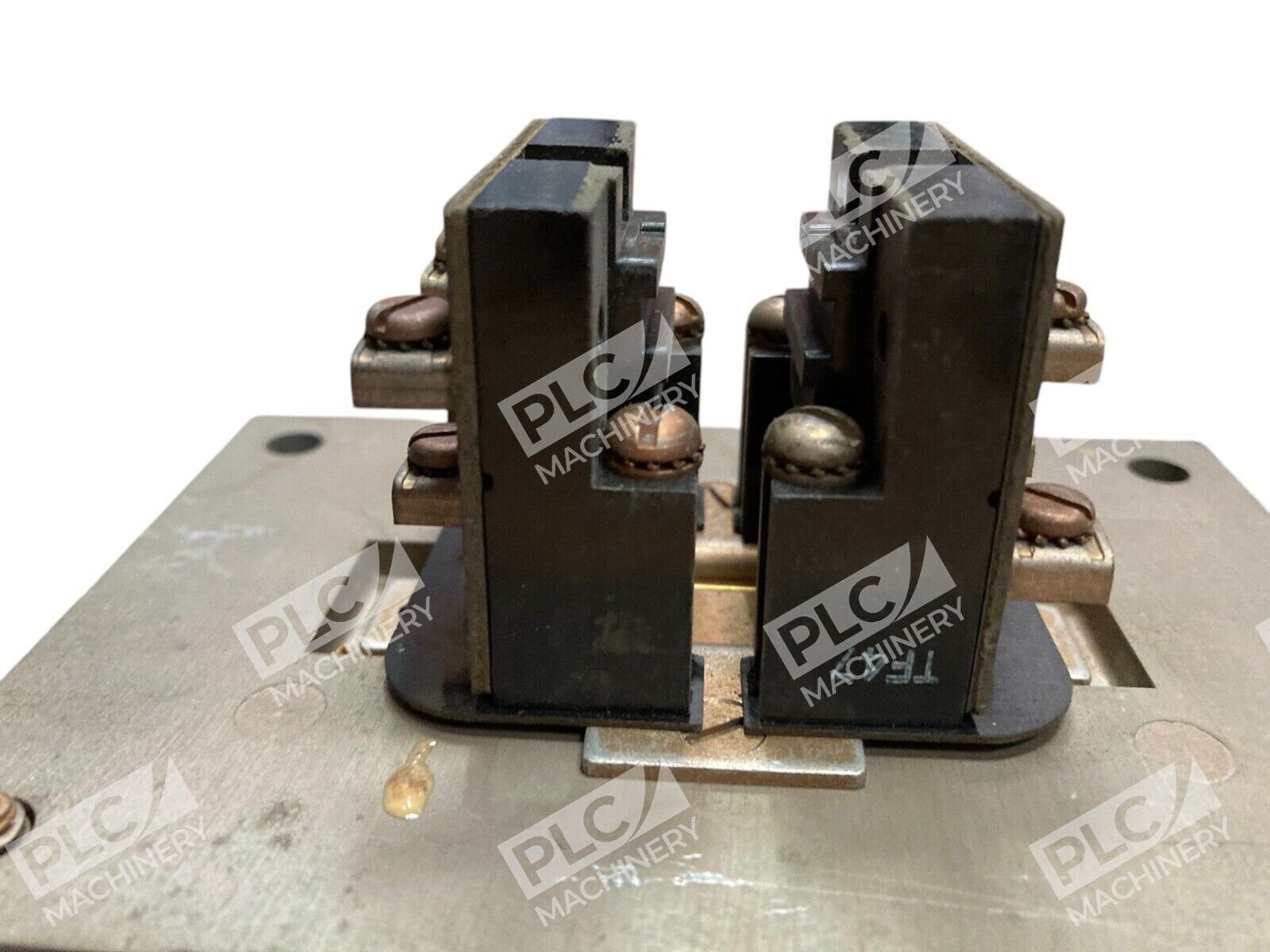

- Standard Contact Blocks: Supplied with shallow contact blocks providing reliable electrical switching for control circuits.
- Momentary or Maintained Switching: Flexible operation modes to support different automation control strategies.
- Industrial Enclosure Design: Durable die-cast aluminum or stainless steel construction resisting corrosion and mechanical wear in harsh environments.
- Easy Installation: Standard mounting provisions with 3/4 inch conduit entry for straightforward panel integration.
Technical Specifications
- Part Number: 800H-2HX7 /M
- Button Positions: Two independent pushbuttons
- Contact Type: Standard shallow contact blocks
- Contact Configuration: 1 N.O. (Normally Open) / 1 N.C. (Normally Closed) per contact block
- Enclosure Type: Type 7 & 9 (Hazardous Location rated)
- Construction Material: Die-cast aluminum or stainless steel
- Conduit Entry: 3/4 inch dead-end
- Operator Style: Flush or extended button options
- Operating Temperature: -20°C to +60°C (without freezing moisture)
- Weight: Approximately 2.9 lb (standard button style)
- Certifications: UL Listed, CSA Approved
Typical Applications
- Machinery control on production lines requiring operator START/STOP functions
- Material handling systems (conveyors, lifts, cranes)
- Process automation where dual-control switching is required
- Industrial environments with moisture, dust, or corrosive atmospheres
- Hazardous locations classified as Class I, Division 1 or Type 7/9
Compatibility & Replacements
The Allen-Bradley 800H-2HX7 /M integrates seamlessly with existing Rockwell Automation control systems and PLC platforms. Contact blocks are field-replaceable, allowing customization of electrical circuits without replacing the entire enclosure. Related two-button models in the 800H series include the 800H-2HAM7 (ON/OFF legends), 800H-2HCM7 (OPEN/CLOSE), and 800H-2HJM7 (HAND/AUTO). For sealed-contact sealed-switch applications, consider the 800R series equivalent. Consult local Allen-Bradley distributors for custom configurations or alternative legend markings.
