Overview

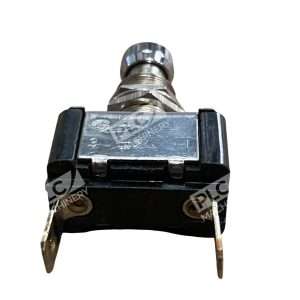

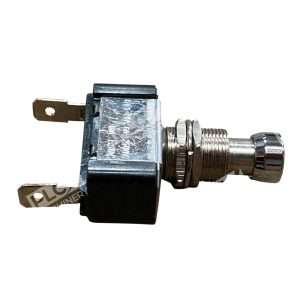

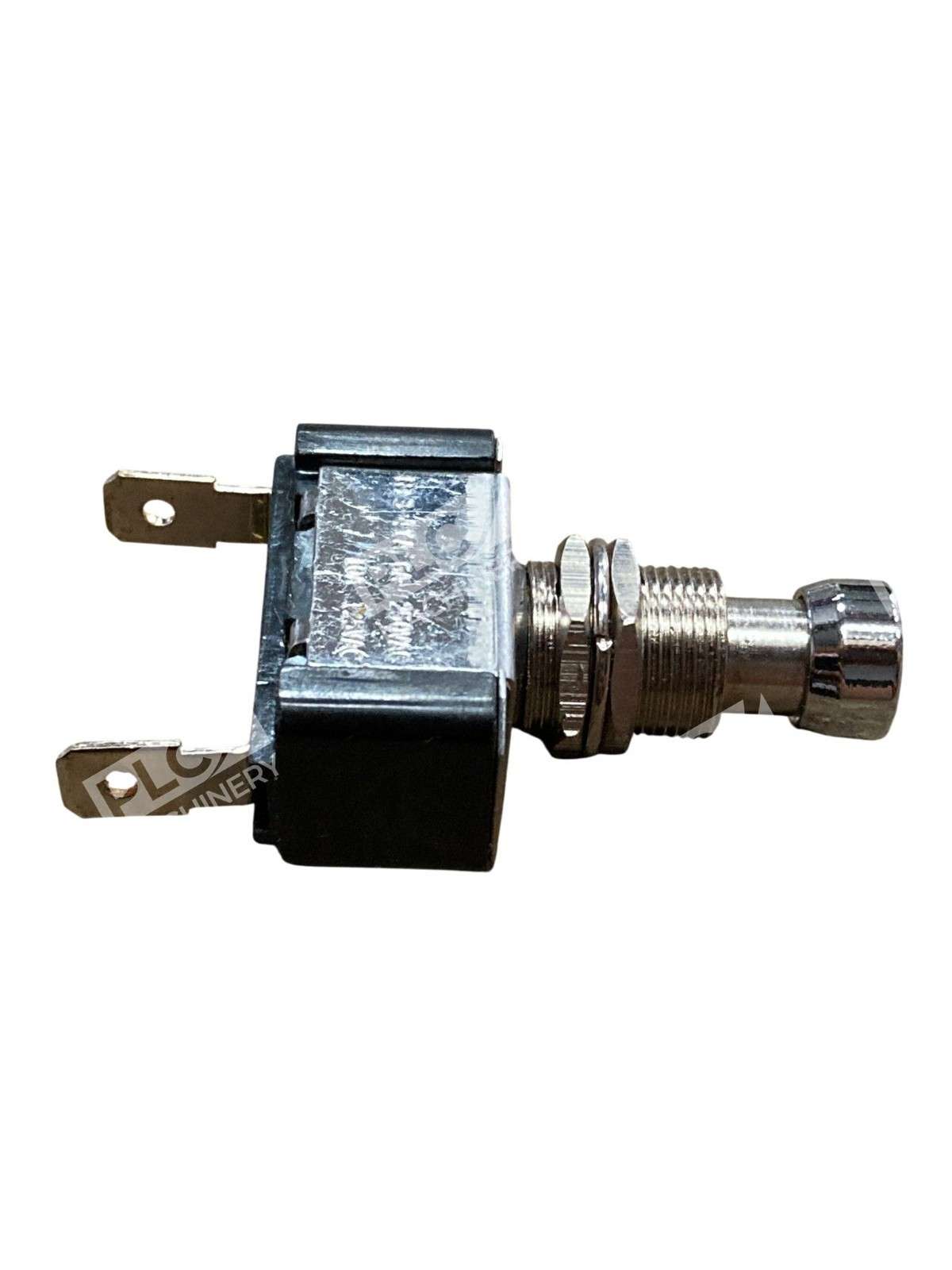

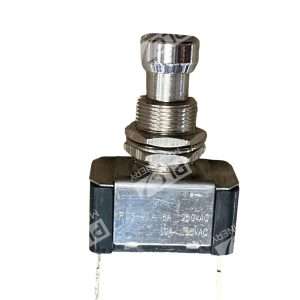

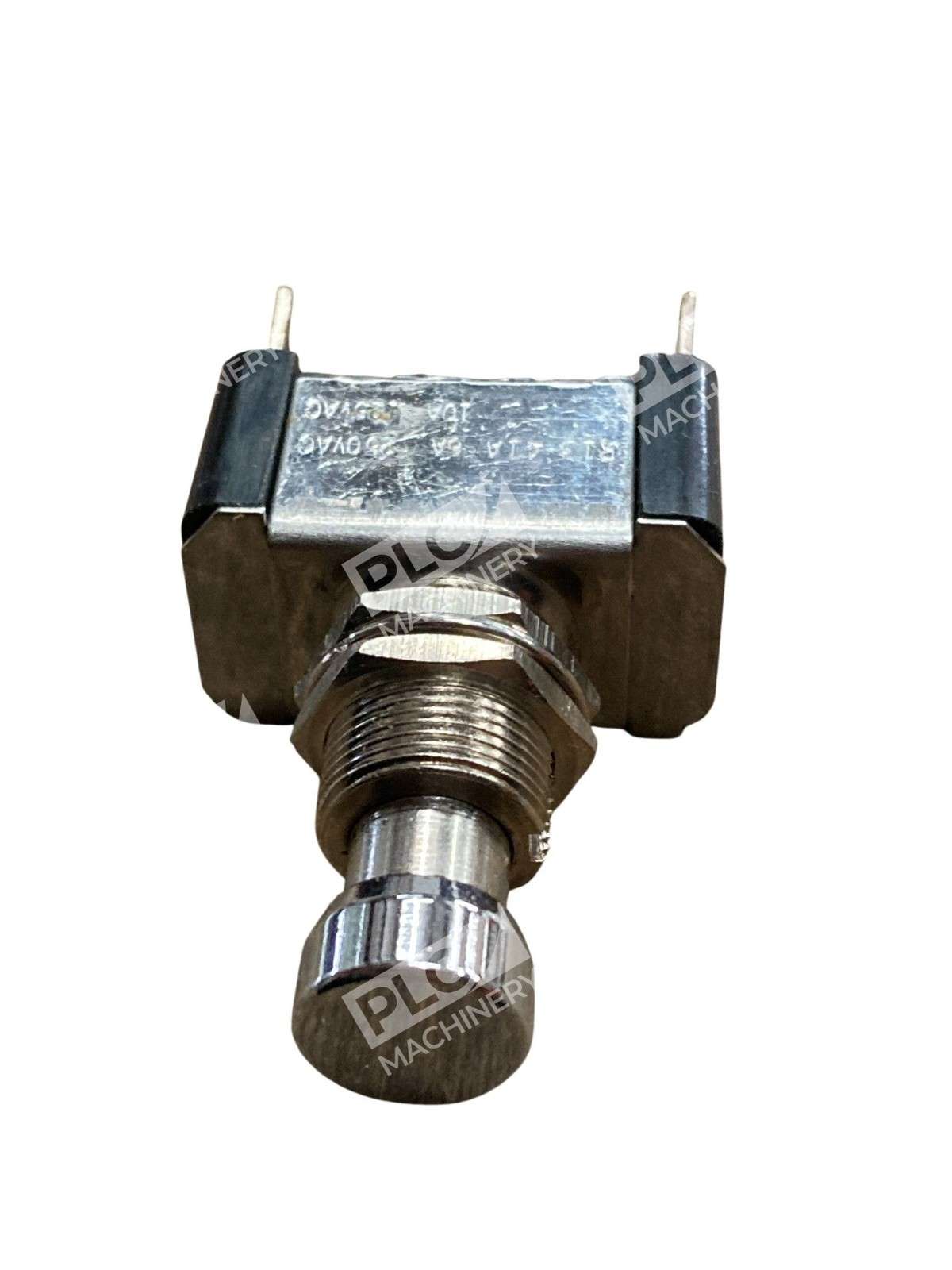

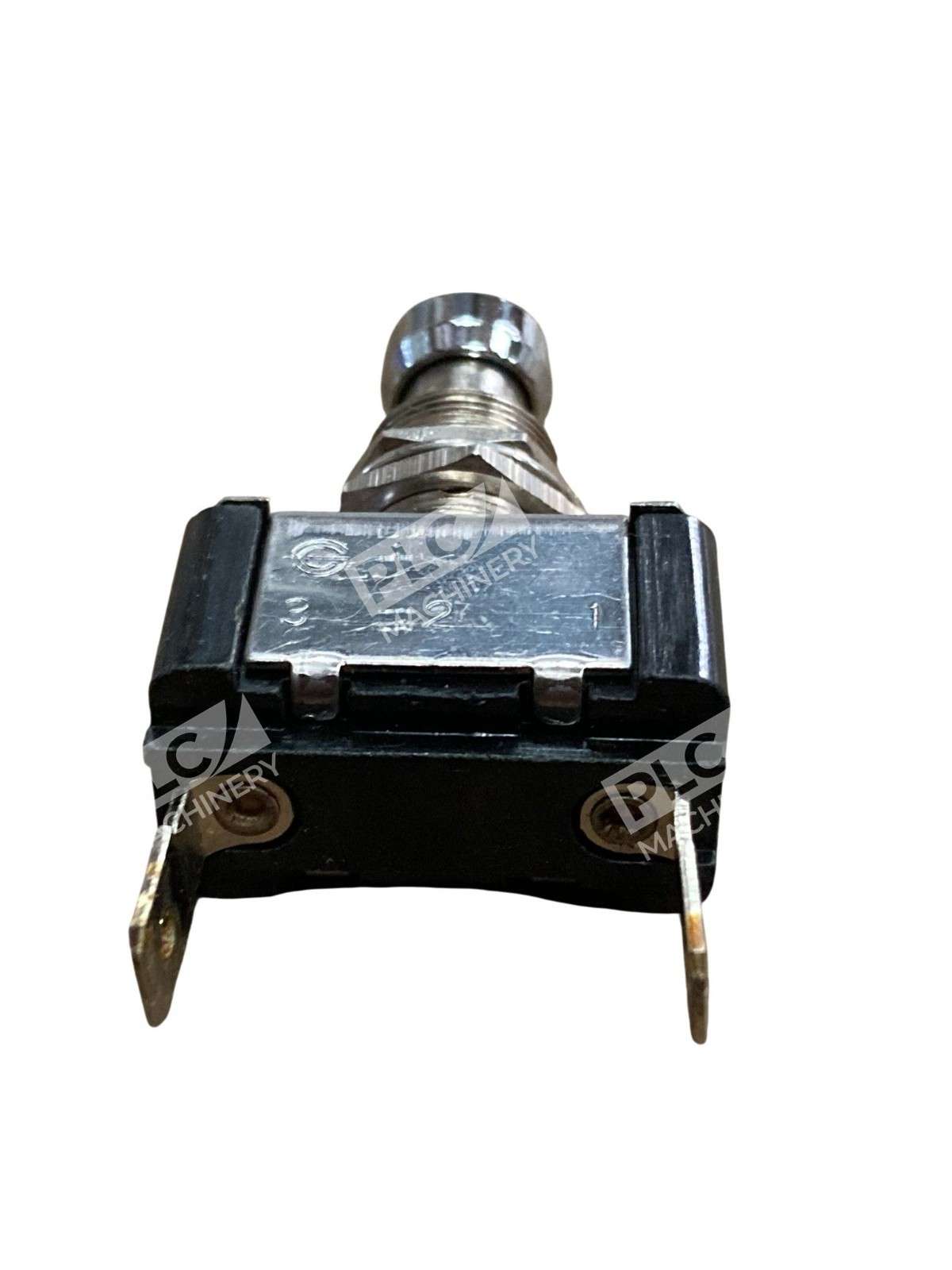

The R13-41A footswitch is a robust latching push-button switch designed for applications requiring foot-operated control. Manufactured by Shin Chin Industrial (SCI), this SPST (Single-Pole, Single Throw) switch combines durability with reliable electrical performance across standard AC voltage levels. The latching mechanism holds the switch in the engaged position until pressed again, making it ideal for hands-free operation in industrial, audio, and machinery control systems.
Key Features
- SPST (Single-Pole, Single Throw) contact configuration for simple on/off control
- Latching operation—switch remains in position until manually reset

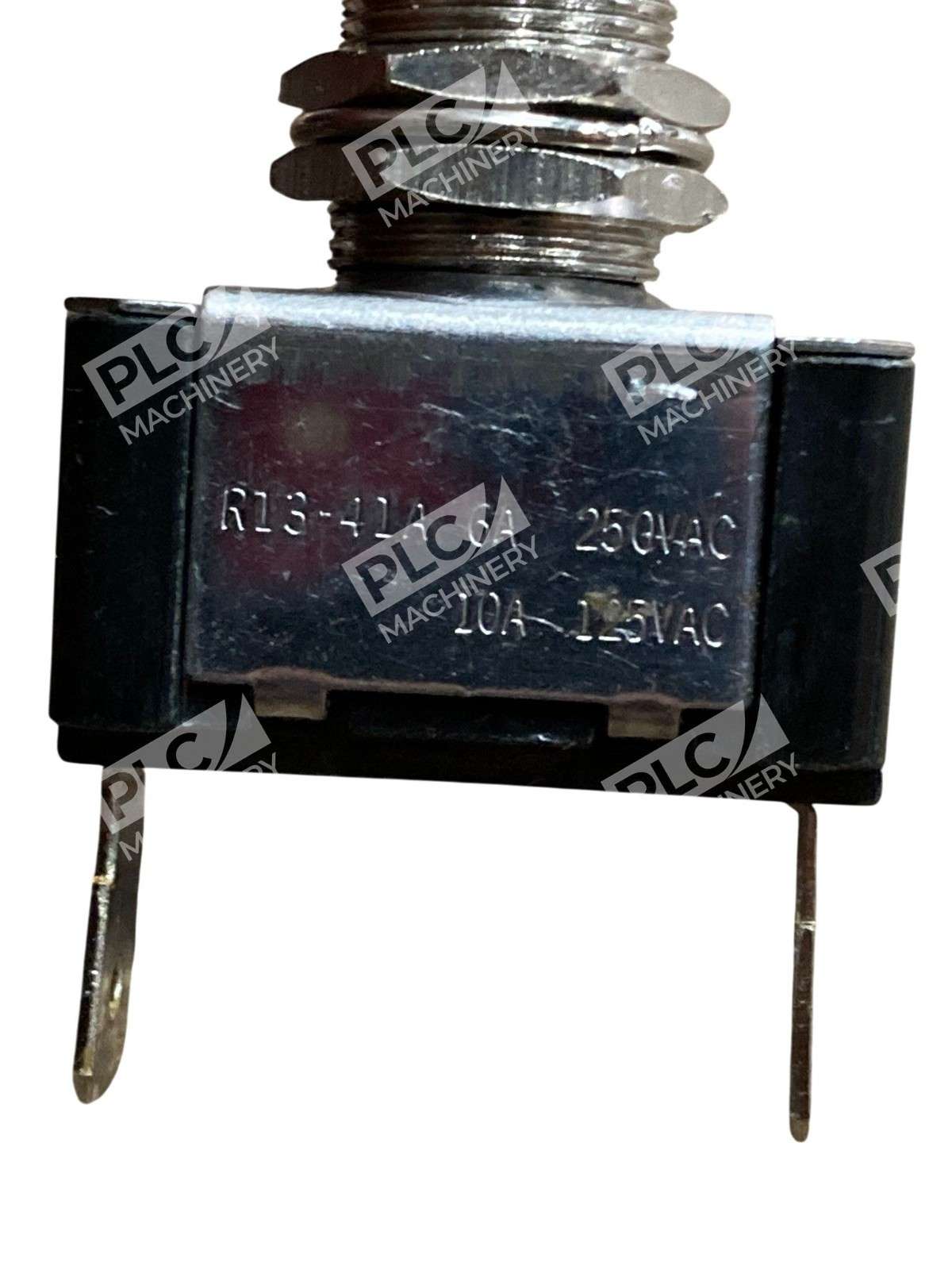

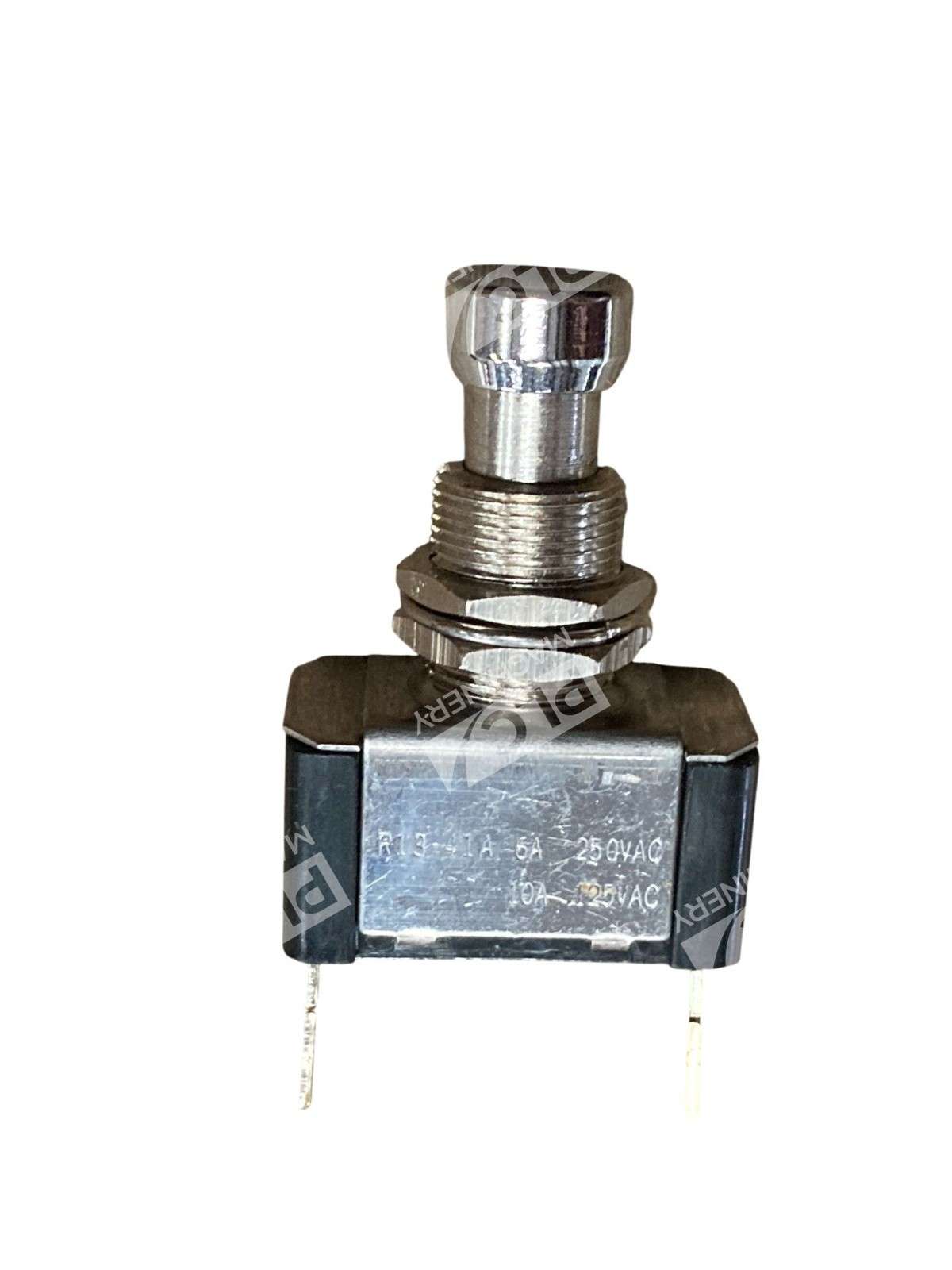

- Dual voltage rating: 10A @ 125V AC and 6A @ 250V AC
- Foot-operated design for hands-free engagement
- Robust construction suitable for industrial, audio, and automotive applications
- Compact footprint with industry-standard mounting
Technical Specifications
- Contact Configuration: SPST (Single-Pole, Single Throw)
- Operation Type: Latching (Push to engage, push to disengage)
- Electrical Rating 125V AC: 10A maximum
- Electrical Rating 250V AC: 6A maximum

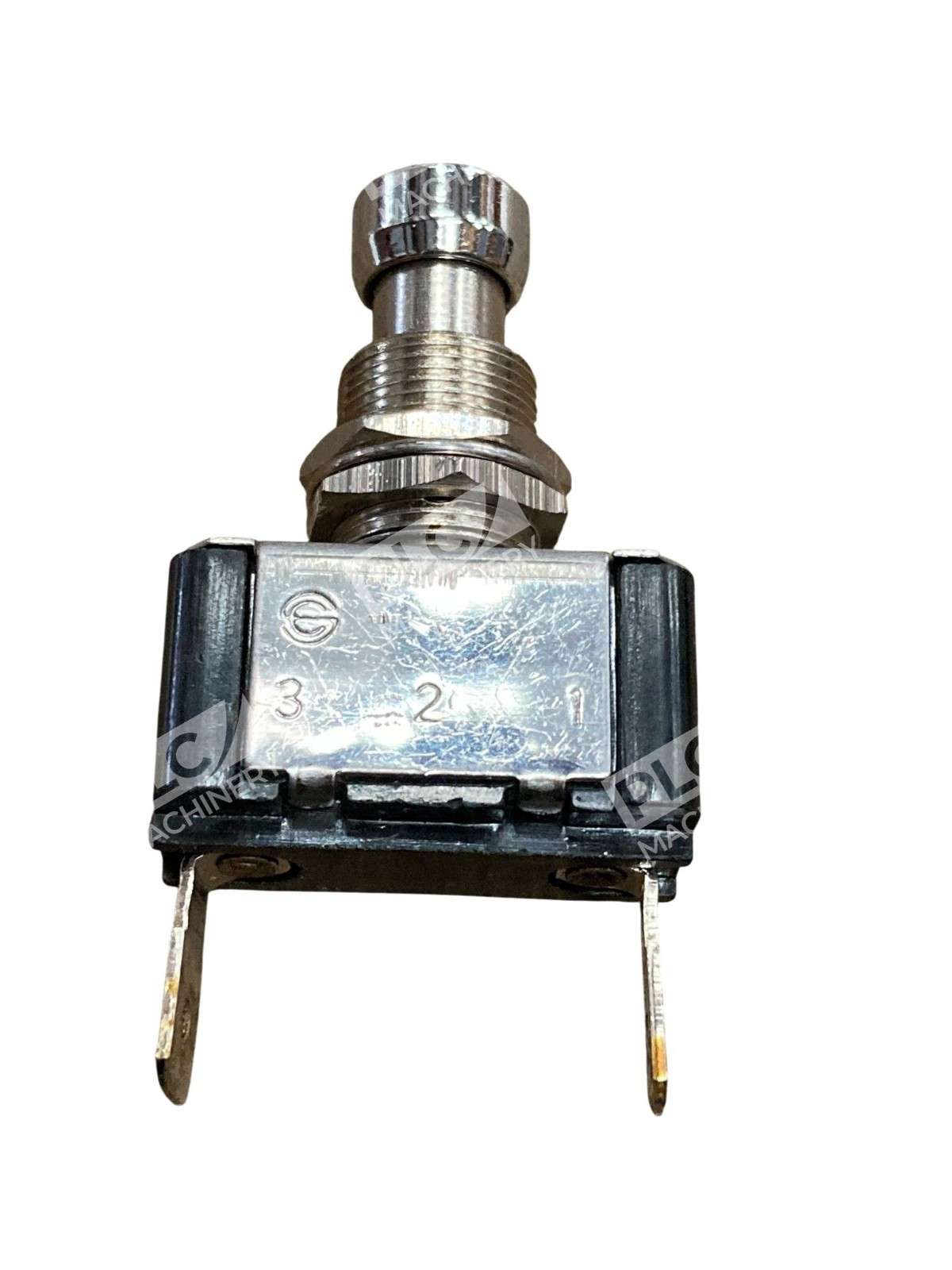

- Terminal Type: Vertical solder terminals
- Mounting: Foot pedal with standard installation
- Manufacturer: Shin Chin Industrial (SCI)
- Series: R13-41
Typical Applications
The R13-41A is widely used in:
- Audio Equipment: Guitar effects pedals, amplifier footswitches, and professional audio control
- Industrial Machinery: Machine tool operation, conveyor systems, and production equipment requiring foot control
- Automotive: Test stands, diagnostic equipment, and workshop machinery
- Electrical Equipment Control: Activation of high-power devices and switching circuits
Compatibility & Replacements
The R13-41A is part of SCI’s extensive R13 series footswitch family. Other models in this series include the R13-85 (commonly used in high-end audio effects) and various R13-50x variants. When selecting a replacement or alternative, verify the contact configuration (SPST vs. DPST), operation type (momentary vs. latching), and voltage/current ratings match your application requirements. Vertical terminal footswitches in the R13 family offer direct compatibility for most industrial and audio applications.
