Overview

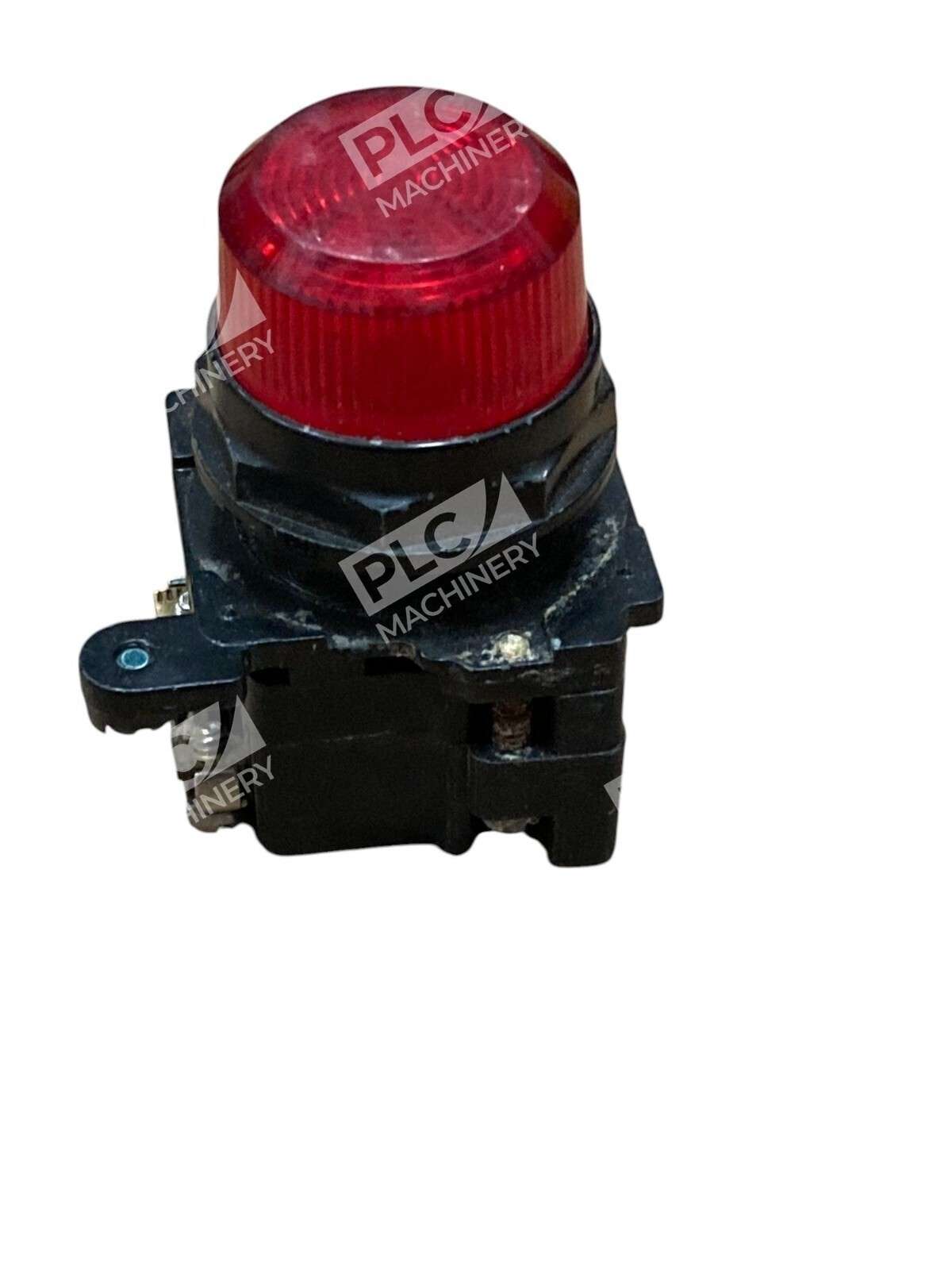

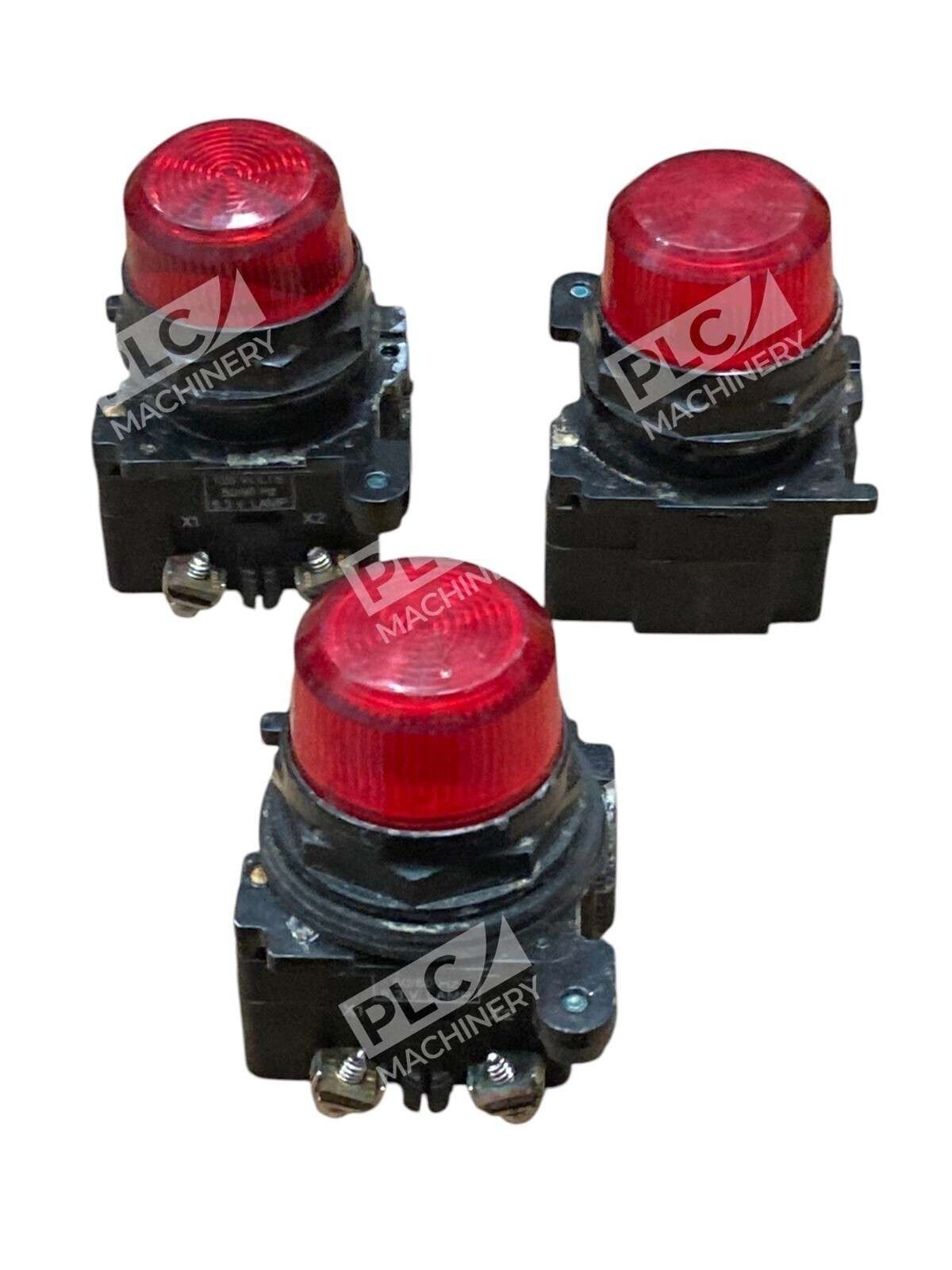

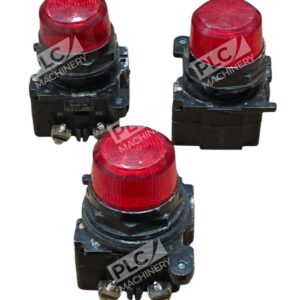

The Eaton 10250T34R red indicating light is a compact, heavy-duty pilot light designed for industrial control panels and enclosures. Built with die-cast zinc and a red plastic lens, this 30.5mm assembly delivers clear, visible status indication in demanding manufacturing and utility environments. With 120V transformer power and a NEMA 4X enclosure rating, the 10250T34R provides watertight and oiltight protection suitable for washdown areas and corrosive locations.
Key Features
- 30.5mm compact size for standard control panel mounting
- Heavy-duty watertight and oiltight construction rated NEMA 3, 3R, 4, 4X, 12, 13

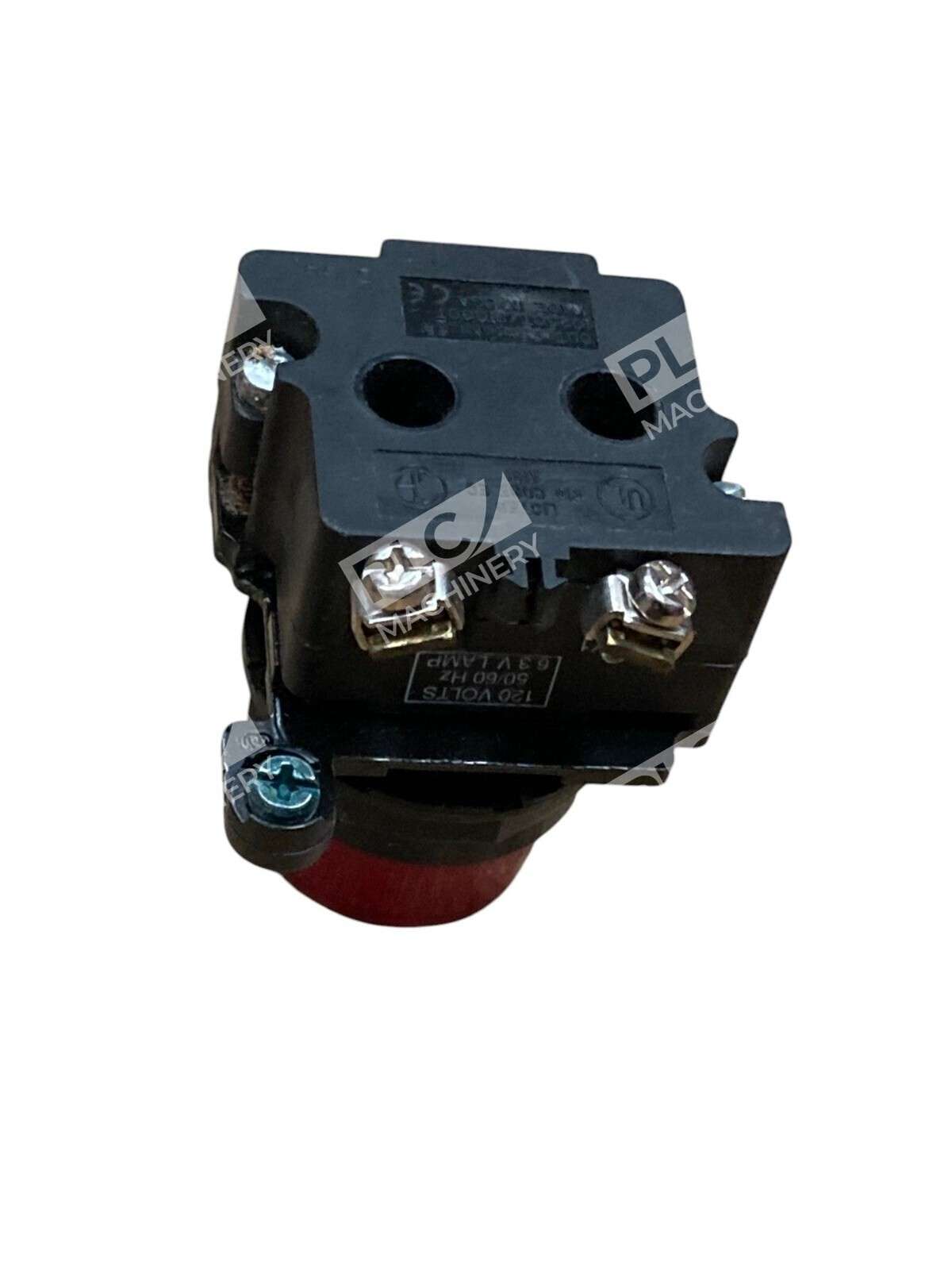

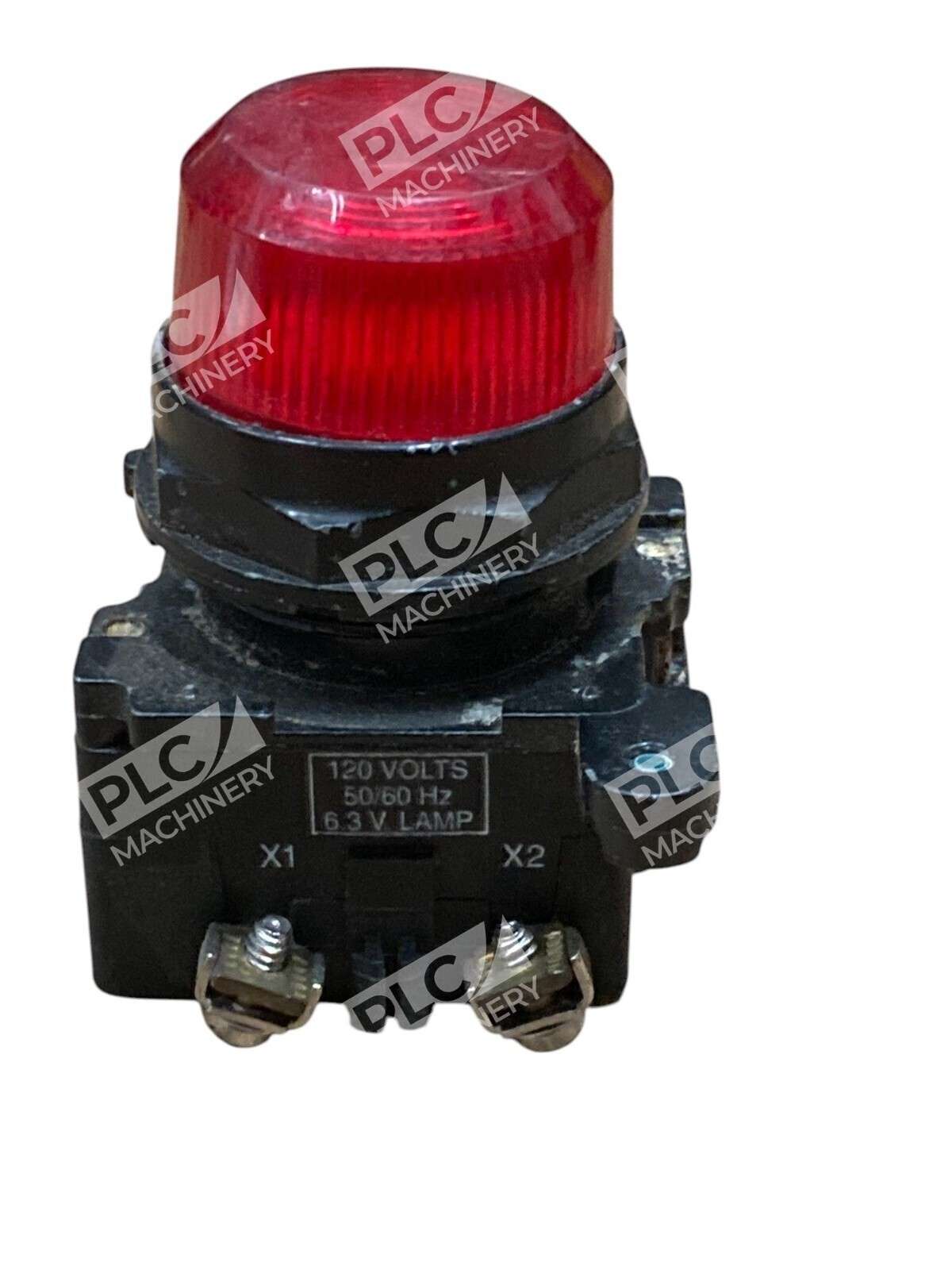

- 120V AC transformer-powered incandescent lamp (755 lamp type, 6.3V secondary)
- Chrome-plated die-cast zinc bezel with red plastic lens for corrosion resistance
- Standard operator button for easy identification and visibility
- Made in USA for reliable industrial performance
Technical Specifications
- Indicator Type: Assembled Pilot Light
- Size: 30.5mm
- Lens Color: Red plastic
- Power Input: 120 VAC, 50/60 Hz
- Lamp Type: Incandescent (Lamp 755)
- Secondary Voltage: 6.3V
- Power Source: Transformer Light Unit
- Bezel: Chrome-plated die-cast zinc
- NEMA Rating: 3, 3R, 4, 4X, 12, 13
- Series: 10250T
- Configuration: No contact blocks (indicating light only)

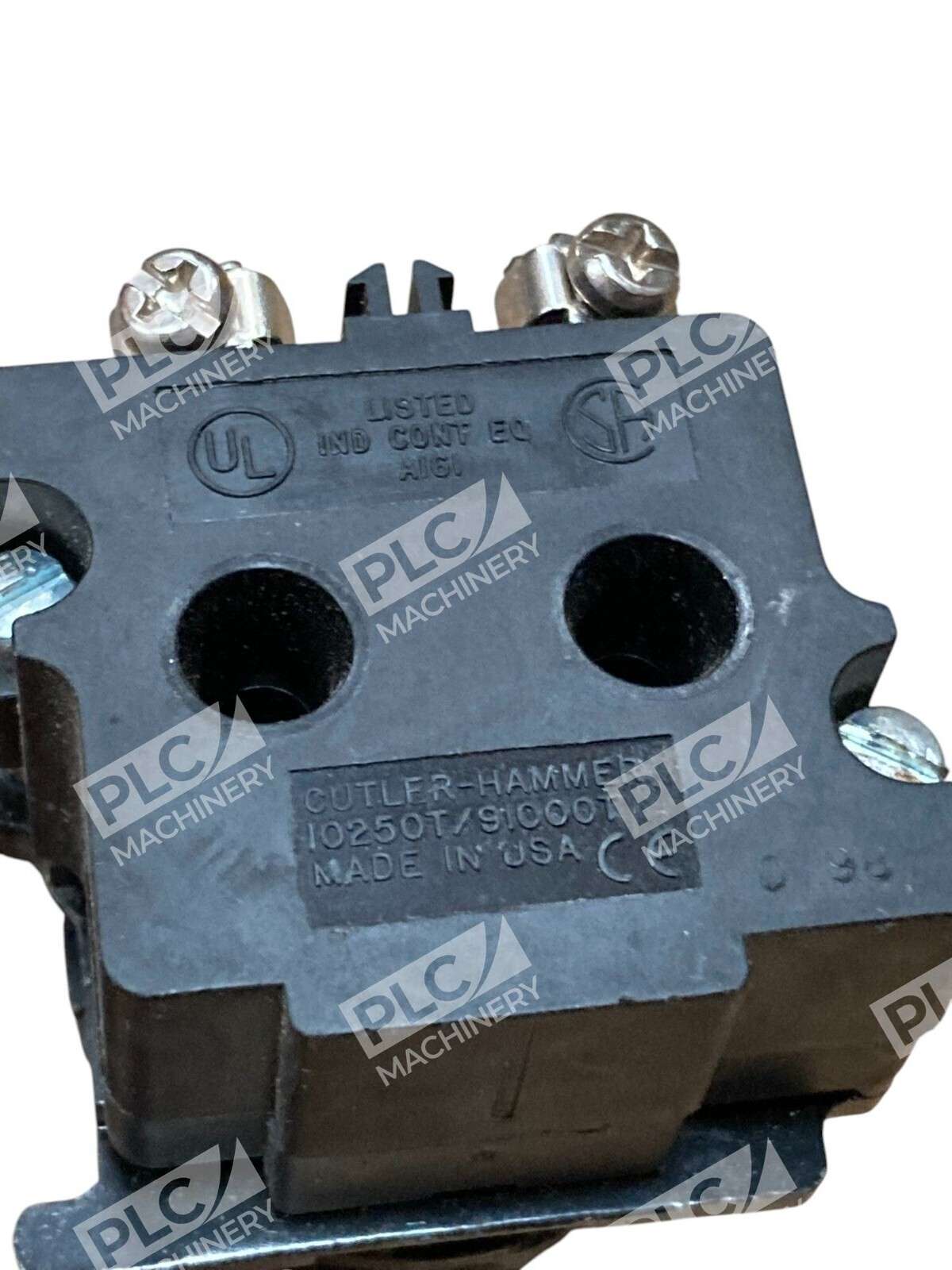

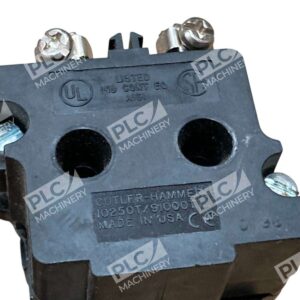

- Origin: Made in USA
Typical Applications
The 10250T34R is ideal for motor control centers, industrial machinery, manufacturing equipment, and electrical enclosures requiring status indication. Its NEMA 4X rating makes it suitable for wet environments, chemical plants, food processing, and other corrosive or humid locations. Use this light to signal equipment status, alarm conditions, or operational modes in compliance with standard industrial control practices.
Compatibility & Replacements
The Eaton 10250T34R is part of the 10250T modular pilot device line and integrates with standard Eaton control station assemblies. It can be paired with pushbuttons, selector switches, and other 10250T-series devices for complete control solutions. For applications requiring different colored indicators, Eaton offers matching 10250T units in green and amber. When replacing older indicating lights, verify NEMA rating, voltage, and mounting hole compatibility to ensure drop-in fit.
