Overview

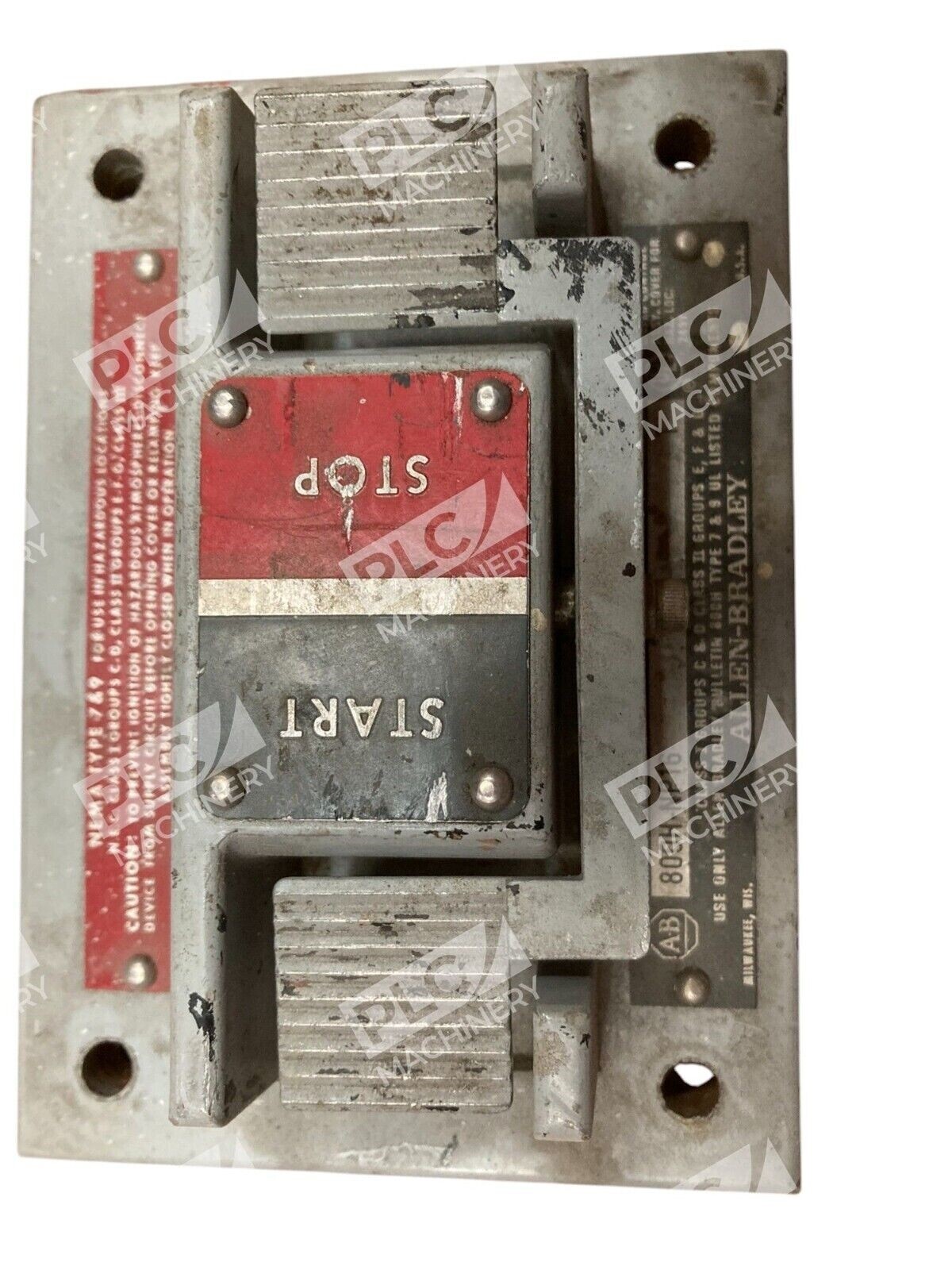

The Allen-Bradley 800H-NP16 is a specialized enclosure cover designed for hazardous location applications in industrial control systems. This cover is rated NEMA 7/9 and is designed for 800H hazardous location pushbutton stations with lever type actuator, double lever, maintained, on/off action, and includes a legend plate. Built for extreme environments, this component provides durable protection and reliable operation in explosive atmospheres.
Key Features
- NEMA 7/9 Rating: Certified for Class I explosive gas/vapor locations and Class II combustible dust environments
- Double-Lever Maintained Action: Supports momentary and sustained contact configurations for flexible control logic
- Integrated Legend Plate: Pre-mounted label area for on/off operation identification
- Heavy-Duty Cast Aluminum Construction: Corrosion-resistant housing for long service life
- Series T Design: Compatible with modern 800H station base assemblies and operator configurations
- Drop-In Replacement: Direct fit for existing 800H pushbutton installations requiring cover upgrade or replacement
Technical Specifications
- Part Number: 800H-NP16/T
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Rating: NEMA 7, NEMA 9
- Actuator Type: Lever
- Contact Action: Maintained (Double-Throw)
- Material: Cast Aluminum
- Weight: 1.45 lbs
- Compatible Base: 800H Series Stations
- Legend Plate: Included
- Mounting: Panel-mount via 800H enclosure bases
- Series: T (Modern revision)
Typical Applications
The 800H-NP16 enclosure cover is commonly used in:
- Oil and gas drilling platforms and refineries with flammable gas atmospheres
- Chemical processing plants handling explosive vapors or dusts
- Mining operations subject to methane or coal dust classification
- Hazardous material loading/unloading stations
- Emergency stop and equipment control in classified locations
- Replacement cover for aging or damaged 800H station assemblies
Compatibility & Replacements
The 800H-NP16 enclosure cover is part of the Allen-Bradley 800H hazardous location pushbutton station family. This cover integrates with standard 800H base assemblies, operator heads, and contact block kits. It is not interchangeable with standard 800T (Type 4/13 only) covers and must be used in applications requiring NEMA 7 or NEMA 9 certification. When planning replacements or upgrades, verify that your application meets hazardous location classification requirements before installation. Consult Allen-Bradley engineering resources or your local distributor for additional component compatibility or alternative cover options if your duty cycle or operating temperature requirements change.
