Overview

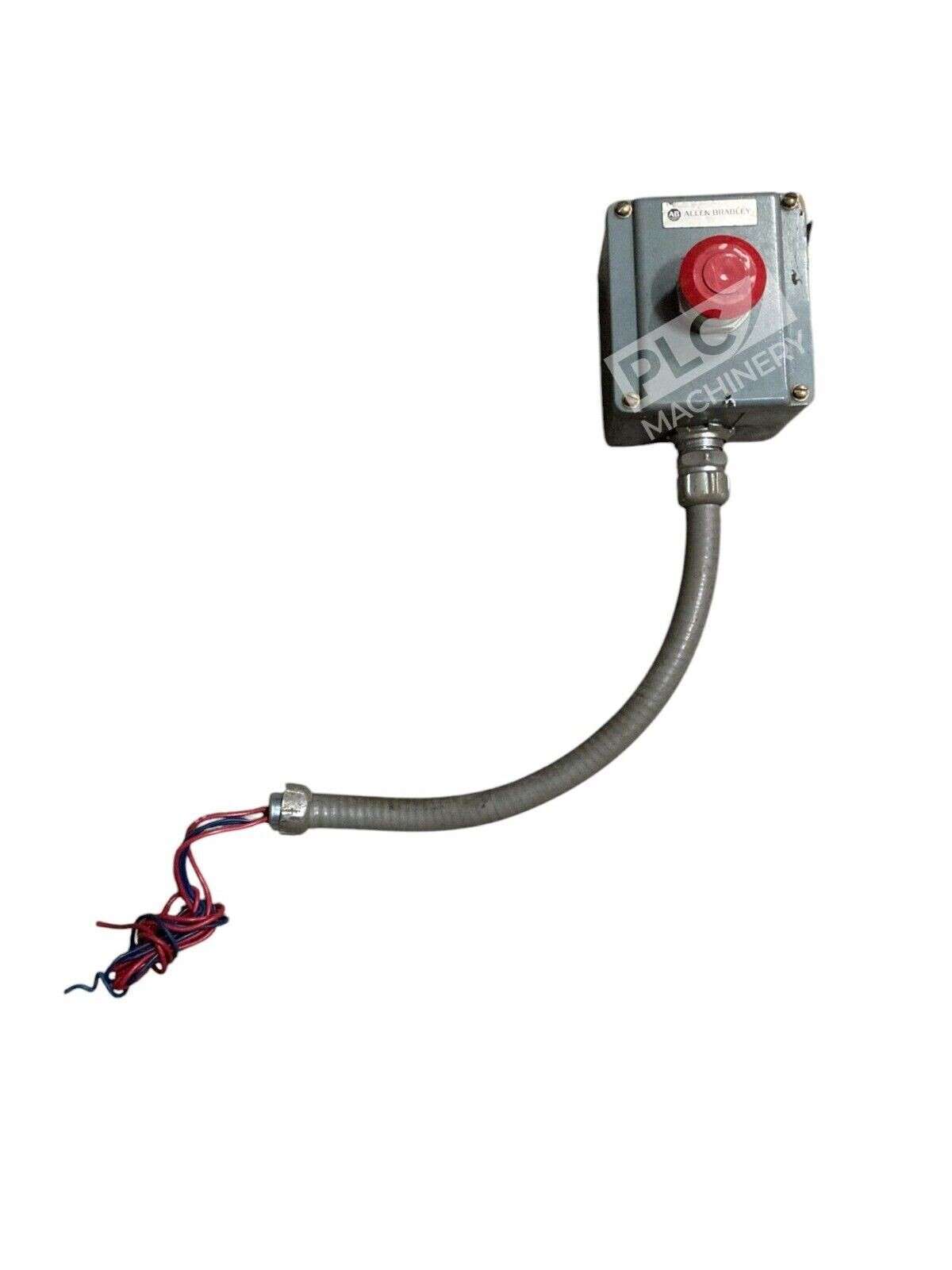

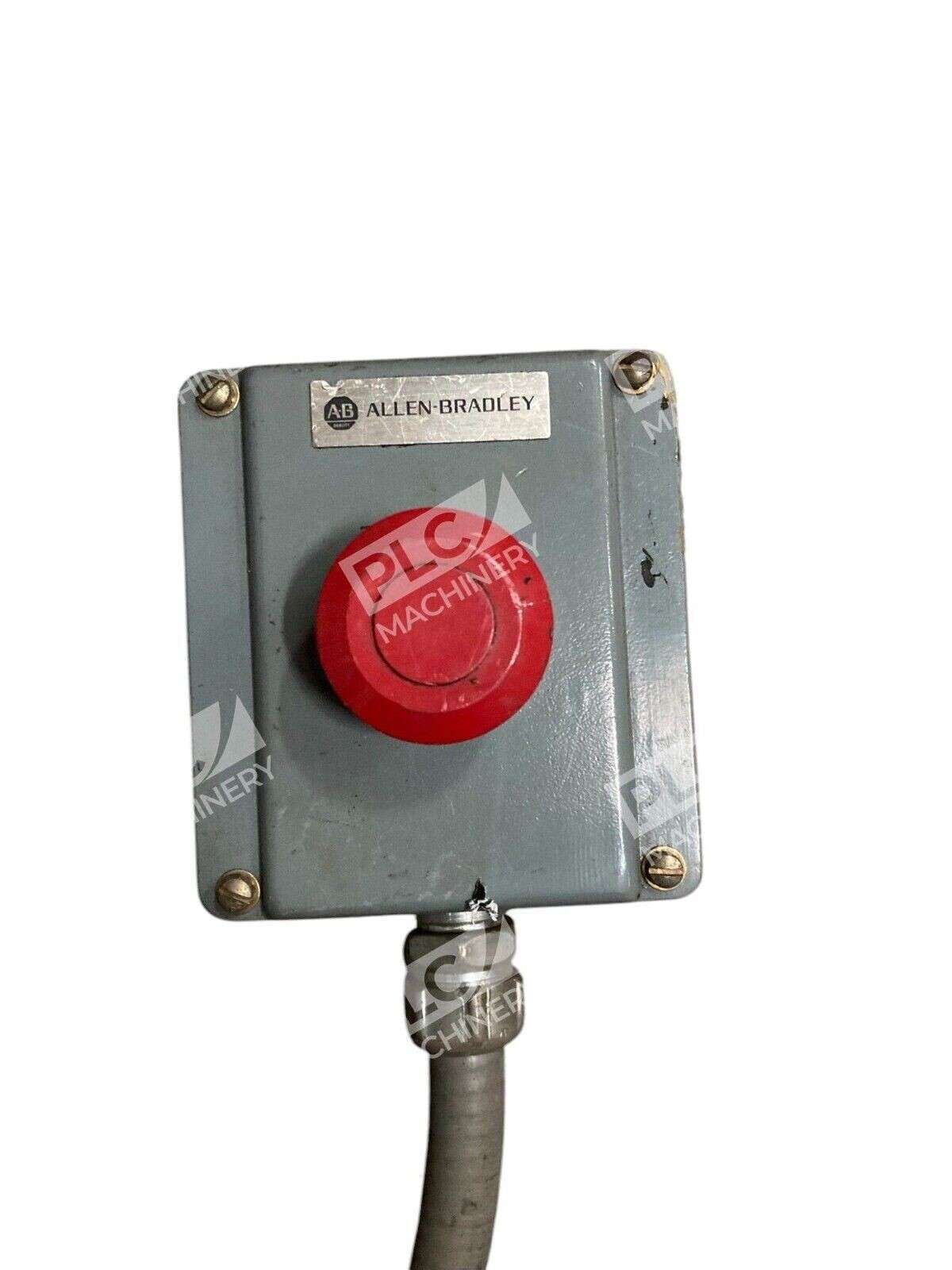

The Allen-Bradley 800R-1TAM is a factory-assembled emergency stop pushbutton station designed for hazardous locations and general industrial applications. This 30 mm 800R PB series station combines a diecast aluminum NEMA Type 4/13 enclosure with a red emergency stop button, providing a complete drop-in solution for machinery control circuits.
Key Features
- NEMA Type 4 and Type 13 rated aluminum enclosure for washdown and dusty environments
- Factory-assembled unit ready for immediate installation—no field assembly required
- Red emergency stop button with push-pull/twist-to-release operation
- Contact configuration: 1 NO, 1 NC (5 A at 600 VAC)
- UL, CSA, CUL, and CCC certified for North American compliance
- Designed for hazardous location applications per Rockwell Automation specifications
Technical Specifications
The 800R-1TAM delivers reliable switching performance in demanding industrial environments with Class 2 circuits. The twist-to-release mechanism prevents accidental reset, and the maintained action switch holds state until manually released. All electrical contacts meet industry standards for safety-critical applications.
Typical Applications
This pushbutton station is commonly used in:
- Machinery emergency stop circuits
- Conveyor and transfer line control
- Pump and motor control stations
- Hazardous location control panels (Class I/II environments)
- Industrial equipment shutdown sequences

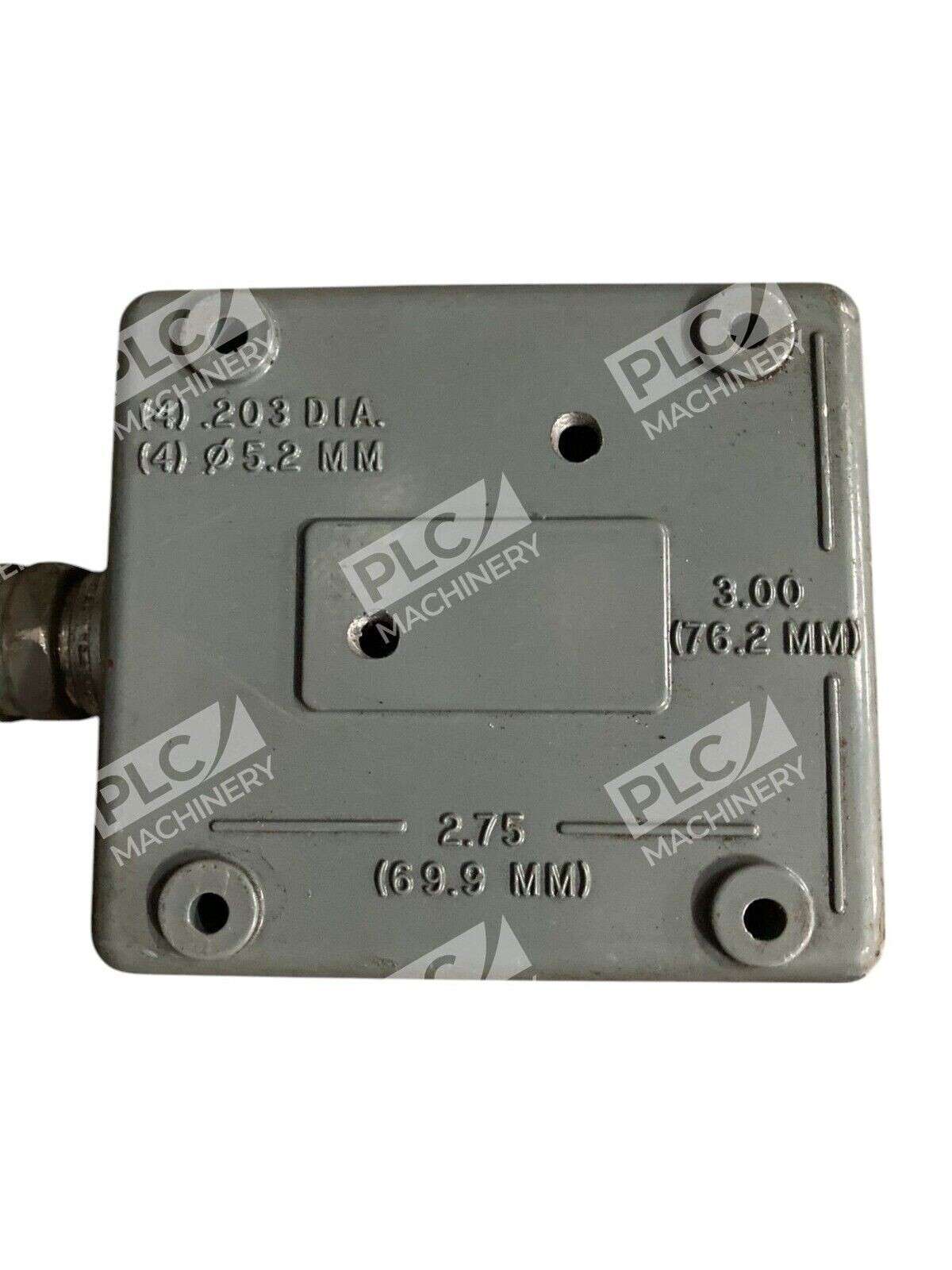

Compatibility & Replacements
The 800R-1TAM integrates with standard Allen-Bradley control systems and third-party safety relays that accept 5 A, 600 VAC dry contacts. When replacing older pushbutton stations, verify contact rating compatibility and enclosure mounting dimensions. The single-hole surface mount design fits standard control panel cutouts. For applications requiring multiple buttons or pilot lights, consider 800R series multi-button options or add optional contact blocks per Rockwell Automation specifications.
