Overview

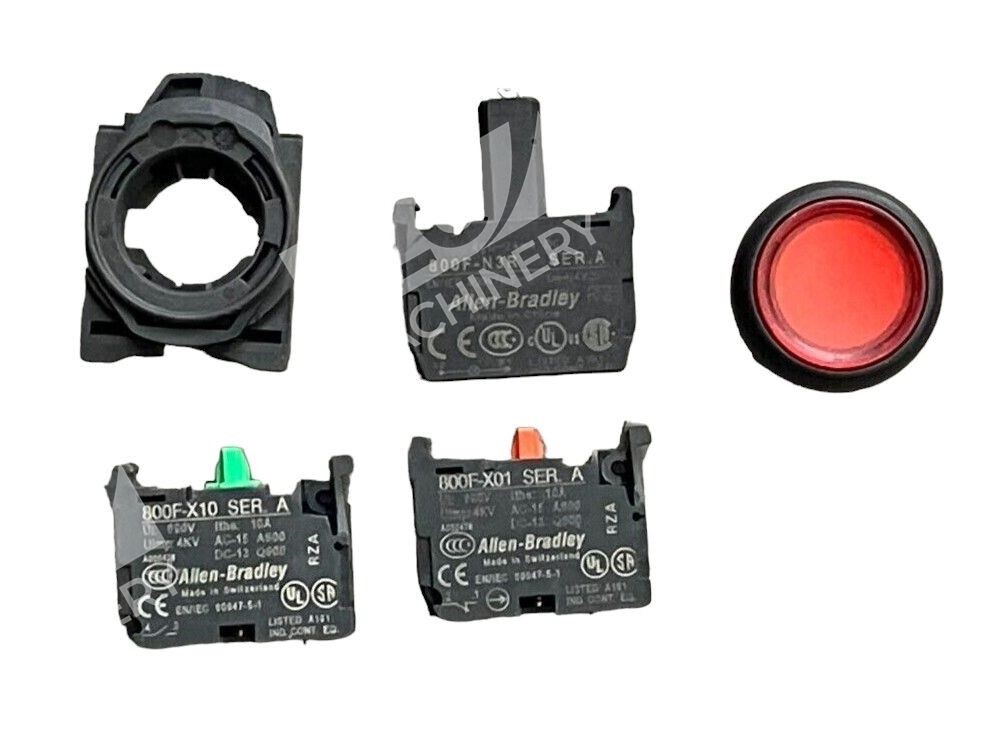

The Allen-Bradley 800FP-LF4PN3RX11 is a standard industrial pushbutton operator from the 800F pilot device family. This 22mm illuminated flush pushbutton features a red plastic lens cap and integrated LED module, designed for control panels and machine interfaces where visual feedback and operator feedback are essential. The momentary action and dual-contact arrangement make it suitable for start/stop circuits, selector logic, and safety-critical applications.
Key Features
- 22mm flush-mount design fits standard panel cutouts and compact installations
- Illuminated red LED module (24V AC/DC) for clear operator feedback and visibility
- Momentary pushbutton action with reliable tactile response

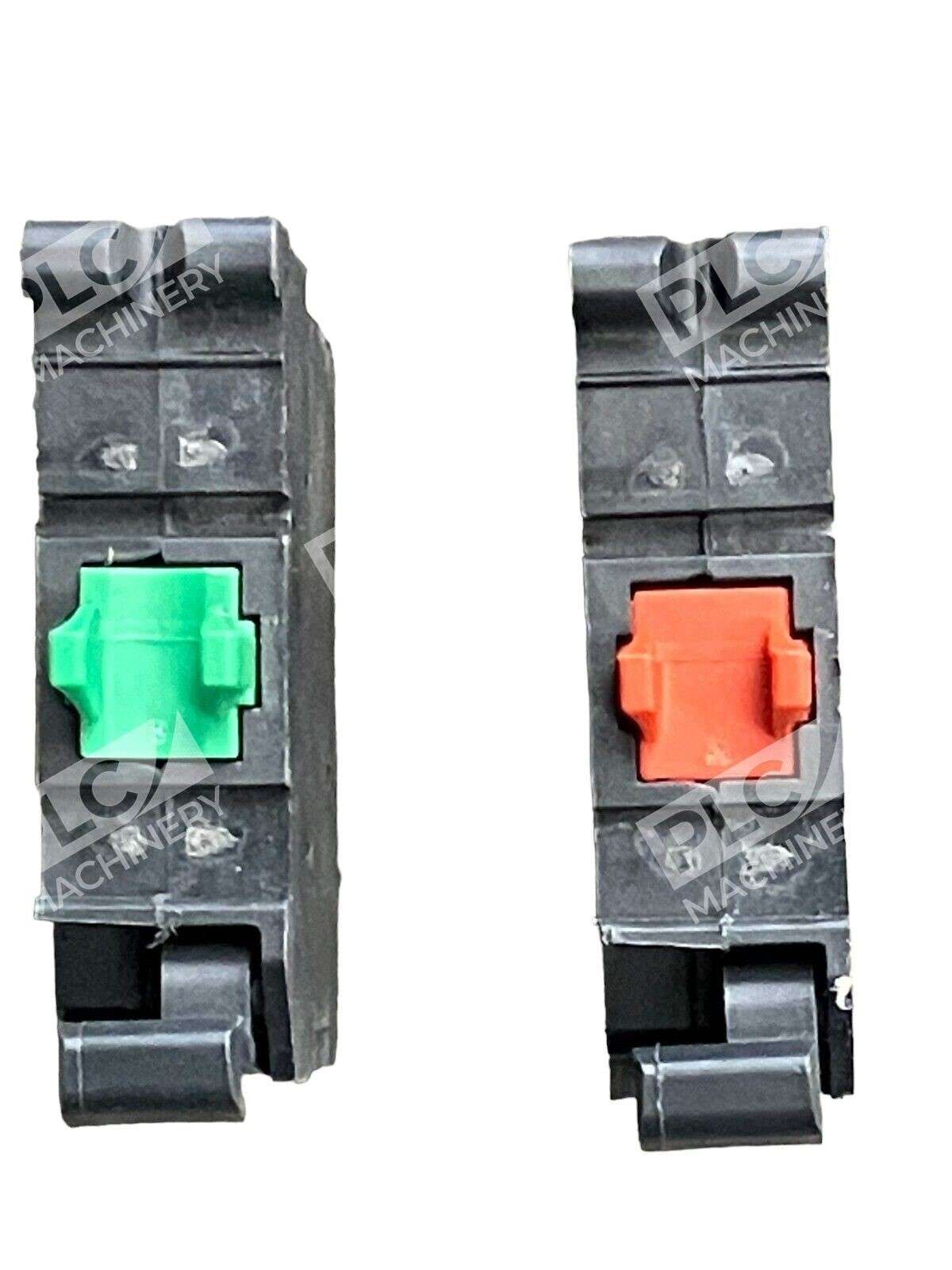

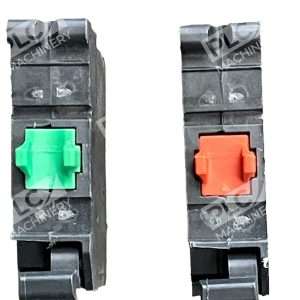

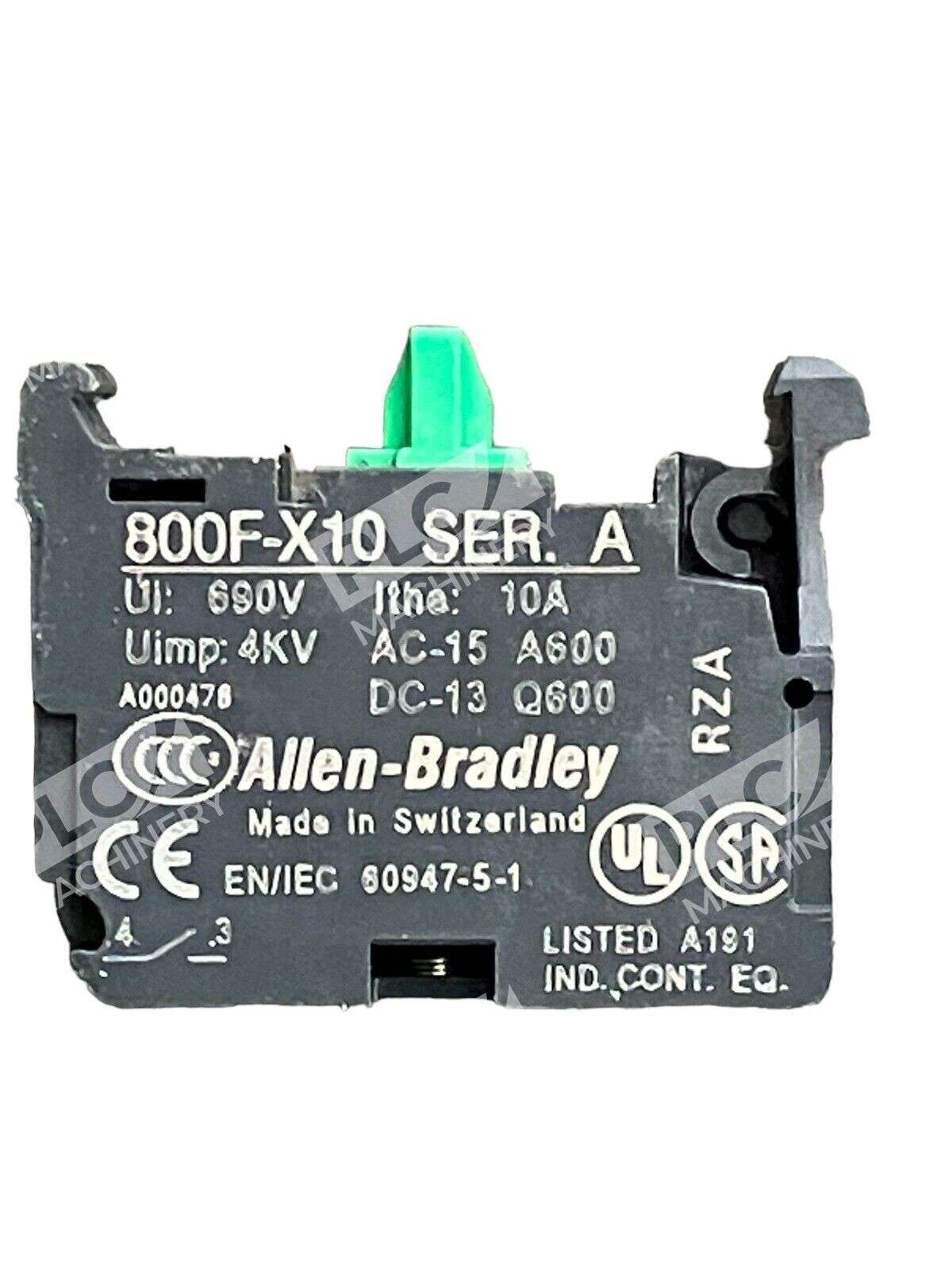

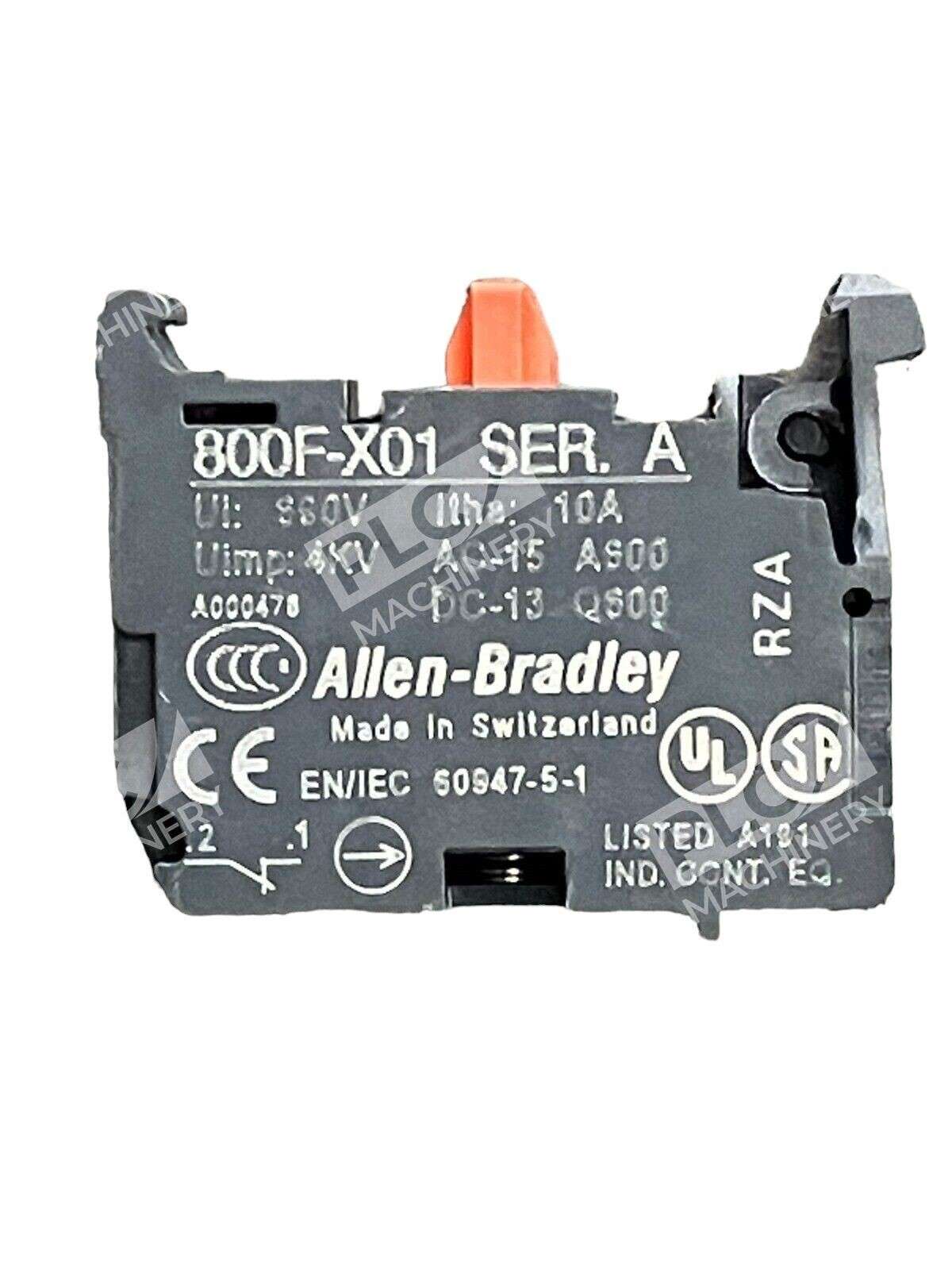

- 1 NO / 1 NC contact block configuration for flexible circuit design
- Screw-terminal contact block for straightforward wiring and maintenance
- Plastic latch mount and round plastic operator construction (IP66 rated)
- Integrated LED eliminates separate lamp modules
Technical Specifications
- Operator Type: Illuminated, Flush Momentary Pushbutton
- Size: 22mm

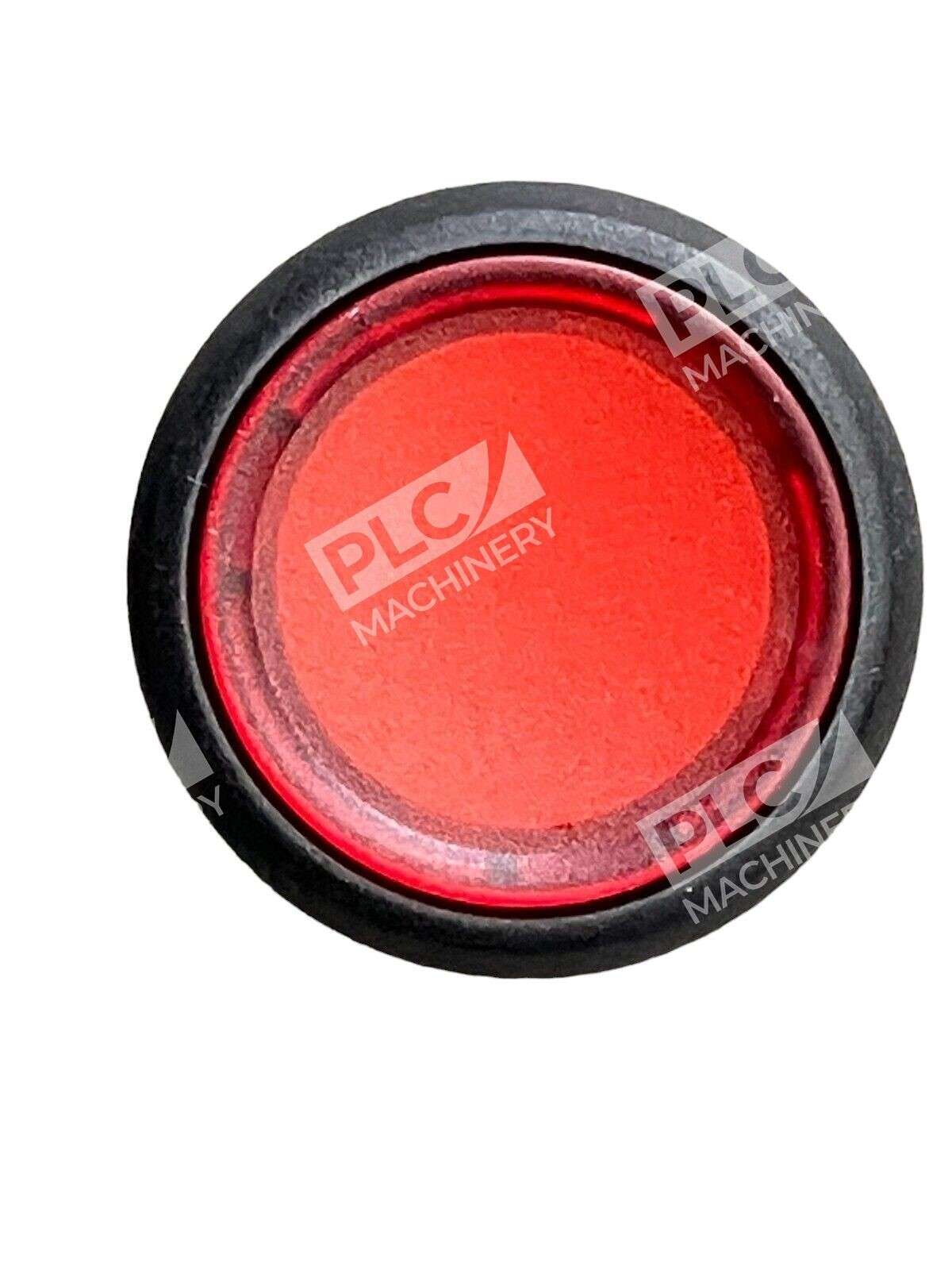

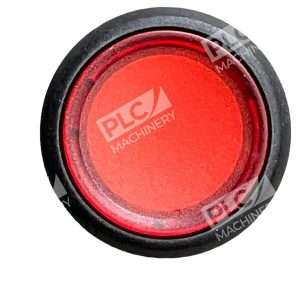

- Lens Color: Red

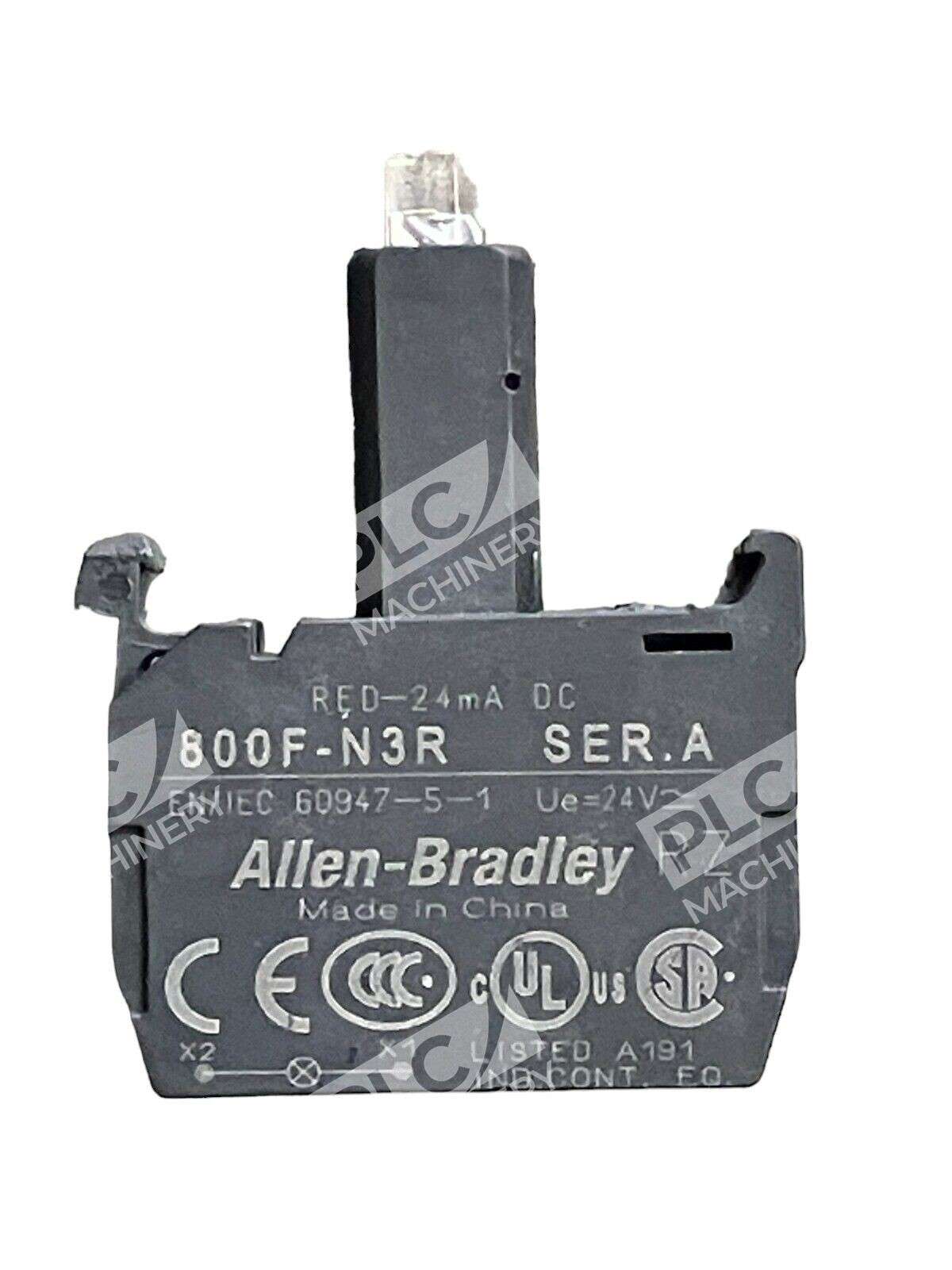

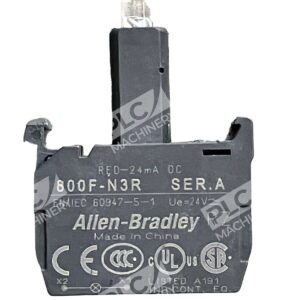

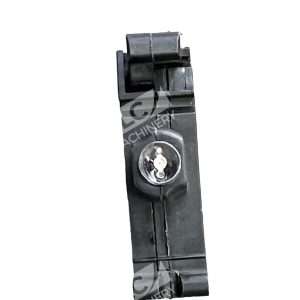

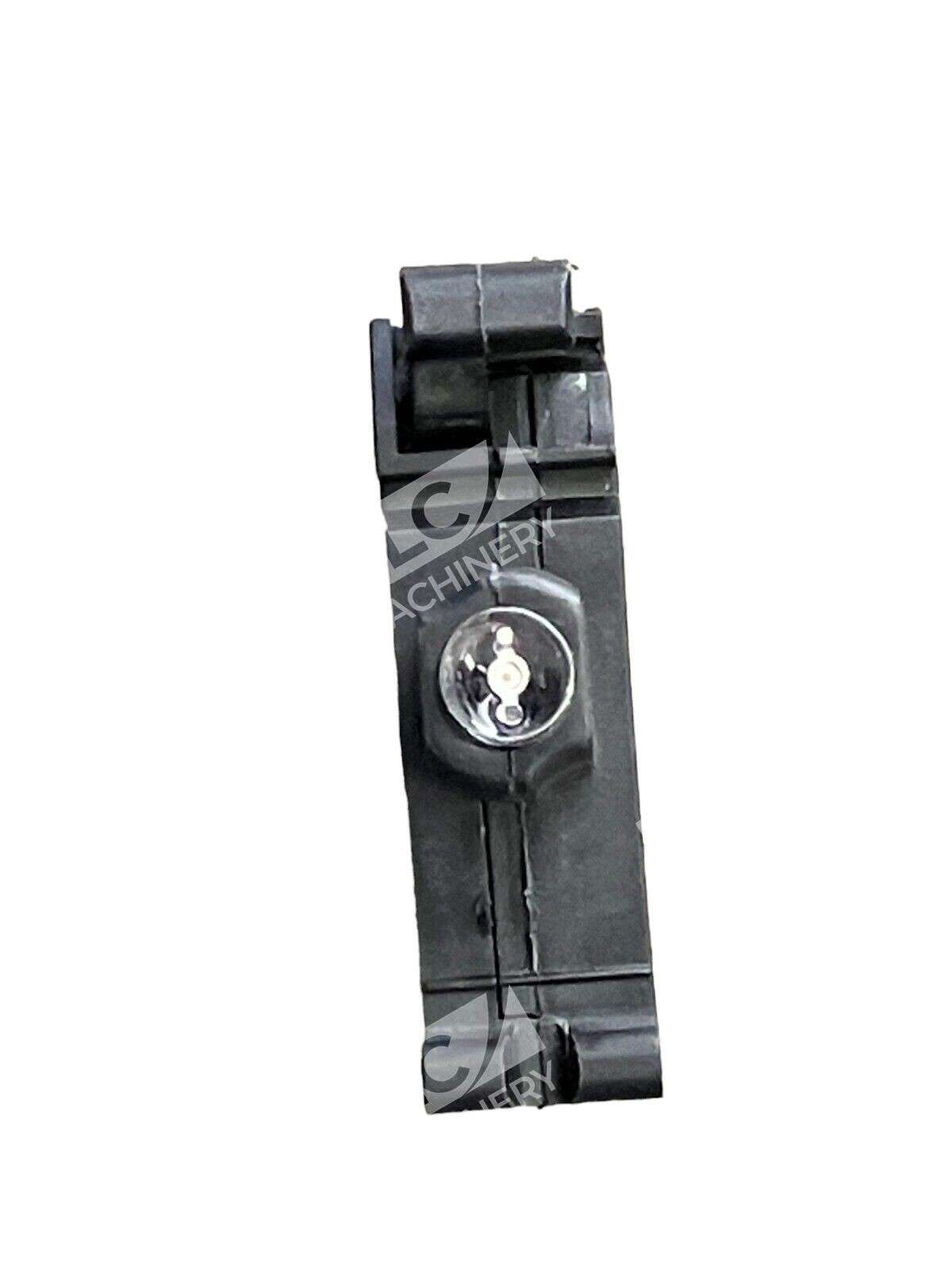

- Illumination: Integrated Red LED Module

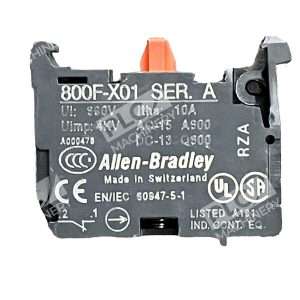

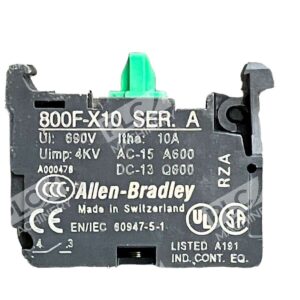

- Contact Configuration: 1 NO / 1 NC per contact block
- Contact Type: Screw Terminal
- Electrical Rating: 24V AC/DC (LED and incandescent rated)
- Operator Construction: Round Plastic
- Mount Type: Plastic Latch Mount
- IP Rating: IP66 (Type 4/4X/13)
- Packaging: Standard Pack, Quantity 1
- UPC: 781180835902
Typical Applications
- Machine start/stop control circuits
- Emergency stop and safety-related control logic
- Panel-mounted operator interfaces for industrial equipment
- Process control and automation systems
- Motor control and pump activation circuits
Compatibility & Replacements
The 800FP-LF4PN3RX11 is part of Allen-Bradley’s 800F modular pushbutton family, which allows operators, contact blocks, and lamp modules to be mixed and matched. This unit integrates the illuminated operator and LED lamp in a single compact module. Cross-reference similar red illuminated options in the 800F line (such as 800FP-LF3 for green, or contact block-only variants like 800F-PN3RX11) if alternative configurations are required. Verify contact ratings and electrical specifications with your control design before substitution.
