Overview

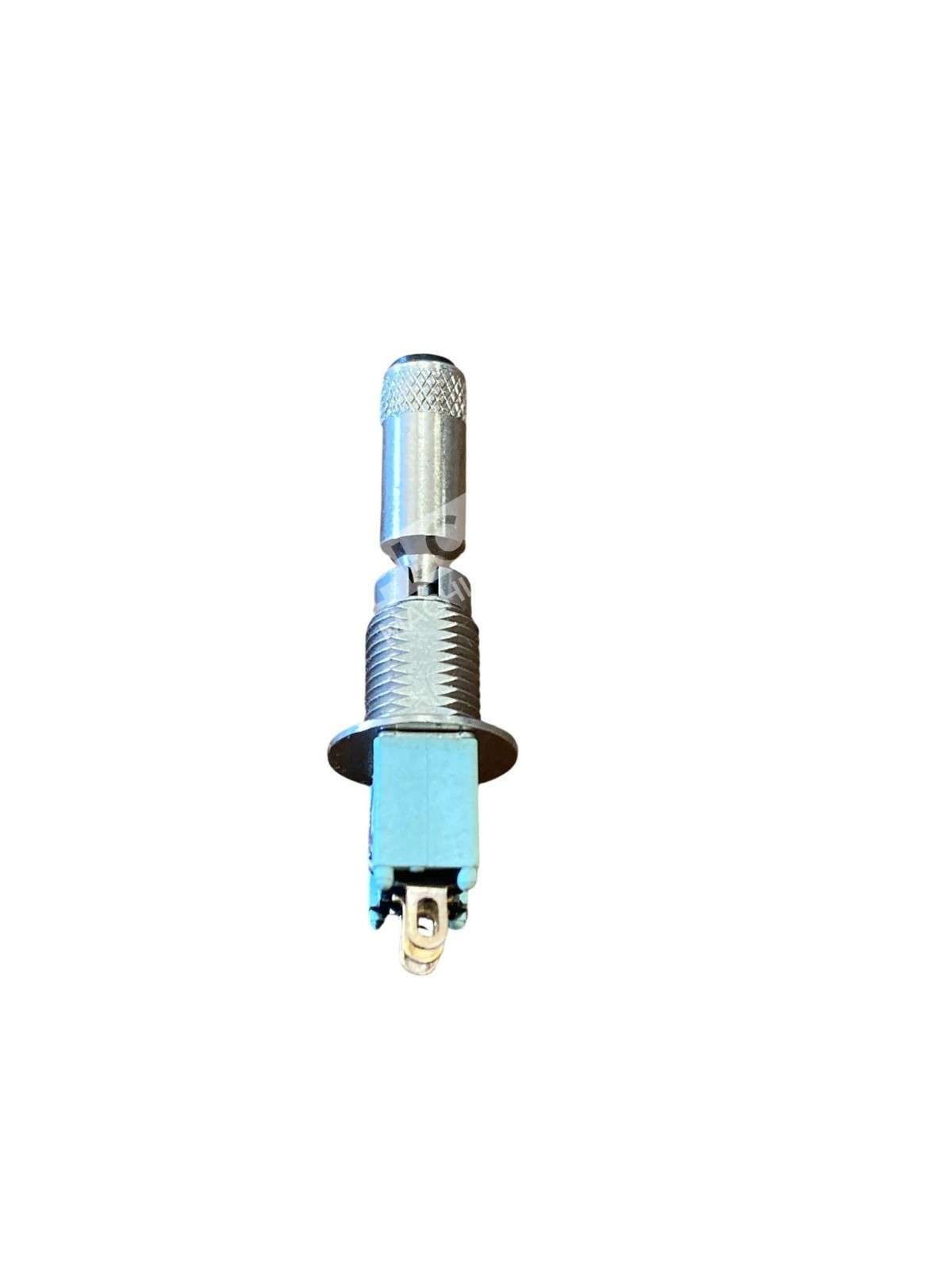

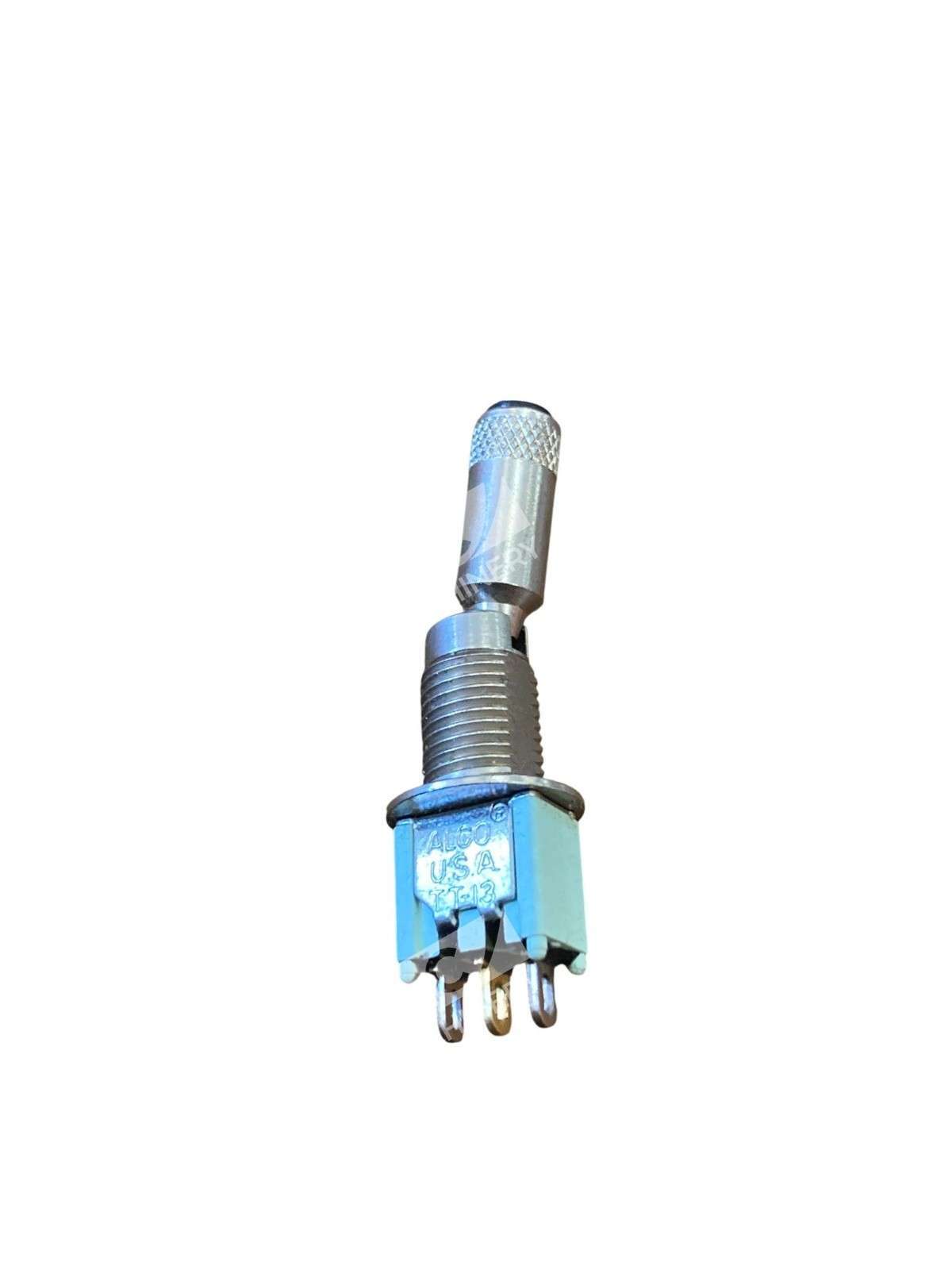

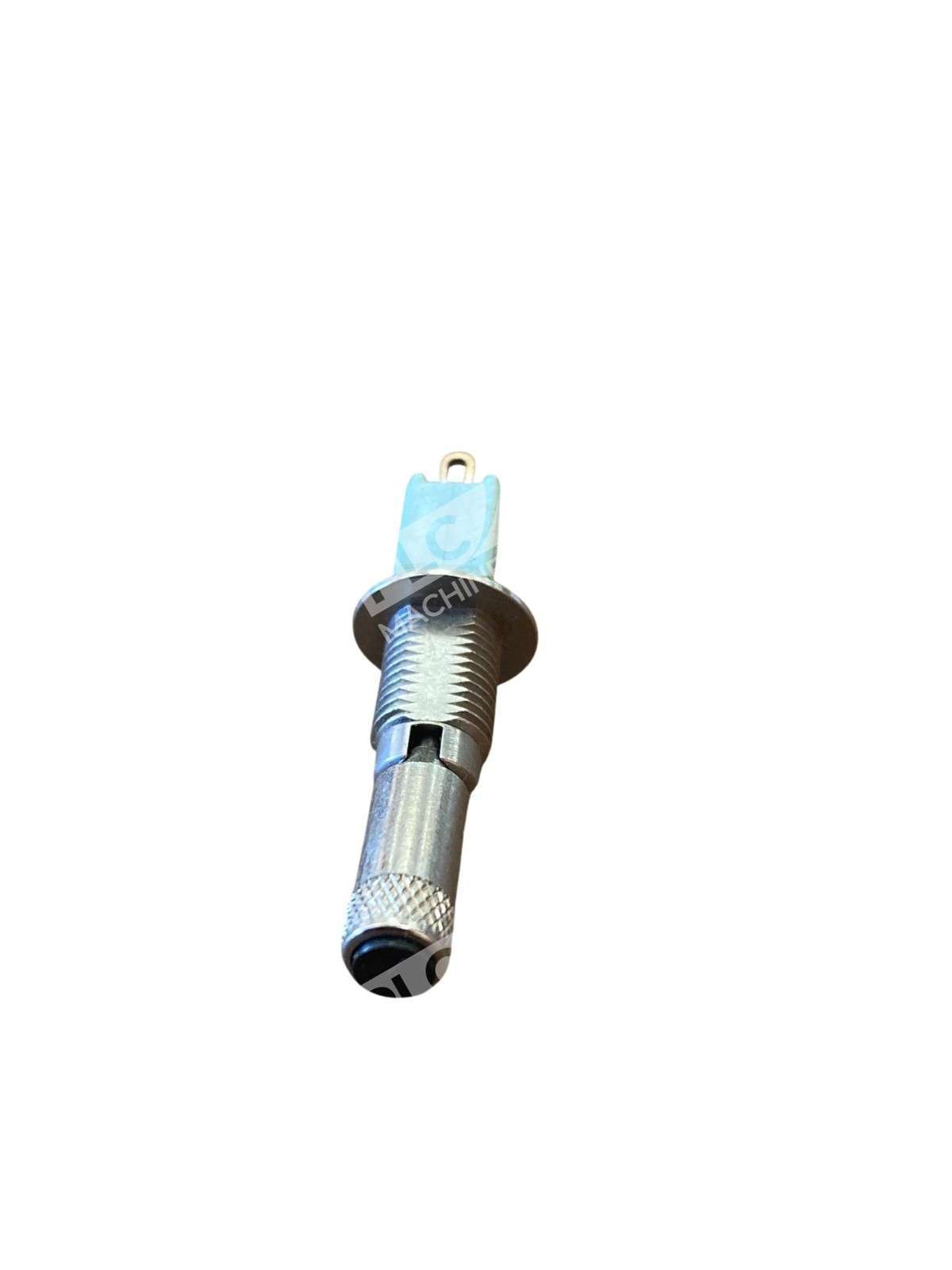

The ALCO TT-13 is a sub-miniature toggle switch manufactured by ALCOSWITCH, a TE Connectivity brand, designed for demanding industrial and commercial applications. This SPDT (Single Pole Double Throw) on-off-on configuration provides reliable switching performance with a compact footprint suitable for panel-mount installations where space is critical.
Key Features
- SPDT on-off-on circuit configuration for versatile control logic

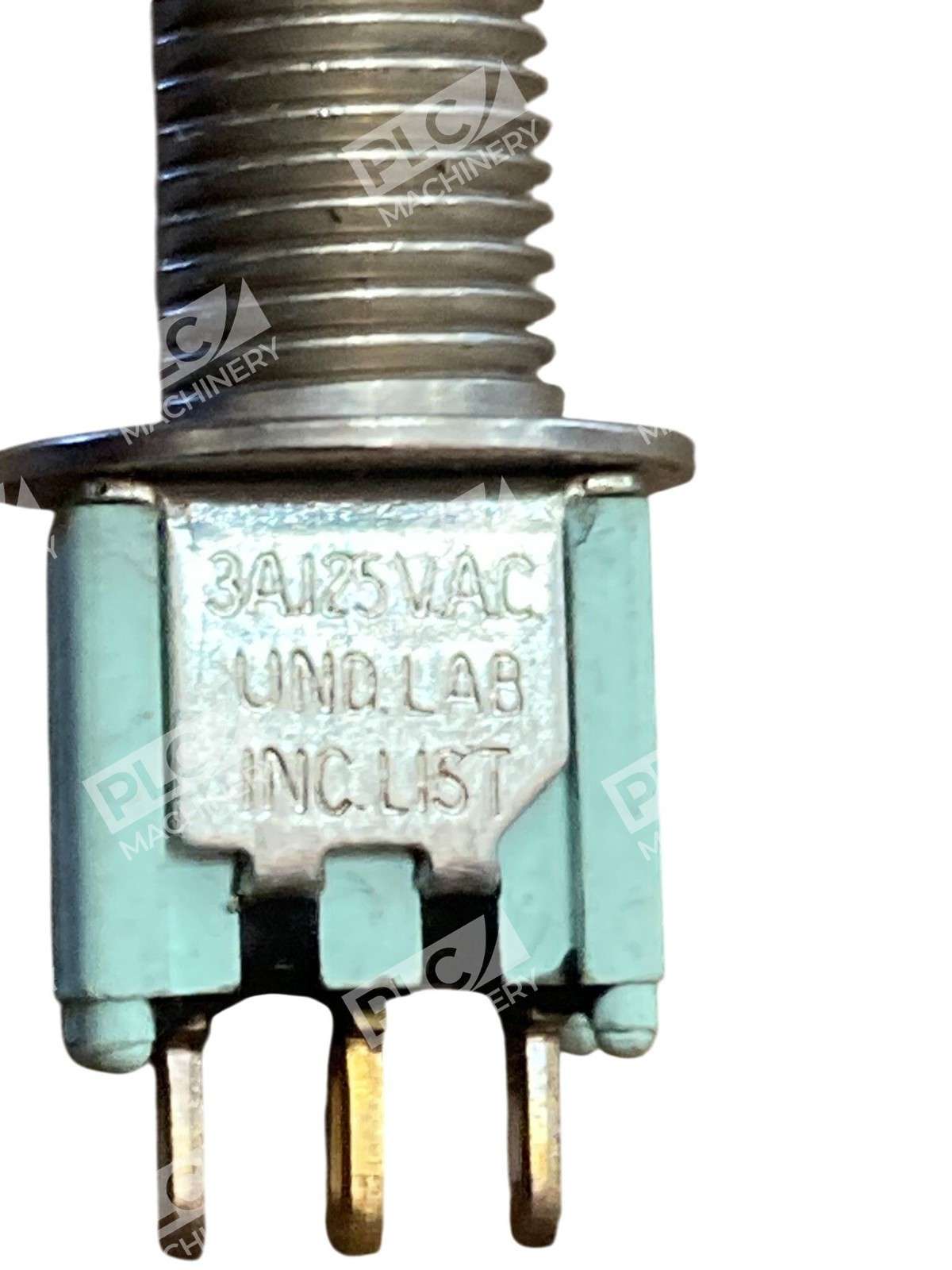

- Rated 3A at 125VAC or 1.5A at 250VAC for AC applications
- Sub-miniature design saves panel space in tight control enclosures

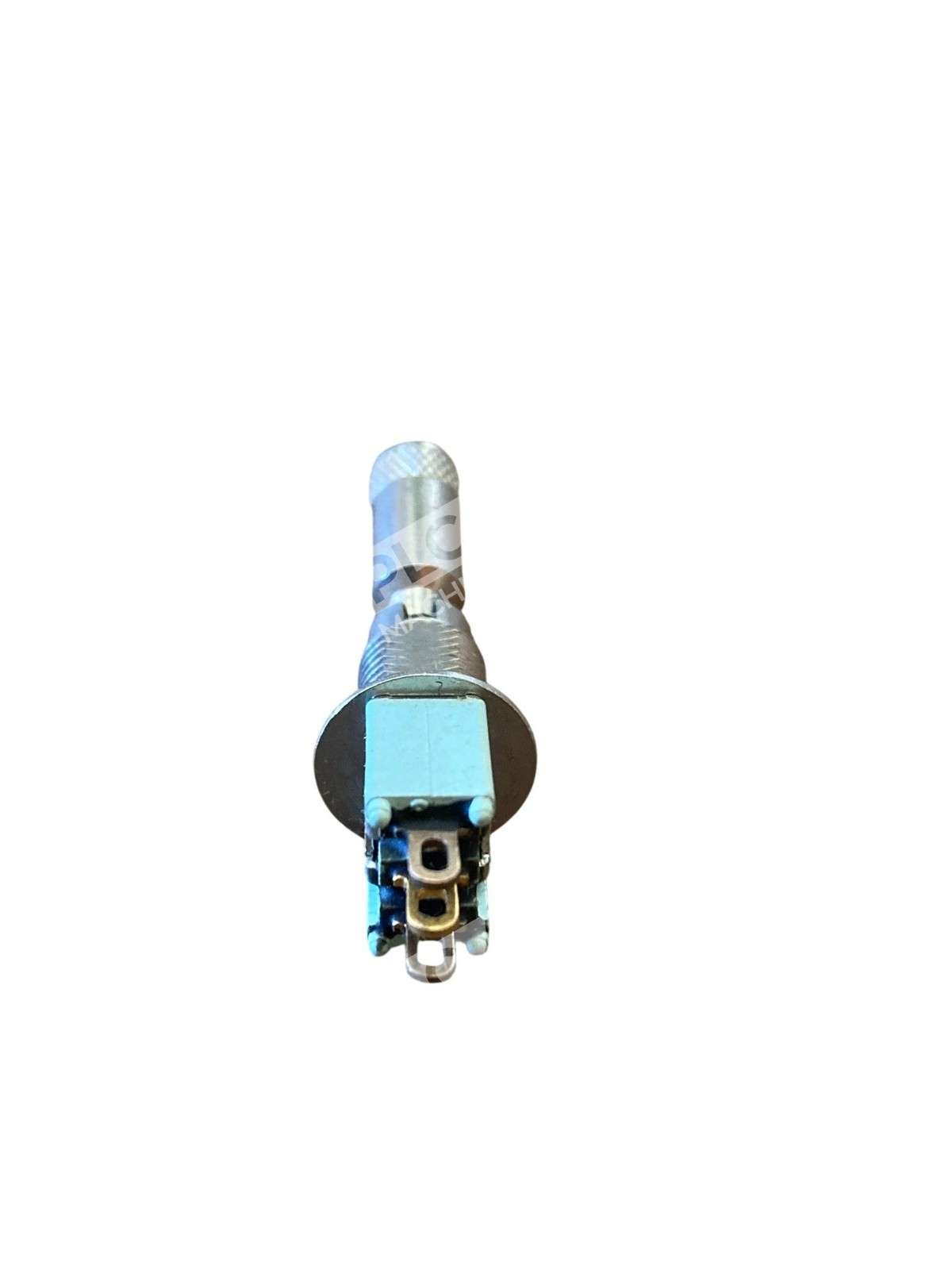

- Solder lug terminals for secure, permanent electrical connections
- High-temperature polyester frame for durability in industrial environments
- Wide voltage compatibility (125VAC/250VAC operation)
Technical Specifications
- Contact Configuration: SPDT (On-Off-On)
- Rated Current (125VAC): 3A
- Rated Current (250VAC): 1.5A
- Operating Voltage: 125VAC / 250VAC
- Contact Material: Silver
- Frame Material: High-Temperature Polyester
- Dielectric Strength: 1000V AC
- Terminal Type: Solder Lugs
- Mounting: Panel-mount, sub-miniature
- Manufacturer: ALCOSWITCH (TE Connectivity)

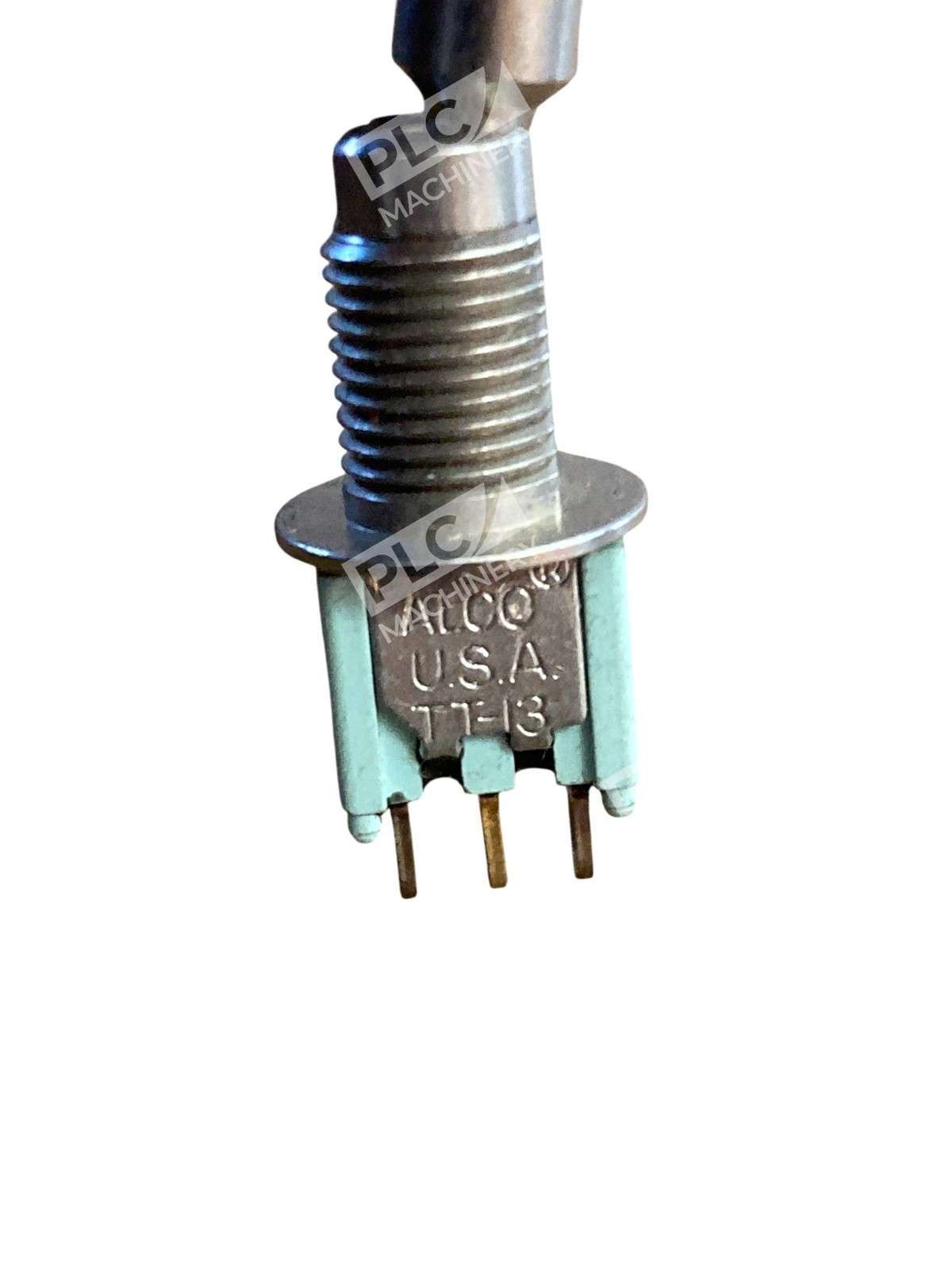

- Model: TT-13
Typical Applications
The ALCO TT-13 toggle switch is commonly used in:
- Industrial control panels and machine tool control systems
- Electrical equipment power distribution and circuit isolation
- HVAC and environmental control systems requiring three-position switching
- Test and measurement equipment front-panel controls
- Lighting control and relay logic circuits
- Machinery shutdown or mode selection circuits
Compatibility & Replacements
The ALCO TT-13 is the TE Connectivity version of classic ALCOSWITCH toggle switch designs used in industrial electronics for decades. When sourcing replacements or alternatives, verify the exact circuit configuration (SPDT, DPDT, etc.) and voltage/current ratings required by your application. The sub-miniature form factor is standard across most ALCOSWITCH TT-series models, ensuring panel hole compatibility (0.25″ bushing diameter is typical for this series). Consult the original equipment manufacturer’s specifications or contact our technical support team to confirm interchangeability with existing installations.
