Overview

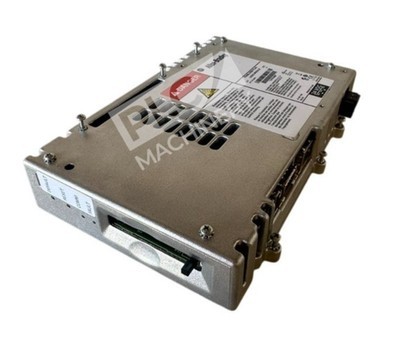

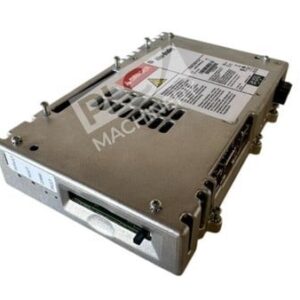

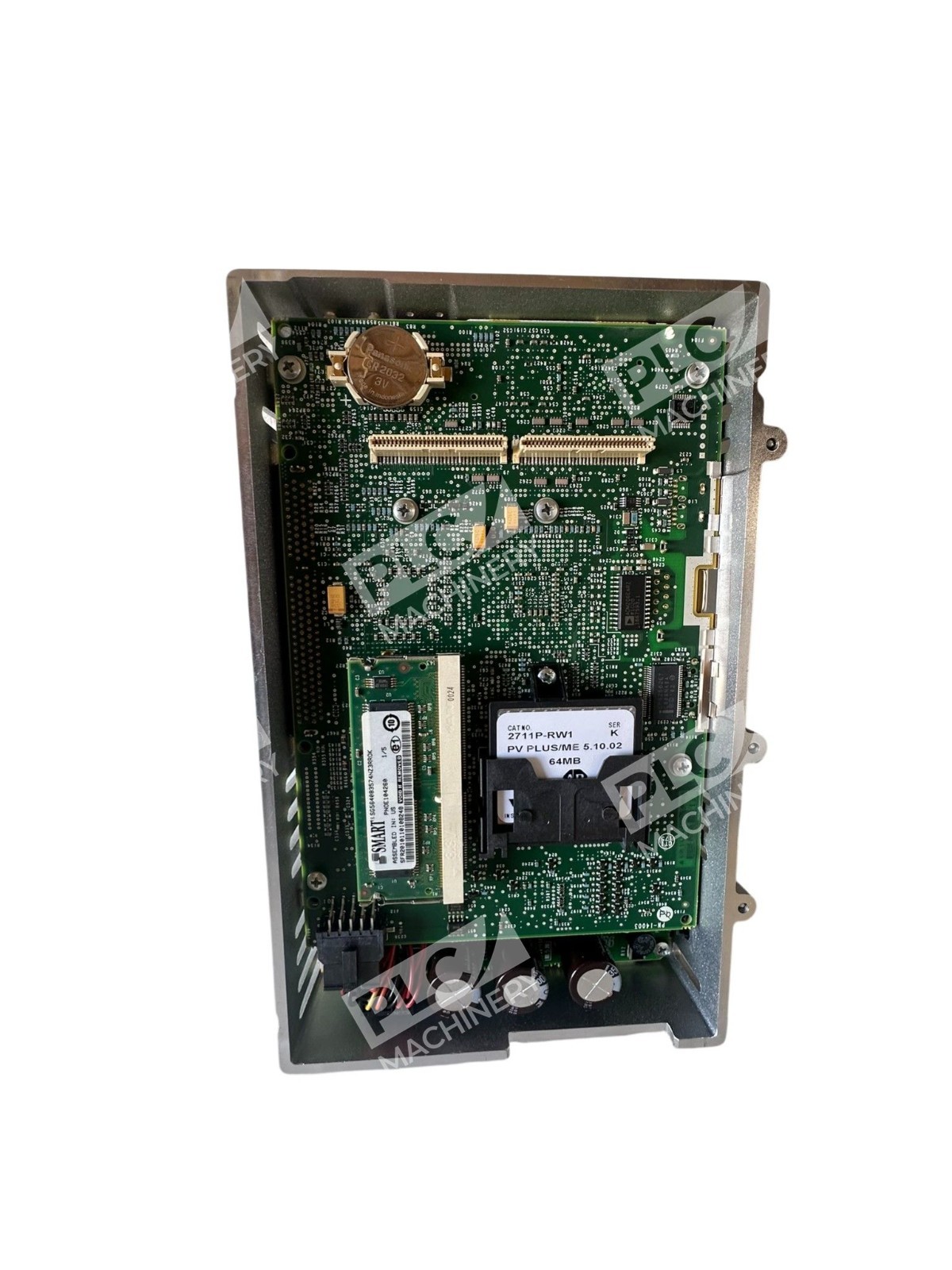

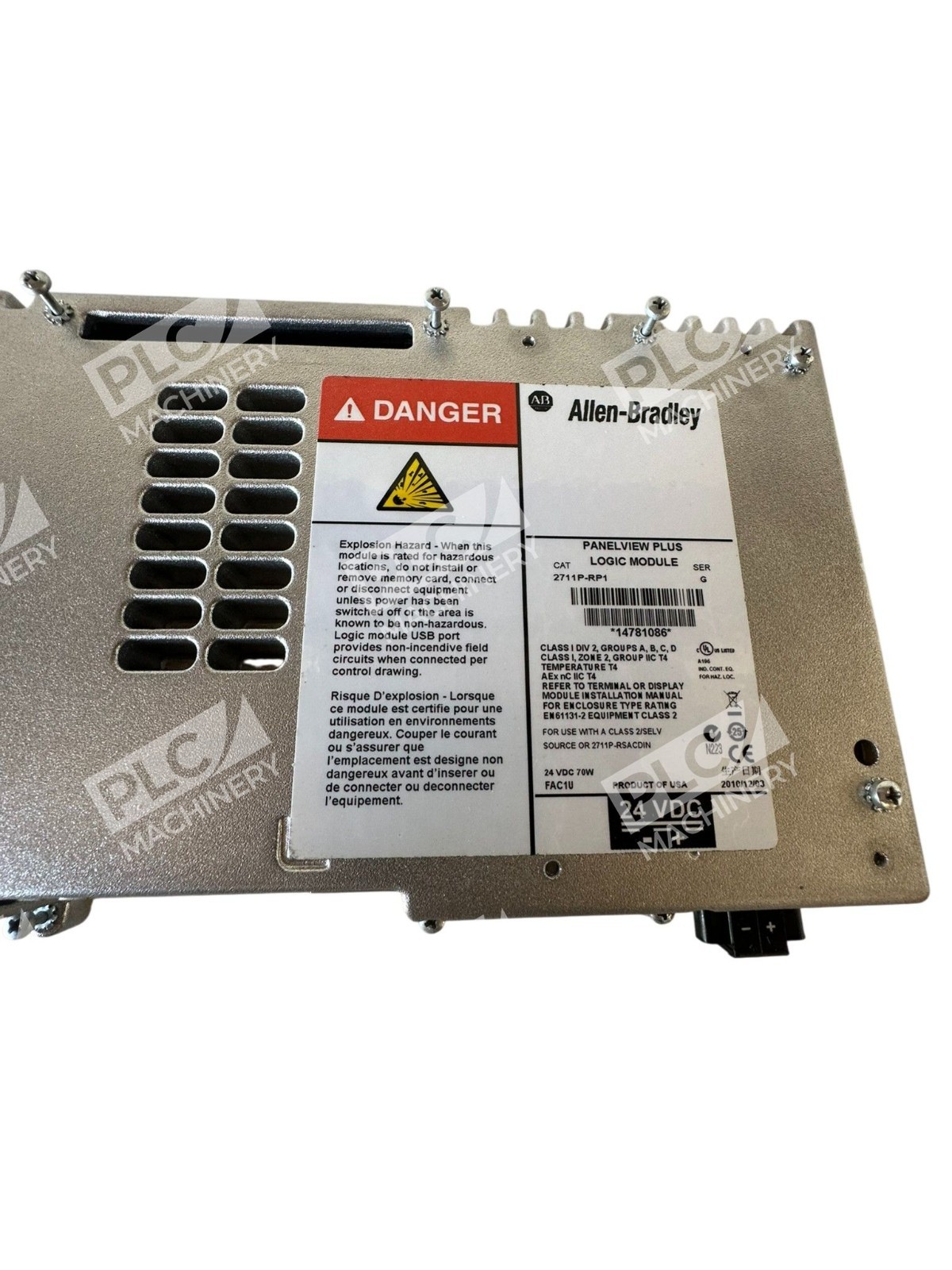

The Allen-Bradley 2711P-RP1 is a dedicated logic module designed for PanelView Plus operator terminals. This component is specifically a logic module that hosts a variety of interfaces and contains the necessary memory areas and processor of the PanelView Plus operator terminal. The 2711P-RP1 is attached at the back of the display module through the PCI slot connection. This module serves as the processing brain for PanelView Plus 700, 1000, 1250, and 1500 systems, handling real-time monitoring, data logging, and operator interaction.
Key Features
- Dual 64MB Memory Banks: This logic module has 64MB RAM and 64 MB Flash memory. RAM supports runtime interface operations; Flash stores application backups, manuals, logs, recipes, and reports.
- Multiple Communication Ports: The 2711P-RP1 supports 2 USB connectors, 1 RS-232 connector, and 1 Ethernet port. It also has one CompactFlash Card Slot for inserting memory cards.
- DC Power Supply: The 2711P-RP1 works on 24 Volts of DC power.
- Status Indicators: The module has built-in status indicators for process identification.
- FactoryTalk Compatibility: The 2711P-RP1 Series F module supports the FactoryTalk View software that runs on the Windows CE platform.
Technical Specifications
| Memory (Flash) | 64 MB |
| Memory (RAM) | 64 MB |
| Power Supply | 24 VDC |
| Power Consumption | 70 watts |
| Serial Ports | 1 x RS-232 |
| USB Ports | 2 x USB |
| Ethernet Ports | 1 x 10/100 Mbps |
| Expansion Slot | CompactFlash Card Slot |
| Operating Temperature | 0°C to 55°C ambient |
| Connection Method | PCI slot to display module |
| Weight | 2.01 lbs |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Lifecycle Status | Discontinued (December 31, 2012) |
Typical Applications
The Allen-Bradley 2711P-RP1 serves critical roles in:
- Manufacturing equipment monitoring and control dashboards
- Machine status visualization and real-time process data display
- Operator interface for batch processing and recipe management
- Alarm logging and historical trend reporting
- Integration with FactoryTalk View and Rockwell automation systems
Compatibility & Replacements
Compatible With
- PanelView Plus Terminals: The 2711P-RP1 is compatible for use with PanelView Plus 700, 1000, 1250, and 1500 operator terminals.
- FactoryTalk View software (Windows CE)
- Rockwell Automation ControlNet and DeviceNet networks
- External USB peripherals (keyboard, mouse)
Replaces / Drop-In Replacement For
- 2711P-RP1A — AC-input variant
- 2711P-RP1D — Alternative series designation
- 2711P-RP1X — Export variant
- Spare/replacement module for existing PanelView Plus 700-1500 systems
Works With
- FactoryTalk View ME and View SE software platforms
- RS Logix and CompactLogix controllers (via network communication)
- EtherNet/IP communication protocols
- Standard Windows CE terminal applications
- Rockwell Automation BoM (Bill of Materials) and service portals
Note: This logic module is not compatible with Allen-Bradley PanelView Plus 6 terminals. Verify compatibility with your system integrator before ordering, especially for retrofit or expansion applications. When installing this module, proper grounding must be observed as the components within are highly sensitive to static electricity.
