Overview

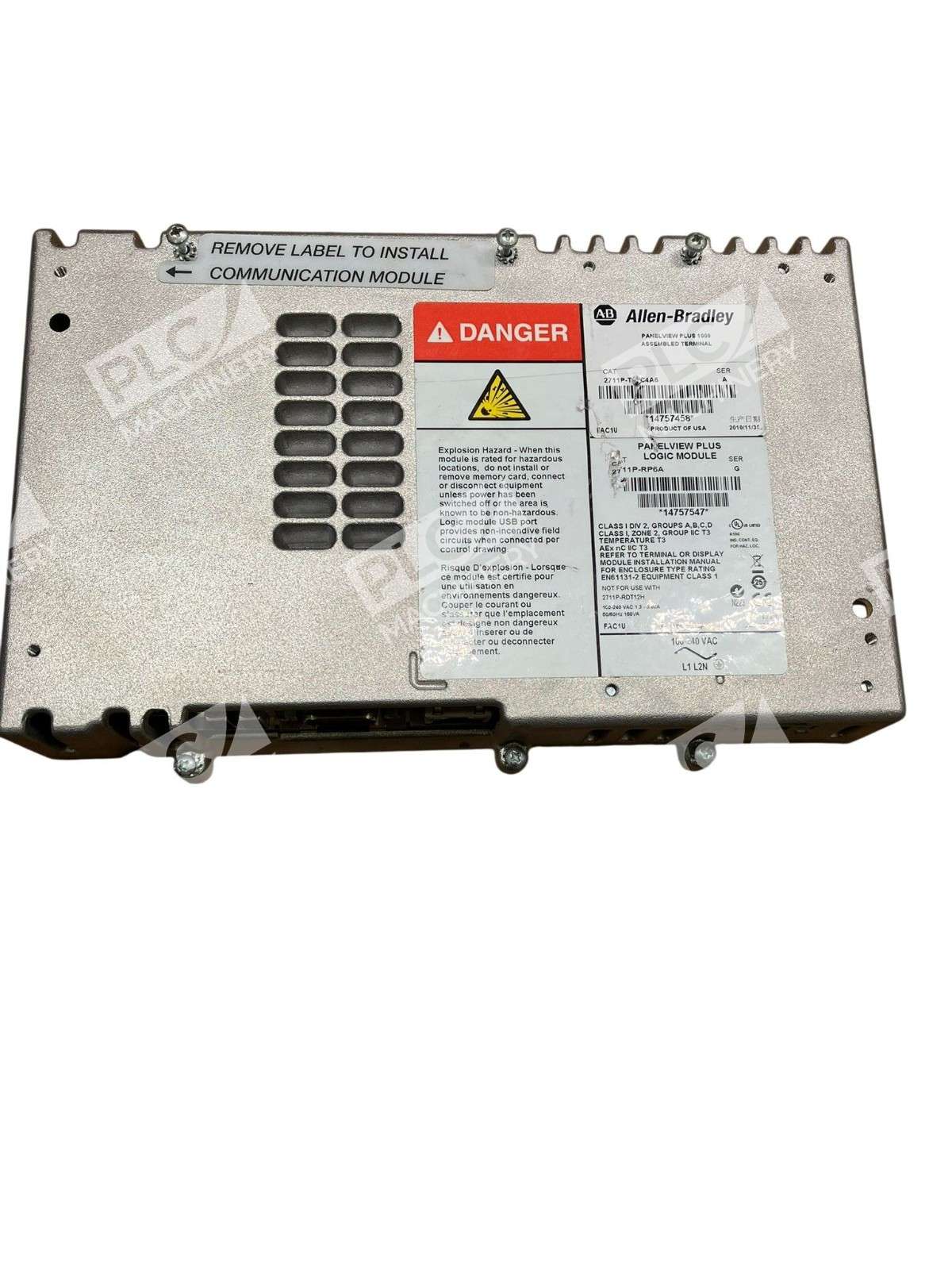

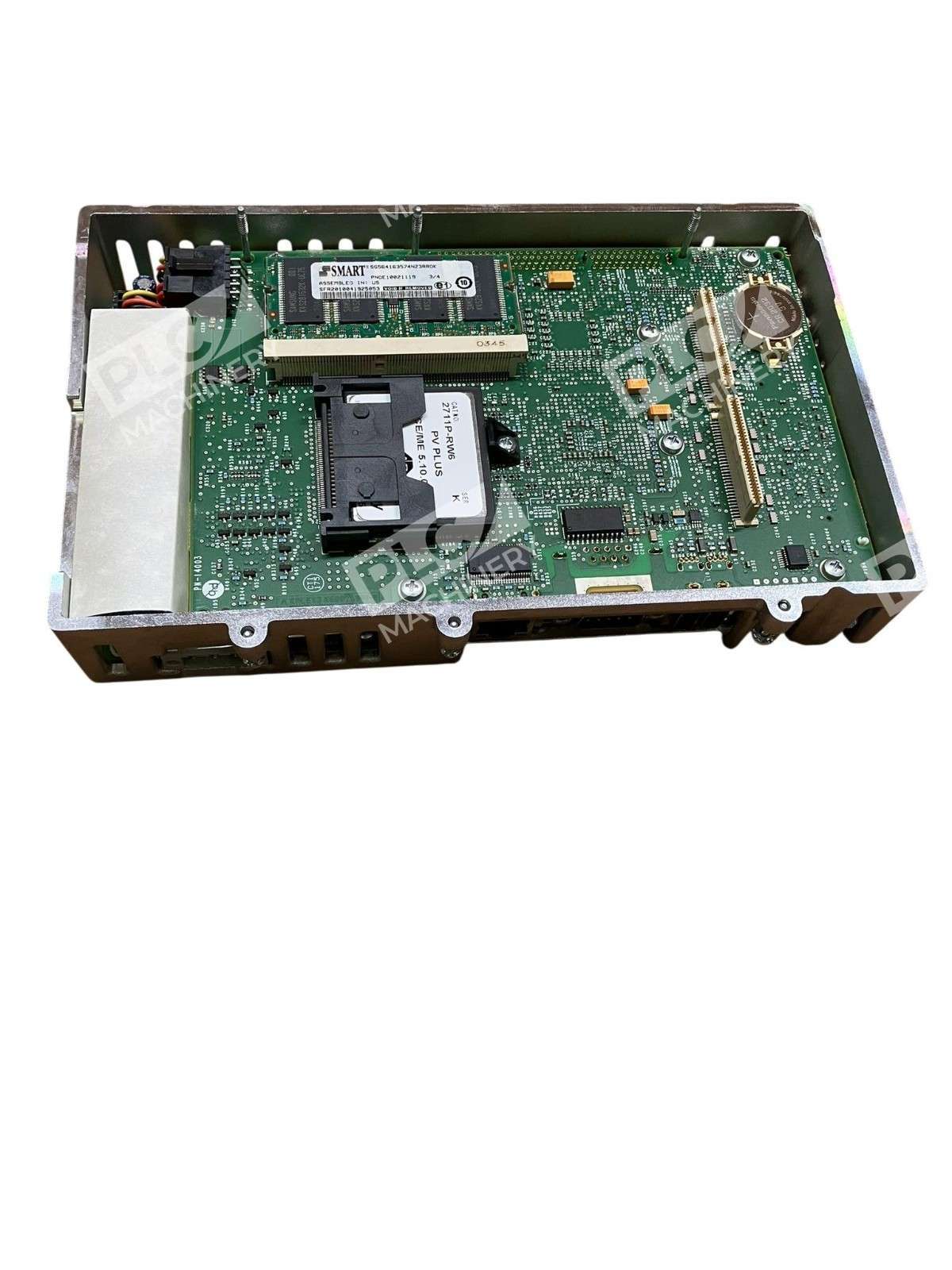

The Allen-Bradley 2711P-RP6A is a legacy logic module designed for integration with PanelView Plus CE 700-1500 Human-Machine Interface (HMI) terminals. This module enhances the functionality and performance of HMI systems in industrial settings by providing onboard processing, memory, and communication capabilities. Though discontinued by the manufacturer, the 2711P-RP6A remains a critical component for maintaining and upgrading existing PanelView Plus installations across manufacturing, process monitoring, packaging, and marine applications.
Key Features
- Memory Capacity: Equipped with 128 MB of Flash memory and 128 MB of RAM, providing ample storage for HMI applications and device state management.
- Operating System: Runs on Windows CE platform, supporting multi-application environments and integration with third-party software.
- Communication Interfaces: Features Ethernet, serial (RS-232), and USB ports, offering flexible connectivity for various industrial networks and devices.
- Extended Features: Includes file viewers for document compatibility, PDF reader capability, and FTP server support.
- Certifications & Durability: Marine-certified with IP 65 protection rating; certified for shock and vibration per IEC 60068-2-27 and IEC 60068-2-6; operates 0–55°C.
Technical Specifications

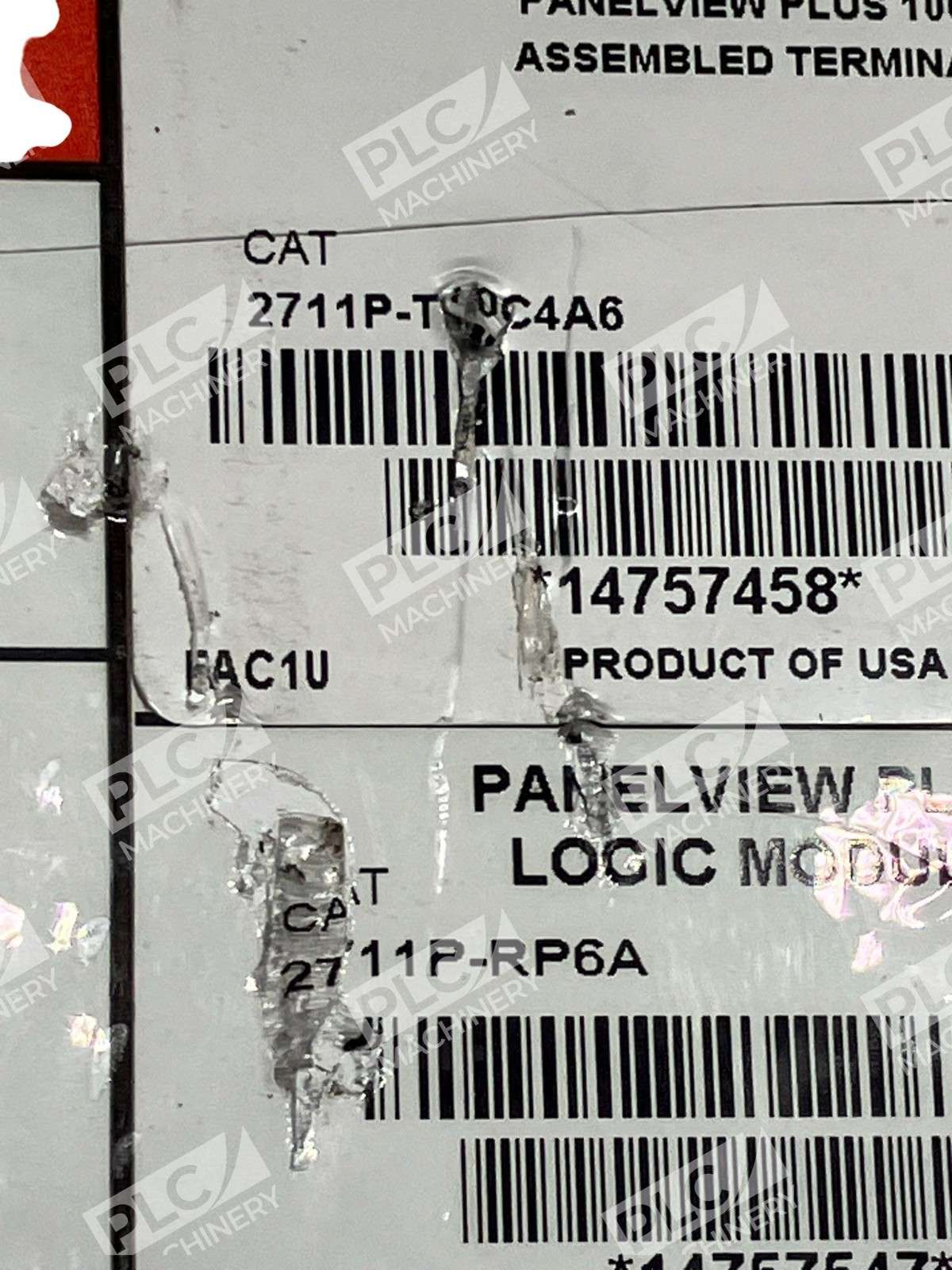

- Catalog Number: 2711P-RP6A (AC power variant); 2711P-RP6A/G also available

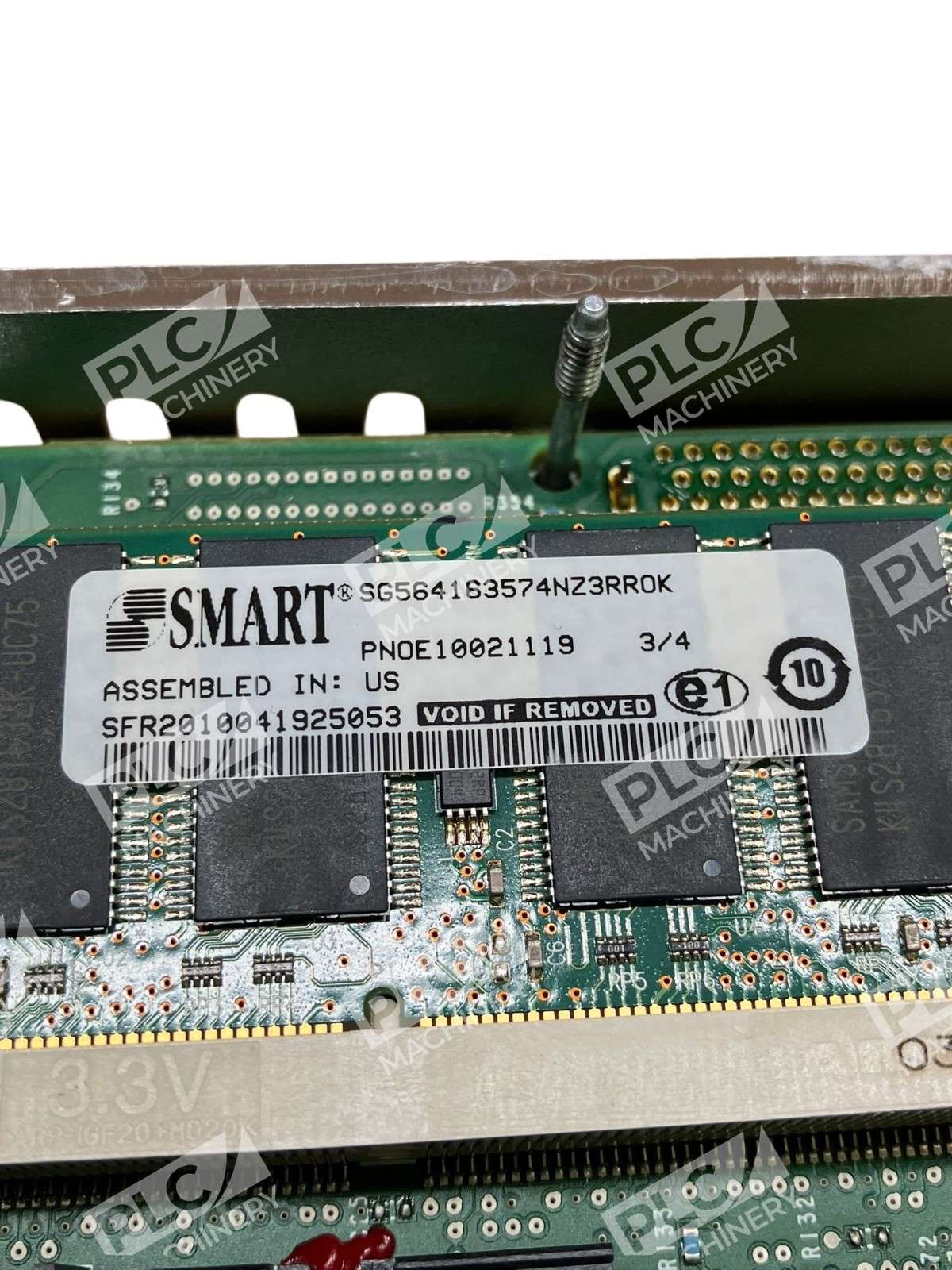

- Memory: 128 MB Flash, 128 MB RAM

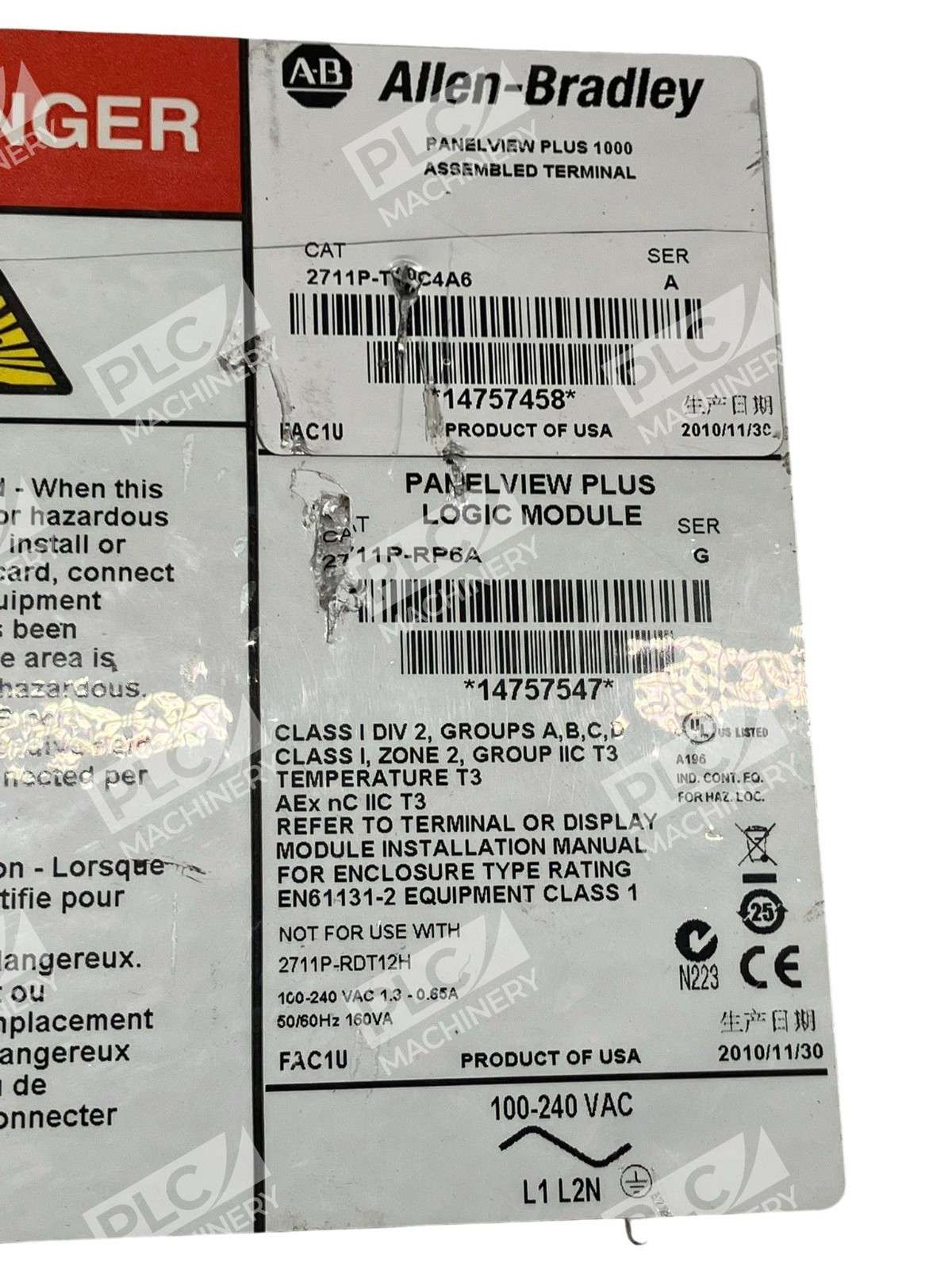

- Power Input (AC variant): 100–240 VAC, 50/60 Hz; 1.3–0.65 A; 160 VA
- Power Input (DC variant): 24 VDC; 70 W
- Communication Ports: 1× Ethernet, 1× RS-232 serial, 1× USB device, 2× USB host
- Storage Expansion: CompactFlash card slot
- Compatible Terminals: PanelView Plus CE 700 series, PanelView Plus CE 1000 series, PanelView Plus CE 1500 series
- Operating Temperature: 0–55°C
- Protection Rating: IP 65
- Certifications: Marine-certified; IEC 60068-2-27 (shock); IEC 60068-2-6 (vibration)
Typical Applications
- Manufacturing systems requiring local HMI processing and control logic
- Process monitoring and real-time data acquisition
- Packaging and material handling systems with integrated terminal control
- Marine and offshore operations in harsh environmental conditions
- Device monitoring and control with ControlLogix 5570 and CompactLogix 5370 systems
Compatibility & Replacements
The 2711P-RP6A is designed for use exclusively with PanelView Plus CE 700–1500 terminal models. It is a single-application, Viewpoint-compatible logic module. Though the module is discontinued by Rockwell Automation, it remains widely available in the used industrial surplus market. Related logic modules in the PanelView Plus family include the 2711P-RP6K (conformal coated), 2711P-RP7A, 2711P-RP7D, 2711P-RP9A, and 2711P-RP9DK variants with different power input options and extended features. When sourcing replacements or upgrades, verify terminal compatibility and firmware requirements with your system integrator or controls engineer.
