Overview

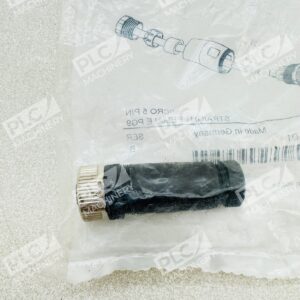

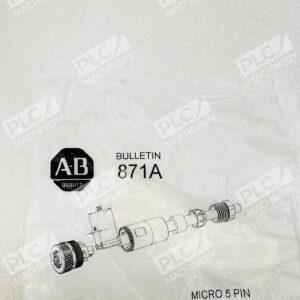

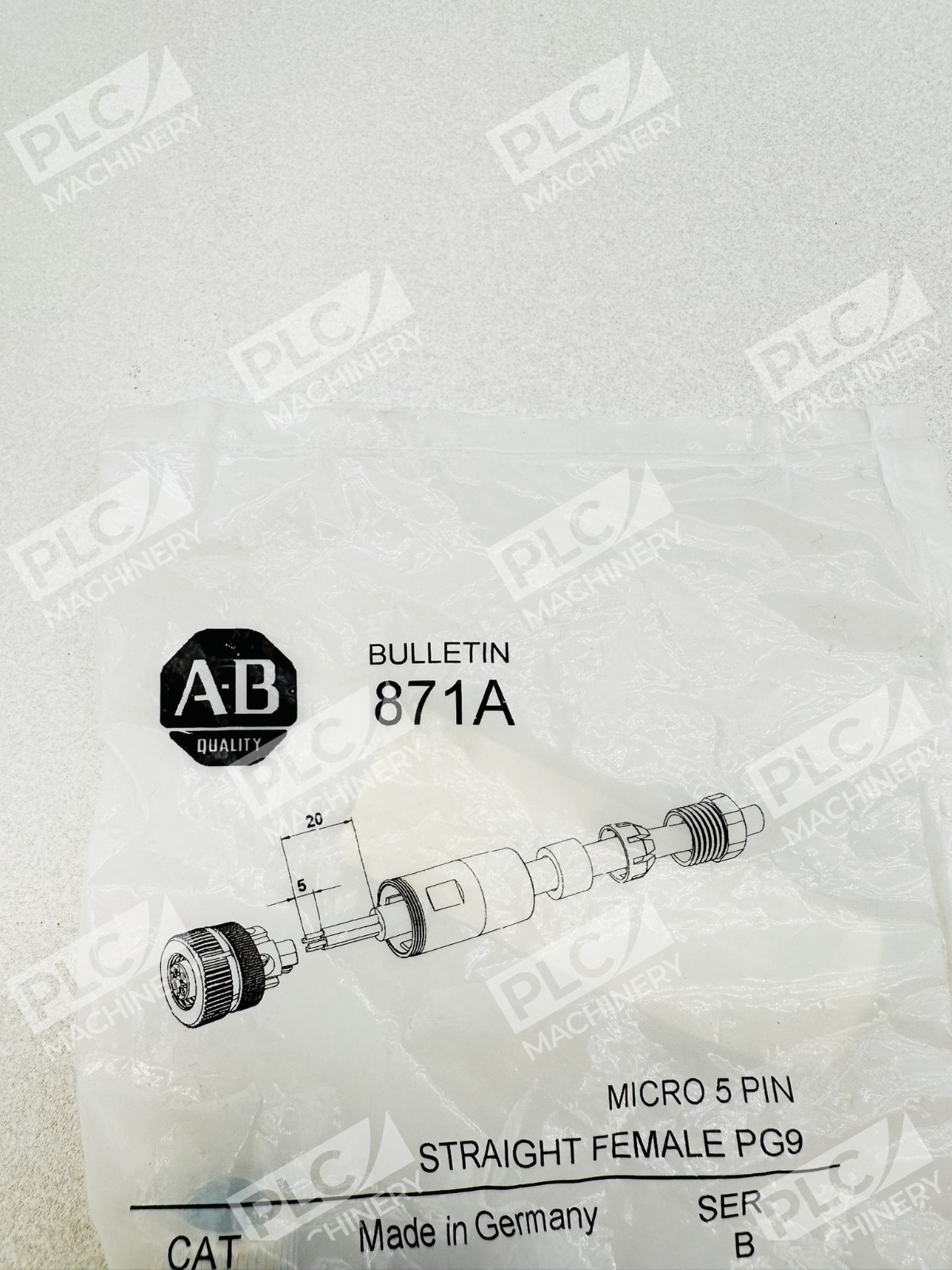

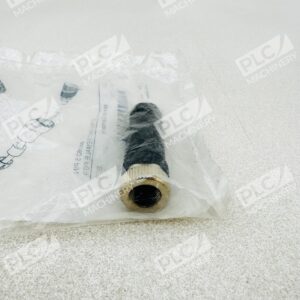

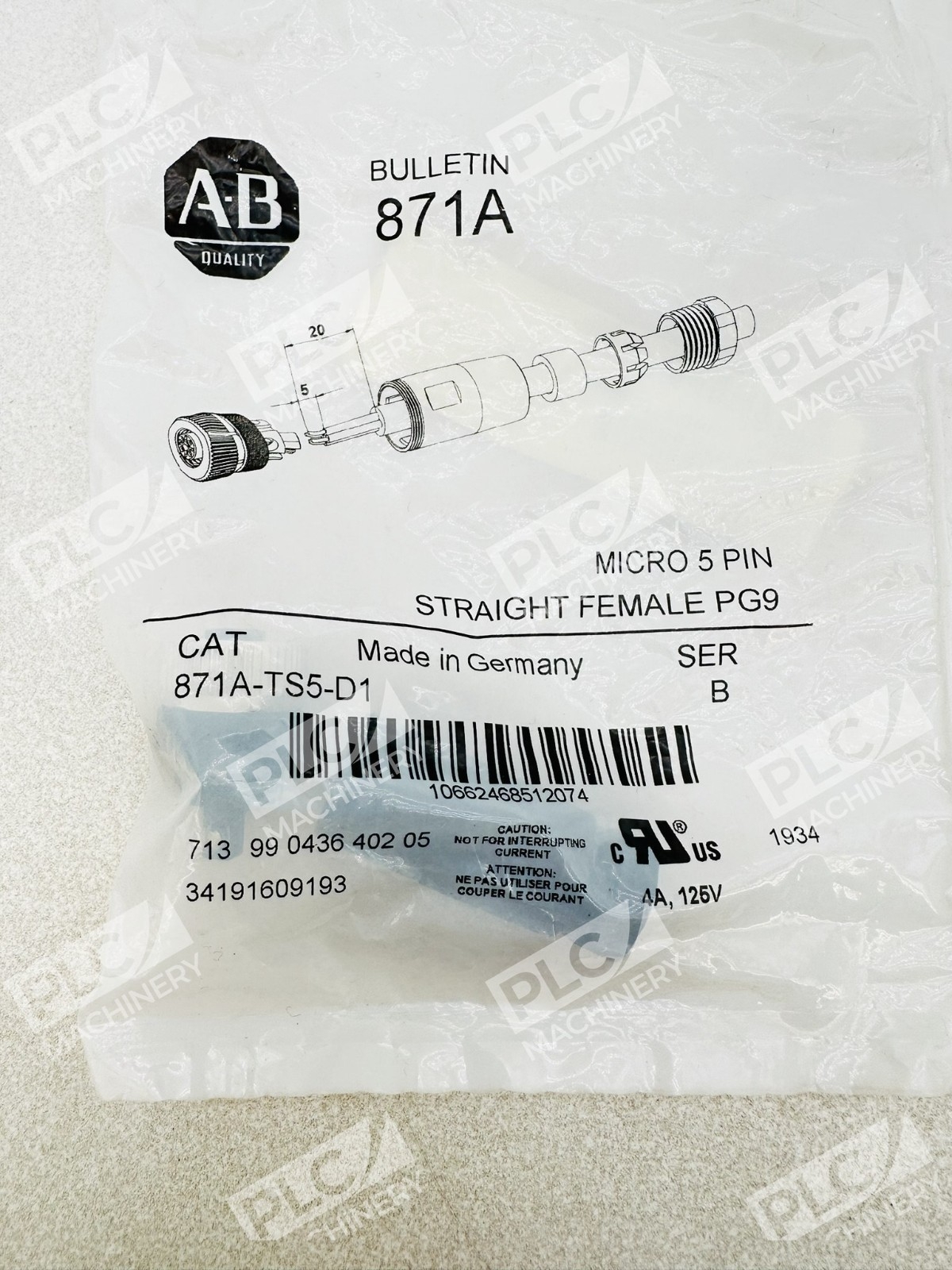

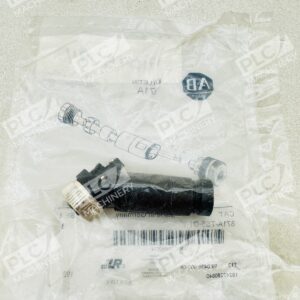

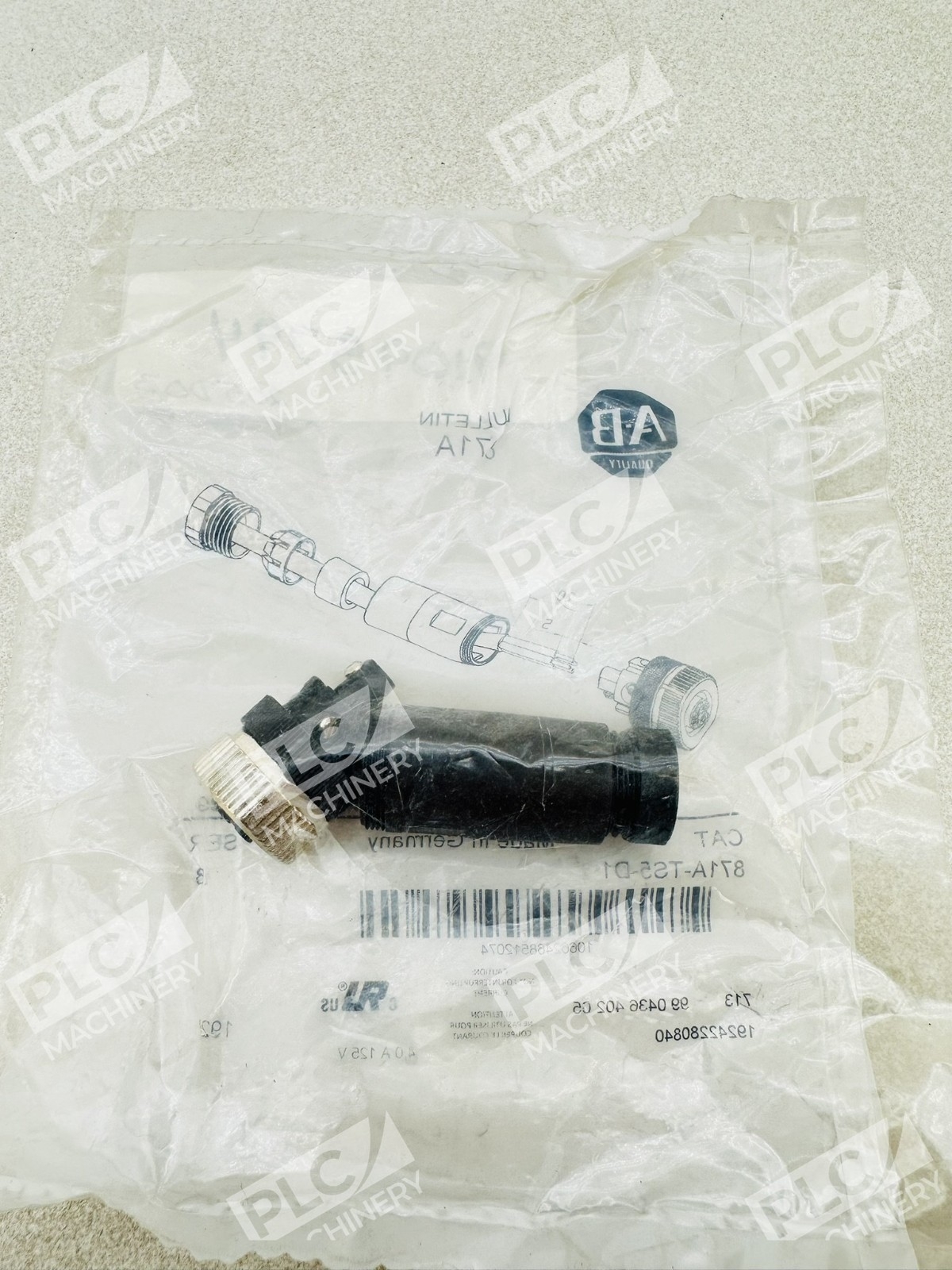

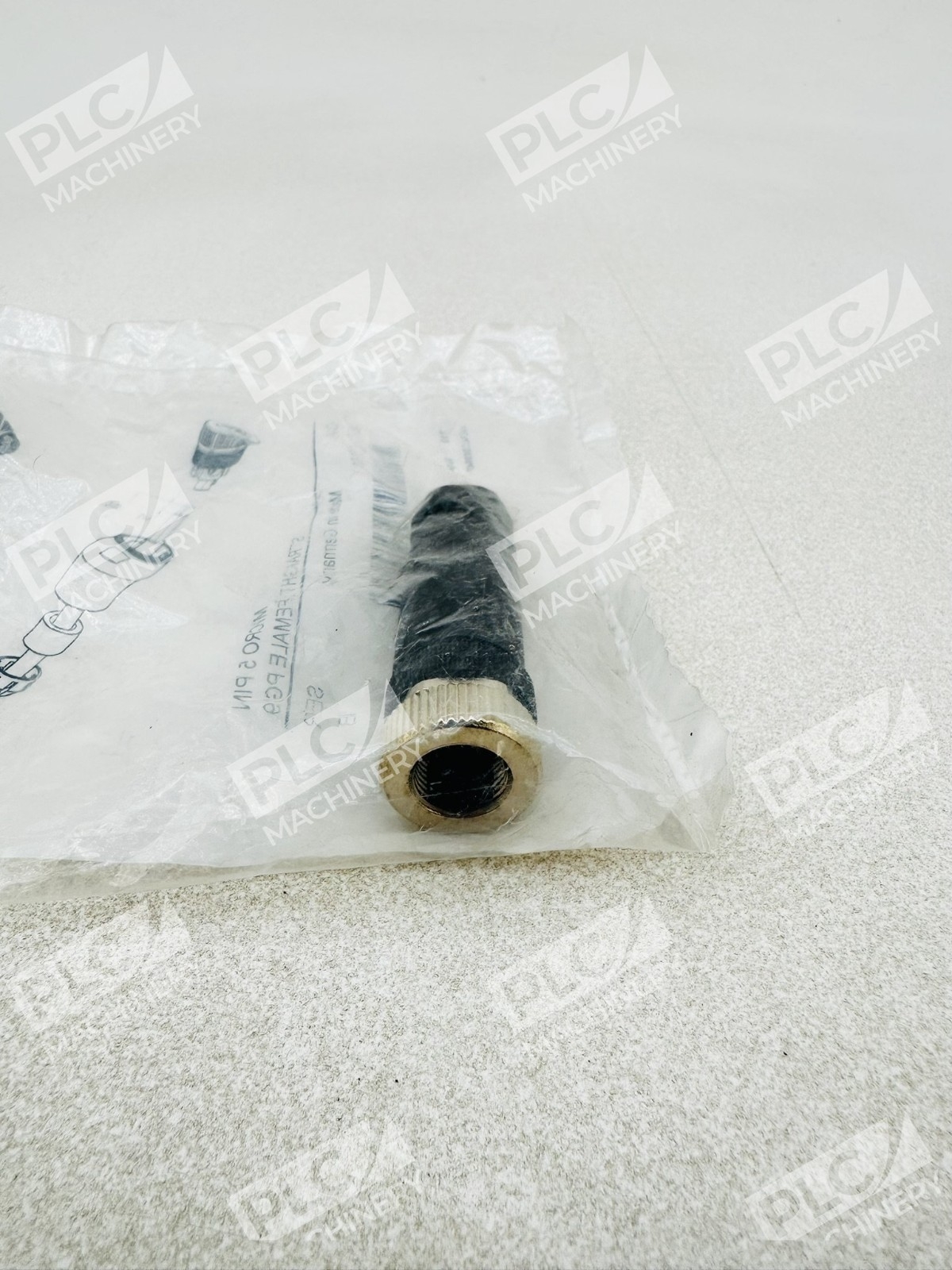

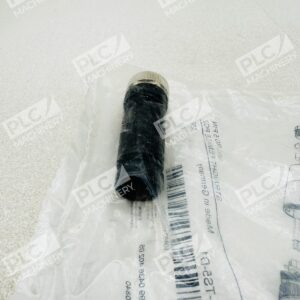

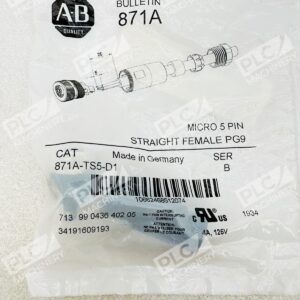

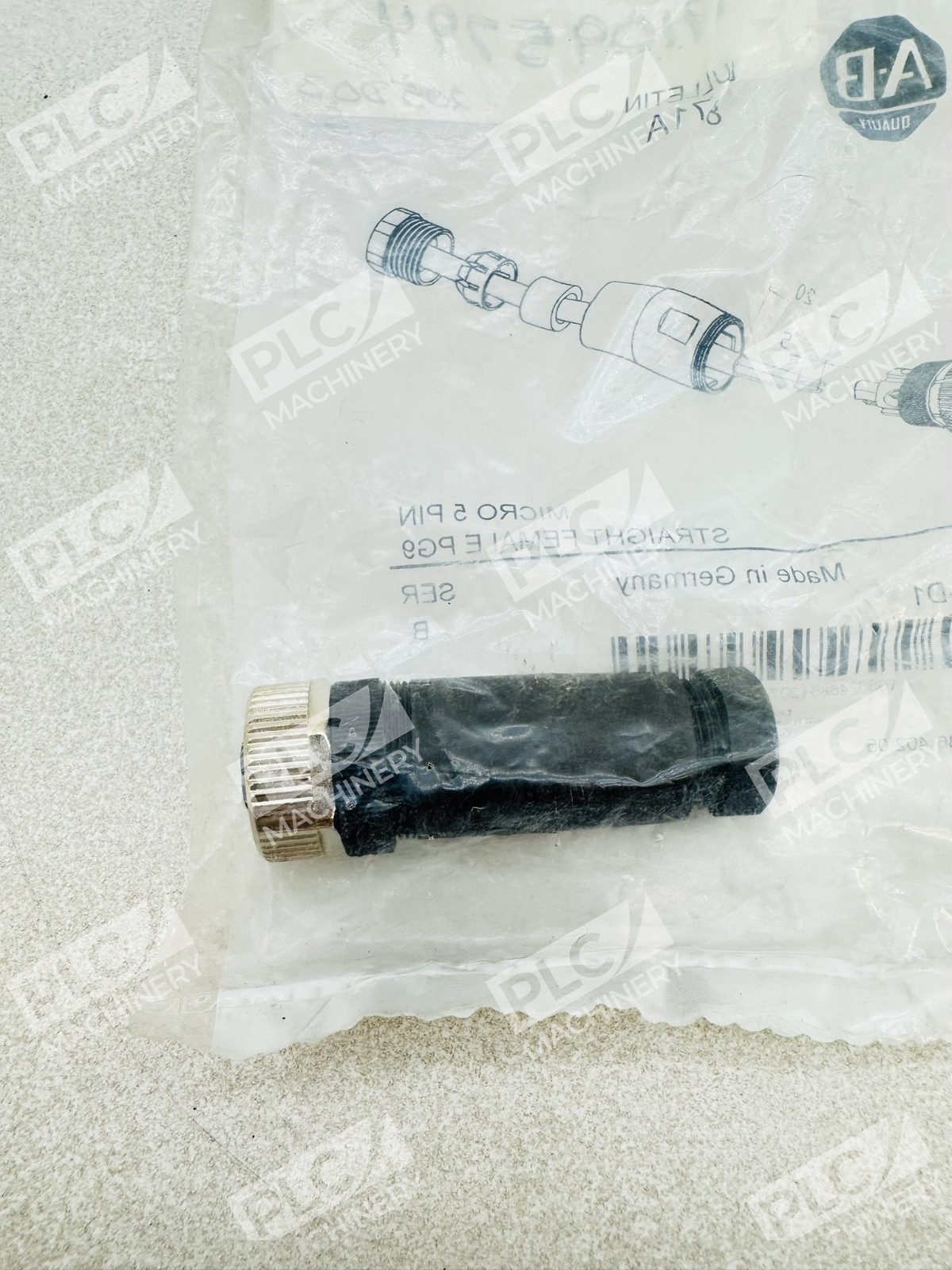

The Allen-Bradley 871A-TS5-D1 is a DC M12 micro connector designed for terminal chamber applications in industrial automation and control systems. This 5-pin female connector features a straight orientation with PG9 cable gland accommodation, making it suitable for field-attachable cordset installations. The 871A-TS5-D1 is built to Allen-Bradley’s quality standards and is widely used in proximity sensor networks and machine control applications where reliable signal transmission is critical.
Key Features
- 5-pin female M12 DC micro connector with straight orientation
- PG9 cable gland size accommodation (6-8mm / 0.24-0.32 inch cable diameter)
- No shielding configuration for standard industrial applications
- 250V voltage rating for reliable performance in control circuits
- Field-attachable cordset design for flexible installation
- Active lifecycle status with full manufacturer support
Technical Specifications
Connector Type: DC Micro (M12)
Gender: Female
Orientation: Straight
Number of Pins: 5-Pin
Cable Diameter: 6-8mm (0.24-0.32 inch)
Cable Gland Size: PG9
Voltage Rating: 250V
Shielding: No Shielding
Product Type: Terminal Chamber
Amperage Rating: 4 Amp
Certifications: CE marked
Typical Applications
- Proximity sensor connections in manufacturing automation
- Industrial control system signal transmission
- Machine tool and CNC equipment connectivity
- Robotic system integration and power distribution
- Field sensor networks requiring M12 connectors
- Plant-level automation and process control installations
Compatibility & Replacements
Compatible With
- Allen-Bradley DC M12 connector ecosystems
- Industrial proximity sensors and limit switches
- PLC and motion control systems using M12 signaling
- Field-attachable cordset assemblies
- Standard industrial automation control networks
Replaces / Drop-In Replacement For
The 871A-TS5-D1 female connector pairs with the complementary male connector model 871A-TS5-DM1. Verify compatibility with your system integrator or controls engineer before ordering.
Works With
- Allen-Bradley CompactLogix and ControlLogix systems
- Rockwell Automation EtherNet/IP networks
- Industrial proximity sensor brands using M12 connectors
- Standard M12 5-pin terminal chambers and cordsets
