Overview

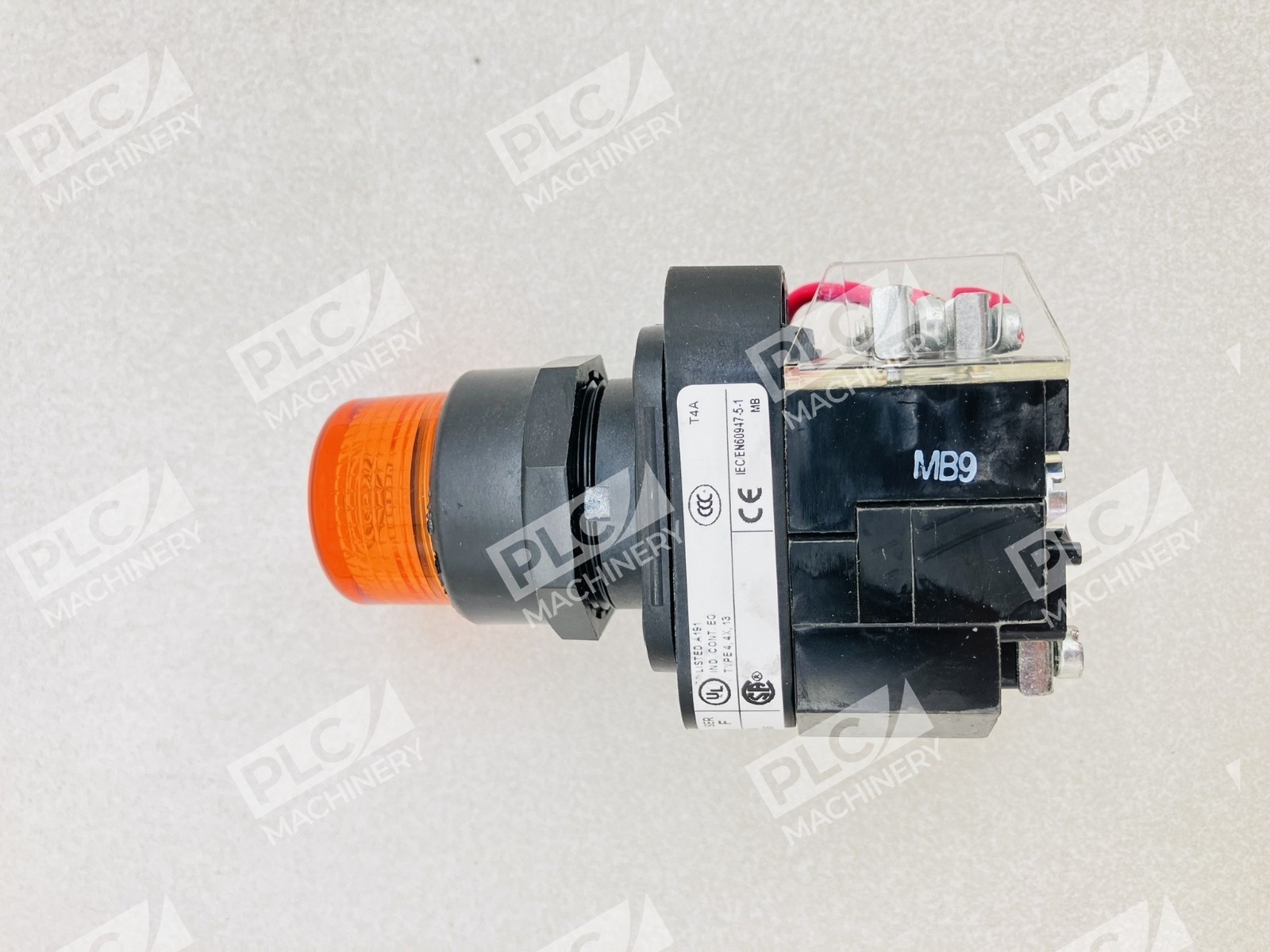

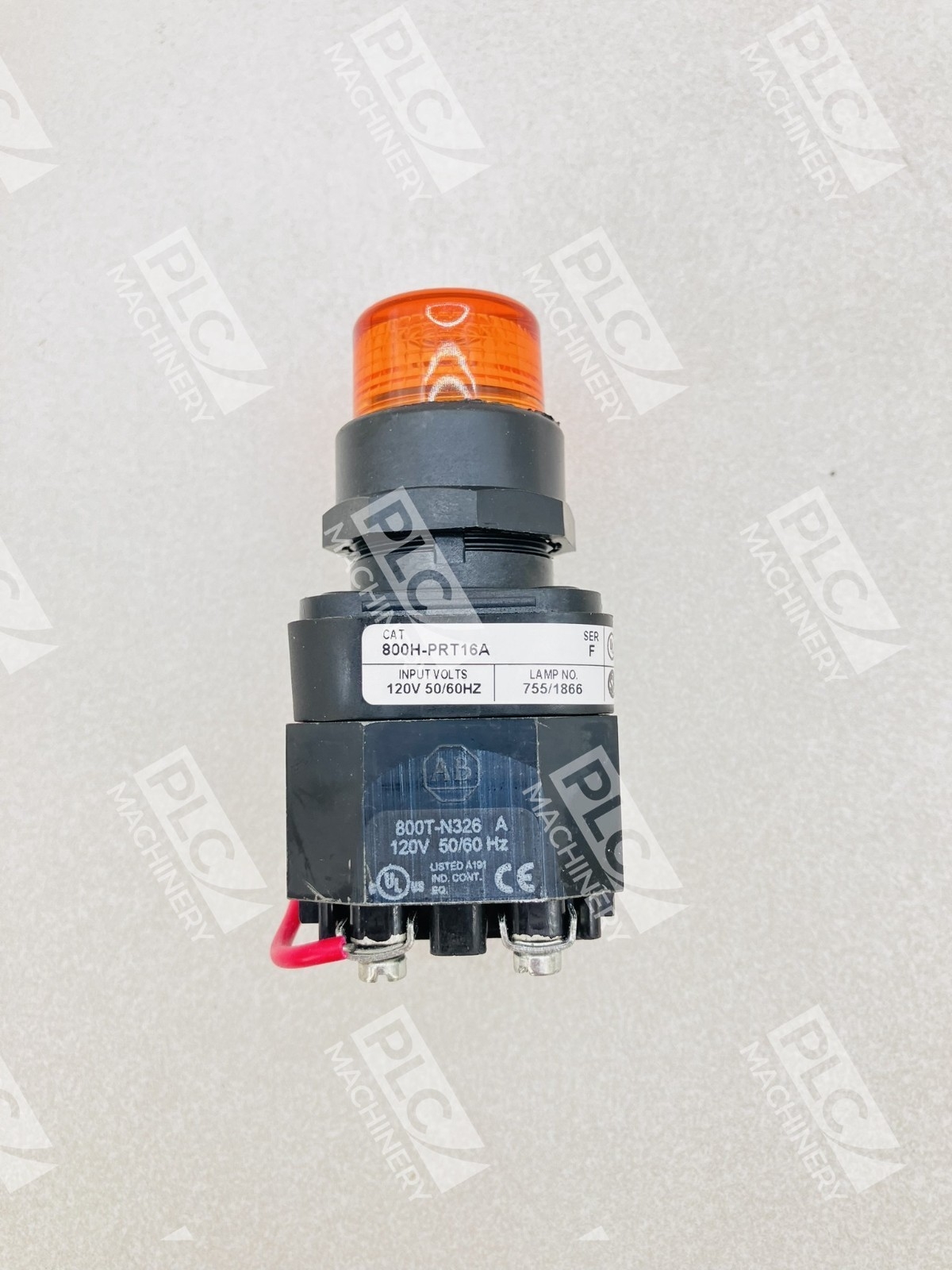

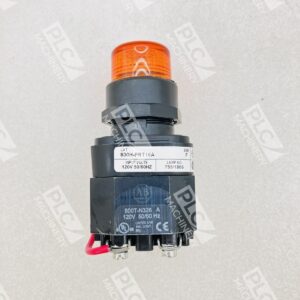

The Allen-Bradley 800H-PRT16A is a 30mm pilot light designed for industrial pushbutton and control applications. This amber-colored indicator provides visual feedback in electrical control cabinets and automation systems. The unit features a transformer-type design with incandescent lamp technology and is rated for 120V AC, 50/60 Hz operation, making it suitable for standard industrial power supplies in North American facilities.
Key Features
- 30mm (30.5mm) pilot light size—standard for 800H control stations

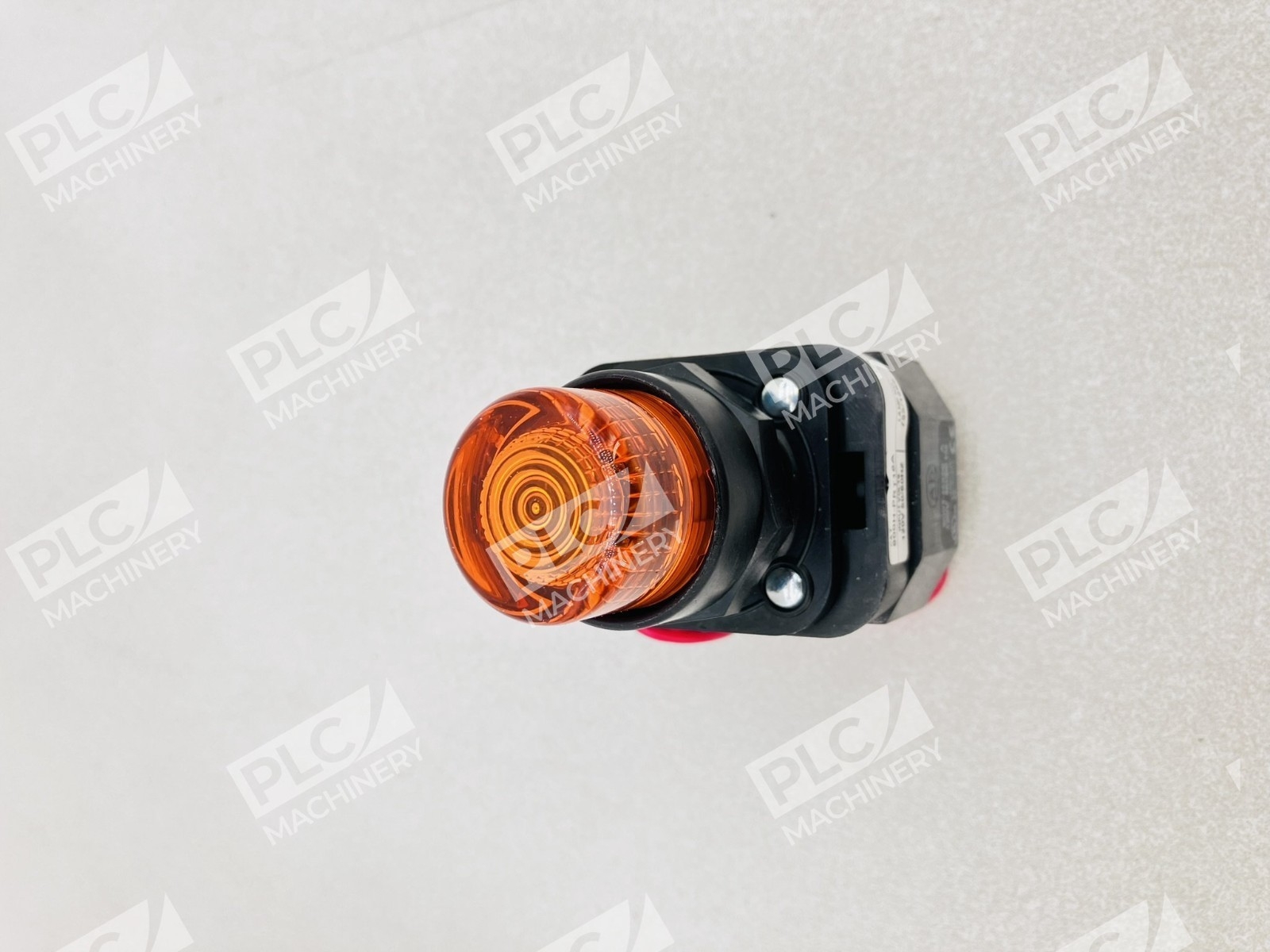

- Amber lens color for clear visual indication and better visibility in industrial environments
- Transformer-type power supply—isolates control circuit from main power
- Incandescent lamp technology—proven reliability in harsh industrial settings
- NEMA 4/4X/13 rated enclosure compatibility—suitable for wet, corrosive, and dusty locations
- 120V AC, 50/60 Hz rated—compatible with standard industrial electrical systems
Technical Specifications
- Pilot Light Size: 30mm (30.5mm)
- Voltage Rating: 120V AC, 50/60 Hz
- Lamp Type: Incandescent
- Power Supply: Transformer-type (no direct line voltage)
- Lens Color: Amber
- Material: Plastic
- NEMA Rating: Type 4/4X/13
- Operating Temperature: –40°F to +131°F (–40°C to +55°C)
- Mounting: Standard 800H pushbutton mounting
- Series: Allen-Bradley 800H
Typical Applications
- Machine start/stop status indication on control panels
- Fault or alarm status signaling in conveyor and packaging systems
- Circuit on/off visual confirmation in motor control centers
- Production line status monitoring in manufacturing facilities
- Wet and corrosive environment installations (food processing, wastewater treatment)
- Retrofit replacement for existing 800H control stations
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H pushbutton stations and enclosures
- Standard industrial 120V AC control circuits
- NEMA 4/4X/13 rated control cabinets and junction boxes
- Rockwell Automation CompactLogix, ControlLogix, and SLC control systems
- Any 50/60 Hz power system with 120VAC available
Replaces / Drop-In Replacement For
- 800H-PR16A (incandescent version without amber lens)
- Earlier 800H pilot light models with equivalent 120VAC transformer ratings
- Verify exact compatibility with your system integrator before ordering, as lens color and lamp type variations exist within the 800H product line.
Works With
- Allen-Bradley Studio 5000 and RS-Logix programming environments
- Rockwell Automation control systems (CompactLogix, MicroLogix, ControlLogix)
- EtherNet/IP industrial networks for remote monitoring and diagnostics
- Standard 120VAC power distribution and transformer-isolated control circuits
- NEMA 4/4X/13 rated enclosure ecosystems used in pharmaceutical, food, and chemical processing
