Overview
The Skinner PM3D5080C is a 120V AC solenoid valve engineered for reliable pneumatic and industrial control applications. This valve features direct-acting solenoid operation, making it suitable for general-purpose service in automation systems, process control, and machine control environments. Manufactured to meet UL and CSA certification standards, the PM3D5080C provides dependable on-off control for air and inert gas applications.
Key Features
- 120V AC coil voltage for standard industrial power
- Direct-acting solenoid design for fast response and simplified operation
- UL and CSA certified for safety compliance
- Compact body design for easy integration into manifold systems
- Compatible with standard pneumatic port configurations
- Brass body construction for corrosion resistance in industrial environments
Technical Specifications
The following specifications define the performance envelope for the Skinner PM3D5080C:
- Voltage Rating: 120V AC, 50/60 Hz
- Valve Type: Direct-acting solenoid
- Coil Duty: Continuous
- Body Material: Brass
- Sealing Material: NBR (Buna-N) standard
- Pressure Range: 0–150 PSI typical
- Certifications: UL (File #MH15507), CSA (File #LR10716)
- Operating Temperature: 32–176°F (0–80°C) standard
Typical Applications
The Skinner PM3D5080C excels in:
- Pneumatic automation and machine tool controls
- Process control valve actuation
- Air distribution and exhaust control
- Industrial compressed air systems
- OEM equipment integration (including Worcester Controls applications)
- HVAC damper control and ventilation systems
Compatibility & Replacements
Compatible With
- Standard ISO/NFPA pneumatic manifold systems
- Parker Hannifin solenoid valve manifolds
- Direct-acting and pilot-operated valve subbases
- DIN 43650 connector wiring (with appropriate connector adapter)

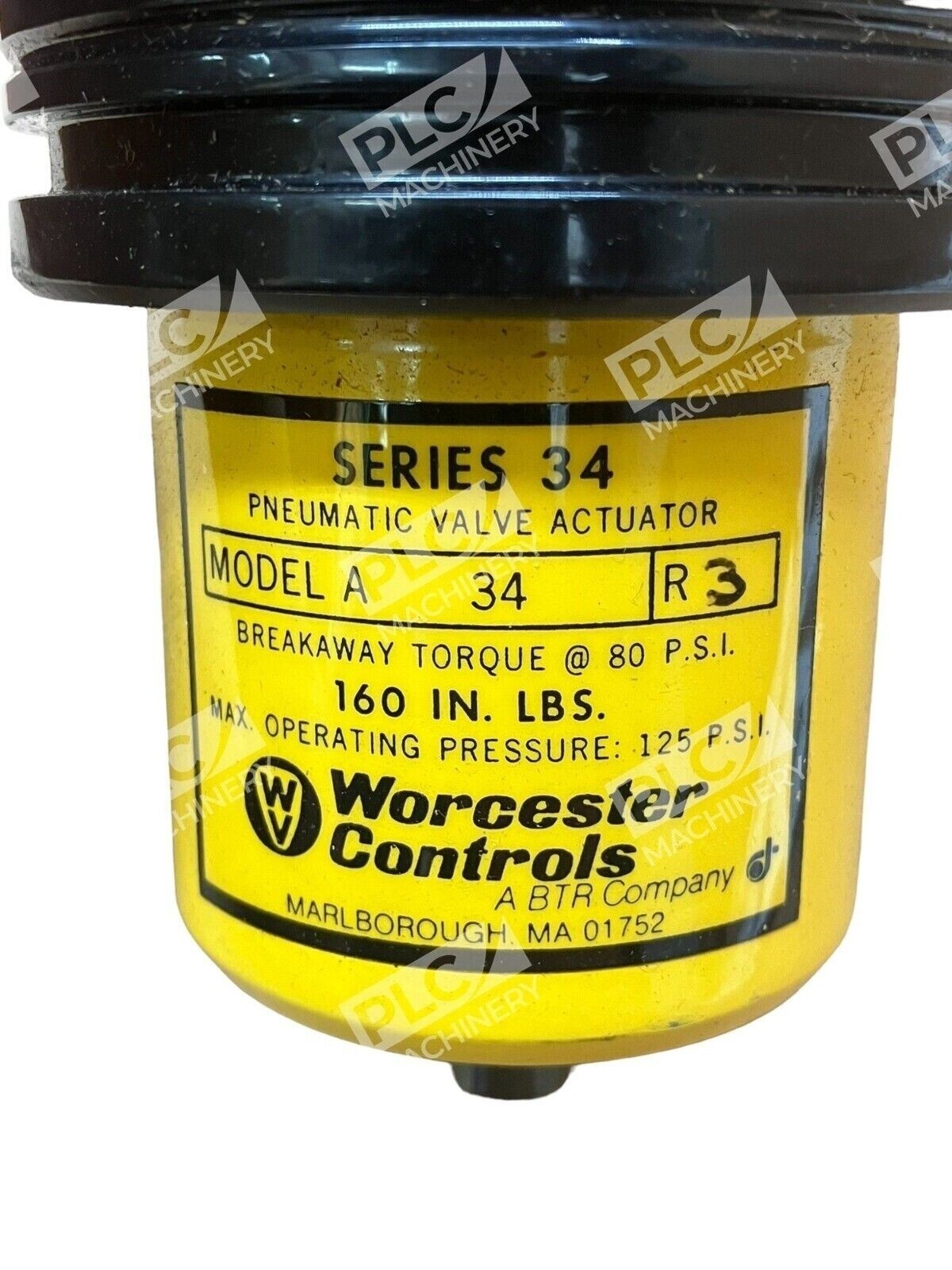

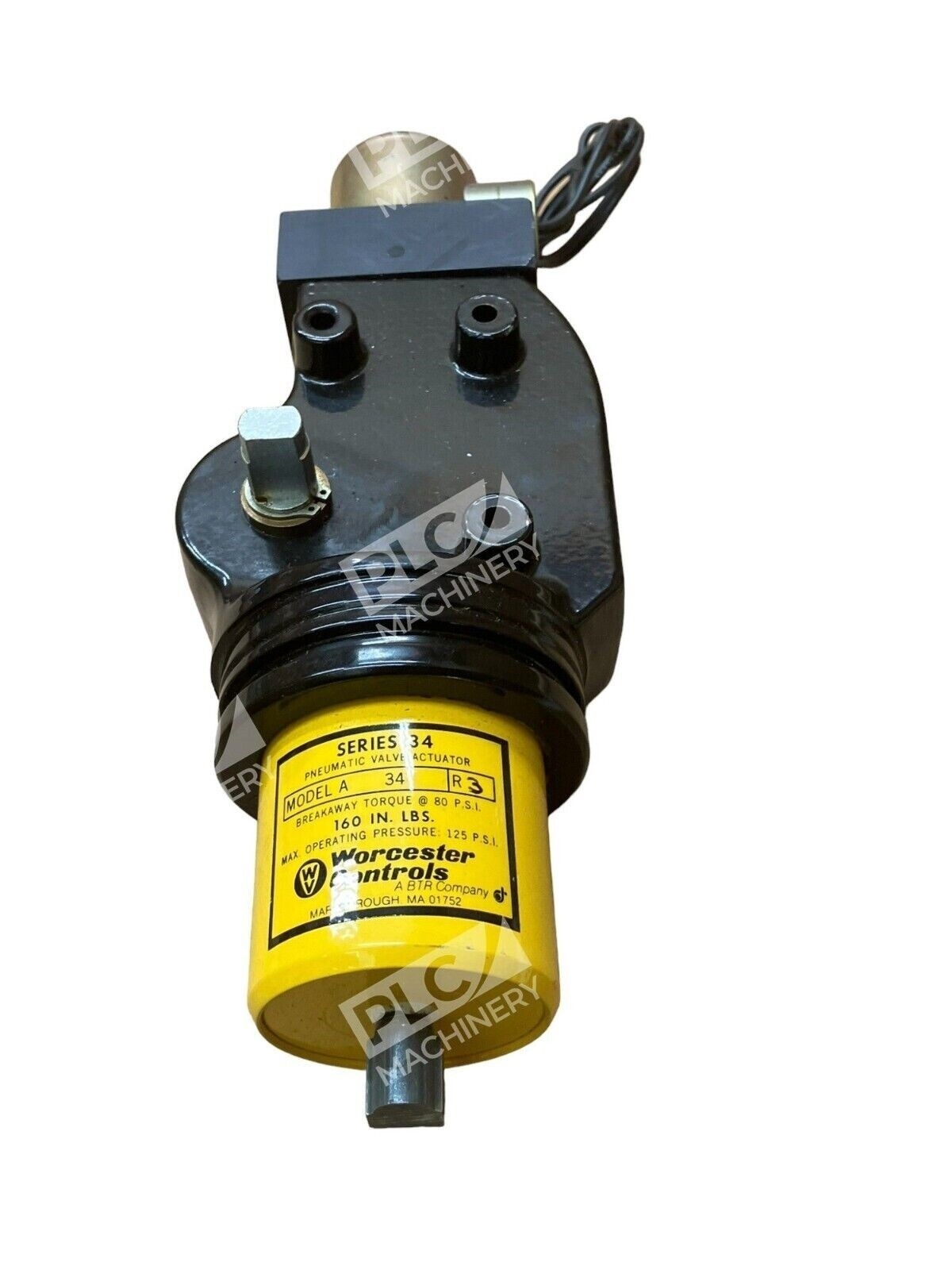

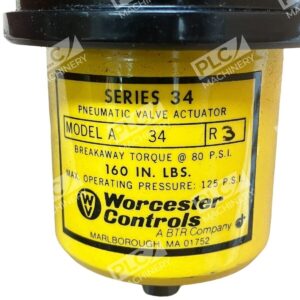

- Worcester Controls A34 R3 valve assemblies (as indicated by title designation)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The PM3D5080C is part of the Skinner general-purpose solenoid valve product line and may directly replace earlier solenoid coil and body combinations in the same series family. Confirm coil voltage, port size, and manifold interface with manufacturer documentation or an authorized distributor.
Works With
- Pneumatic control systems and PLCs via solenoid valve actuation
- 24 VDC and 120 VAC pilot-operated valve assemblies (as secondary actuator)
- Standard brass or stainless-steel manifold blocks
- Lead-wire and DIN 43650 connector configurations
- Industrial automation networks requiring discrete on-off control
