Overview

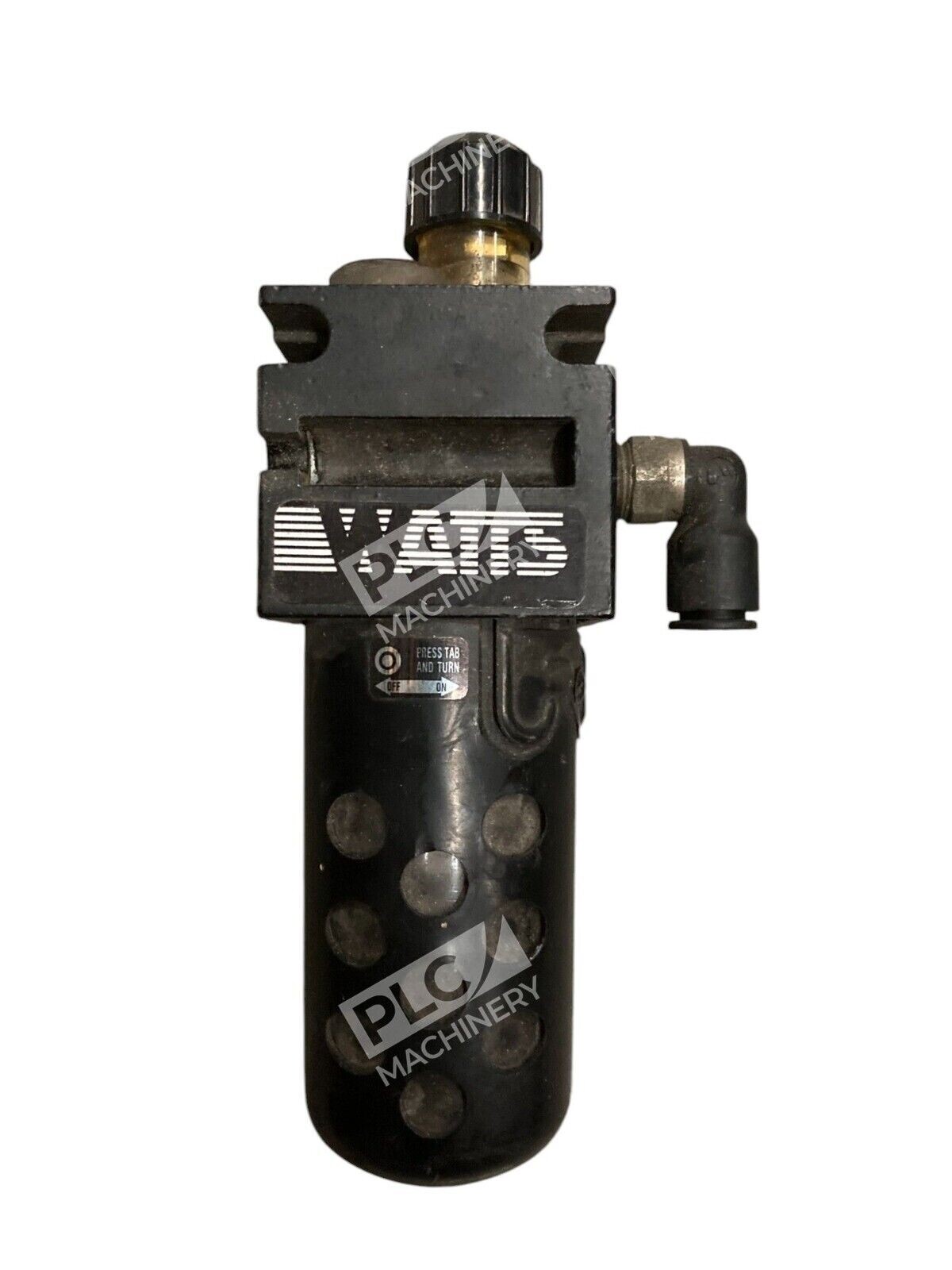

The Watts L75-02B is a compact pneumatic air lubricator engineered for filter-regulator-lubricator (FRL) assemblies. Part of the Parker–Watts L75 Series, this unit delivers automatic, proportioned oil delivery across a wide range of air flows. The L75-02B is rated for 150 PSI maximum pressure and features a 1/4″ NPT port, making it ideal for small to medium-flow pneumatic systems requiring consistent downstream lubrication.
Key Features
- Proportional oil delivery automatically adjusts to varying air flow rates with no re-tuning required
- Precision needle valve for simple, repeatable oil delivery adjustment
- Polyurethane bowl and sight gauge for improved chemical compatibility and visibility
- Quick-disconnect clamp ring for fast, tool-free bowl removal and refilling
- Siphon tube filter ensures clean lubricant distribution downstream
- Transparent sight dome for 360-degree bowl level visibility
Technical Specifications
| Specification | Value |
| Model Number | L75-02B |
| Manufacturer | Watts Water Technologies (Parker) |
| Port Size | 1/4″ NPT |
| Maximum Pressure Rating | 150 PSI |
| Typical Flow (@ 90 PSIG inlet, 5 PSIG drop) | 40 SCFM |
| Bowl Material | Polyurethane with sight gauge |
| Bowl Capacity | Standard (exact capacity varies by variant) |
| Drain Type | Manual petcock drain |
| Filling Method | Can be filled while under pressure |
| Temperature Range | 32°F to 150°F |
| Series | L75 (Parker–Watts FRL) |
| Compatible Variants | L75-02W (metal bowl), other L75-02B installations |
Typical Applications
The Watts L75-02B is commonly used in:
- Small pneumatic tool systems requiring proportional lubrication
- Laboratory and test equipment air circuits
- Dental and medical equipment air lines
- Light-duty automation and assembly line pneumatic networks
- OEM equipment using modular Parker QUBE FRL platforms
- Maintenance upgrades for existing 1/4″ NPT pneumatic systems
Compatibility & Replacements
Compatible With
- Parker–Watts L75 Series filter and regulator modules (modular FRL)
- Parker QUBE Modular FRL System components
- Any pneumatic system with 1/4″ NPT ports and ≤150 PSI operating pressure
- Standard air preparation networks using proportional lubricators
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The L75-02B directly replaces other L75-02B installations. Direct replacement for wear-out or damaged units in existing FRL assemblies.
Works With
- Parker–Watts filter and regulator modules (L-series)
- Standard 1/4″ NPT pneumatic tubing and fittings
- Polyurethane or metal bowl guards and brackets
- Any ISO 4401 or CETOP-compliant proportional lubricator system
