Overview

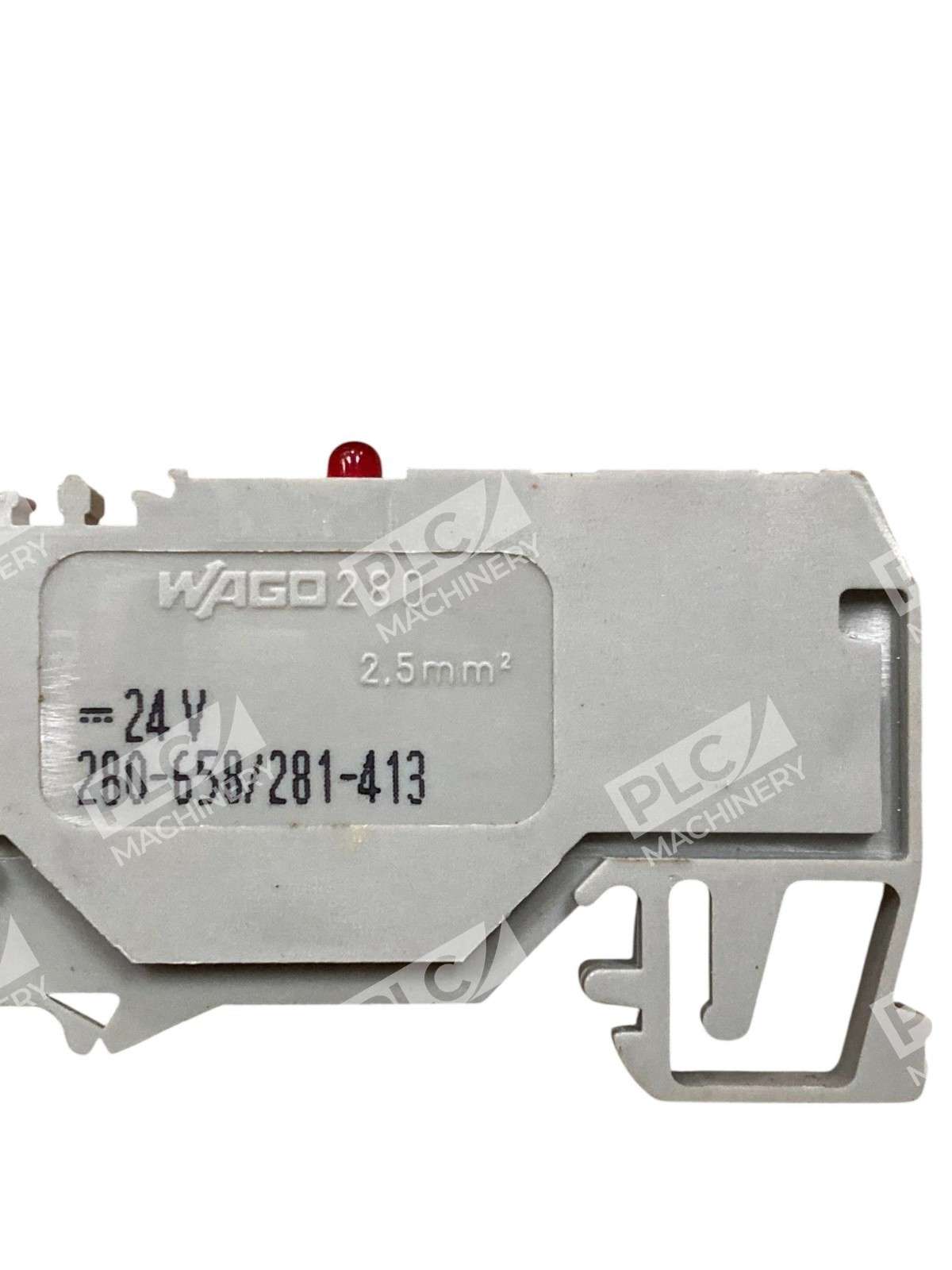

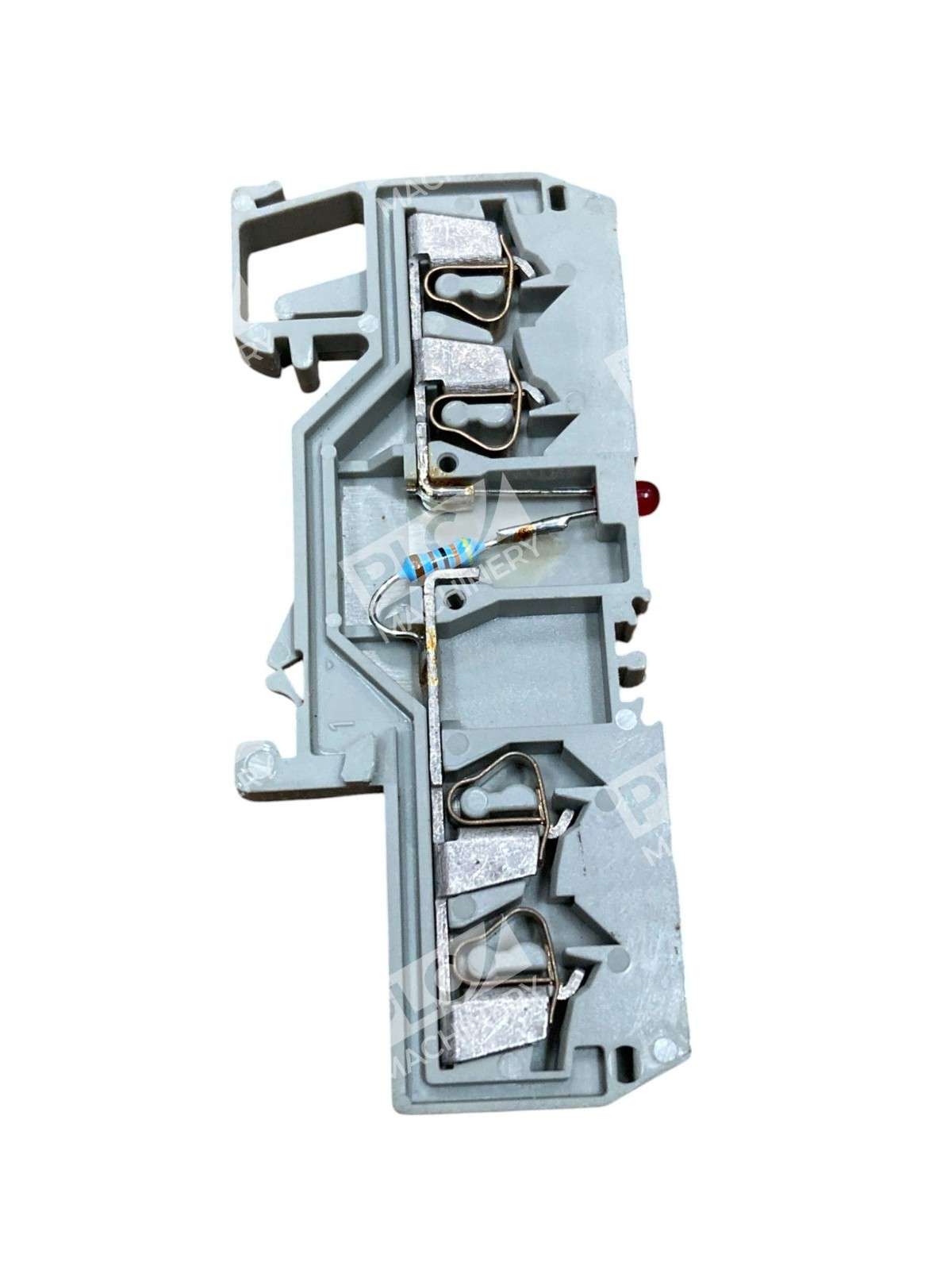

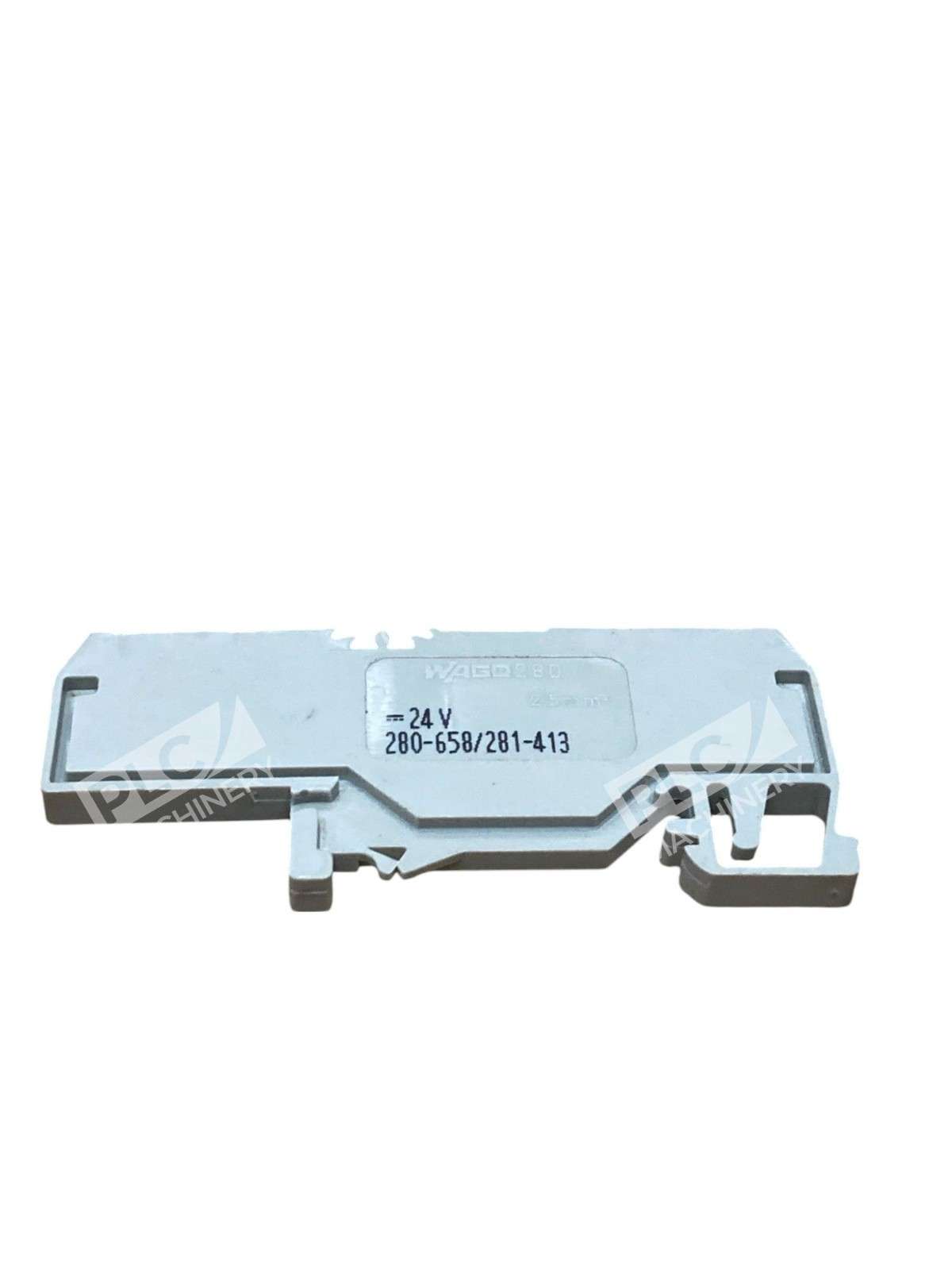

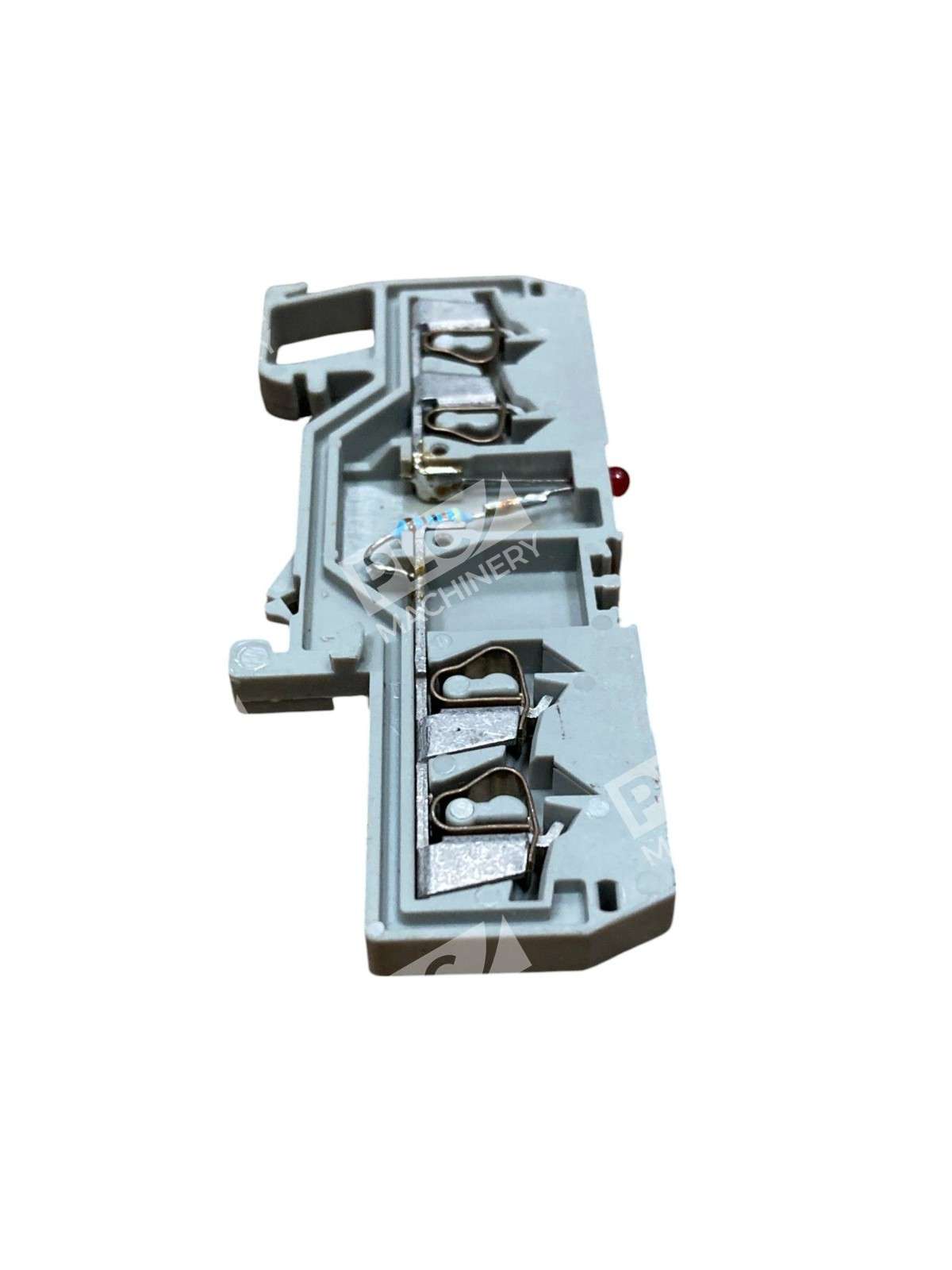

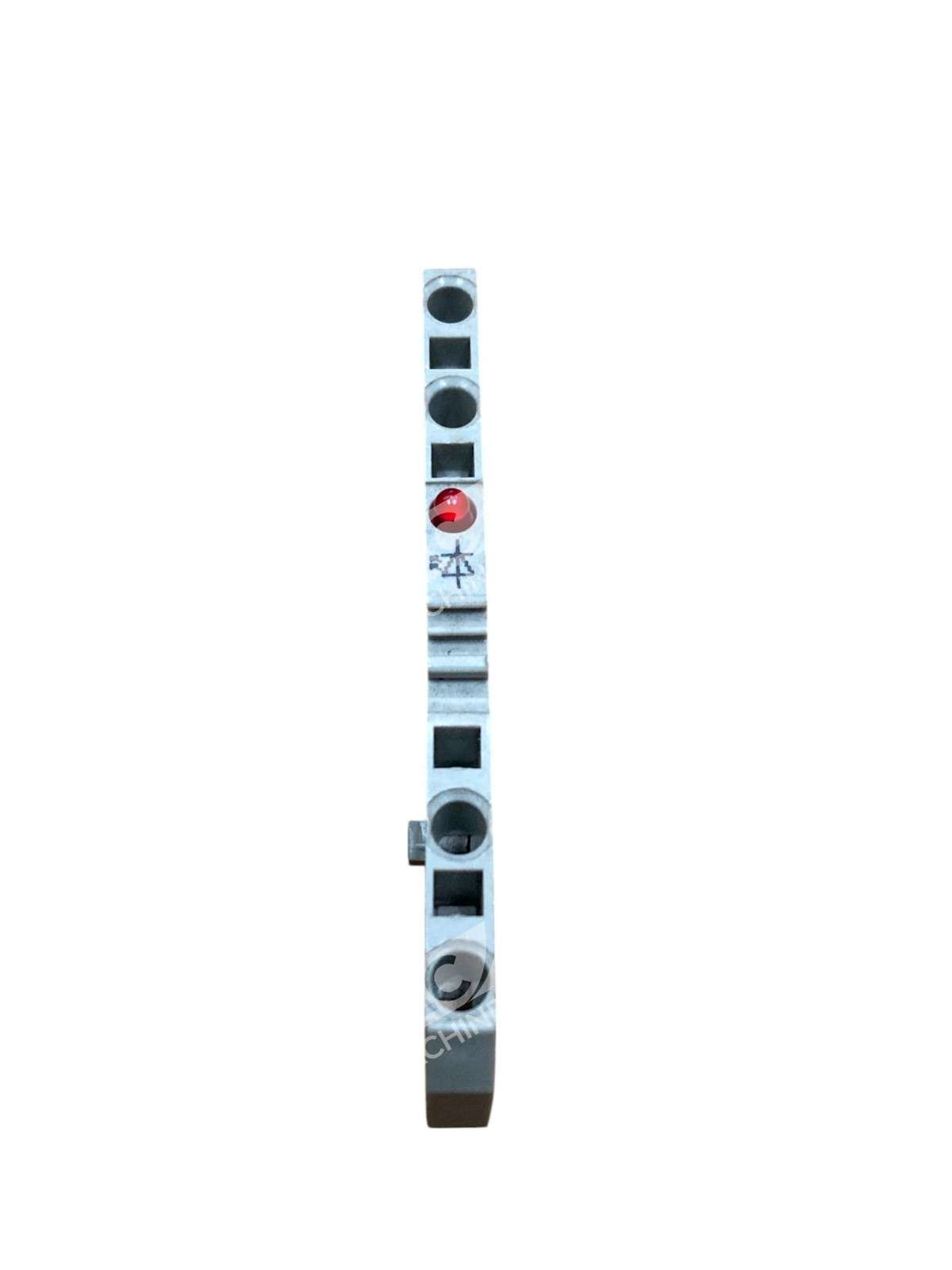

The WAGO 280-658/281-413 component terminal block is a DIN-rail mounted electrical connector designed for industrial automation, control systems, and signal distribution applications. This 4-conductor terminal features an integrated red LED indicator powered at 24 VDC, making it ideal for applications where visual feedback of signal presence or circuit status is required. Built by WAGO—a leading German manufacturer of electrical interconnection solutions—this terminal block combines reliability with ease of installation.
Key Features
- 4-conductor design with feed-through capability for flexible circuit routing
- Integrated red LED indicator (24 VDC) provides clear visual status feedback
- CAGE CLAMP® connection technology eliminates the need for ferrules or special preparation; simply insert stripped conductor (8–9 mm strip length)
- Compact 5 mm width for space-efficient DIN-rail mounting on 35 × 15 and 35 × 7.5 rails
- Gray polyamide (PA66) housing ensures durability and electrical insulation
- Rated for 0.08–2.5 mm² conductor cross-section (14–28 AWG equivalent); supports solid, stranded, and fine-stranded wire
Technical Specifications
- Part Number: 280-658/281-413
- Conductor Positions: 4
- Connection Type: Feed-through
- Conductor Cross-Section: 0.08–2.5 mm²
- Wire Gauge: 14–28 AWG
- LED Indicator: Red, 24 VDC
- Mounting: DIN-rail 35 × 15 and 35 × 7.5 mm
- Width: 5 mm
- Housing Material: Polyamide (PA66), gray
- Connection Technology: CAGE CLAMP® spring terminals
- Rated Current (LED circuit): 25 mA
- Country of Origin: Germany
Typical Applications
- Industrial process control and monitoring
- PLC and controller input/output signal distribution
- LED status indication for 24 VDC control circuits
- Automation equipment wiring and signal routing
- Machine tool and conveyor system control cabinets
- HVAC and building automation systems
Compatibility & Replacements
Compatible With
- Standard DIN-35 rail mounting systems (35 × 15 mm and 35 × 7.5 mm)
- WAGO 280 Series terminal block ecosystems
- Industrial 24 VDC control systems and PLC networks
- Any control cabinet or panel using DIN-rail infrastructure
- EtherCAT, PROFINET, and other industrial automation networks (when used with compatible interface modules)
Replaces / Drop-In Replacement For
- WAGO 280-809/281-413 (similar 4-conductor LED variant)
- Other WAGO 280 Series 4-conductor LED terminals with comparable DIN-rail footprint
- Legacy terminal blocks requiring 24 VDC status indication on DIN rails
Works With
- WAGO operating tools (insulated hand tools for terminal block installation)
- WAGO 281 Series accessories (jumper bars, cover plates, spacers)
- Standard electrical installation practices per IEC and UL standards
- All DIN-rail mounted control and monitoring systems
