Overview

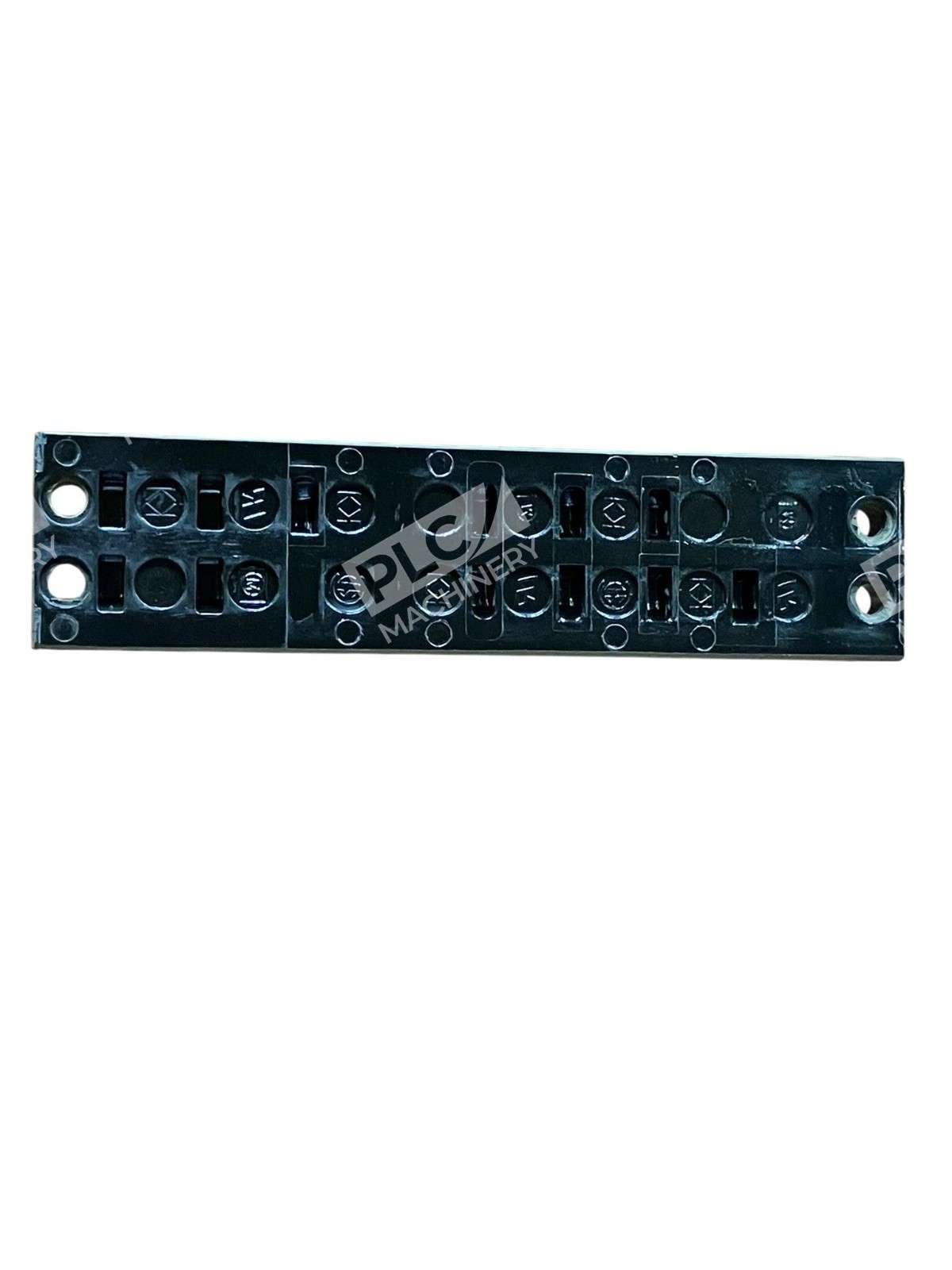

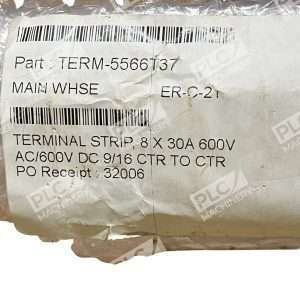

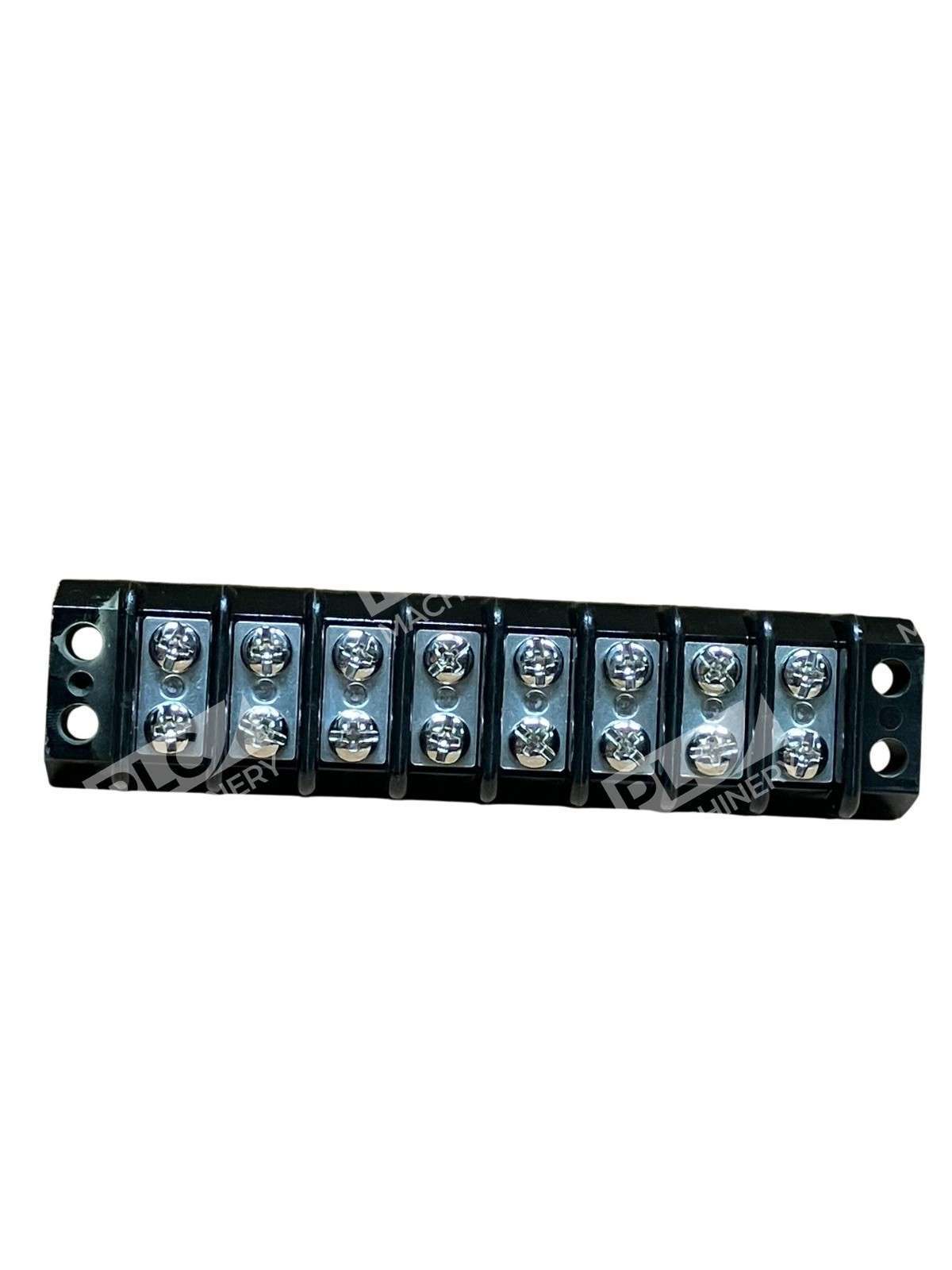

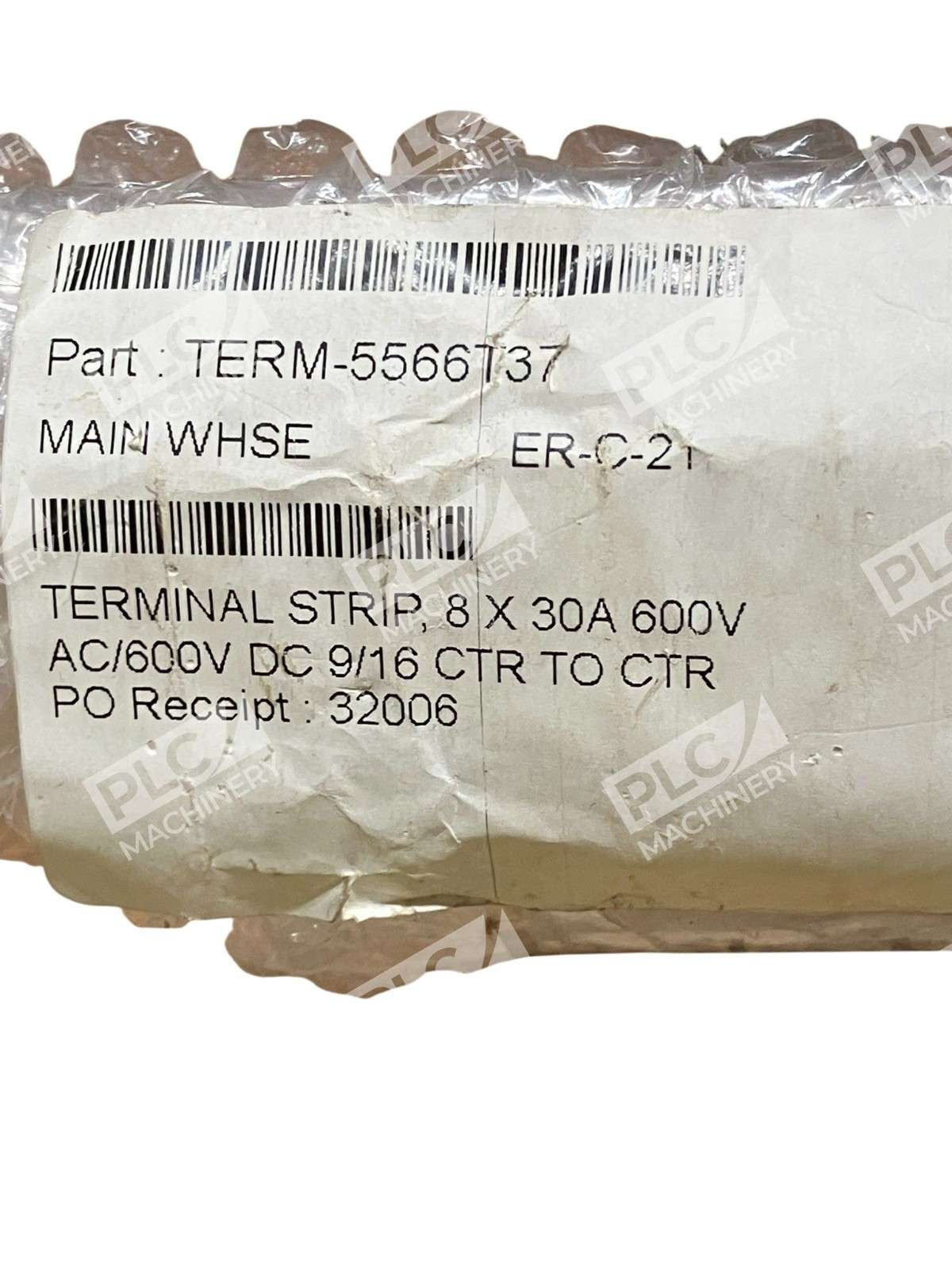

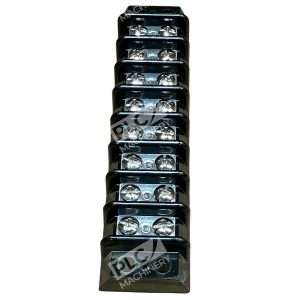

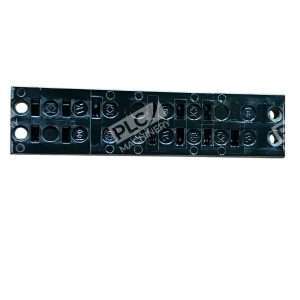

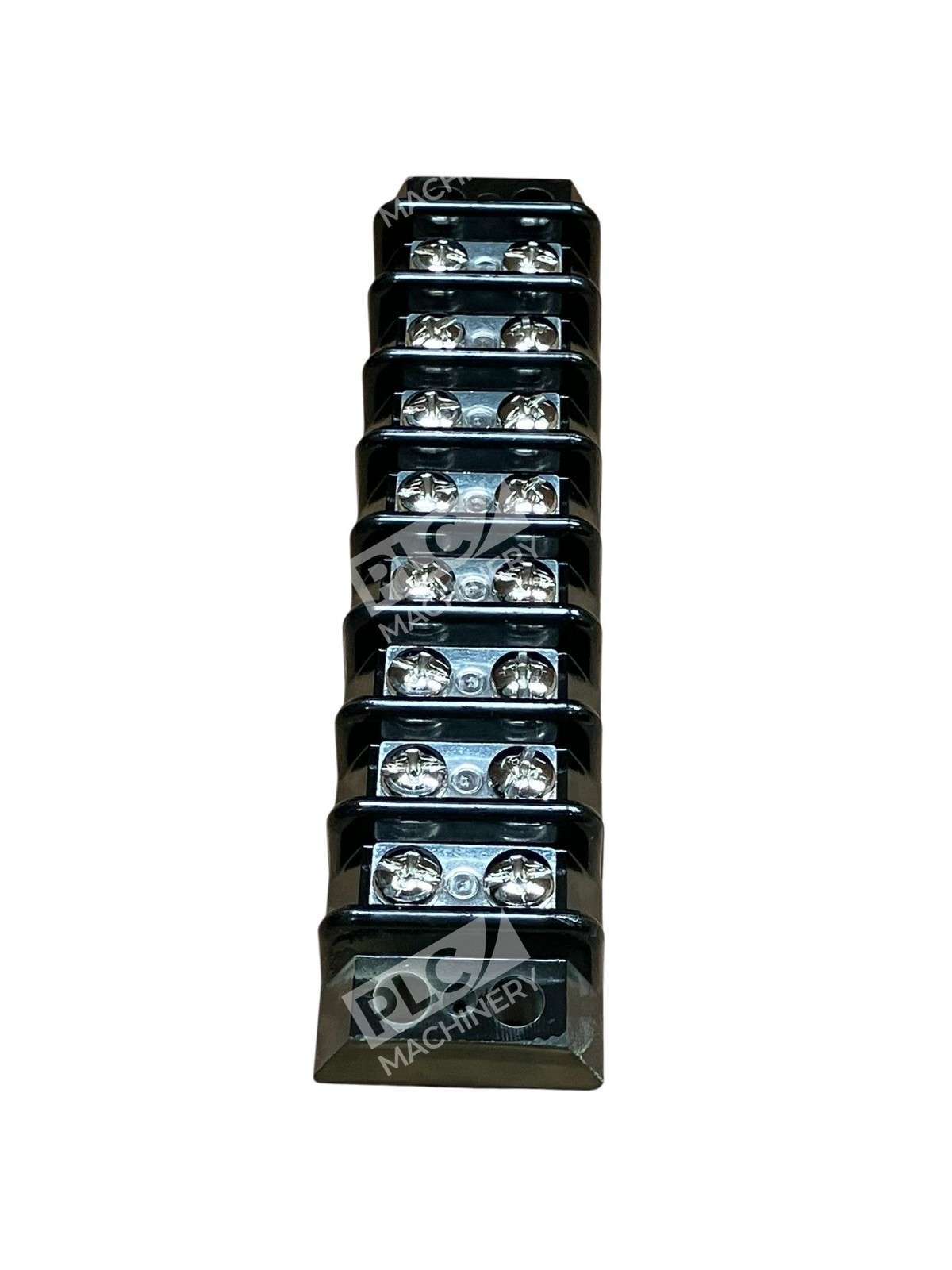

The 5566137 terminal strip is a rugged industrial terminal block engineered for multi-wire connections in control panels, electrical enclosures, and distribution systems. With 8 poles and a 30A current rating at 600V AC/DC, this terminal strip handles demanding applications in manufacturing, industrial automation, and facilities maintenance. The screw-clamp design ensures reliable, repeatable terminations without specialized tools.
Key Features
- 8-pole configuration with dual-row layout for efficient panel mounting
- 30A current capacity per terminal at 600V AC/DC
- Accepts 22–10 AWG conductors with #8-32 Phillips/slotted screws
- 0.562″ center-to-center pole spacing for consistent layout
- Thermoplastic housing and nickel-plated brass terminals resist corrosion
- Closed-back design prevents accidental wire contact
Technical Specifications
- Voltage Rating: 600V AC/DC
- Current Rating: 30A per terminal
- Number of Poles: 8 (dual-row, 2 rows × 4 poles)
- Wire Range: 22–10 AWG
- Termination Type: Screw clamp (#8-32)
- Center Spacing: 0.562 inches
- Housing Material: Black thermoplastic
- Terminal Material: Nickel-plated brass
- Torque Rating: 15–18 in-lb (screw tight)
Typical Applications
- Motor control circuits and starter wiring
- PLC input/output distribution in control panels
- Sensor and signal wiring consolidation
- Power and neutral bus connections in electrical enclosures
- Load center and sub-panel terminal breaks
- Industrial HVAC and machinery control systems
Compatibility & Replacements
Compatible With
- Panel-mount enclosures (NEMA 1, 3R, 4, 4X)
- Control transformer secondary circuits
- Ungrounded DC systems and AC power distribution
- Standard DIN rail or direct screw mounting
- Industrial PLC and relay-based control systems
Replaces / Drop-In Replacement For
- Marathon Special Products model 308 (8-pole, 30A, 600V, equivalent specifications)
- Similar generic unbranded 8-pole terminal strips with matching pole count and current rating
- Verify hole spacing and mounting footprint before substitution
Works With
- General-purpose electrical distribution (no protocol-specific compatibility)
- Copper or stranded wire termination (per AWG spec)
- Standard electrical hand tools (slotted or Phillips screwdriver)
- Both AC and DC control circuit wiring
