Overview

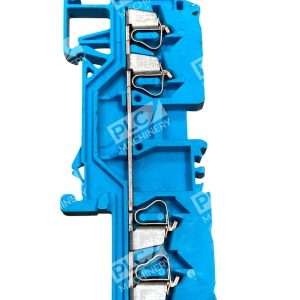

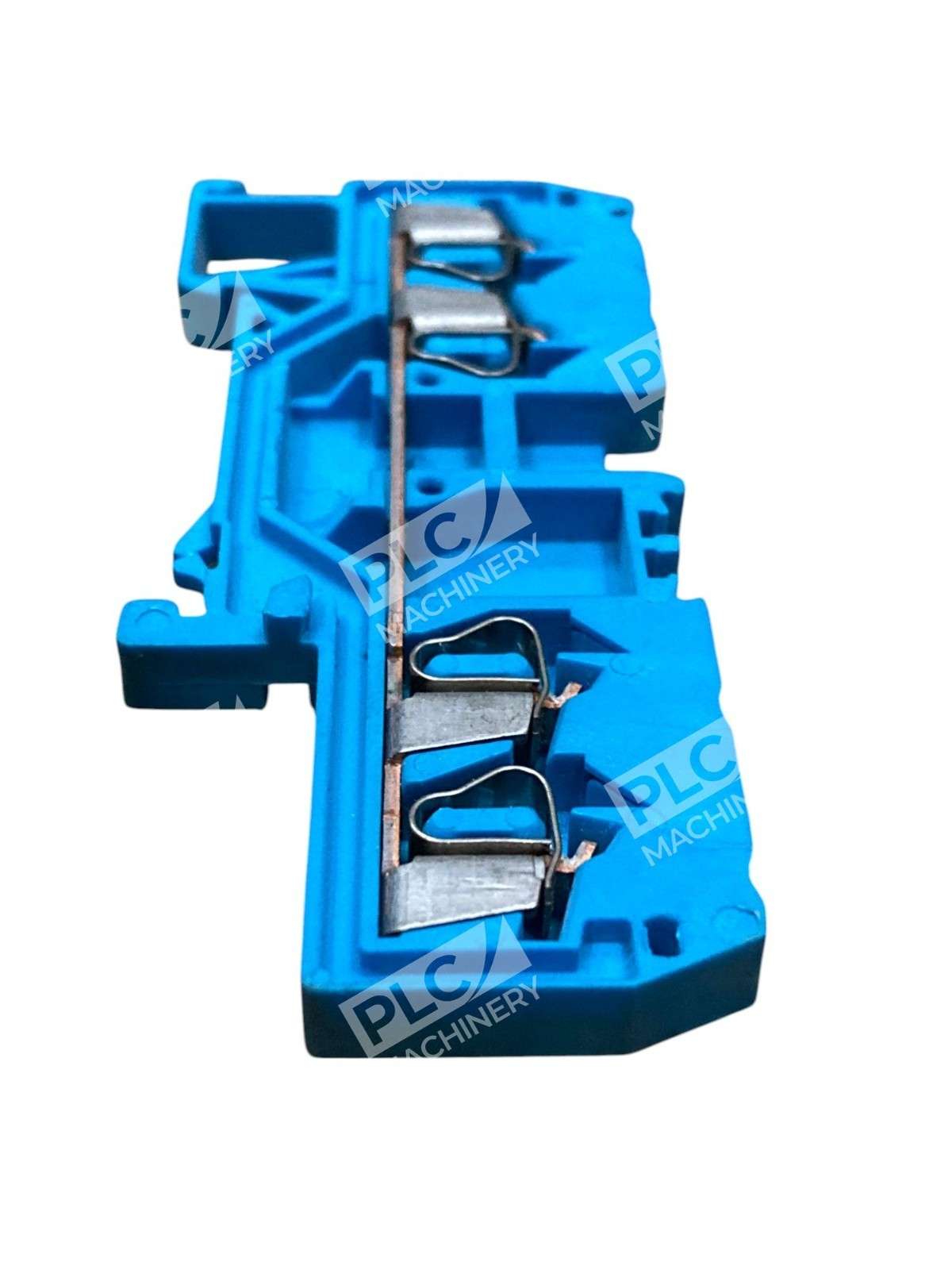

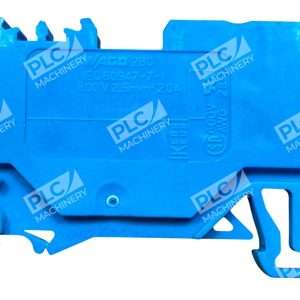

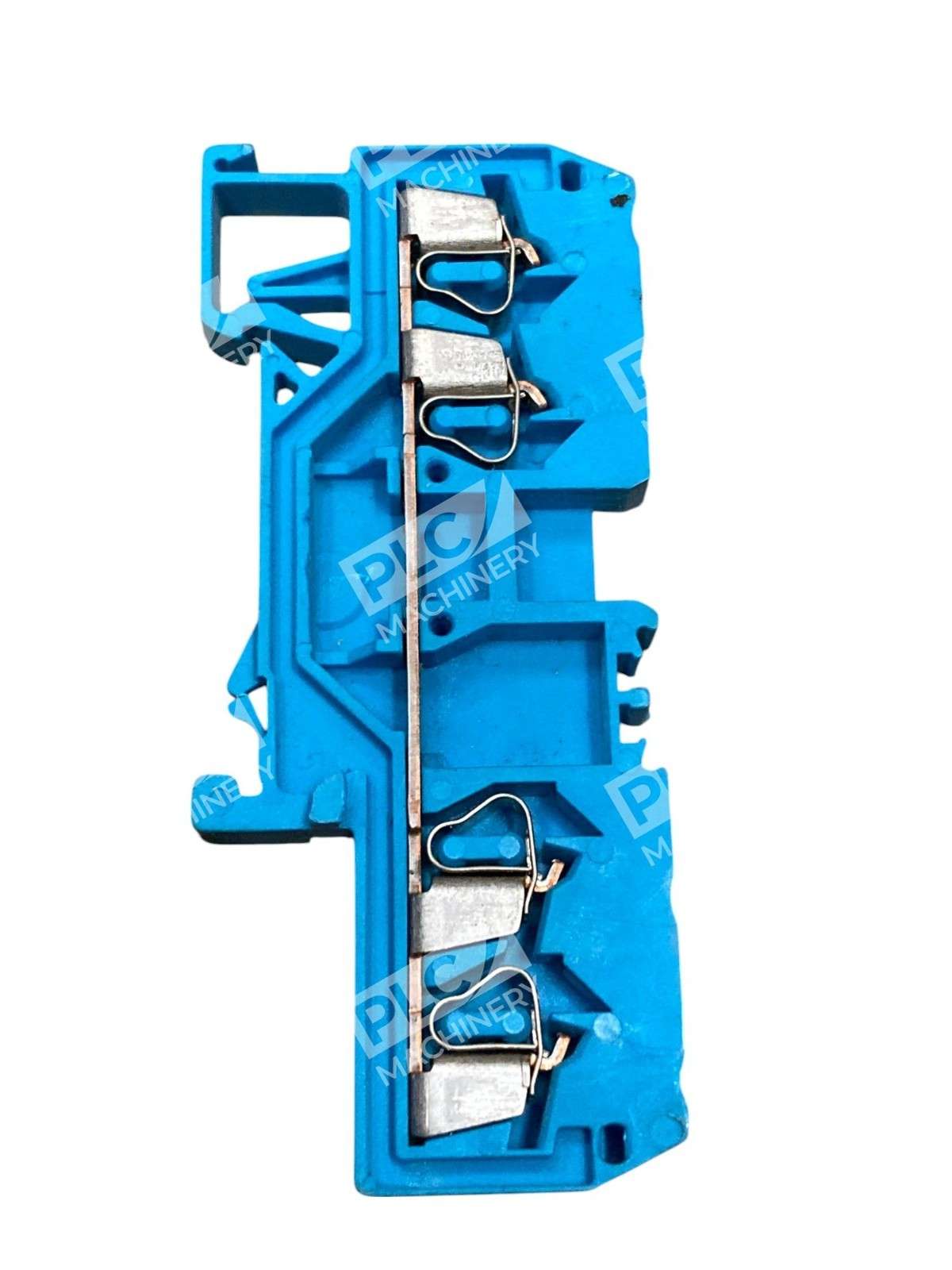

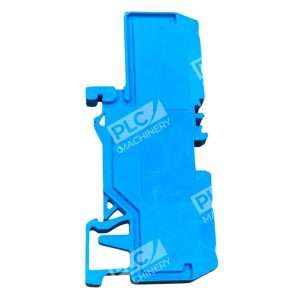

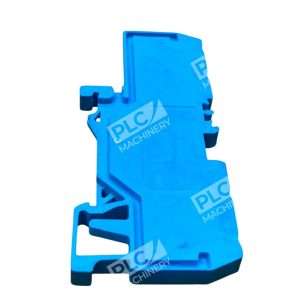

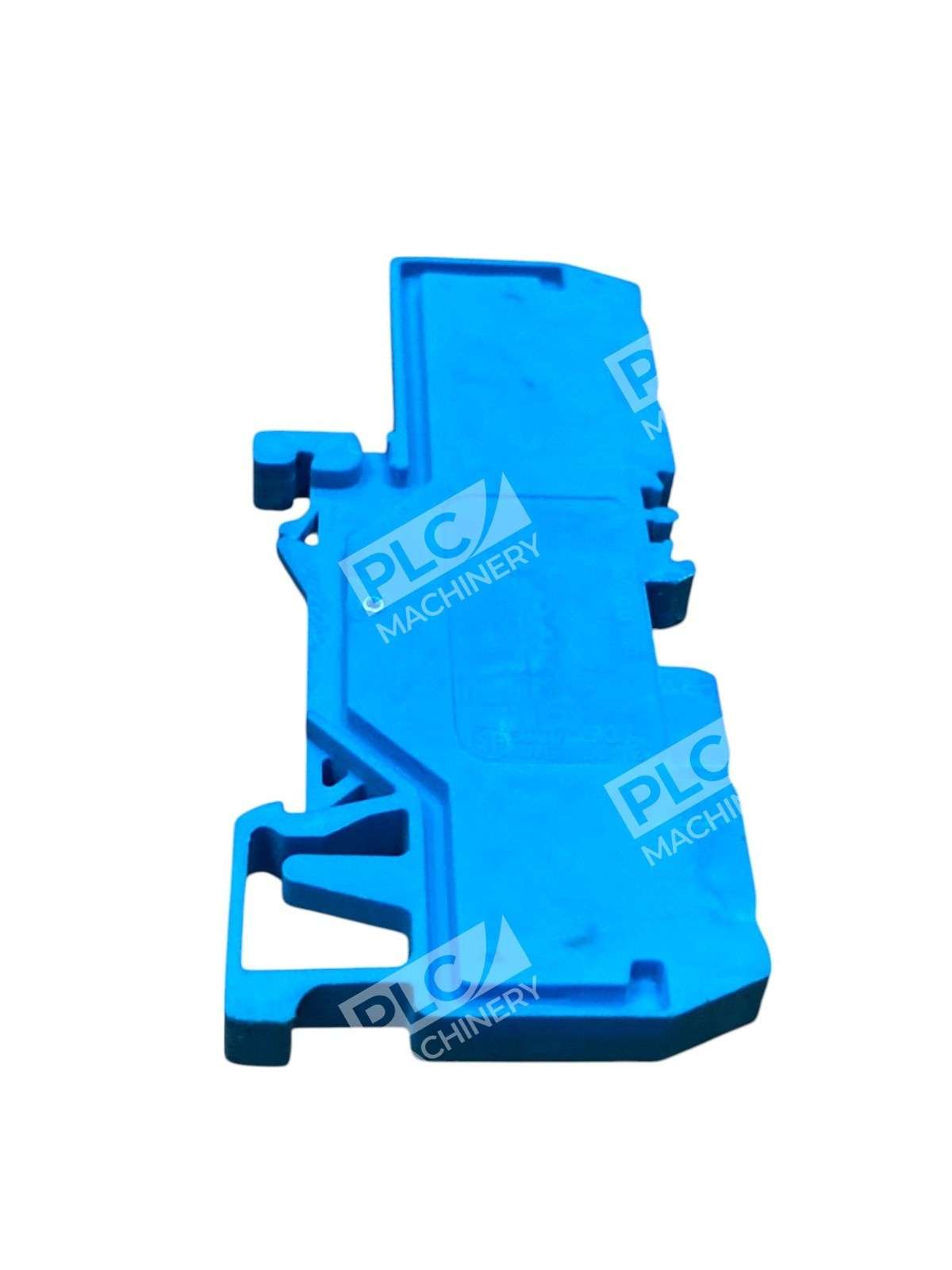

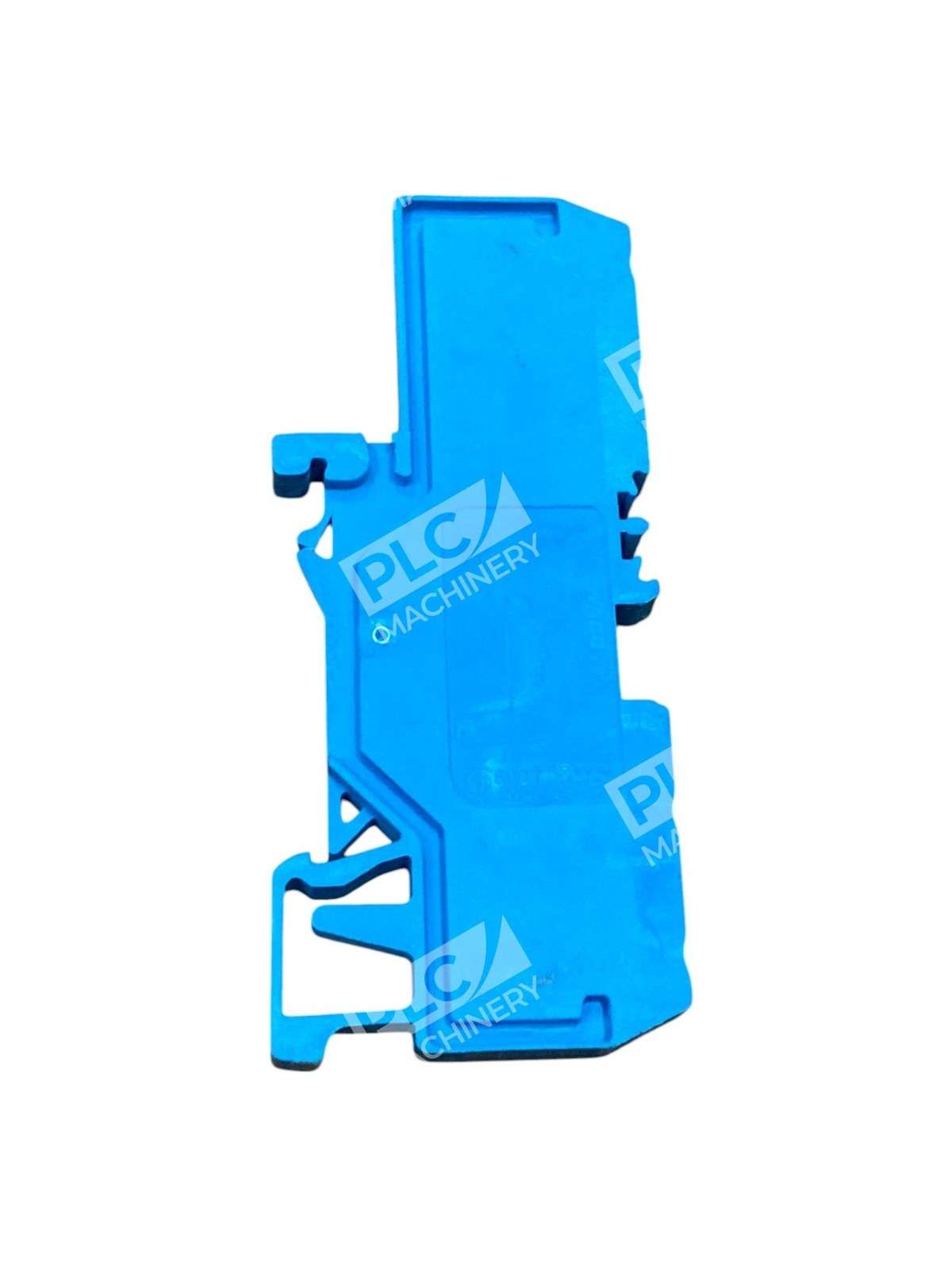

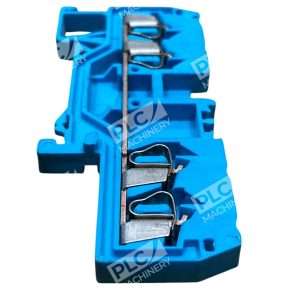

This lot contains 8 new WAGO 280 IEC 60947-7-1 terminal blocks, a proven industrial solution for secure electrical connections. The WAGO 280 series delivers reliable performance in DIN rail mounting applications across control panels, automation systems, and electrical distribution circuits. Rated for 800V operation and built with copper contacts, these blocks meet IEC/EN 60947-7-1 standards and are engineered for dependable service in harsh industrial environments.
Key Features
- Rated voltage: 800V per IEC/EN 60947-7-1 standards
- Conductor area: 2.5mm², compatible with 28–12 AWG wire sizes
- Copper contact material for superior conductivity and corrosion resistance
- DIN rail mountable for efficient panel integration
- Gray insulating material (PA 6.6 V0) for flame retardancy and chemical resistance
- Front entry wiring design for accessible installation and maintenance
Technical Specifications
| Model | WAGO 280 IEC 60947-7-1 |
| Rated Voltage | 800V AC |
| Rated Current | 20–24A (per block) |
| Conductor Area | 2.5mm² |
| Wire Size (AWG) | 28–12 AWG |
| Contact Material | Copper |
| Insulating Material | PA 6.6 V0 (flame retardant) |
| Wiring Method | Clamp / Front entry |
| Mounting Type | DIN rail |
| Certification | IEC/EN 60947-7-1, UL, KEMA, ABS approved |
| Operating Temperature | –25°C to +70°C |
| Quantity per Lot | 8 units |
| Country of Origin | Germany |
Typical Applications
- Control panel terminal strips and distribution boards
- PLC and automation system wiring interfaces
- Industrial electrical equipment and switchgear
- Machine tool control circuits
- Building management system (BMS) connections
- AC/DC power distribution in manufacturing facilities
Compatibility & Replacements
Compatible With
- Standard DIN rail systems (35mm rail per EN 60715)
- Industrial control panels and enclosures
- AC/DC power supply systems rated 800V or lower
- Multi-conductor wire bundles and harnesses in the 28–12 AWG range
- Copper and tinned copper wire conductor types
Replaces / Drop-In Replacement For
- WAGO 280-641 (3-position terminal block, 2.5mm²)
- Weidmüller and Phoenix Contact equivalents with same voltage/conductor ratings
- Legacy screw-terminal connection blocks requiring 800V, 2.5mm² capacity
Works With
- DIN rail mounting systems and accessories
- End plates and terminal block jumpers (WAGO 281 series)
- IEC/EN 60947-7-1 compliant industrial automation ecosystems
- Standard crimped ferrule terminals and wire insulation strippers
