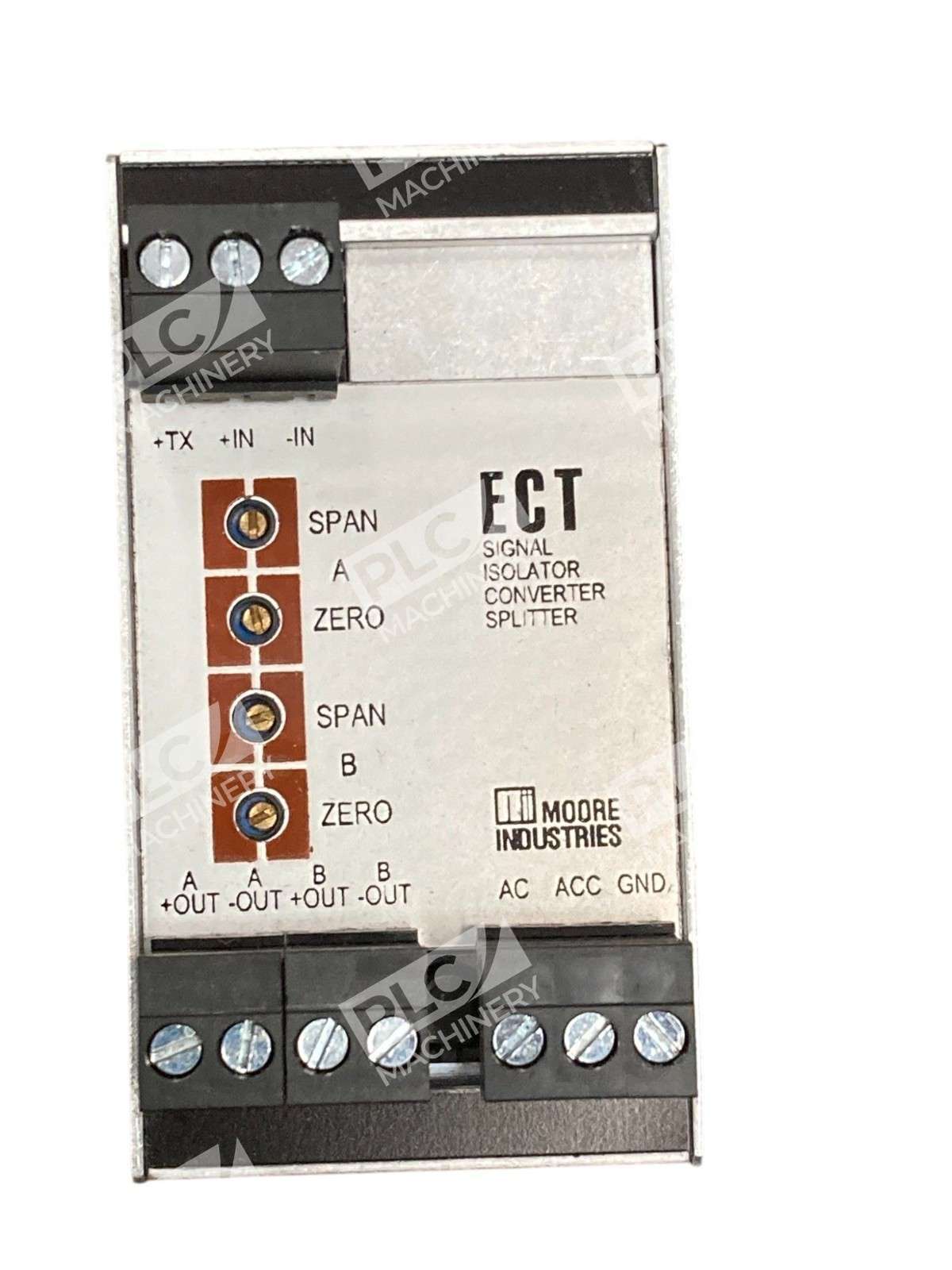

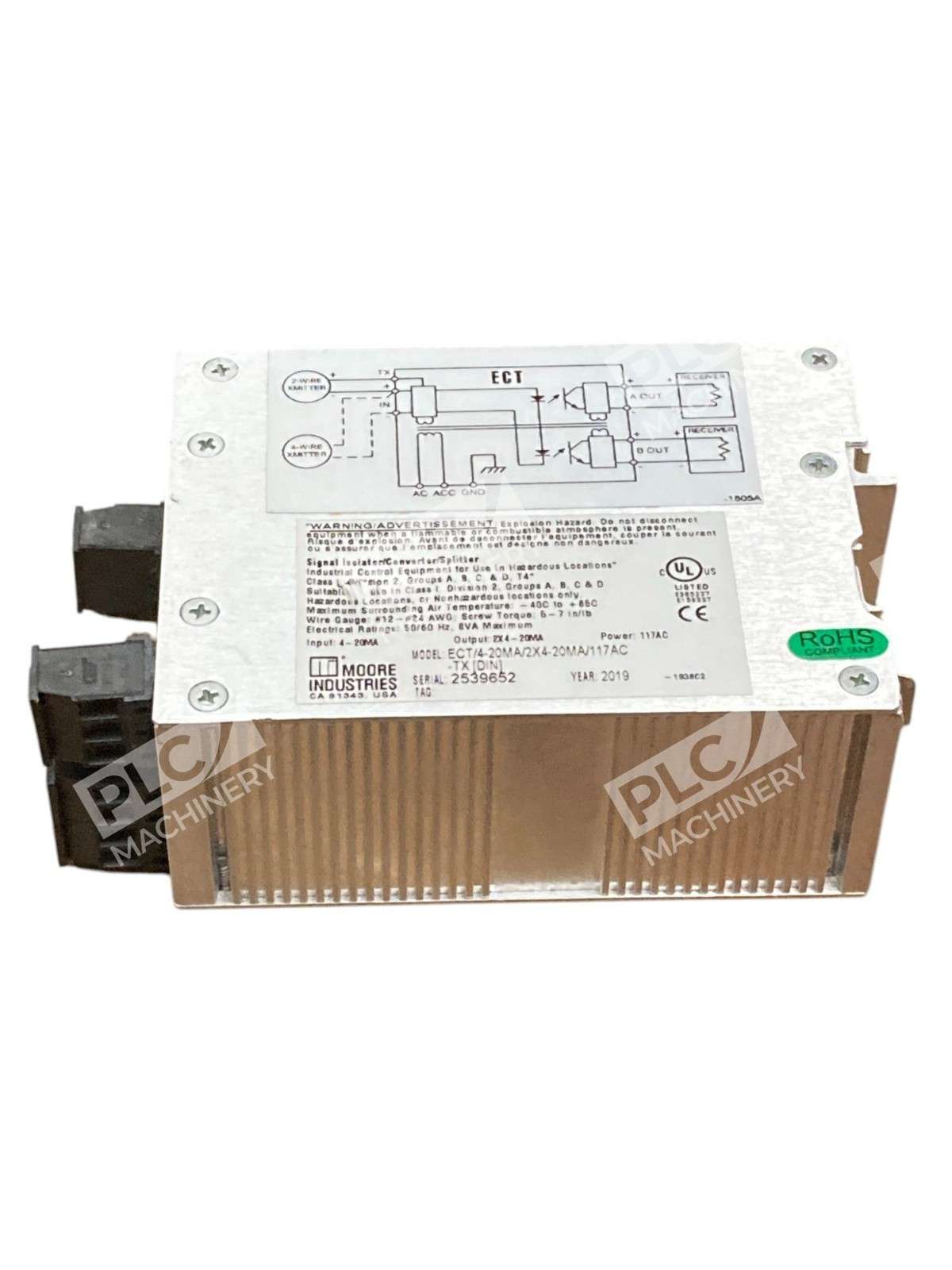

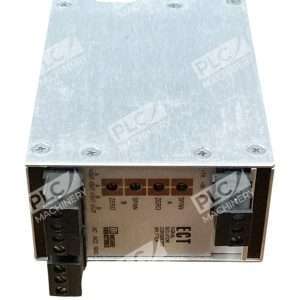

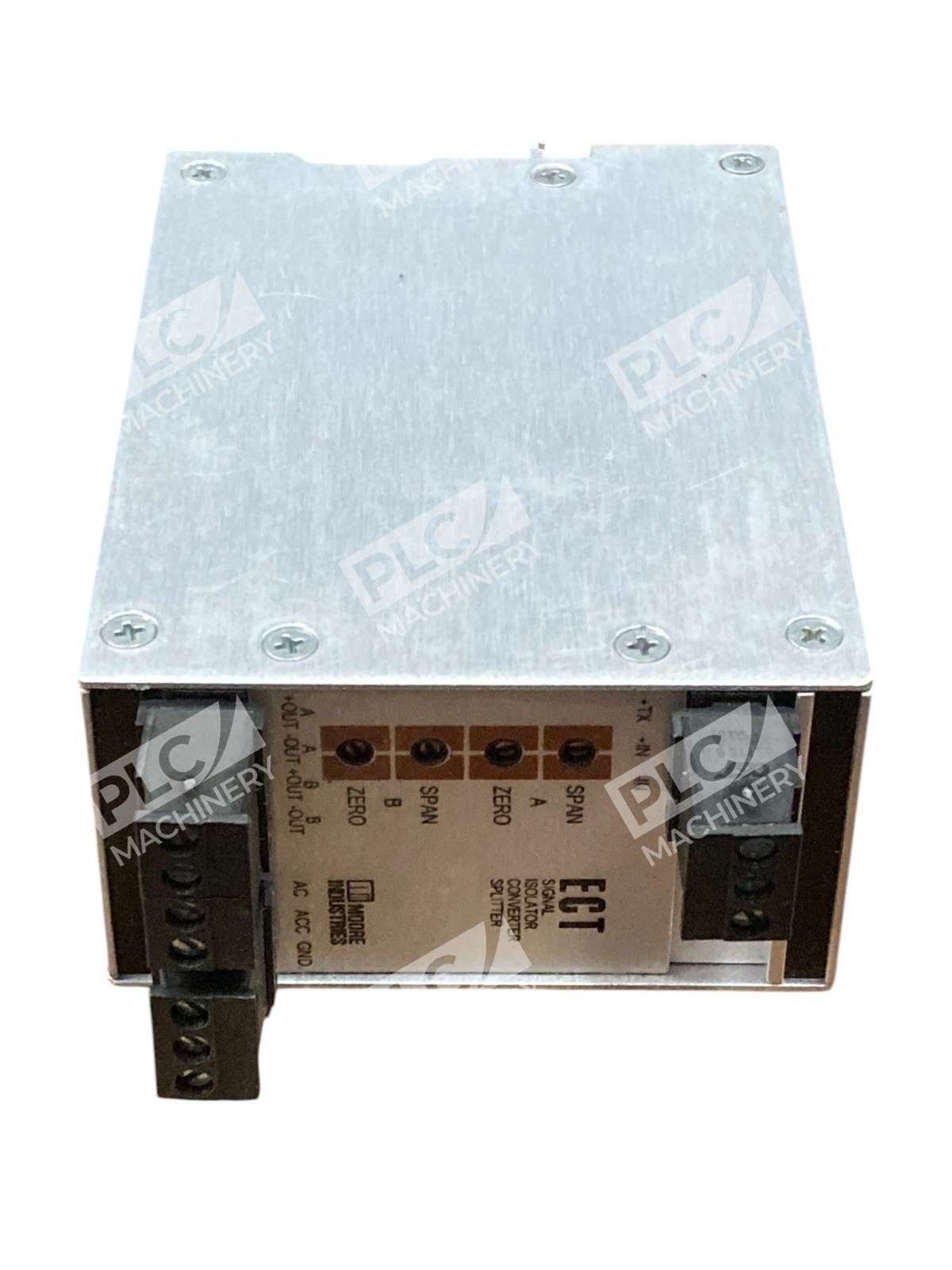

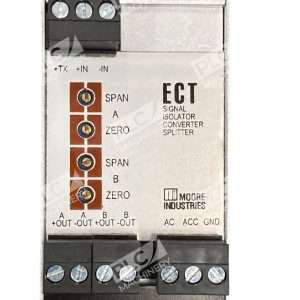

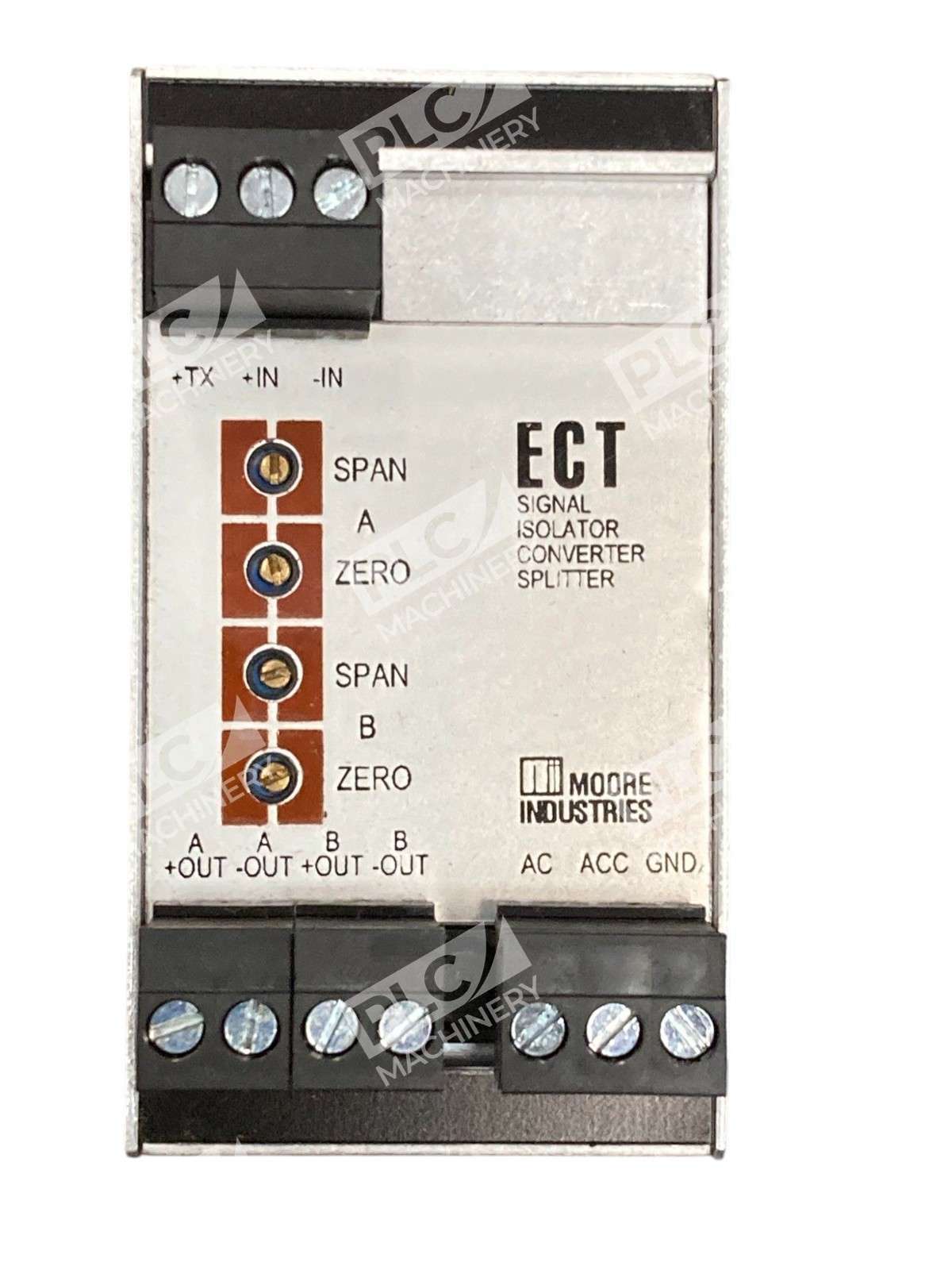

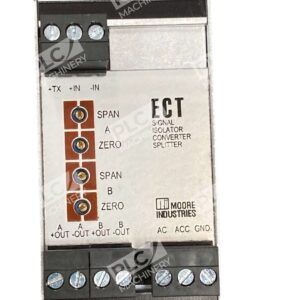

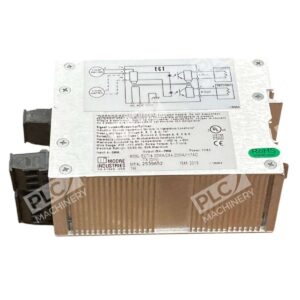

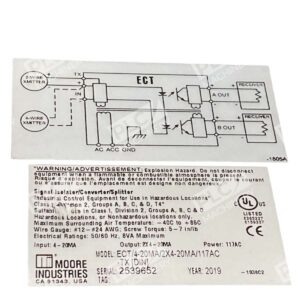

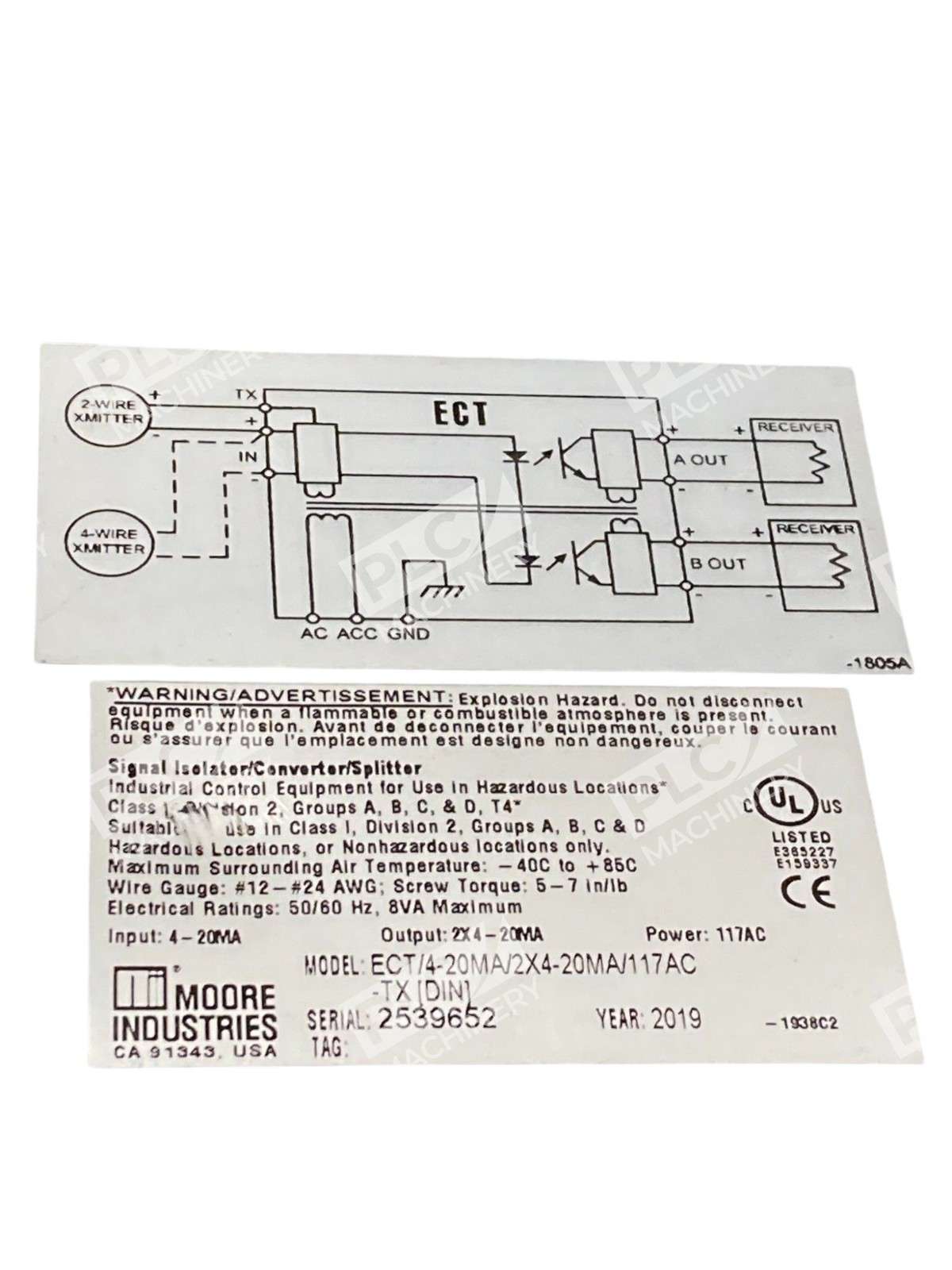

Moore Industries ECT/4-20MA/2X4-20MA/117AC-TX [DIN] Signal Isolator/Converter/Sp

Overview

The Moore Industries ECT/4-20MA/2X4-20MA/117AC-TX [DIN] is a 4-wire signal isolator, converter, and splitter engineered for reliable signal conditioning in industrial automation and process control applications. This unit accepts a single 4-20mA analog input and delivers two isolated 4-20mA outputs, each with a 600-ohm output impedance. The built-in 24V transmitter excitation option (-TX) enables direct connection to 2-wire transmitters without external power supplies. Mounted in a compact 45mm DIN-rail housing, this isolator provides galvanic isolation, signal conditioning, and simultaneous multi-output distribution in a single, space-efficient module.

Key Features

• Single 4-20mA input with dual isolated 4-20mA outputs
• Output A: passive (externally powered); Output B: active (sourced by ECT)
• 24V transmitter excitation for powering 2-wire field transmitters
• 117AC ±10% power supply (5W max), 50/60Hz
• 45mm wide DIN-rail housing (32mm G-type and 35mm Top Hat compatible)
• Fixed input/output ratio with no field reconfiguration required

Technical Specifications

• Input Range: 4-20mA (into 50 ohms)
• Output Range: 2×4-20mA (into 600 ohms)
• Power Supply: 117VAC ±10%, 50/60Hz, 5W maximum
• Output Stage: Output A (passive, externally powered); Output B (active, ECT sourced)
• Transmitter Excitation: 24V (-TX option included)

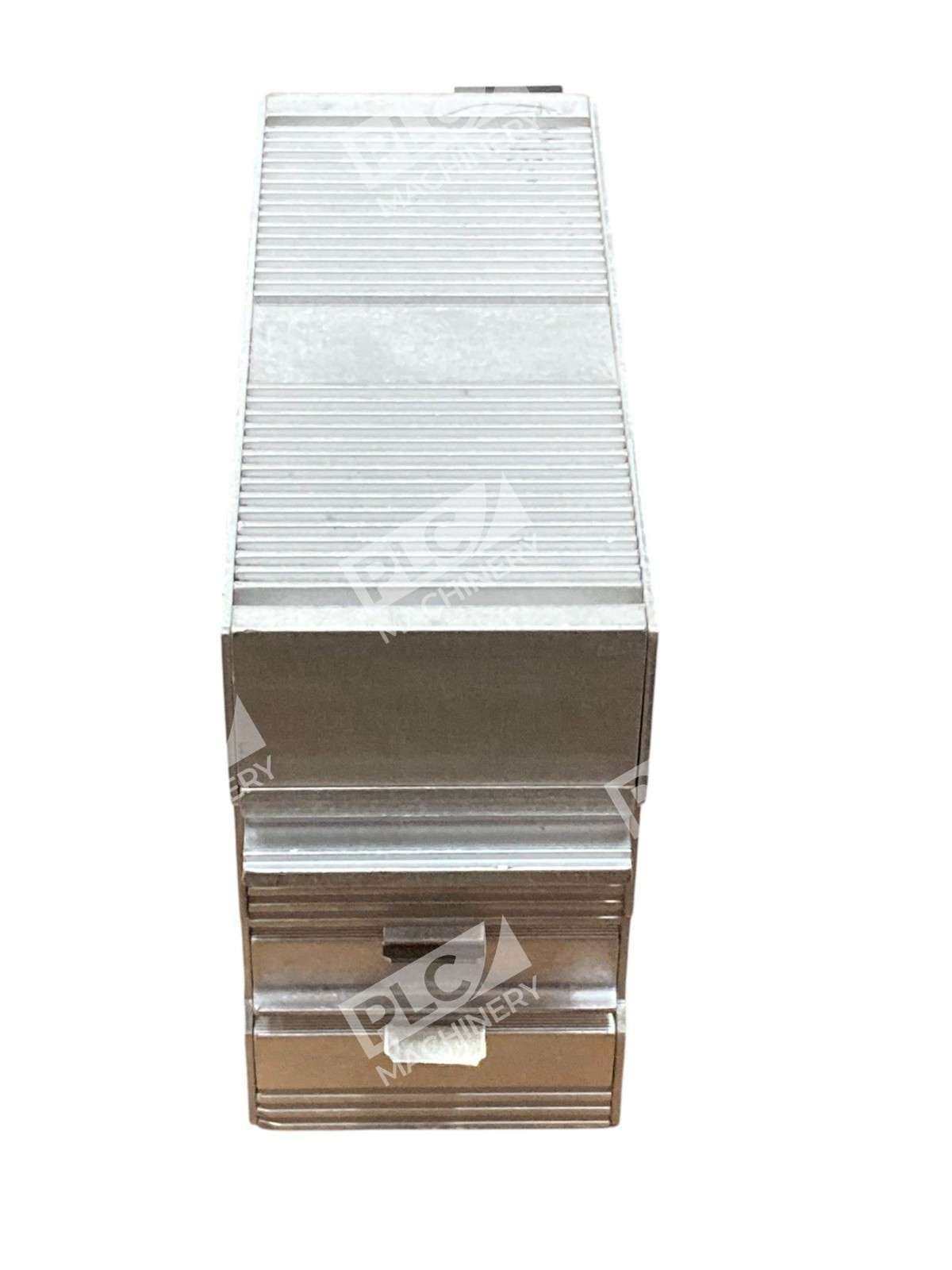

• Housing: 45mm DIN-rail, thermoplastic, universal G-type and Top Hat rail compatible

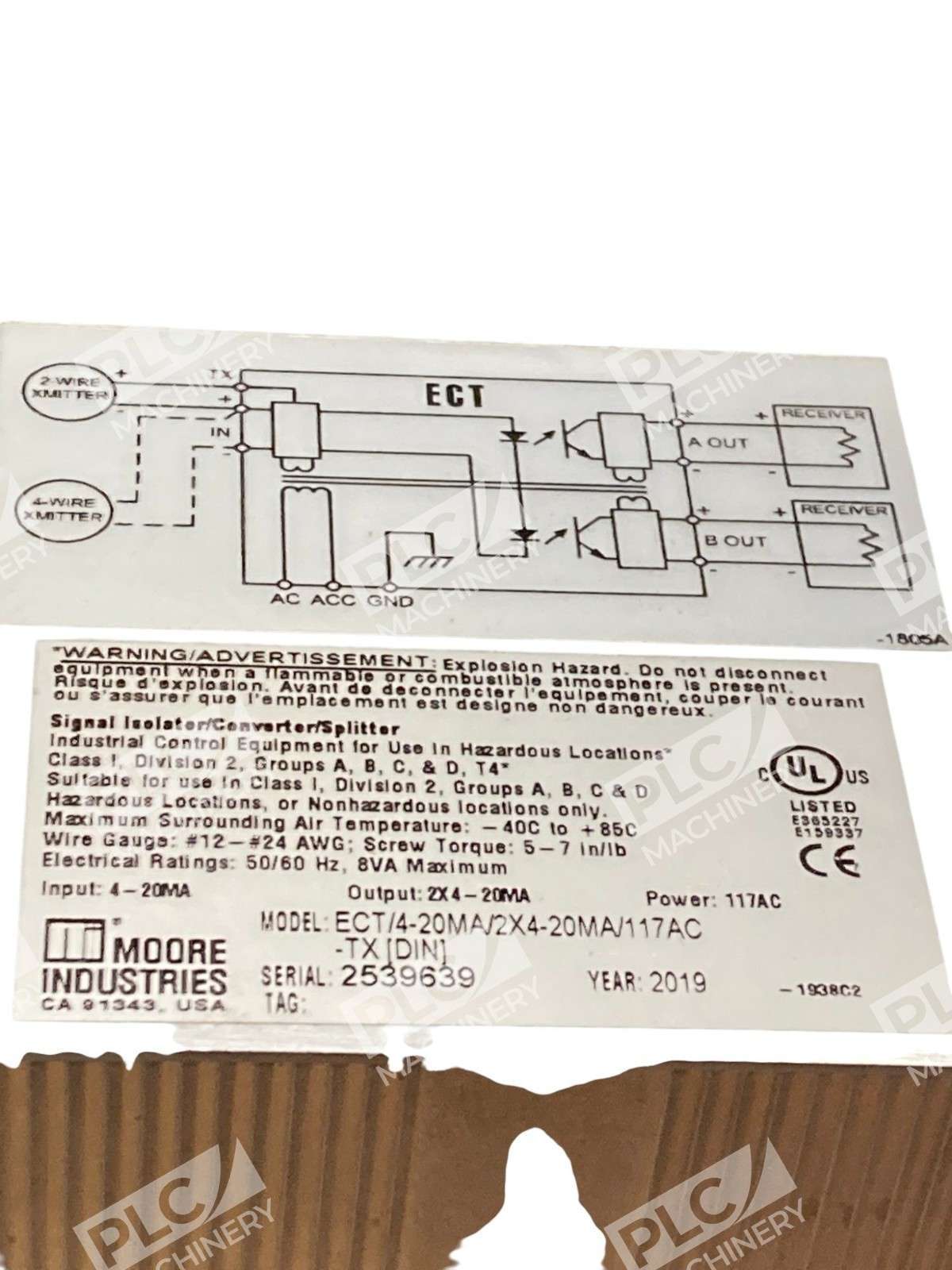

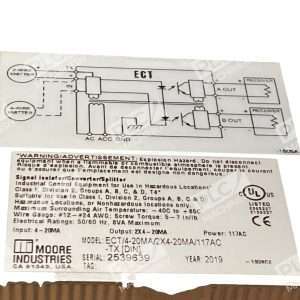

• Certifications: UL Approved (Non-Incendive/Div. 2, Zone 2); RoHS Compliant

Typical Applications

• 4-20mA signal isolation and splitting across multiple PLC/DCS analog input modules
• Powered 2-wire transmitter connection without separate 24V supply
• Industrial process control cabinets requiring galvanic isolation
• SCADA systems with legacy 4-20mA field devices
• Water treatment, chemical processing, and power generation instrumentation

Compatibility & Replacements

Compatible With

• Any 4-20mA analog input module (Allen-Bradley CompactLogix, ControlLogix, SLC-500; Siemens S7-200/300/400/1200; Mitsubishi FX/Q series; Omron CJ/CP series; Schneider M241/M251)
• 2-wire 4-20mA transmitters and sensors
• HART-enabled field instruments (signal pass-through capable with compatible variants)
• 32mm G-type (EN50035) and 35mm Top Hat (EN50022) DIN rails
• Industrial control systems requiring signal isolation and splitter functionality

Replaces / Drop-In Replacement For

• Other Moore Industries ECT models with matching input/output specifications
• Generic 4-20mA isolators/splitters with identical pin configurations
• Verify exact wiring compatibility with your control system before installation

Works With

• 4-20mA analog input standards (ISA RP1.2)
• DIN-rail mounted control systems and enclosures
• RS-232, RS-485, and Modbus networks (with compatible gateway/converter products)
• Industrial automation software including TIA Portal, Studio 5000, GX Works, and Automation Studio
