Terminal Block 3174 – Insulated Electrical Connector / Terminal Strip 24 Pole

Overview

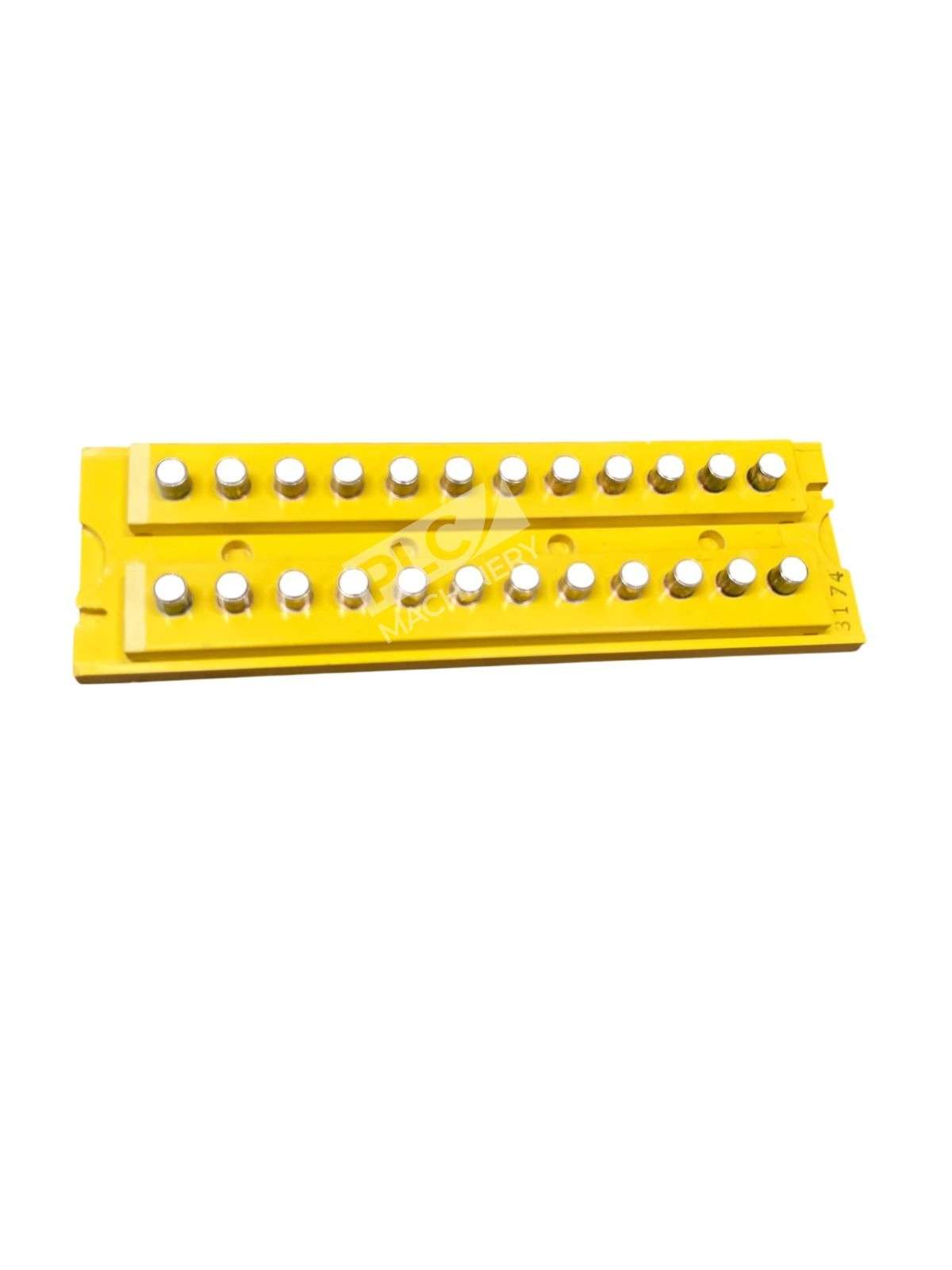

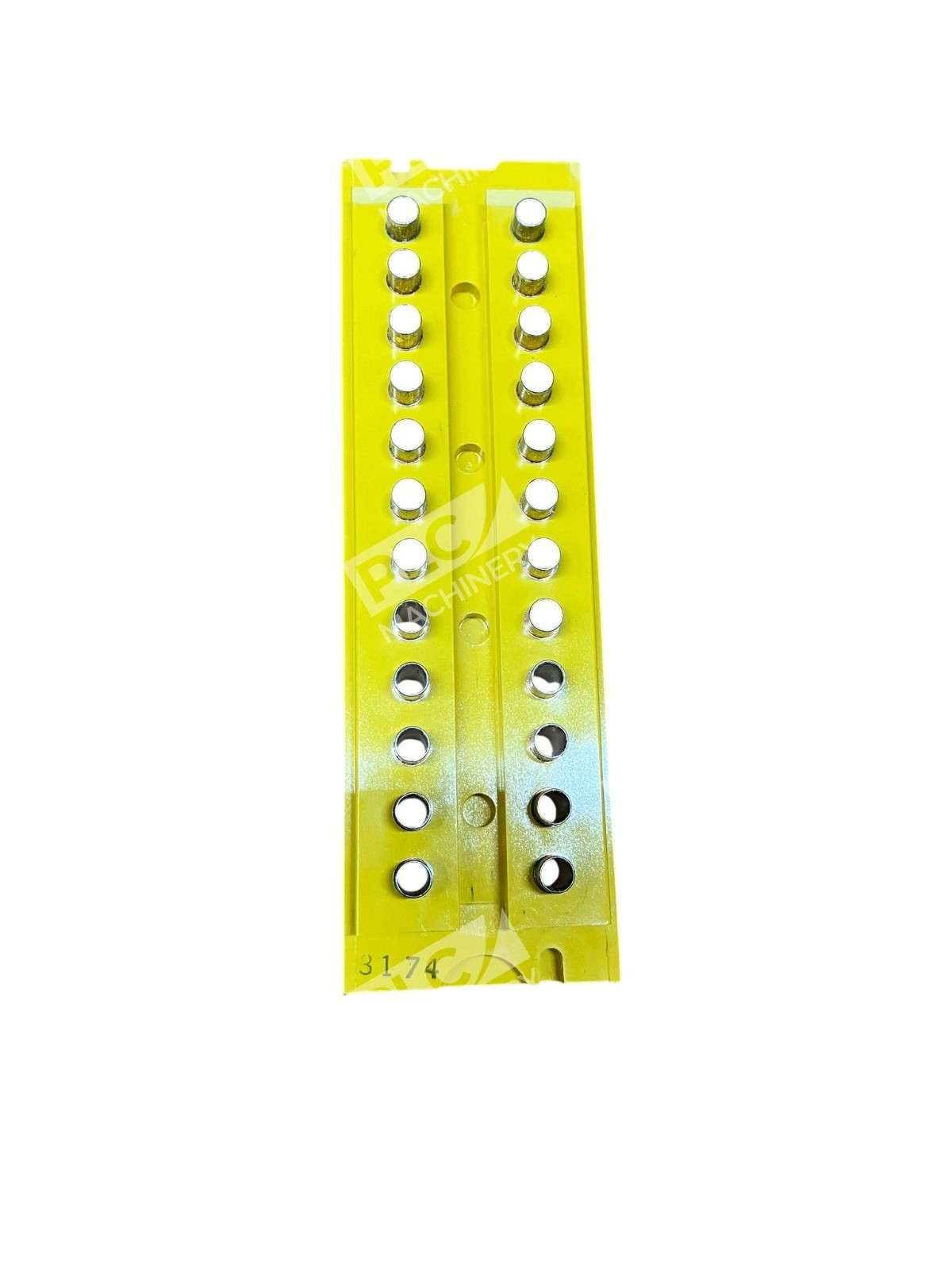

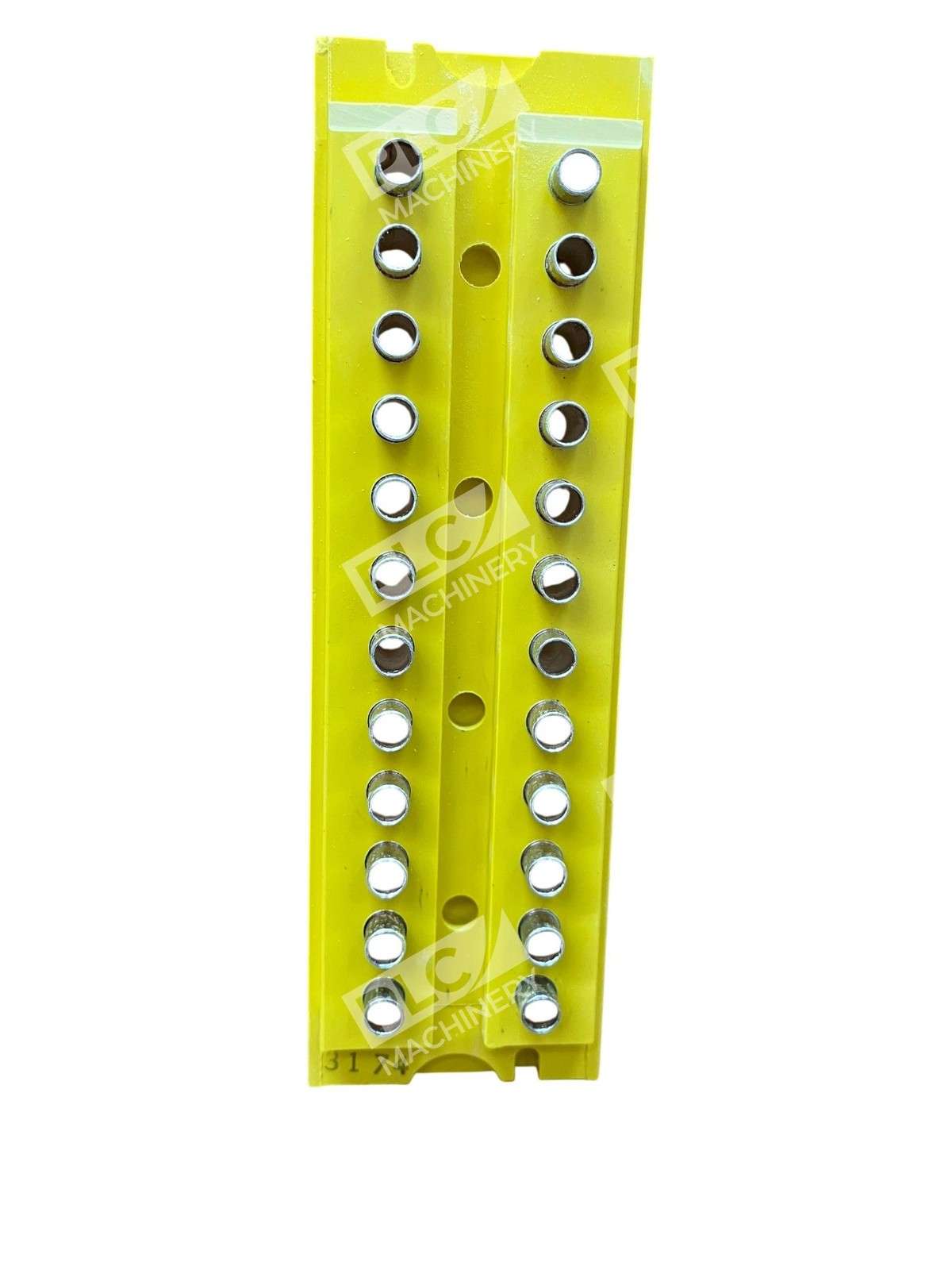

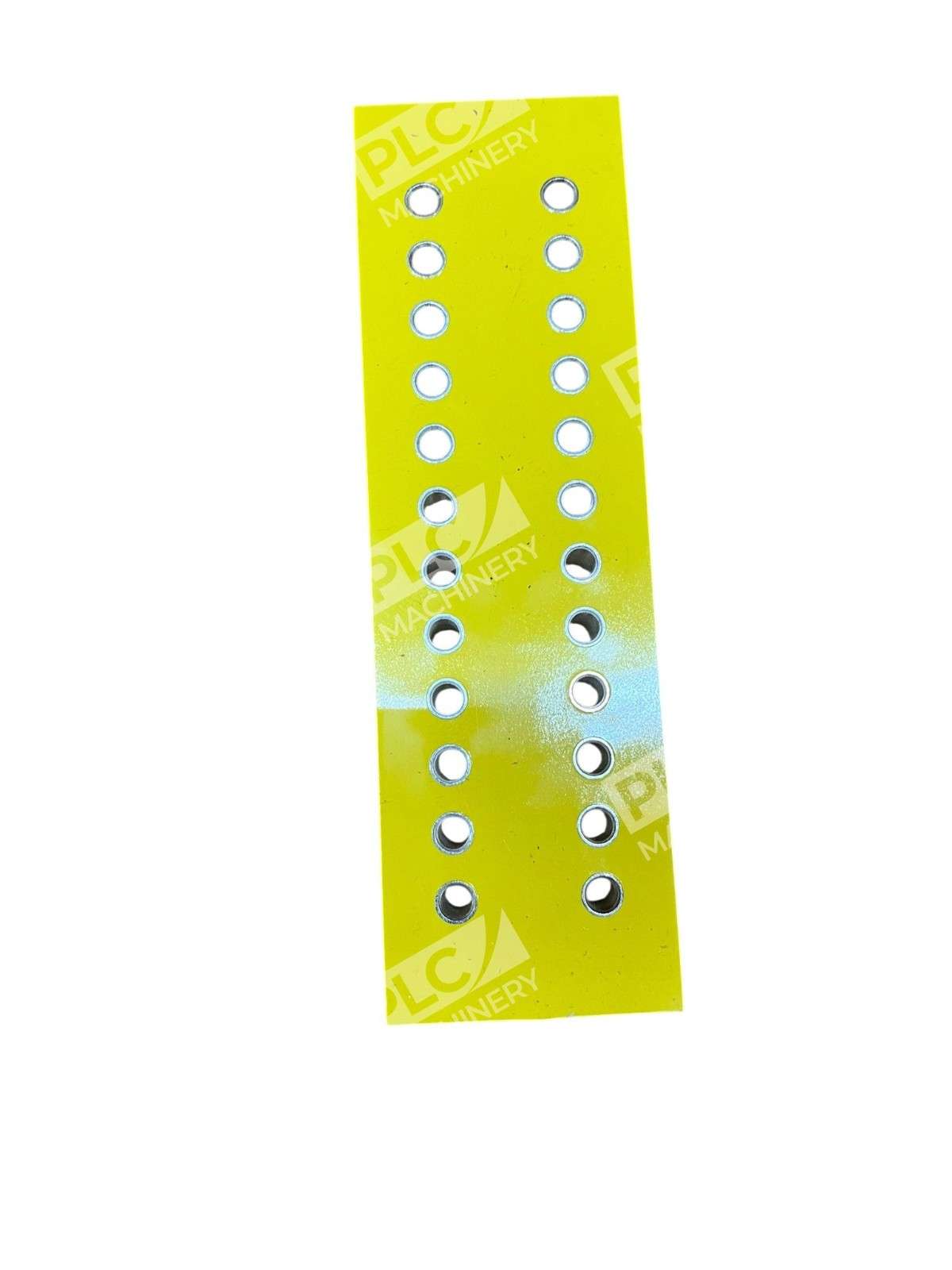

The 3174 terminal block is an insulated electrical connector and terminal strip engineered for dependable wire management in industrial control panels, equipment enclosures, and commercial electrical systems. The 24-pole configuration accommodates multiple circuit connections in a single compact unit, with insulated design that safeguards against cross-circuit contact and electrical hazards.

Key Features

• 24-pole configuration for simultaneous multi-wire connections
• Insulated design prevents short circuits and accidental contact
• Compact form factor for space-constrained panel layouts
• Durable construction suitable for industrial environments
• Professional-grade terminal strip for secure, organized wire routing

Technical Specifications

The following specifications apply to the 3174 terminal block based on standard insulated terminal strip configurations:

• Pole Count: 24
• Terminal Type: Screw clamp or push-in (verify with supplier for exact type)
• Insulation Material: Phenolic or polycarbonate (typical for industrial terminal strips)
• Wire Gauge Capacity: Typically 14–10 AWG (verify specific unit for exact range)
• Operating Temperature: Industrial standard -20°C to +70°C (verify for specific variant)
• Mounting: DIN rail clip-on or screw-down (confirm with product documentation)
• Certifications: UL and/or CE (pending verification)

Typical Applications

• Industrial control panel wiring and distribution
• PLC I/O terminal connection
• Sensor and actuator signal routing
• Motor control center wiring
• Data acquisition and instrumentation systems
• Commercial building automation and HVAC controls

Compatibility & Replacements

The 3174 terminal block is a generic, unbranded product. Verify compatibility with your specific control system and wiring requirements before ordering.

Compatible With

• Standard industrial control panels and enclosures
• PLC and motion control systems requiring centralized terminal distribution
• 24 VDC and 120/240 VAC industrial circuits
• DIN rail–mounted and panel-mounted installations (verify mounting type)

Replaces / Drop-In Replacement For

As an unbranded product, direct replacement equivalency cannot be confirmed without manufacturer specifications. Contact your system integrator or controls engineer to verify compatibility with existing terminal strip models in your system. Common replacement candidates may include industry-standard 24-pole terminal blocks from manufacturers such as Phoenix Contact, Weidmüller, ABB, or Schneider Electric—verify specifications before substituting.

Works With

• DIN rail mounting systems (if clip-on design)
• Screw terminal and push-in wire entry systems
• Standard industrial enclosures and control panels
• Both analog and digital signal routing applications
