Overview

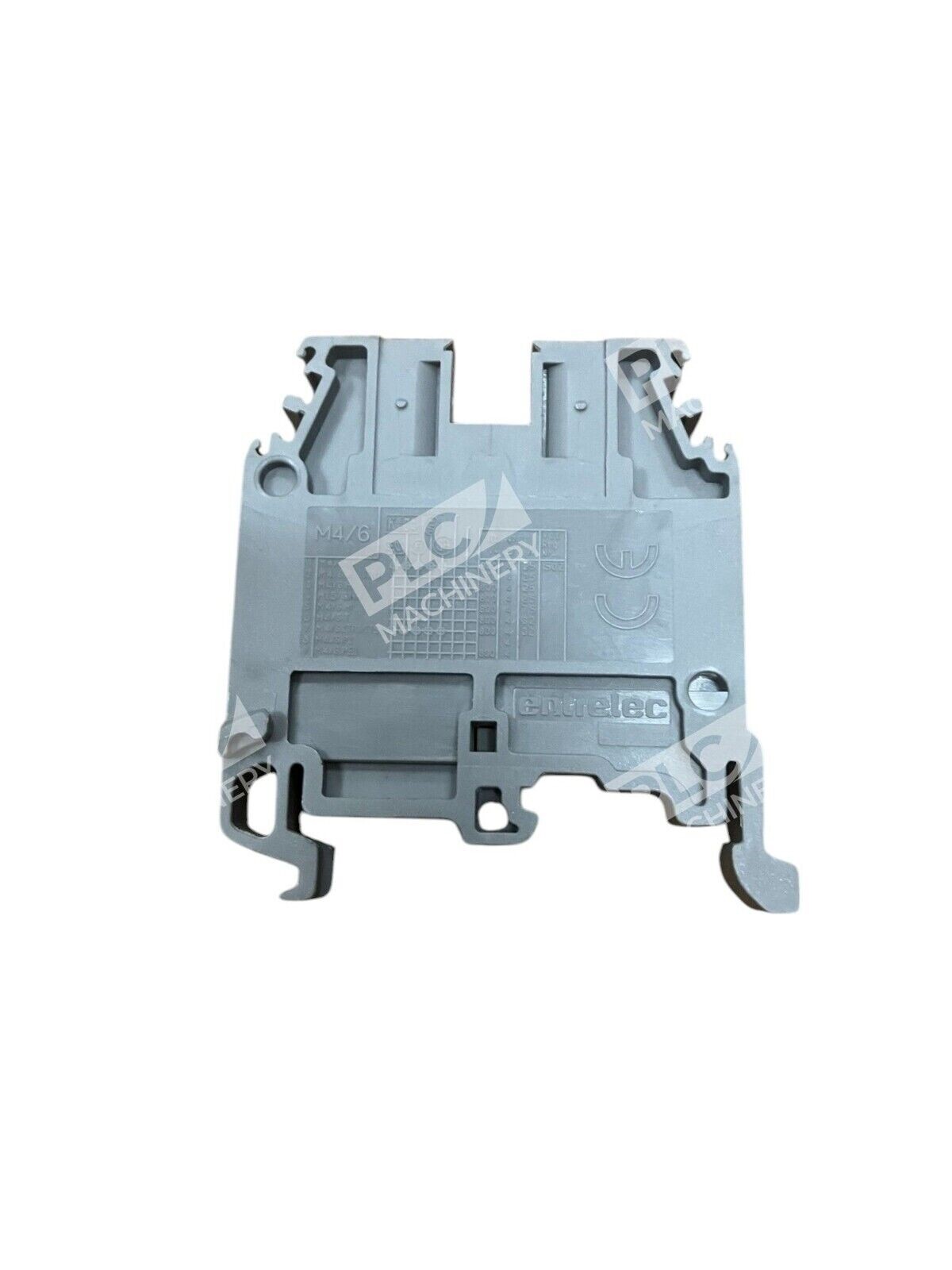

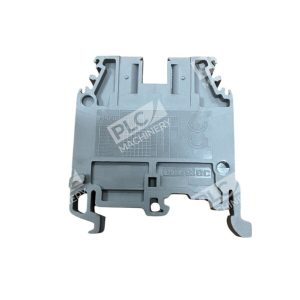

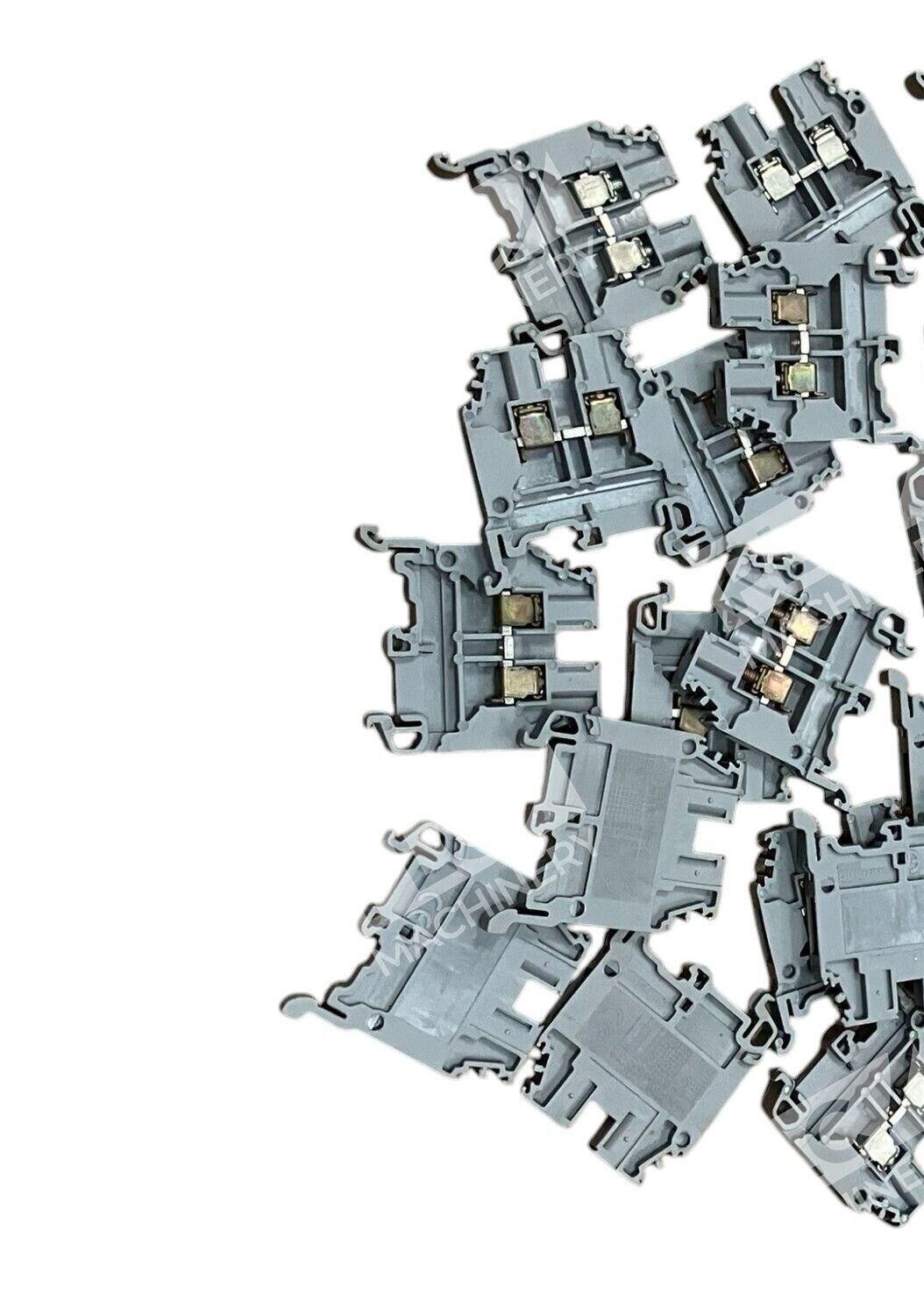

The Entrelec M4/6 5116 is a standard screw clamp feed-through terminal block designed for secure, modular electrical connections in industrial and control panel applications. This lot of 16 units features a gray polyamide body with a 6mm pitch spacing and is rated for 30A at 600VAC, making it suitable for a wide range of wiring and distribution tasks.
Key Features
- Feed-through design allows current to flow through the terminal for daisy-chain configurations
- Screw clamp terminal mechanism ensures reliable wire retention without crimping
- 6mm pitch spacing provides compact DIN rail installation
- Accepts 22–10AWG (American Wire Gauge) solid or stranded wire
- Gray polyamide construction rated for IP20/NEMA 1 environments
- UL, CSA, and CE certified for North American and European compliance
Technical Specifications
- Part Number: M4/6-5116 (TE Internal: 1SNA115116R0700)
- Voltage Rating: 600VAC (also rated 800VAC per some sources)
- Current Rating: 30A UL / 25A CSA
- Wire Gauge: 22–10AWG
- Pitch Spacing: 6mm (0.236 inches)
- Terminal Type: Screw clamp, feed-through
- Number of Positions: 2
- Mounting: DIN rail (35mm rail compatible)
- Color: Gray
- Certifications: UL E54800, CSA, CE marked
- Quantity per Lot: 16 units
Typical Applications
- Industrial control panel wiring and distribution
- Motor starter and relay connections
- Power supply and load switching circuits
- Equipment interconnect and signal routing
- Standard voltage AC/DC distribution up to 600V
Compatibility & Replacements
Compatible With
- Standard 35mm DIN rail systems
- Industrial electrical panel enclosures (NEMA 1, IP20 rated)
- AC and DC circuits up to 600V
- Solid and stranded wire connections (22–10AWG)
Replaces / Drop-In Replacement For
- ENTRELEC M4/6 series variants in red or other colors
- ABB 1SNA115116R0700 (same unit; ENTRELEC was acquired by ABB)
- Legacy M4/6 feed-through blocks of equivalent 600V/30A rating
Works With
- DIN rail mounted control circuit components (contactors, relays, overload protection)
- Standard industrial wiring practices (NFPA, IEC 60947-7-1)
- AC and DC supply systems, control circuits, and load distribution
- Compatible with industry-standard screw clamp terminal strip accessories and jumpers
