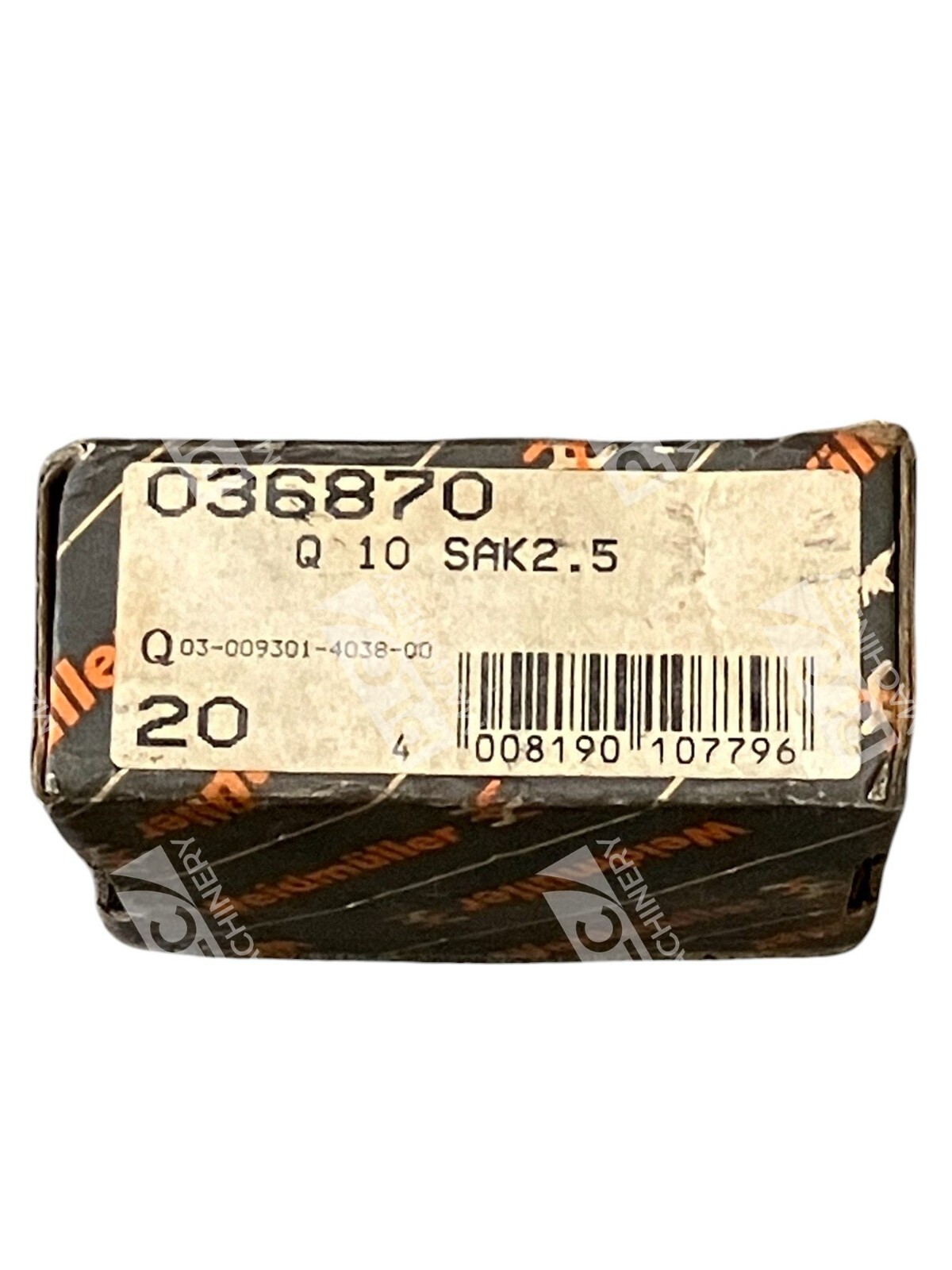

Weidmuller Q10SAK2.5 Q03-009301-4038-00 Jumpers 036870 (Box of 20)

Overview

The Weidmüller 036870 Q10 SAK2.5 jumper bar is a pre-assembled 10-pole cross connector engineered for rapid, secure cross-connection on Weidmüller SAK2.5 series terminal blocks. This 6mm pitch jumper bar simplifies panel assembly by eliminating individual wire jumps, reducing installation time and improving connection reliability in industrial control panels, PLC systems, and DIN rail enclosures.

Key Features

• 10-pole configuration with 6mm cross-connector pitch for SAK2.5 terminals
• Pre-assembled design fits directly into terminal block cross-connection slots
• Direct mounting via screw tightening — no additional hardware required
• Copper alloy construction ensures low-resistance, durable connections
• Grey polymeric housing rated for -50°C to +100°C operating temperature
• UL listed, CSA certified, and NEMKO/SEV/KEMA/DEMKO approved
• RoHS compliant for environmental compliance

Technical Specifications

• Manufacturer Part Number: 036870 (0368700000)
• Configuration: 10-pole jumper bar
• Series: Q 10 SAK2.5
• Pitch: 6mm
• Material: Copper alloy bus bar with polyamide 6.6 housing
• Operating Temperature: -50°C to +100°C
• Current Rating: 24A (per SAK2.5 series specification)
• Mounting Method: Direct screw mounting
• Colour: Grey
• Certifications: UL listed, CSA certified, NEMKO, SEV, KEMA, DEMKO
• RoHS Compliance: Yes

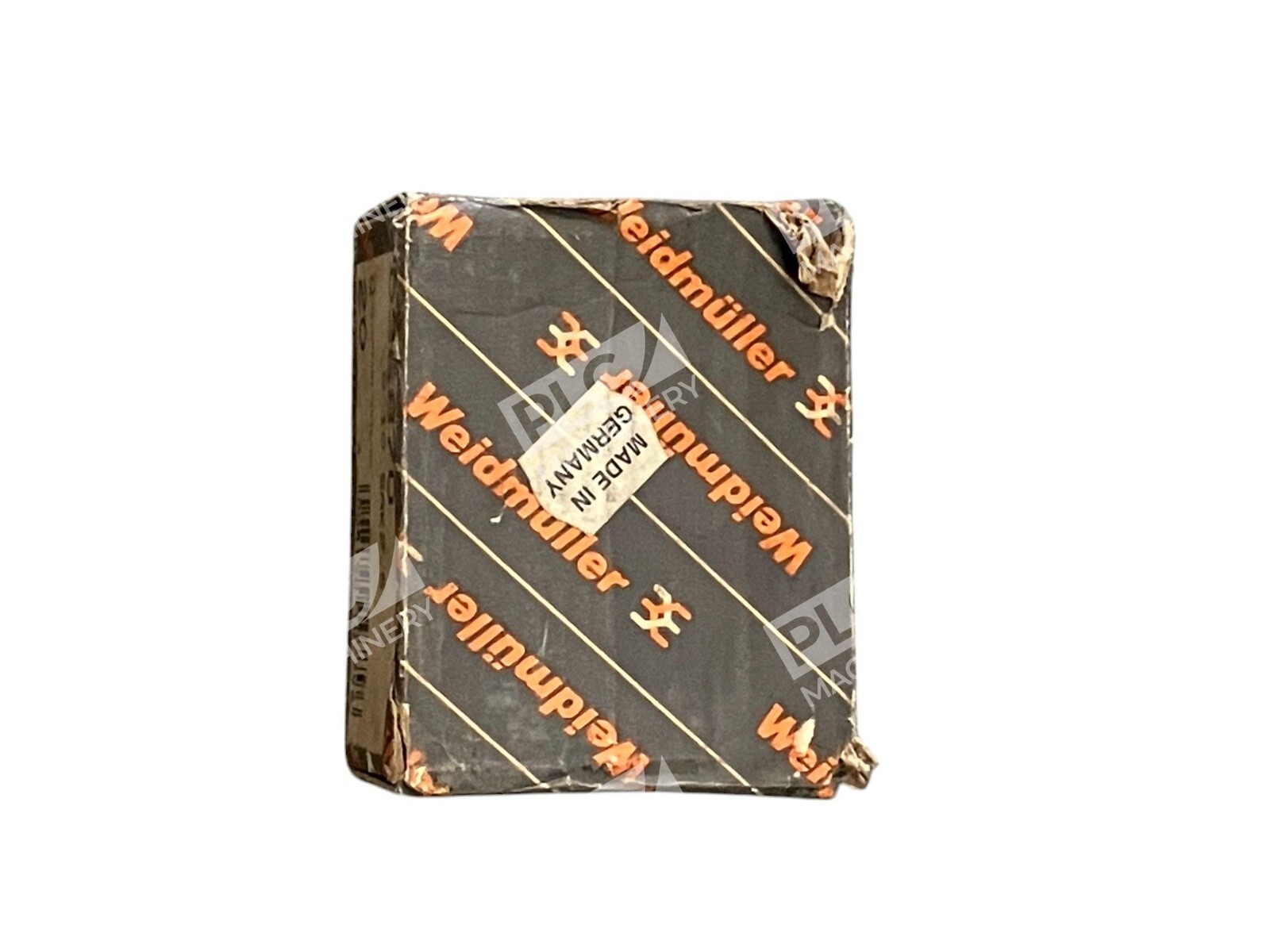

• Packaging: Box of 20 units

Typical Applications

• Industrial control panel cross-connections and common bus distribution
• PLC I/O terminal block configuration and wiring simplification
• DIN rail mounted distribution systems requiring rapid commissioning
• Automation and process control systems with grouped terminal connections
• Manufacturing and machinery control enclosures

Compatibility & Replacements

Compatible With

• Weidmüller SAK2.5 series terminal blocks (2.5mm–16mm conductor sizes)
• DIN rail mounted control systems per EN 50035 rail profile
• Industrial automation panels and control cabinets
• Standard 6mm pitch terminal block layouts

Replaces / Drop-In Replacement For

• Weidmüller 0368700000 (same part, alternative part number format)
• Equivalent 10-pole SAK2.5 jumper bars from original installations

Works With

• SAK2.5 series terminal blocks and cross-connection systems
• DIN rail enclosures and automation control systems
• All Weidmüller SAK series compatible accessories
• Standard industrial terminal block platforms
