Overview

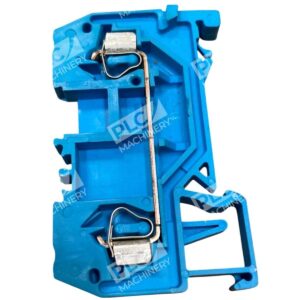

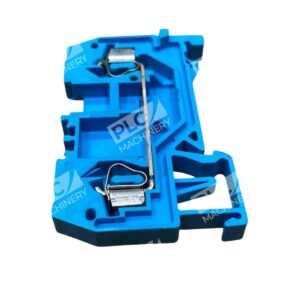

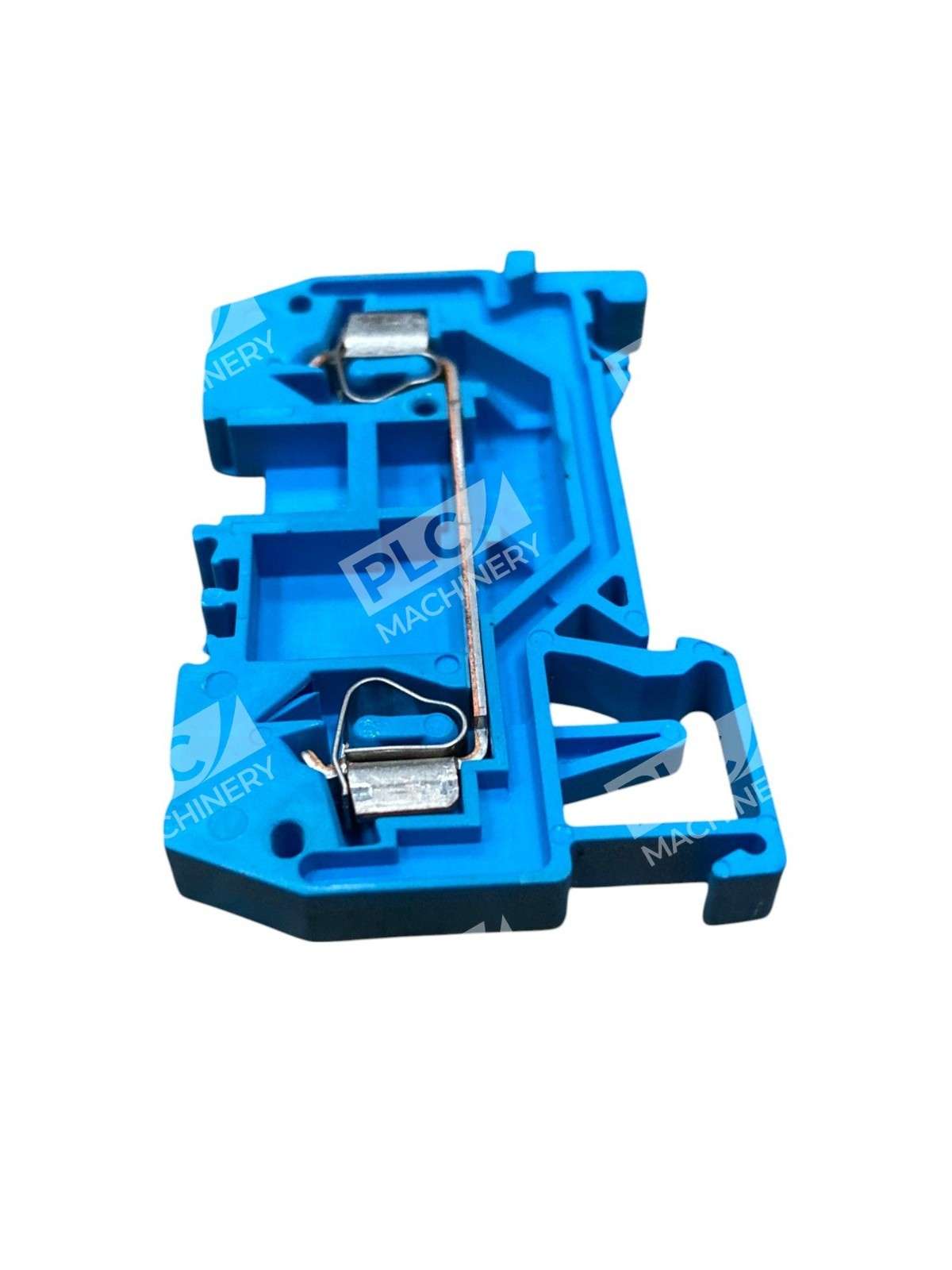

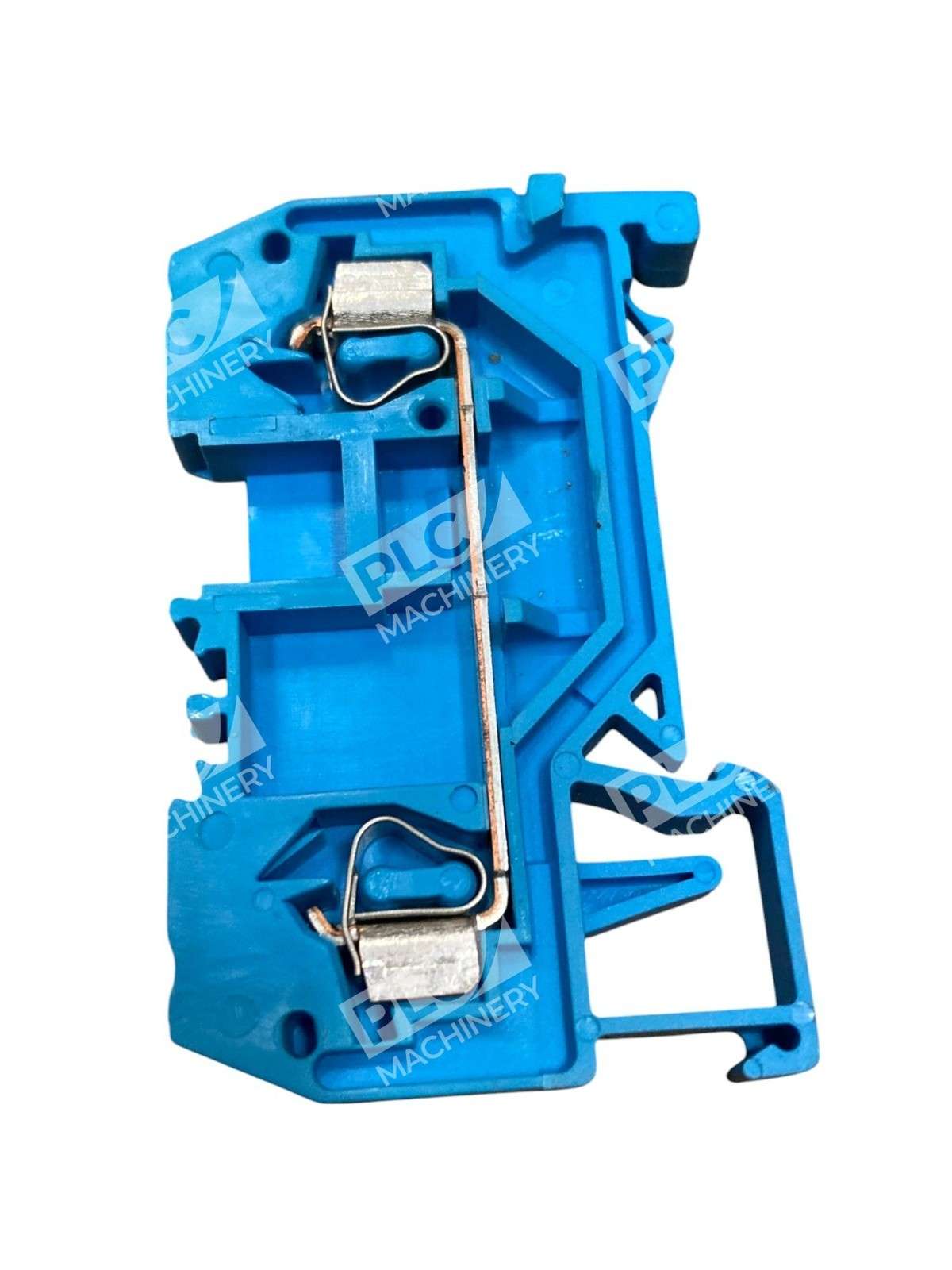

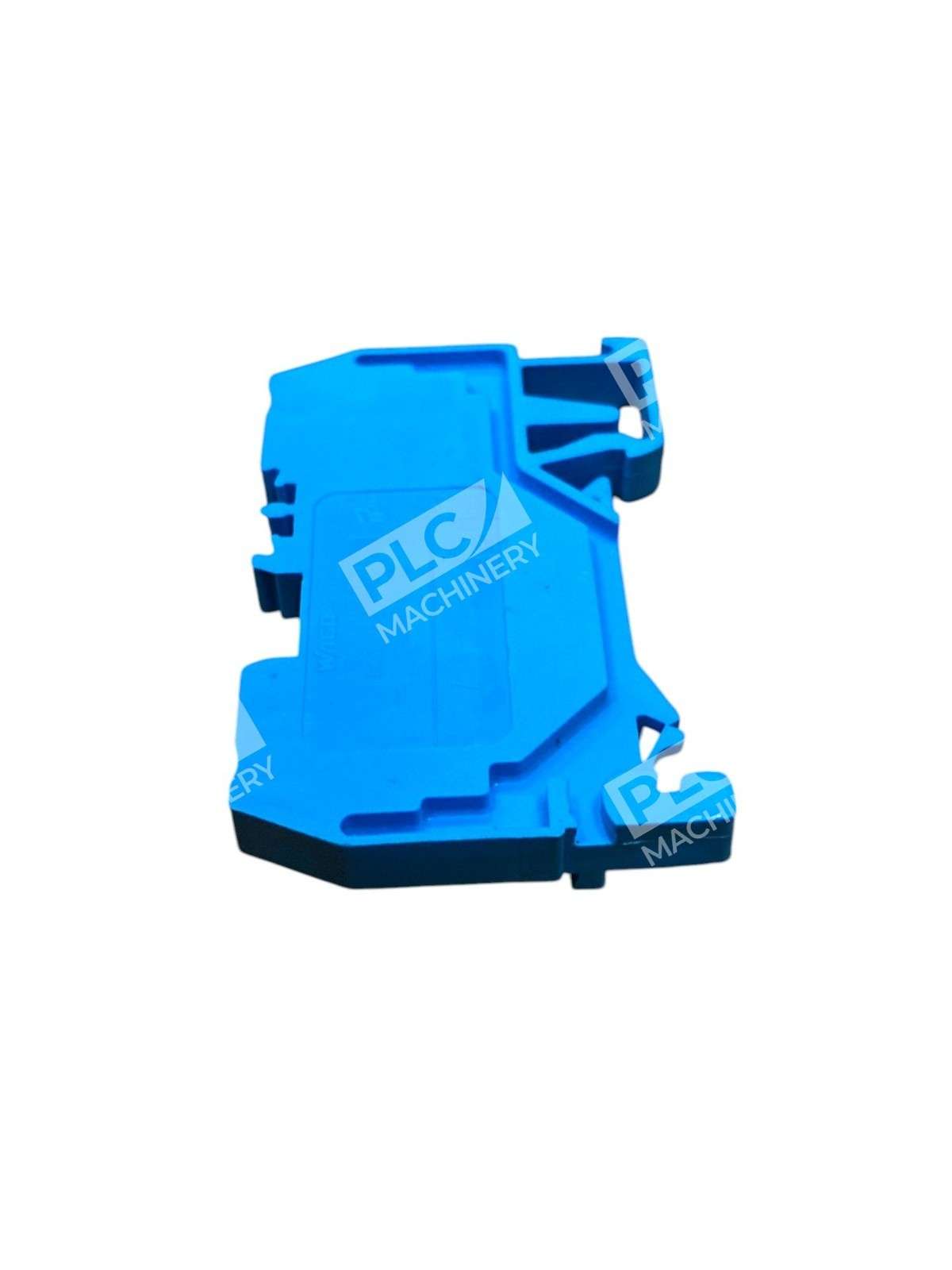

The WAGO EC 60947-7-1 280-series through terminal block is a DIN-rail mount wire connector designed for industrial control and automation applications. This through terminal block meets IEC 60947-7-1 international standards and is rated for 800V operation with 2.5mm² conductor capacity. The unit is manufactured by WAGO, a German leader in electrical connectivity solutions, and is widely used in electrical cabinets, control panels, and distribution systems.
Key Features
- CAGE CLAMP® Technology: Secure, repeatable wire termination without tools; accepts fine stranded or solid conductors from 0.08mm² to 2.5mm² (28 AWG to 12 AWG)
- IEC 60947-7-1 Certified: Meets international standards for low-voltage switchgear and control gear; also certified to EN 60947, UL 1059, and CSA C22.2
- 800V Rated Voltage: Suitable for high-voltage industrial circuits and equipment connections
- DIN-Rail Mount: Compatible with standard 35 x 15 and 35 x 7.5 mm DIN rails for easy installation
- Pass-Through Design: Allows continuous conductor flow for daisy-chain wiring configurations
- Gray Color: Standard industrial appearance with center marking for easy identification
Technical Specifications
- Rated Voltage: 800V AC/DC
- Conductor Cross-Section: 0.08 – 2.5 mm²
- Wire Gauge Range: 28 AWG to 12 AWG
- Rated Current: 24A per contact
- Connection Type: CAGE CLAMP®
- Mounting: DIN-rail 35 x 15 mm and 35 x 7.5 mm
- Number of Positions: Through terminal (2-wire configuration: 1 clamp in + 1 clamp out)
- Material: Polyamide housing (gray)
- Operating Temperature: -40 °C to +80 °C
- Standards Compliance: IEC 60947-7-1, EN 60947, UL 1059, CSA C22.2, GB/T 13140.3
- Marine Approvals: ABS, Bureau Veritas (BV), DNV GL, Lloyd’s Register (LR)
