Overview

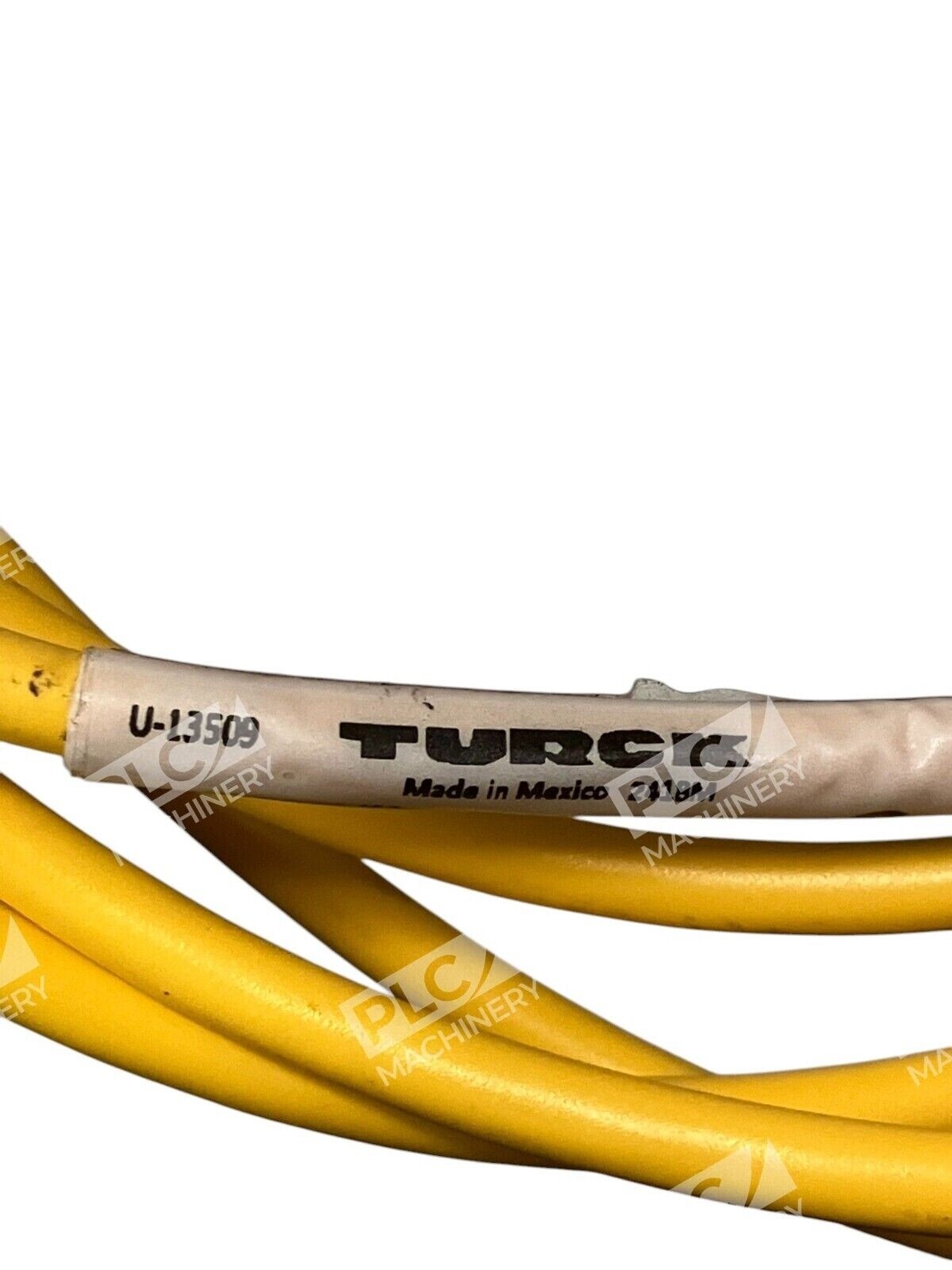

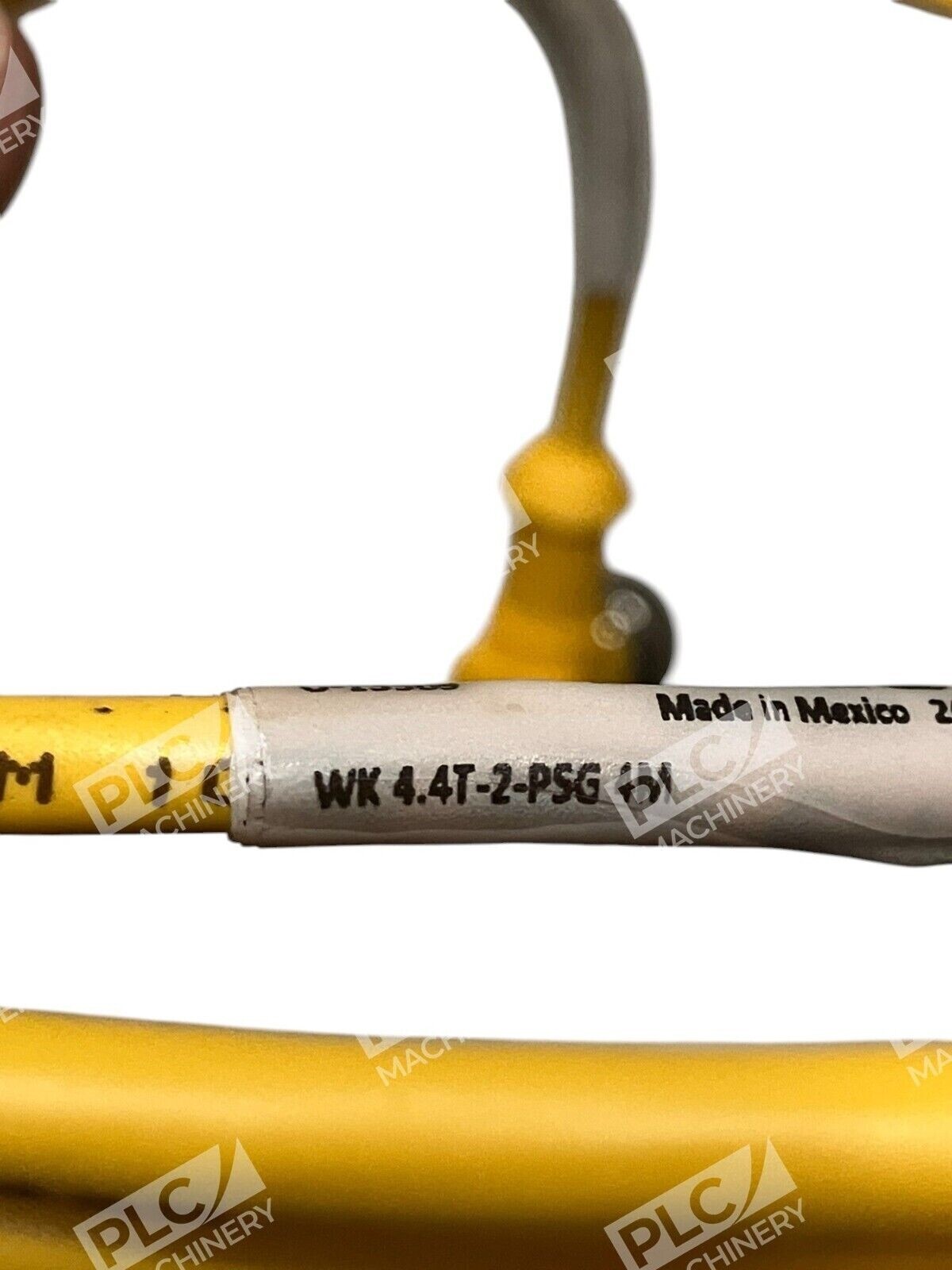

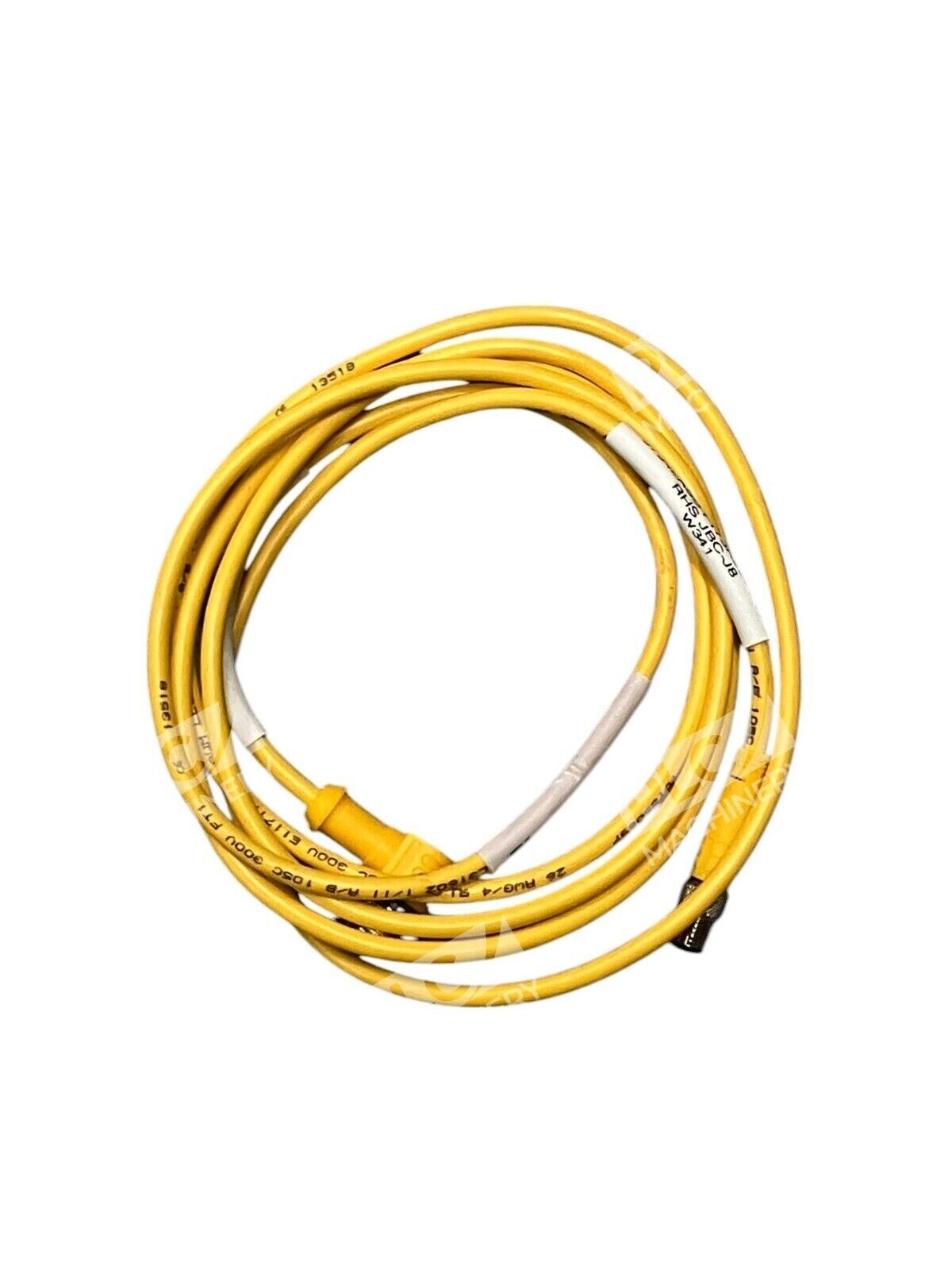

The Turck U-13509 WK 4.4T-2-PSG 4M is a robust double-ended cordset designed for reliable M12 sensor and actuator connectivity in industrial automation environments. This 4-meter cable assembly features M12 Eurofast connectors with 4-wire configuration and meets IP68 protection requirements for harsh operational conditions.
Key Features
- Double-ended design with M12 Eurofast female (right-angle) and M8 Picofast male connectors
- 4-wire 22AWG conductor configuration
- PVC jacket with nickel-plated brass coupling nut for corrosion resistance
- IP68-rated connector sealing for outdoor and wash-down applications
- T-barb fitting for secure cable retention
- 4-meter cable length ideal for extended sensor-to-controller runs
Technical Specifications
- Rated Voltage: 125 VAC
- Rated Current: 2 A
- Wire Gauge: #22 AWG
- Number of Pins: 4
- Connector Type A: M12 × 1 Eurofast Female (Right Angle)
- Connector Type B: M8 Picofast Male
- Cable Length: 4 meters (13.12 feet)
- Jacket Material: PVC
- Coupling Nut: Nickel-plated Brass (CuZn)
- IP Rating: IP68
- NEMA Rating: NEMA 4, NEMA 6P
- Contact Material: Gold-plated Bronze
Typical Applications
The Turck U-13509 cordset is widely used in:
- Proximity and limit switch connections in packaging machinery
- Pressure and temperature sensor integration
- Flow meter and valve controller wiring
- Industrial automation control systems
- Outdoor and washdown environments requiring IP68 sealing
- Equipment retrofits and system expansions
Compatibility & Replacements
Compatible With
- Turck M12 Eurofast sensor and actuator products
- Standard M12 A-code (IEC 61076-2-101) industrial systems
- IP67/IP68-rated industrial control networks
- Legacy and redesigned M12 cordset ecosystems
Replaces / Drop-In Replacement For
- Turck WK 4.4T-2 series cordsets (verify cable length and connector type)
- Compatible with RK 4.4T-2-PSG 4M variants (verify end connector configuration)
Works With
- M12 A-code IEC 61076-2-101 standard connectors
- Turck sensor and actuator product lines
- Industrial PLC and distributed I/O systems
- Fieldbus and IP67/IP68 automation networks
