Overview

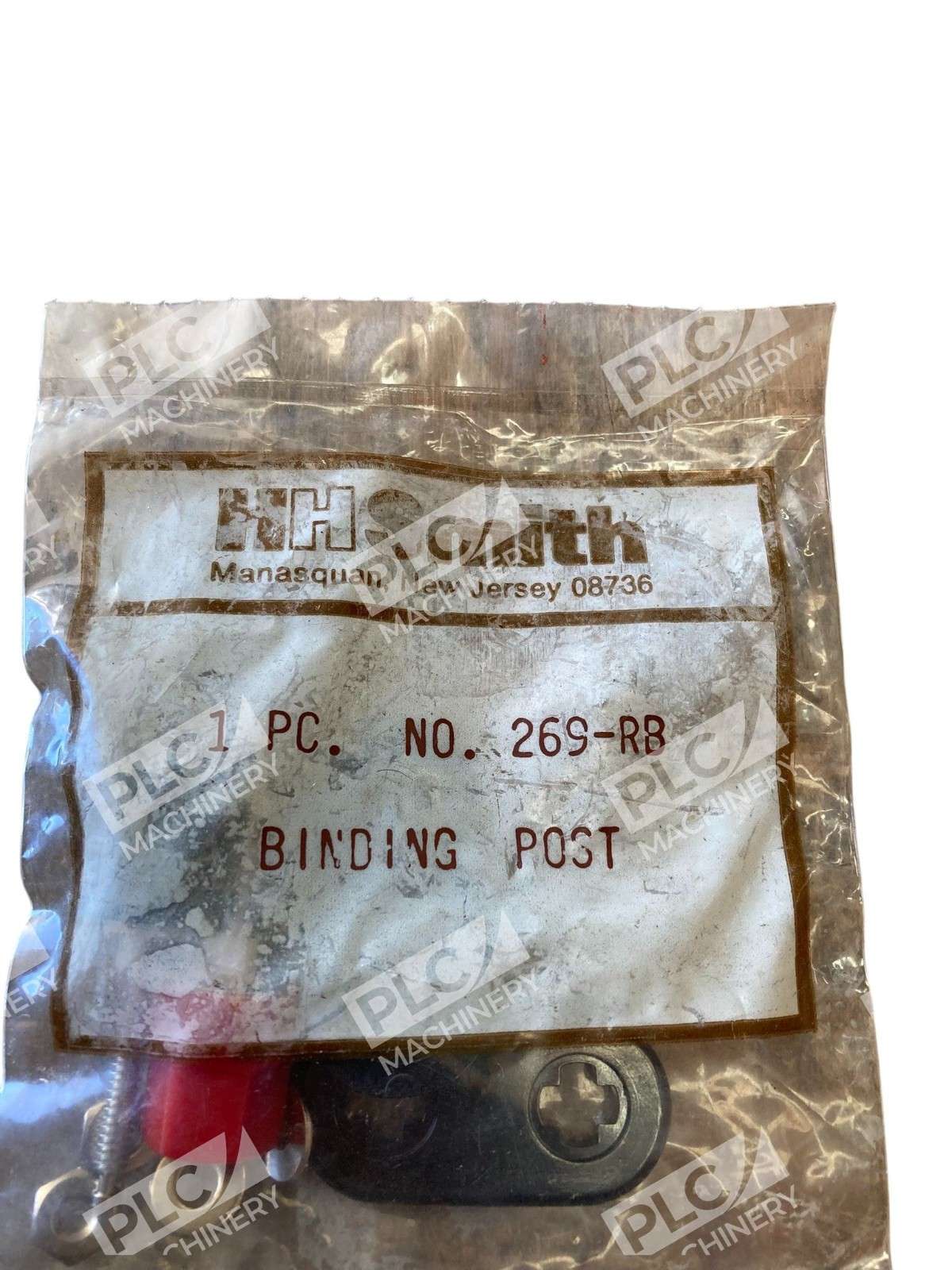

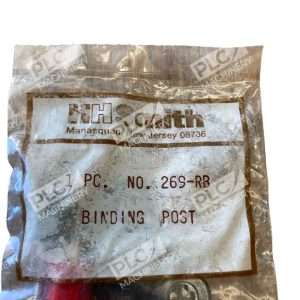

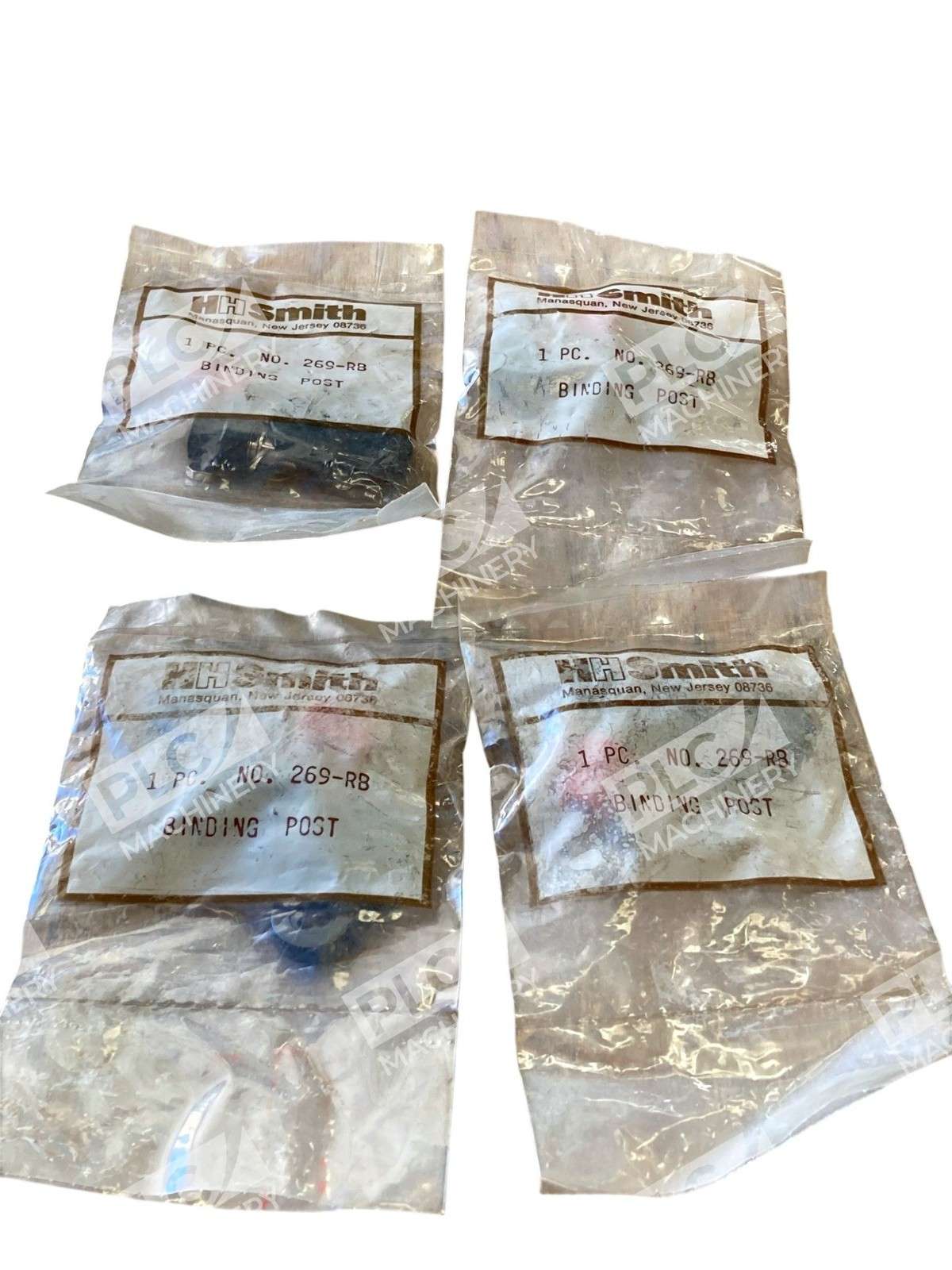

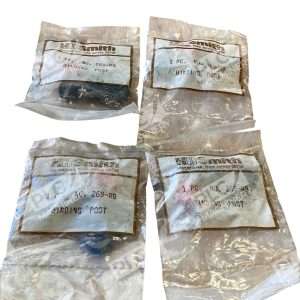

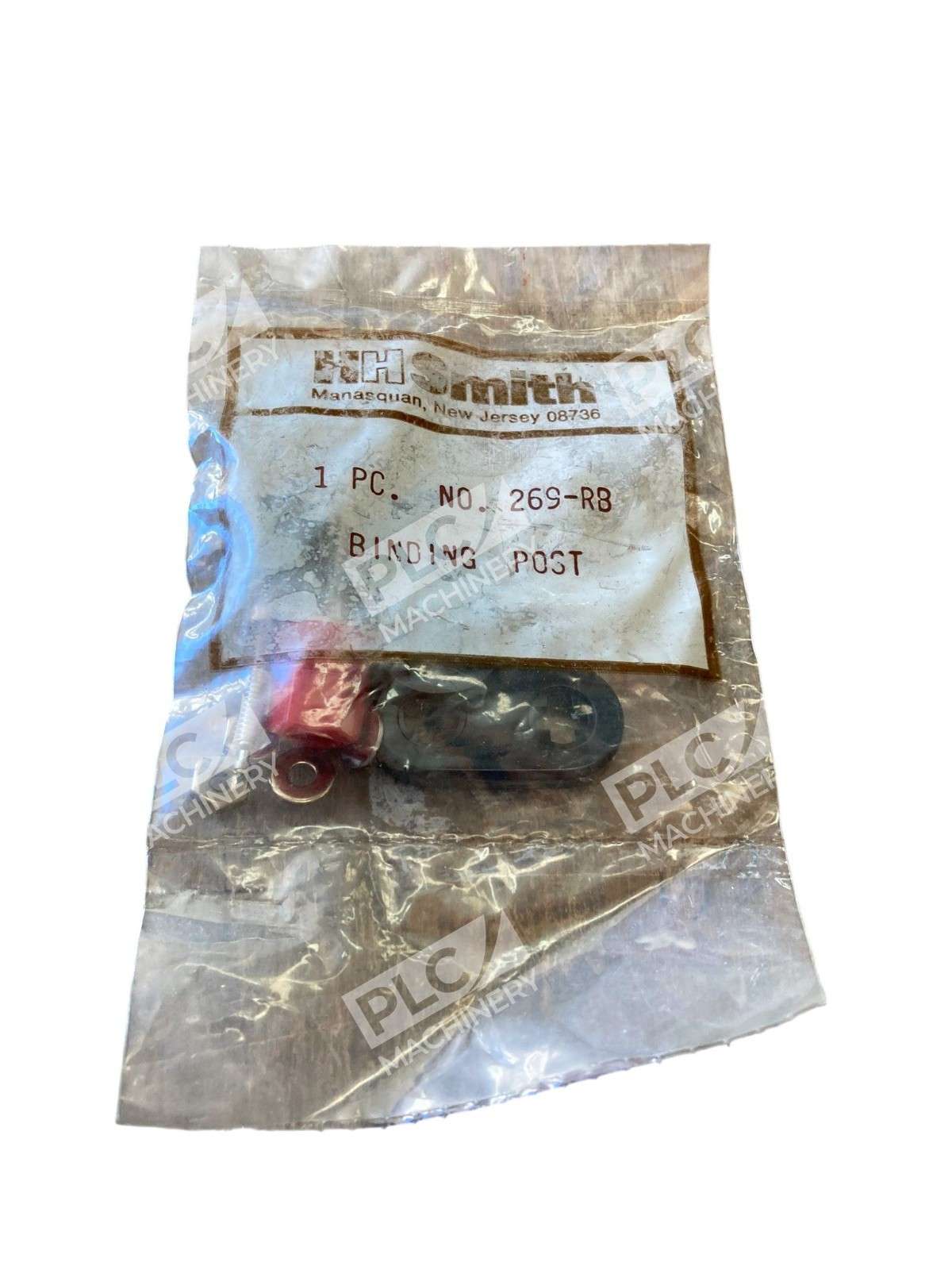

The HH Smith 269-RB binding post is a high-quality panel-mount connector designed for professional audio, test, and industrial applications. Each unit is rated for 30 A at 1 kV with tin-plated brass contacts, ensuring reliable connections in demanding environments. This pack of 4 provides ample inventory for multi-channel systems or backup stock.
Key Features

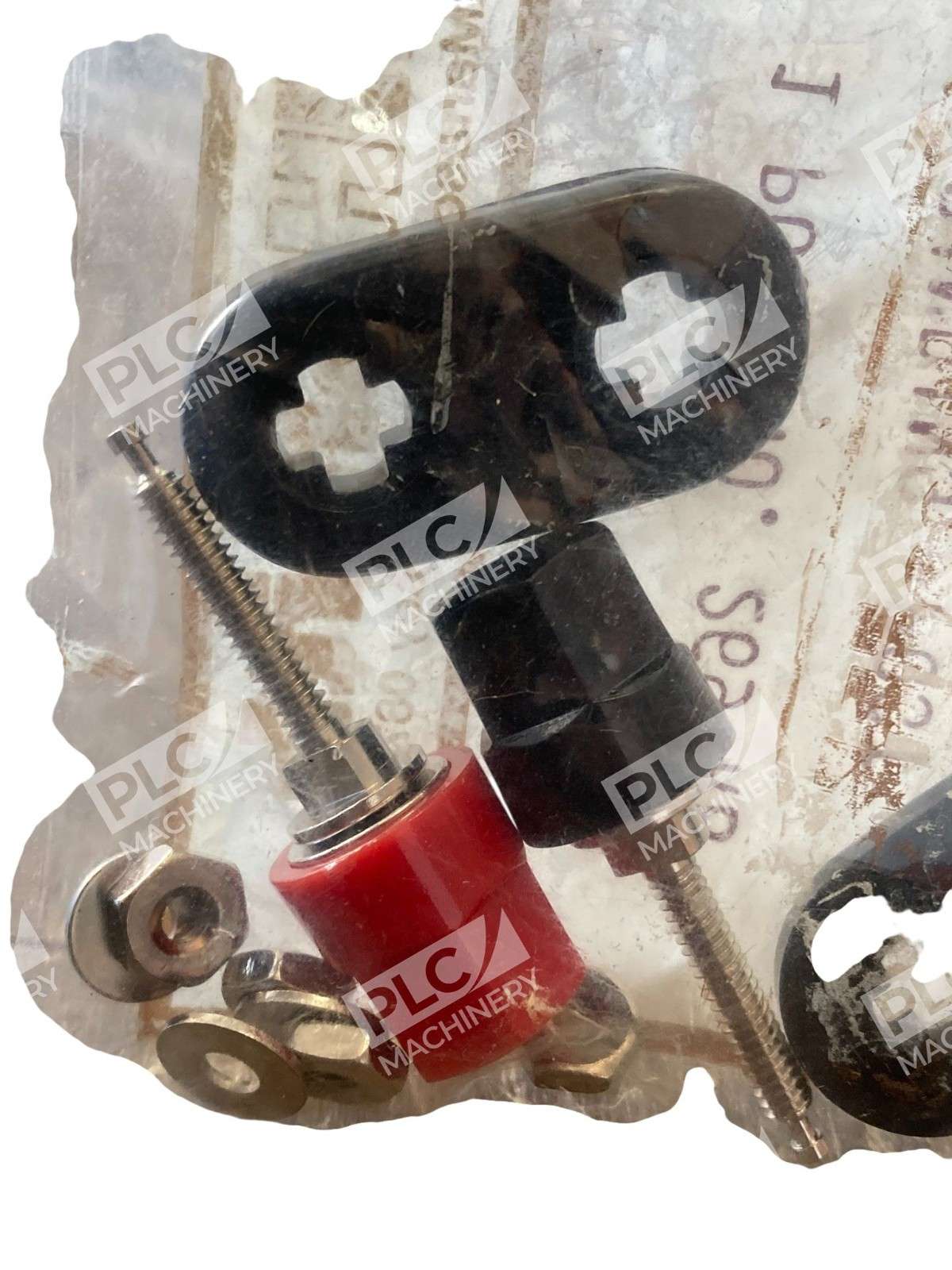

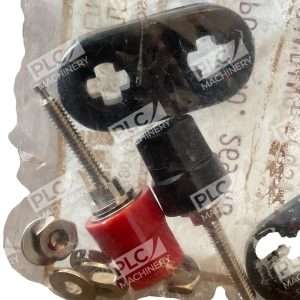

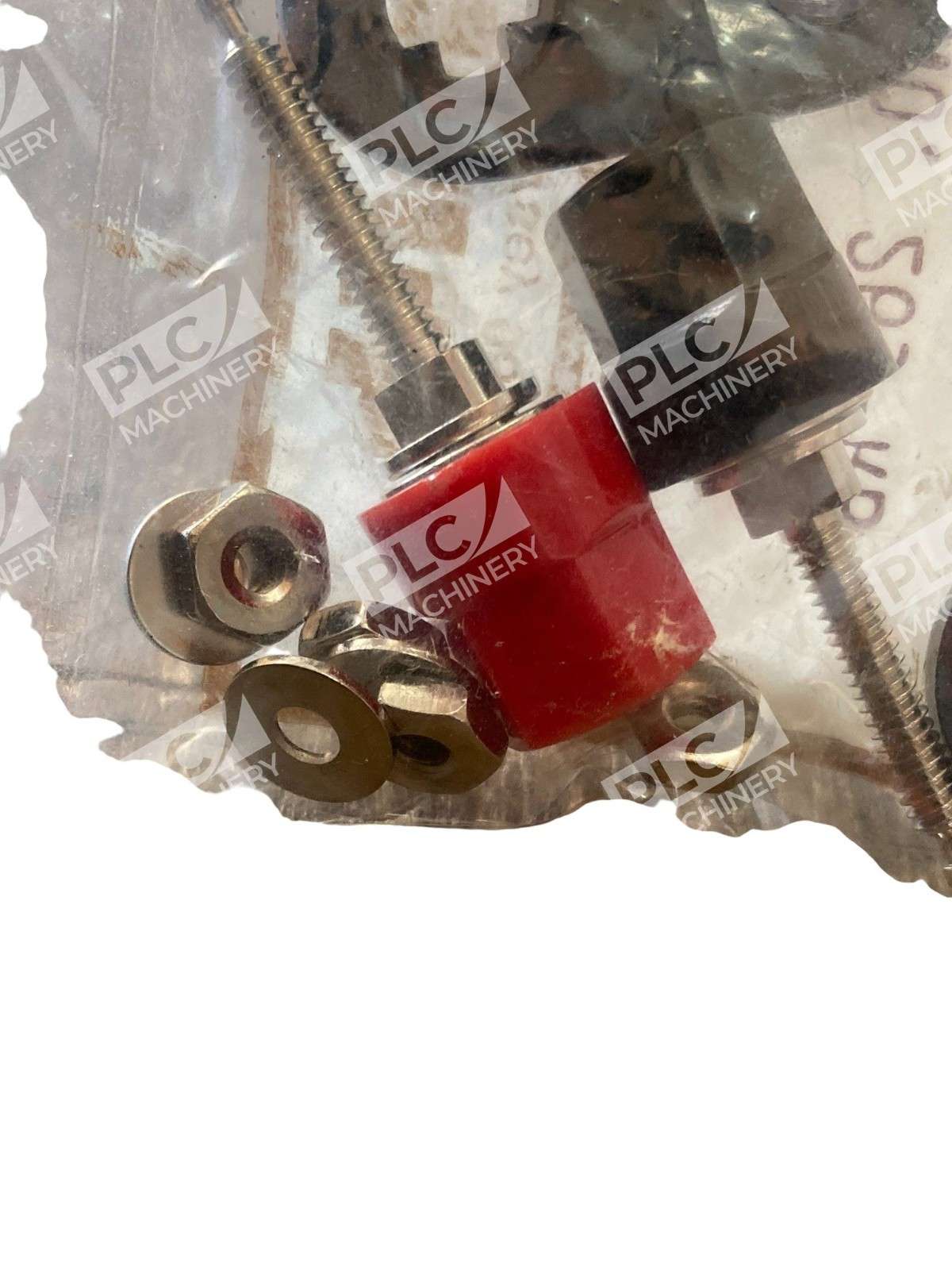

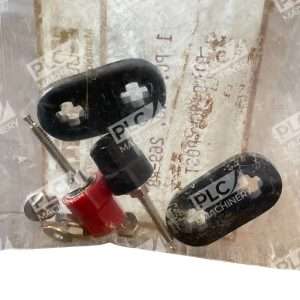

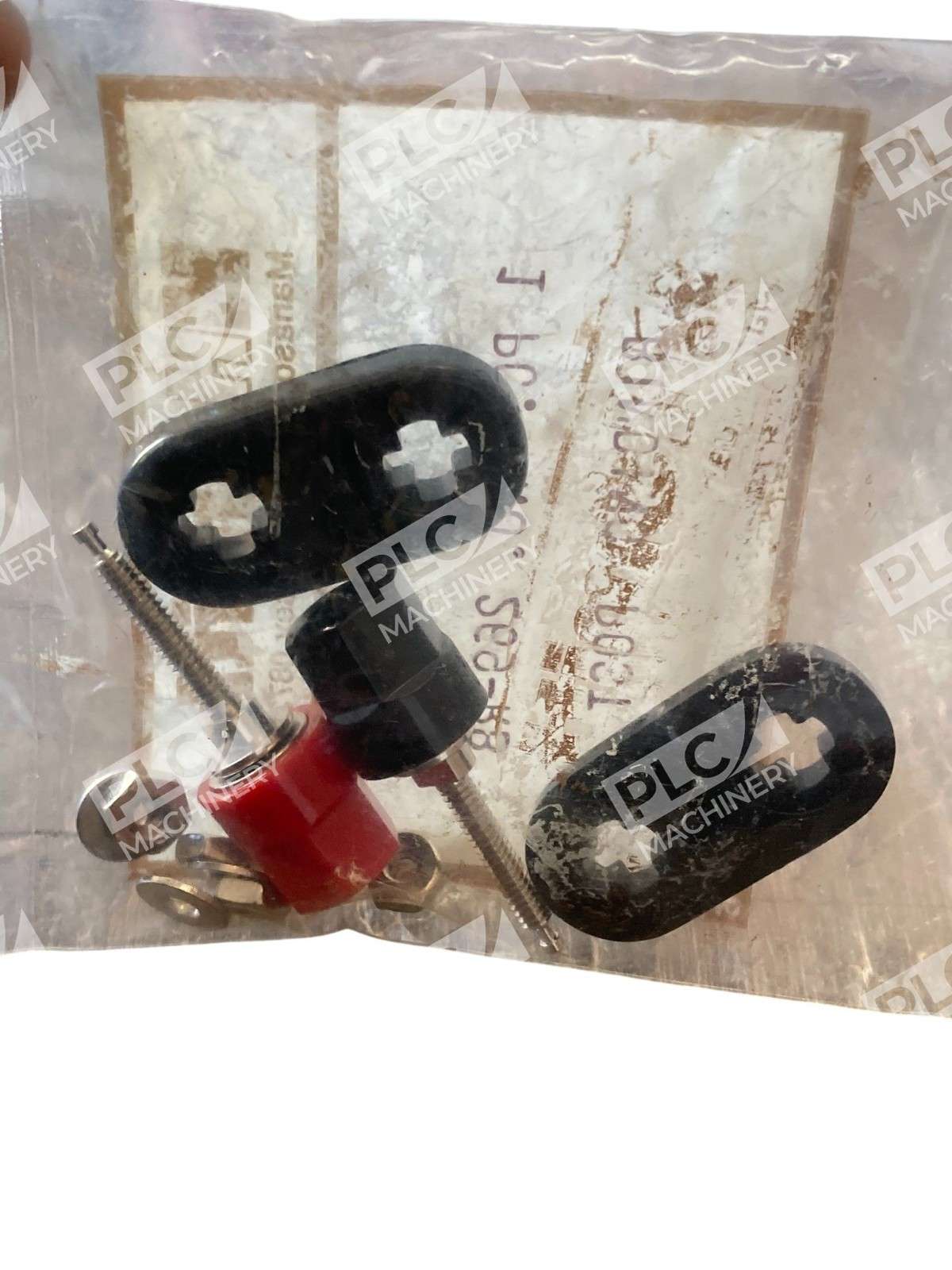

- Dual Red/Black Configuration: Color-coded posts include both black and red variants for polarity identification
- Robust Materials: Post head is molded Lexan polycarbonate and captivated to prevent loss; body is brass with plating
- Panel Isolation: Insulated washers are molded polycarbonate and completely insulate post from panel
- Universal Compatibility: Connects with .080″ phone tip plug, 1/4″ spade lug, standard banana plug, alligator clip or wire (to #14)
- Anti-Rotation Design: Body mounts in 3/8″ or 1/2″ round or “D” hole for anti-rotation
Technical Specifications
- Current Rating: 30 A
- Voltage Rating: 1 kV
- Contact Material: Brass
- Contact Plating: Tin-plated
- Insulation Material: Polycarbonate (Lexan)
- Mounting Type: Panel Mount
- Colors: Red and Black
- Weight per Unit: 0.0642 oz (approx.)
- RoHS Compliant: Yes
Typical Applications
- Audio speaker systems and amplifier connections
- Test and measurement equipment (oscilloscopes, power supplies)
- Laboratory and industrial control panels
- High-voltage insularity in chassis-mounted assemblies
- General-purpose wiring and safety isolation
Compatibility & Replacements
Compatible With
- Standard banana plugs
- 1/4″ spade lugs
- .080″ phone tip plugs
- Alligator clips
- Solid wire up to #14 AWG
- Any panel-mount application with 3/8″ or 1/2″ hole
Replaces / Drop-In Replacement For
- Other insulated dual binding posts in the 200 Series range
- Legacy test and audio connectors requiring dual-position red/black posting
Works With
- Standard audio amplifier and speaker wire terminations
- Oscilloscope and multimeter test leads
- Laboratory power supply connections
- General electrical panel assemblies
