Overview

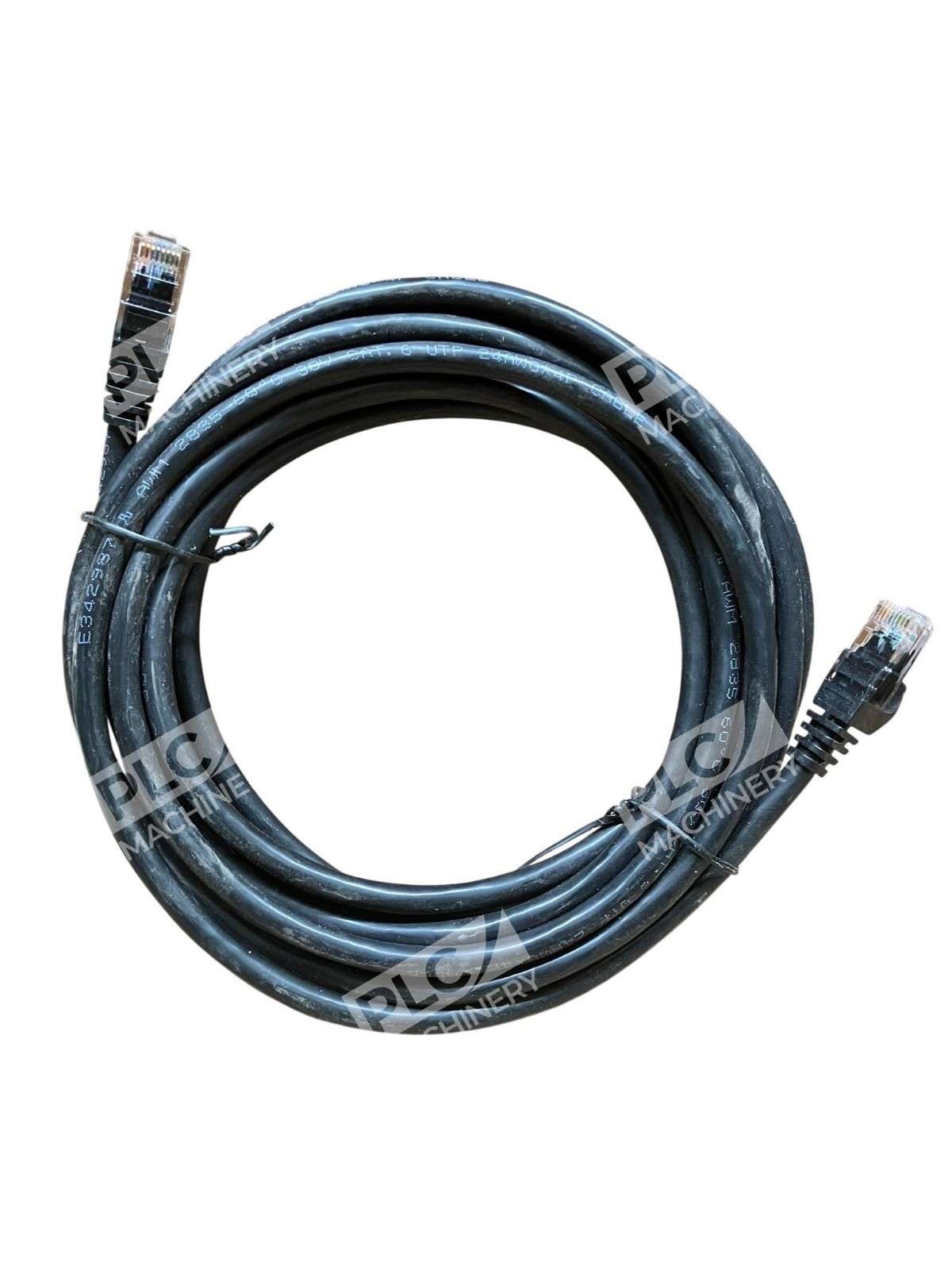

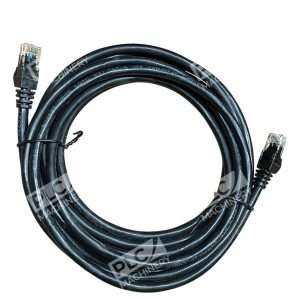

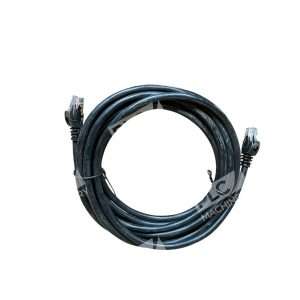

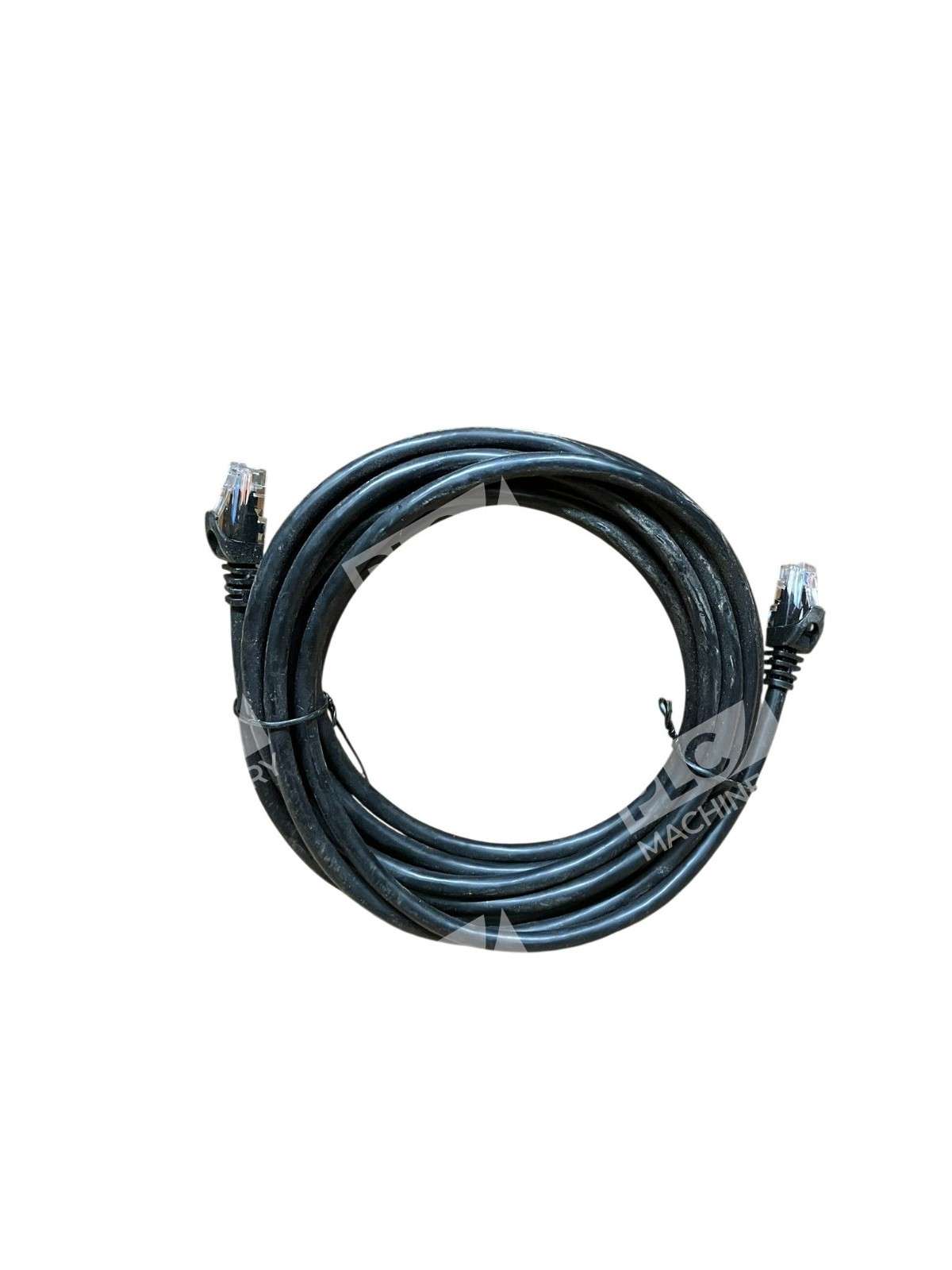

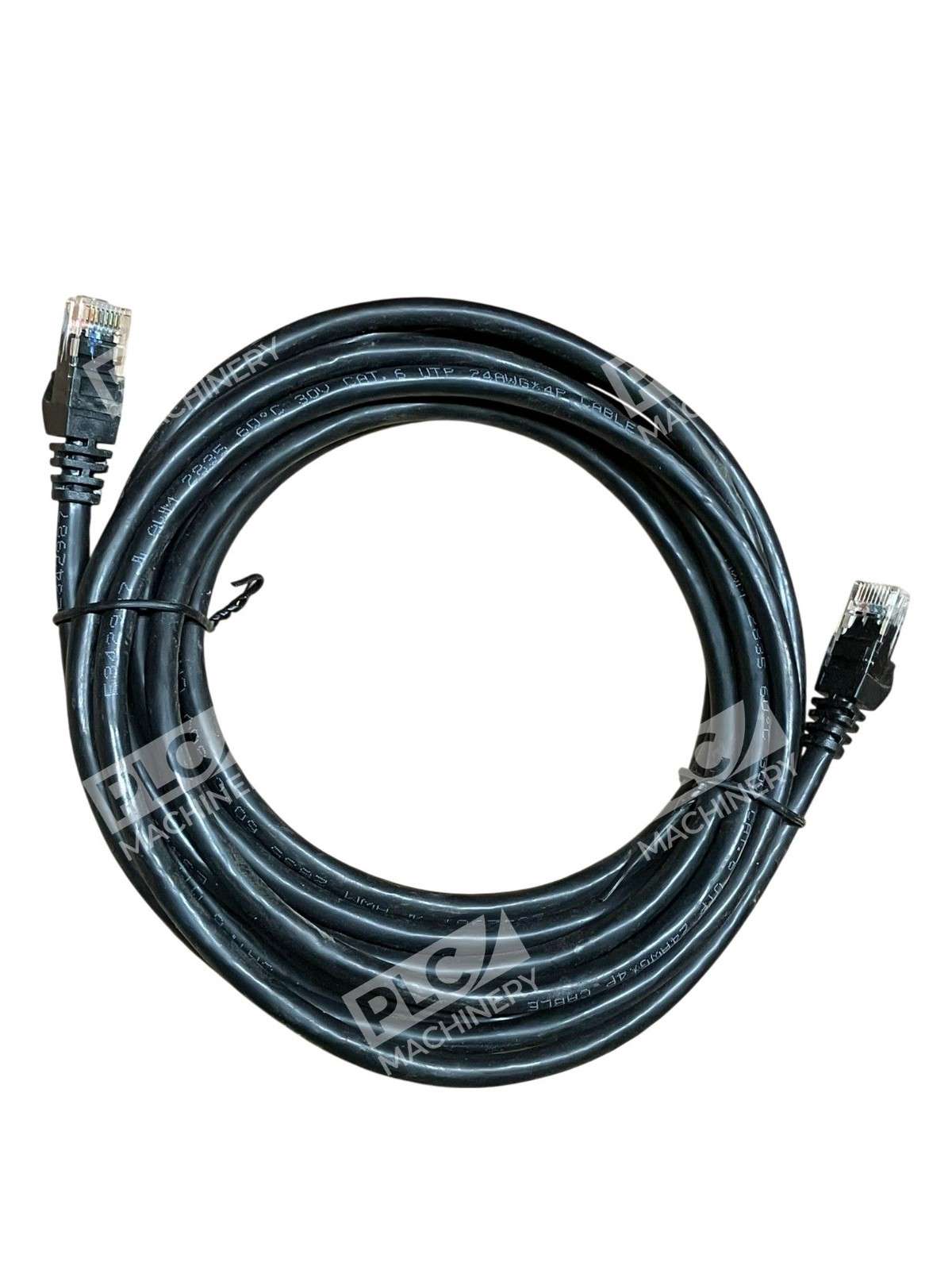

The AWM E342987 is a stranded UTP (Unshielded Twisted Pair) Ethernet patch cable engineered for high-speed 10/100/1000Mbps gigabit networks. Featuring standard RJ-45 (8P8C) connectors and 100MHz bandwidth capability, this cable supports reliable data transmission for local area networks (LANs), office networking, and equipment interconnection. The stranded conductor design offers flexibility for frequent installation and removal, while snag-less connectors reduce the risk of damage during deployment.
Key Features
- Stranded copper conductor construction for flexibility and durability
- Unshielded Twisted Pair (UTP) design per TIA/EIA standards
- 10/100/1000Mbps gigabit Ethernet transmission support
- 100MHz bandwidth for standard Cat5e/Cat6 network compatibility
- Snag-less molded RJ-45 connectors protect strain relief tabs
- Universal compatibility with standard Ethernet network devices
Technical Specifications
- Transmission Rate: 10/100/1000Mbps (Gigabit Ethernet)
- Bandwidth: 100MHz
- Cable Type: UTP (Unshielded Twisted Pair)
- Connector Type: RJ-45 (8P8C)
- Conductor: Stranded copper
- Wiring Standard: TIA/EIA 568B.2
- UL/AWM Rating: AWM 2835 60°C 30V VW-1
- Impedance: 100 Ohms
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 70°C
Typical Applications
- Connecting computers to routers, switches, and network hubs
- LAN patch panel cabling for office and datacenter installations
- Network printer and scanner connectivity
- Gigabit Ethernet equipment interconnection
- Server and workstation network connections
- DSL/Cable modem and network appliance connectivity
Compatibility & Replacements
Compatible With
- IEEE 802.3 Ethernet (10BASE-T)
- IEEE 802.3u Fast Ethernet (100BASE-TX)
- IEEE 802.3ab Gigabit Ethernet (1000BASE-T)
- Standard RJ-45 Ethernet ports on network devices
- Network switches, routers, hubs, and patch panels
- Computers, servers, printers, and network appliances
Replaces / Drop-In Replacement For
This cable meets universal Ethernet standards and works with any TIA/EIA 568B.2 compliant RJ-45 Ethernet cable. Verify your specific cable length and connector requirements before ordering.
Works With
- All standard Ethernet networks (10BASE-T, 100BASE-TX, 1000BASE-T)
- TIA/EIA 568B.2 wiring standards
- Network operating systems (Windows, Linux, macOS)
- Commercial network management systems
- VoIP and data convergence networks
