Overview

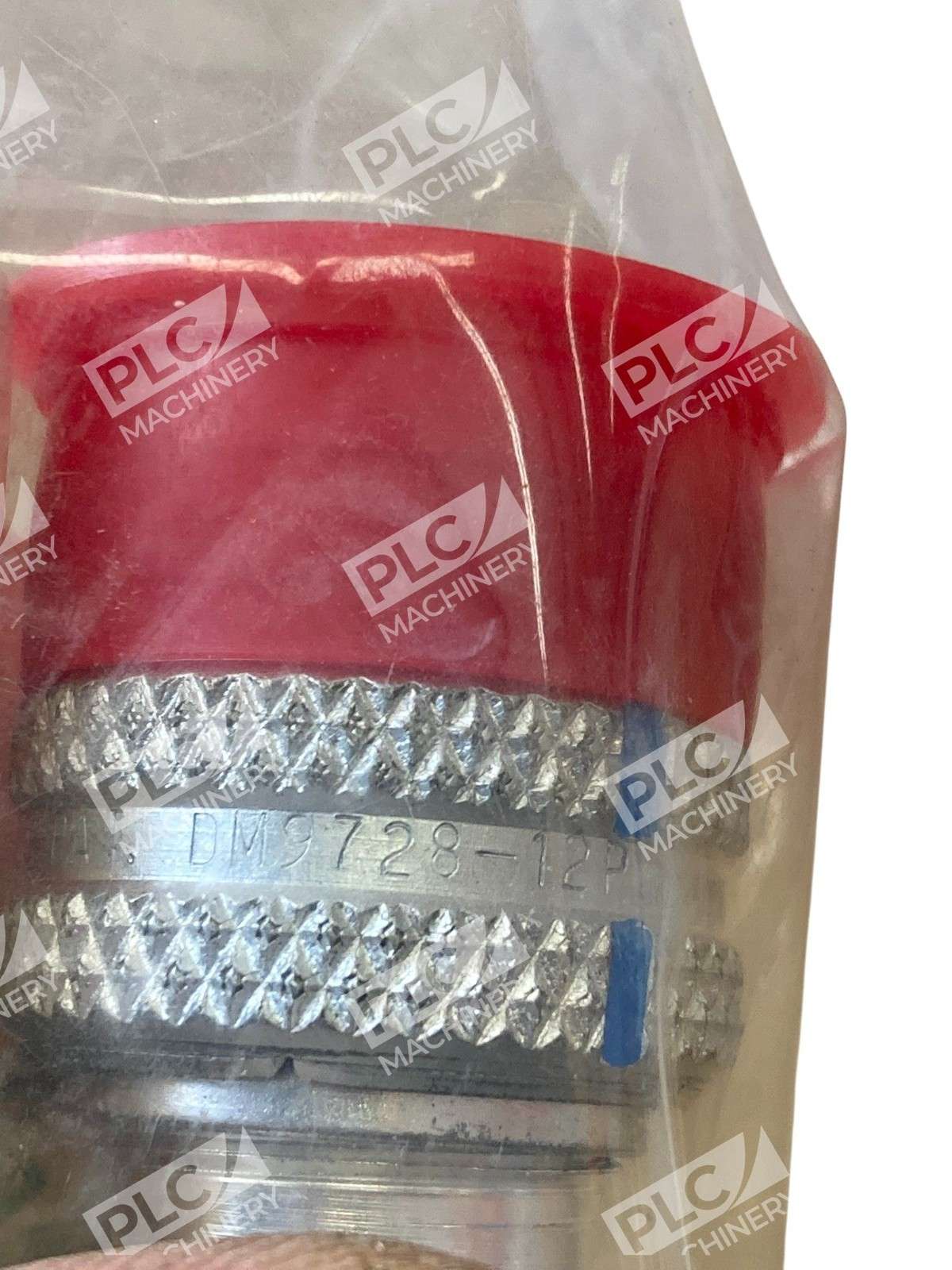

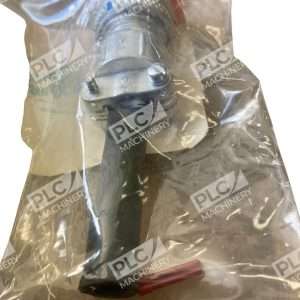

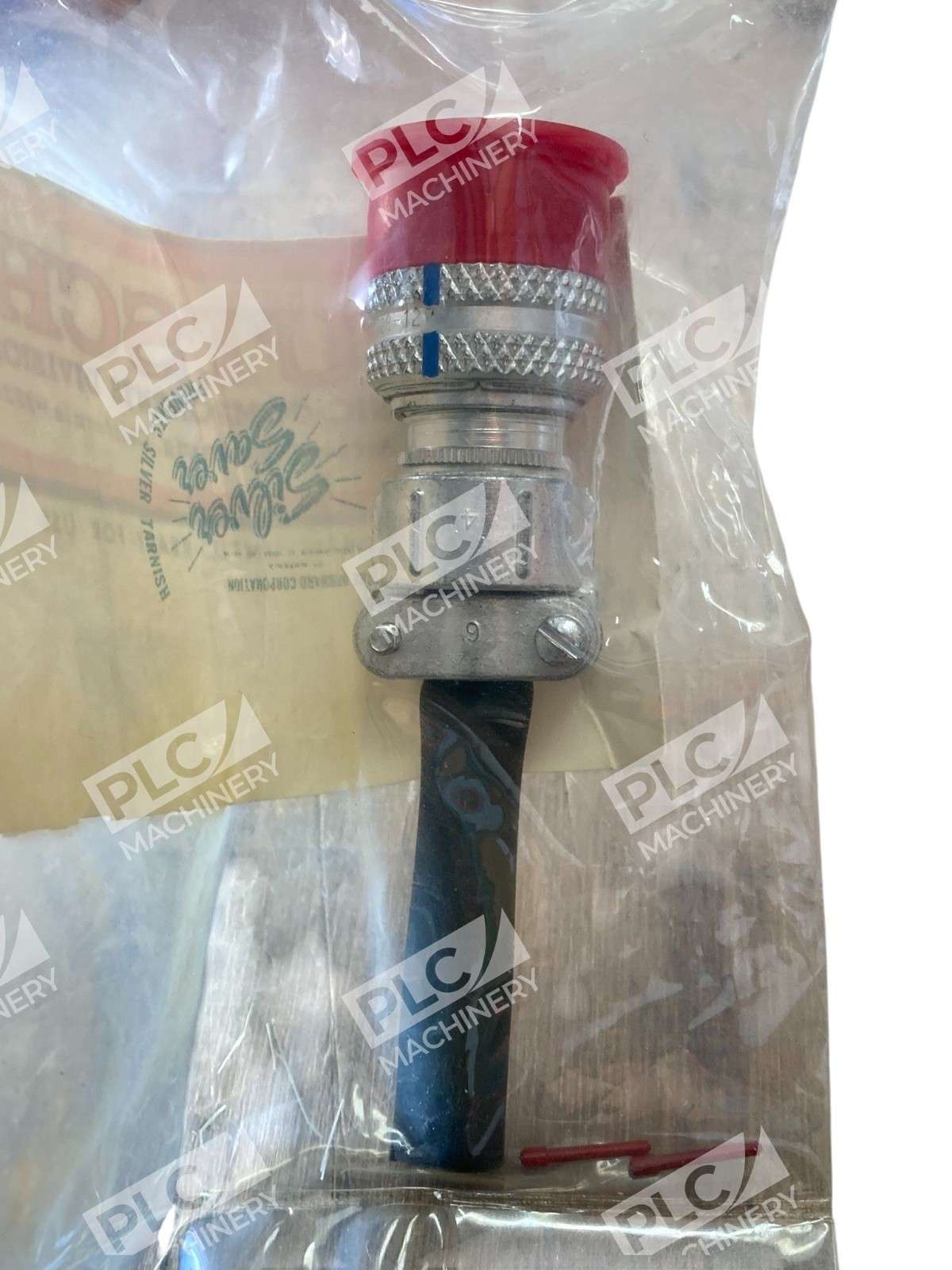

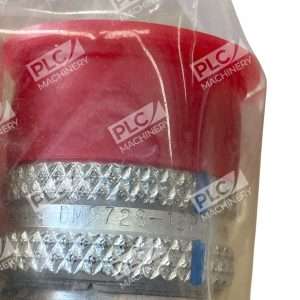

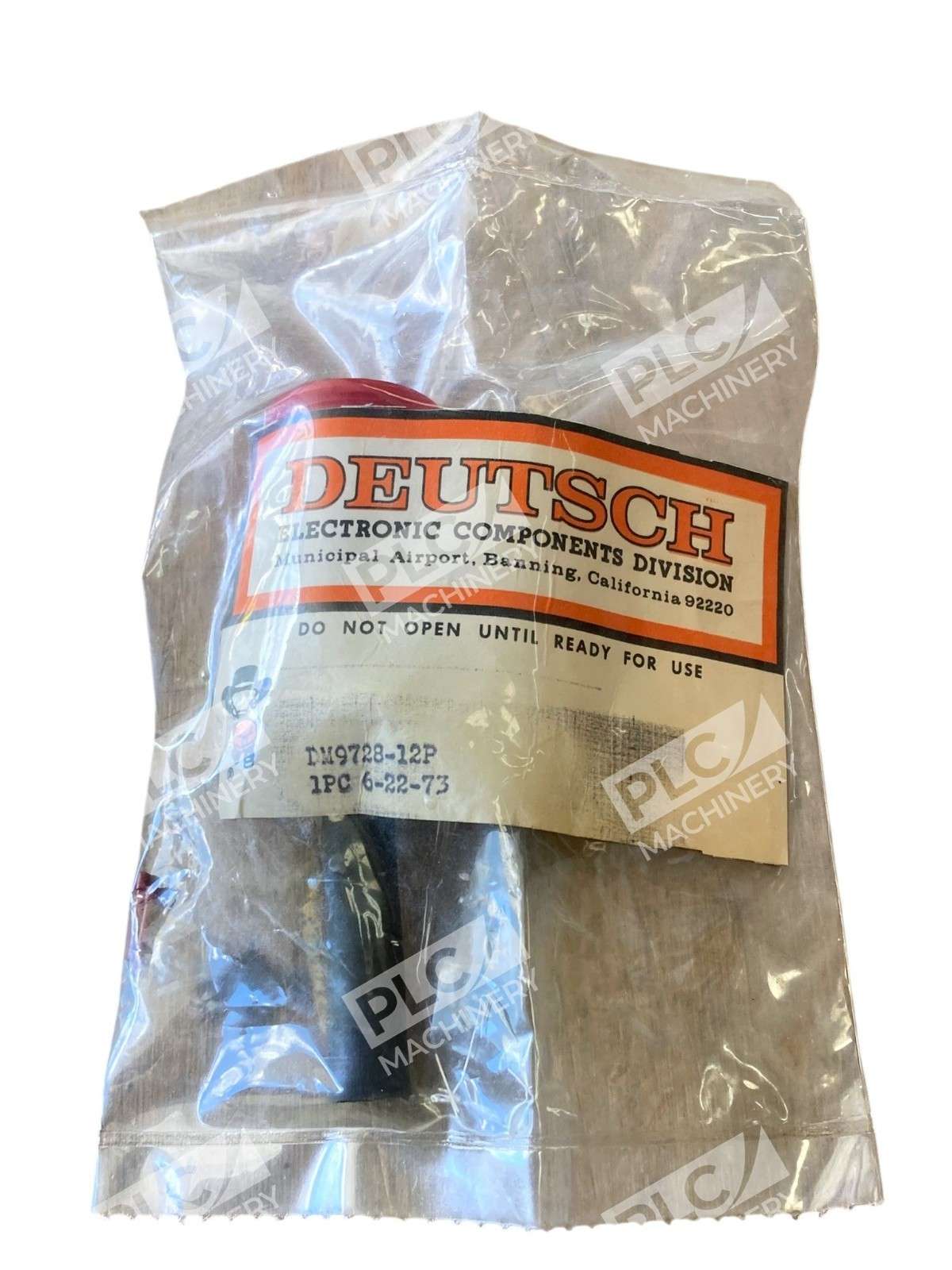

The DEUTSCH DM9728-12P is a 12-pin rectangular connector engineered for demanding industrial and transportation applications requiring secure wire and cable connections. This connector is manufactured by TE Connectivity (DEUTSCH) and represents the brand’s commitment to field-proven reliability and rugged quality in connectors designed for harsh environments.
Key Features
- 12-pin rectangular connector configuration
- Designed for secure, latch-style mating connection
- Integral keying to prevent incorrect mating and damage
- Accepts size 16 contacts with 13 amp continuous capacity per contact
- Secondary wedge lock system ensures full contact seating and security
- Field-proven reliability in industrial and transportation sectors
Technical Specifications
The DEUTSCH DM9728-12P connector accepts solid or stamped & formed size 16 contacts. It features integral latch-style mating and color-coded keying for 12-pin arrangements, helping prevent incorrect connection and associated equipment damage. The connector assembly includes both the housing and secondary wedge lock to secure contacts in place.
Typical Applications
The DM9728-12P is commonly used in:
- Heavy-duty truck and bus wiring harnesses
- Off-highway vehicle electrical systems
- Agricultural equipment connectivity
- Industrial control and automation systems
- Construction equipment power distribution
- Marine and transportation electrical integration
Compatibility & Replacements
Compatible With
- DEUTSCH Size 16 solid and stamped & formed contacts
- DEUTSCH secondary wedge lock systems
- Standard 12-pin rectangular connector installations
- Industrial electrical harness assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment documentation before ordering. Specific replacement information should be confirmed with the connector manufacturer (TE Connectivity) or your original equipment specifications.
Works With
- DEUTSCH connector extraction and assembly tools
- Standard wire crimping equipment for size 16 contacts
- Industrial-grade cable and wire harness systems
- Backshells designed for DT and DTM series connectors
