Overview

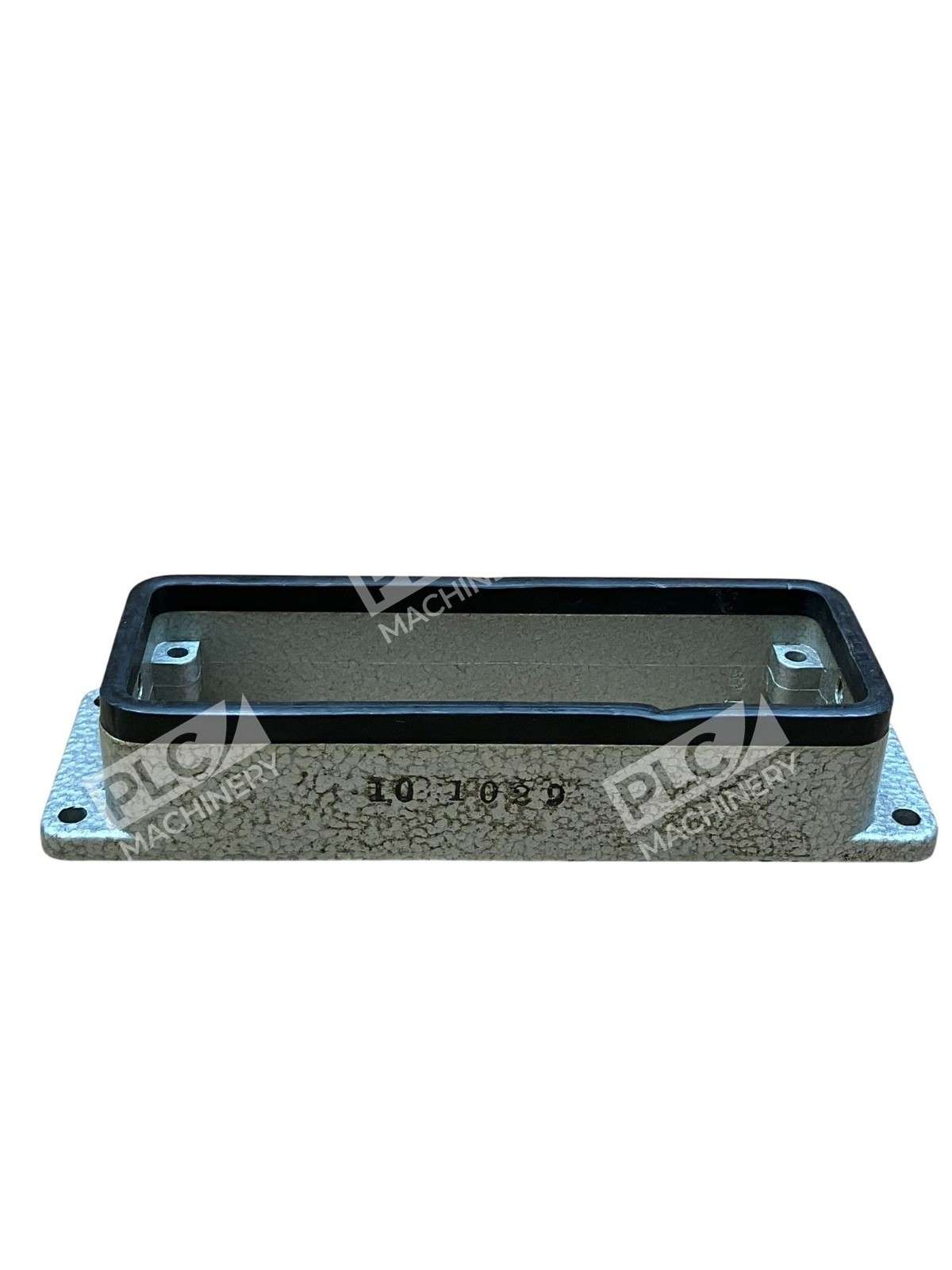

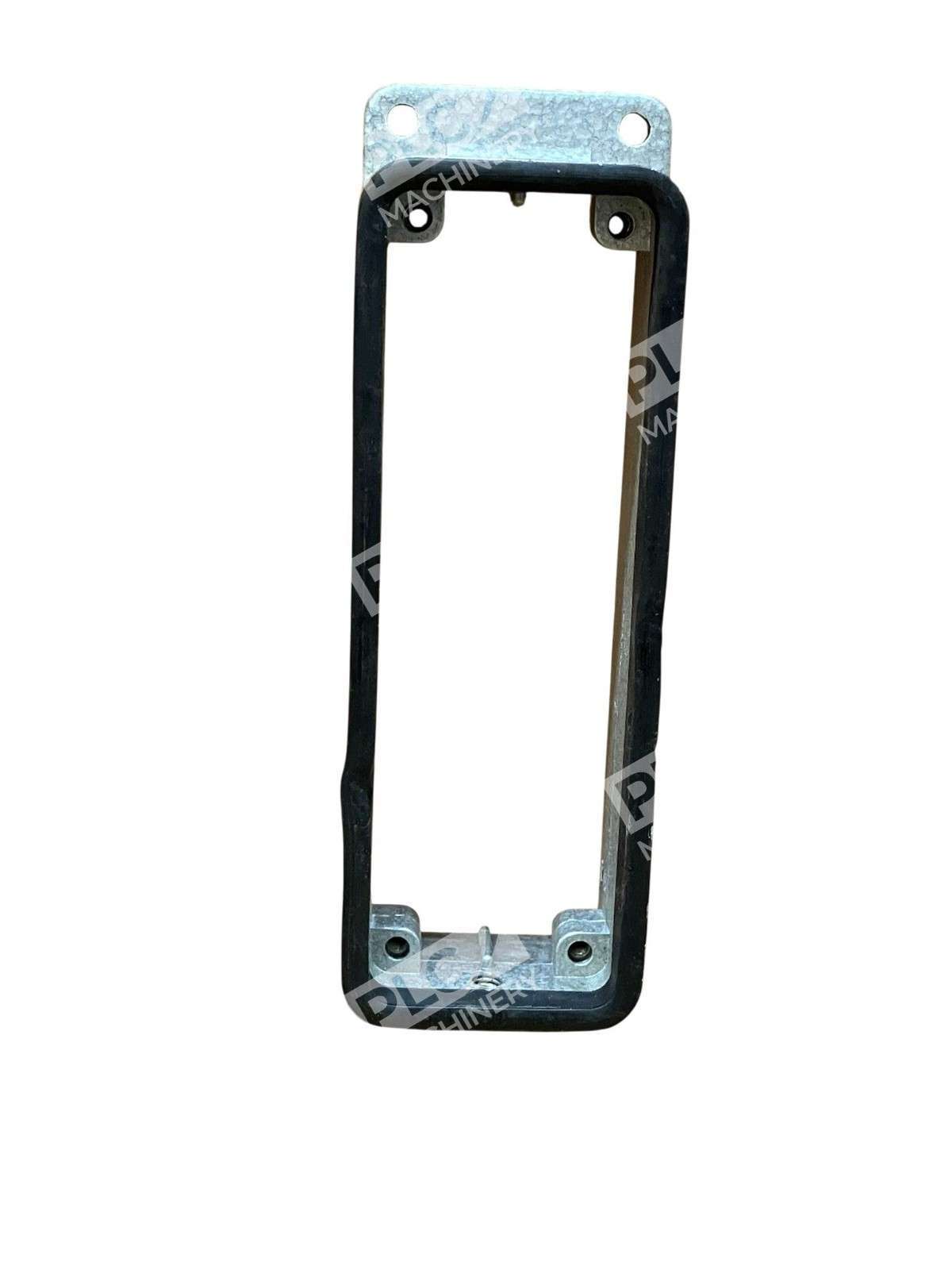

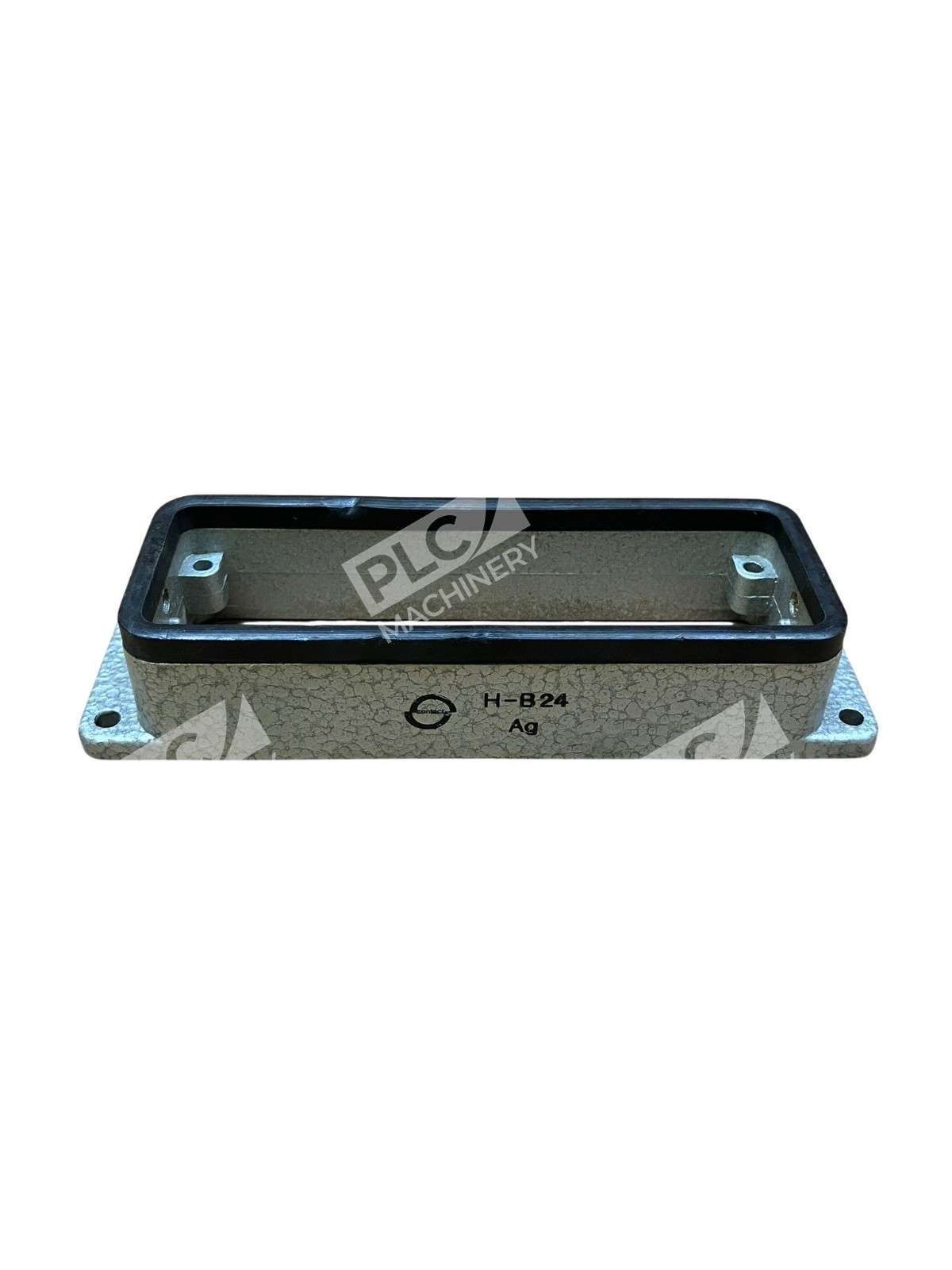

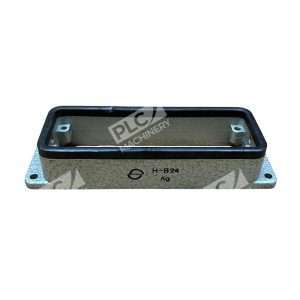

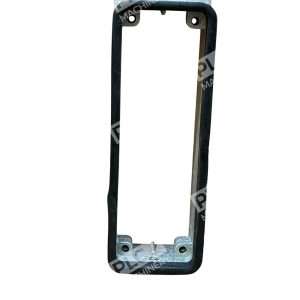

The Epic H-B24 AG heavy-duty connector housing is a universal rectangular connector solution manufactured by Lapp Group for industrial power, signal, and data applications. Built with robust metal construction and double lever locking mechanism, this bulkhead base housing provides secure connection and disconnection in hostile or demanding environments. The H-B24 AG integrates a protective seal to maintain environmental integrity and supports modular insert assemblies.
Key Features
- Double lever design for increased operator safety and secure mating/unmating
- Universal metal housing with integrated seal for environmental protection
- Modular system compatibility—works with H-B24 insert and contact combinations
- VDE-certified production control for compliance in European industrial markets
- Robust construction suitable for investment manufacturing and hostile environments
- Direct cable entry option for simplified installation
Technical Specifications
The Epic H-B24 AG housing accommodates standard H-B24 rectangular connector inserts. Operating environment includes short-term temperature capability to approximately +125°C. Housing dimensions and mounting interfaces align with EPIC series 24-way connector standards. Cable terminations support screw, crimp, and cage clamp methods depending on selected insert configuration.
Typical Applications
The H-B24 AG is ideal for:
- Lighting and sound system interconnects in broadcast and entertainment
- Industrial machinery control panel connectors
- Power and signal distribution in harsh manufacturing environments
- Process automation and machine-to-machine cabling
- Modular system assemblies requiring frequent mating/unmating cycles
Compatibility & Replacements
Compatible With
- EPIC H-B24 rectangular insert systems (all pin configurations)
- Screw, crimp, and cage clamp termination inserts
- H-B24 hoods, bases, and cable gland accessories
- Modular connector kits for power, signal, and pneumatic integration
Replaces / Drop-In Replacement For
- Previous-generation H-B24 housings with equivalent lever and seal specifications
- Verify exact insert and contact compatibility with your system integrator before ordering to ensure pin count and termination method match application requirements.
Works With
- All standard EPIC H-B24 rectangular connector inserts and contact sets
- Cable glands and strain relief accessories from the Lapp H-B24 series
- Modular panel-mount and surface-mount base systems
- Industrial automation platforms requiring standardized heavy-duty connectors
